| Parameter Specifications | Unit | Value / Capacity | |
|---|---|---|---|
| Max. drilling depth | m | 650 | |
| Drilling diameter | mm | 200-350 | |
| Hole diameter of covering layer | mm | 300-500 | |
| Length of drill rod | m | 4.5 | |
| Diameter of drill rod | mm | Ф102/89 | |
| Axial pressure | kN | 400 | |
| Lifting force | kN | 400 | |
| Slow down, slow speed | m/min | 9.2 | |
| Rise fast, fast forward speed | m/min | 30 | |
| Truck Chassis | HOWO 8*4/6*6 | ||
| Rotary Torque | N.m | 20000 | |
| Rotary Speed | rpm | 0-120 | |
| Engine power (Cummins engine) | KW | 160 | |
| Mud Pump | Displacement | L/min | 850 |
| Pressure | Mpa | 5 | |
| Air compressor (Optional) | Pressure | Mpa | 2.4 |
| Air Volume | m³/min | 35 | |
| Overall dimension | mm | 10268*2496*4200 | |
| Weight | t | 18 | |
Equipped with a robust Cummins engine or custom electric power configuration to match specific project demands.
Versatile chassis options including crawler, trailer, or heavy truck mount configurations (optional 6×6 or 8×4 truck).
Perfect synchronization between the hydraulic rotary head, break in-out clamp device, advanced motor-chain feeding system, and the auxiliary hydraulic winch.
Supports dual drilling methods, allowing for efficient processing through set covering layers and varying stratum soil structures.
Integrated compatibility with air compressors and DTH hammers for high-efficiency rock penetration using advanced air drilling.
Equipped with patented hydraulic rotating systems, high-displacement mud pumps, and hydraulic winches for circulation drilling methods.
Features an independent air-cooled hydraulic oil cooler with optional water cooler integration to maintain peak hydraulic performance in high-temperature environments.
Configured with two-speed hydraulic speed regulation in rotating, thrusting, and lifting units to perfectly match specific drilling situations.

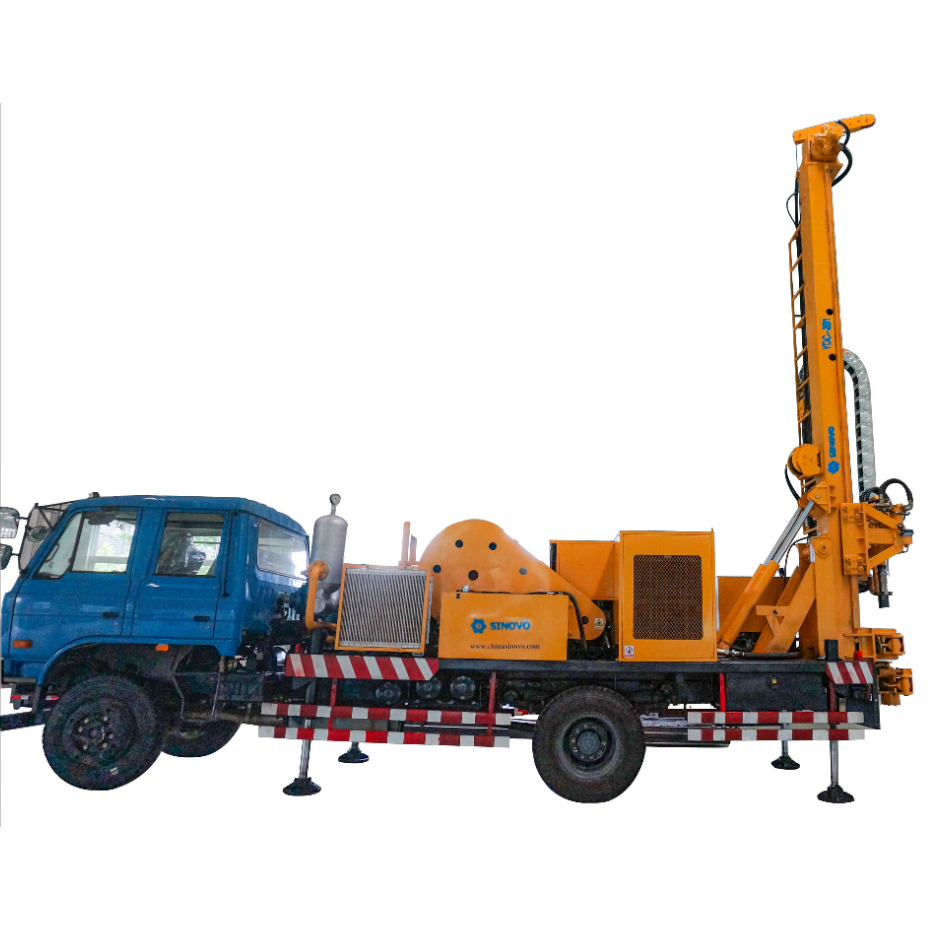

Four heavy-duty hydraulic leveling jacks ensure stable, precise setup. Optional extended jacks permit effortless self-loading and unloading to minimize transport costs.

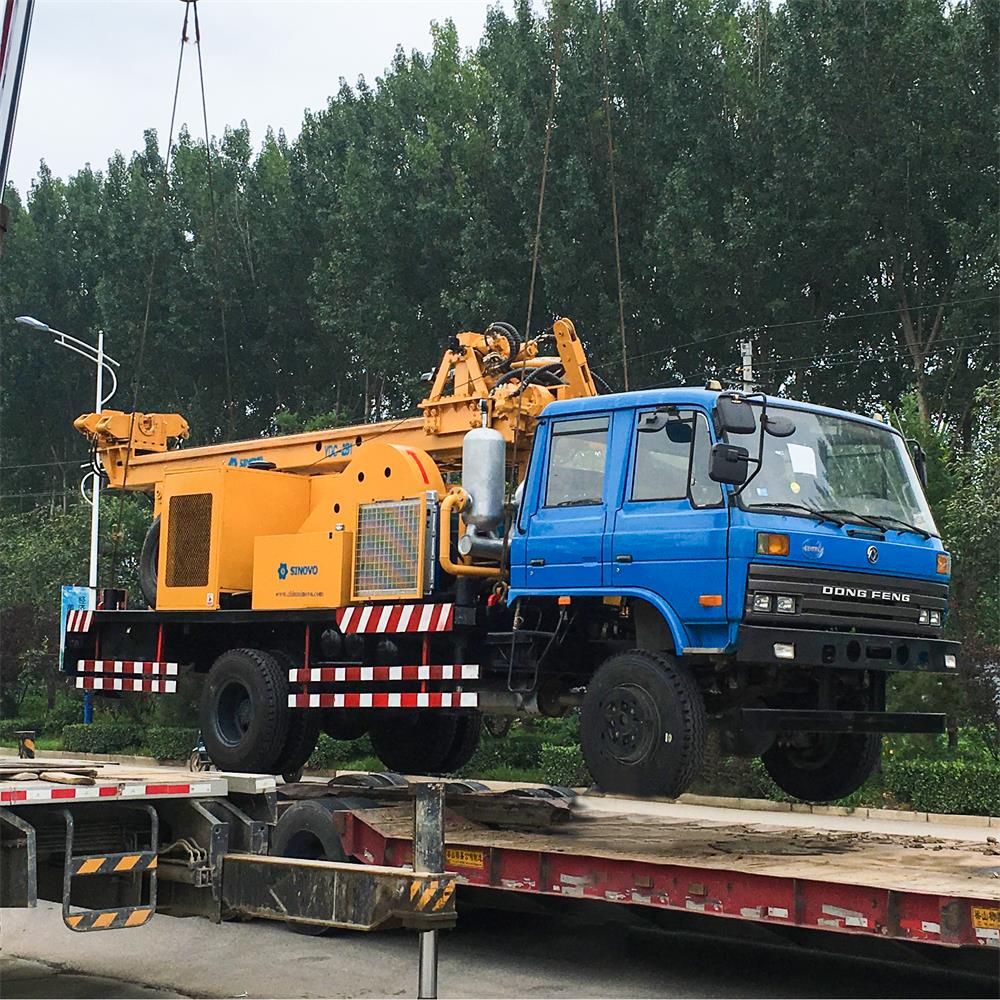

The YDC-2B1 hydraulic drilling rig delivers a maximum drilling depth of up to 650 meters, providing high reliability for deep water exploration.
This system offers highly adaptable options including crawler, trailer, or heavy truck mounting. It supports heavy 6x6 or 8x4 truck platforms such as HOWO.
Yes, when configured with a high-pressure air compressor and a DTH (Down-the-Hole) hammer, it utilizes air drilling to penetrate hard rock layers efficiently.
It features an independent air-cooled hydraulic oil cooler. Additionally, a water cooler can be installed to ensure the system operates continuously and efficiently under high-temperature climates.

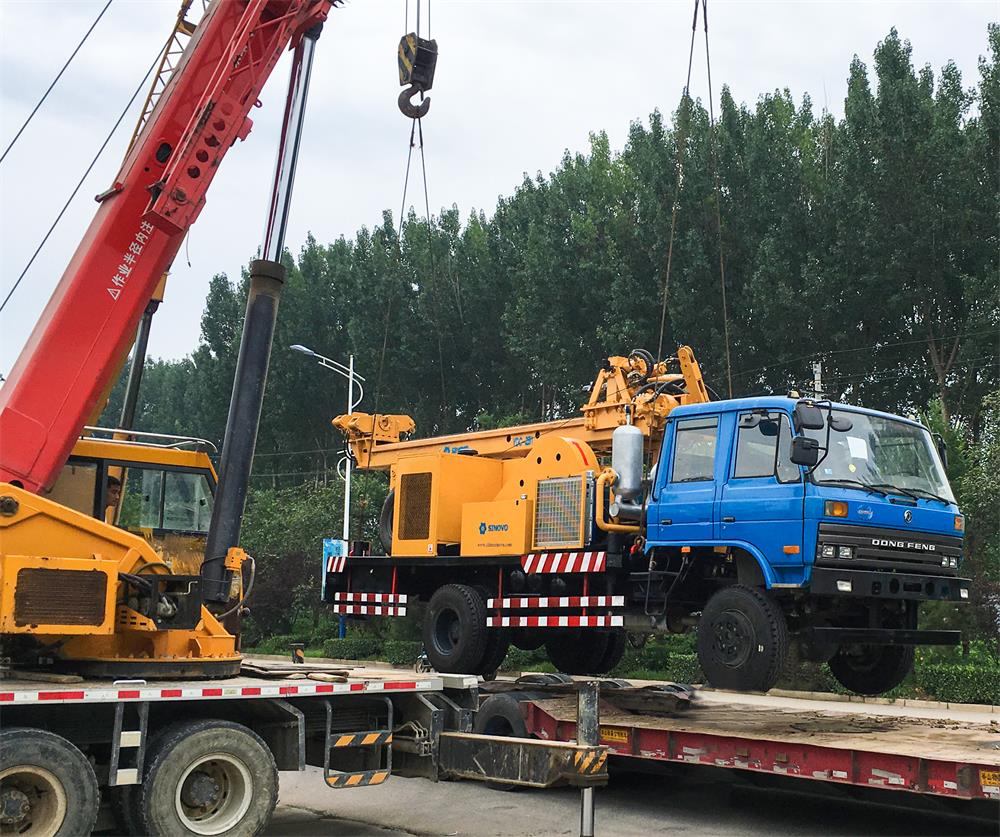

The machine features four hydraulic support jacks. If the optional extended jacks are selected, the rig can lift itself enough to facilitate easy self-loading and unloading on transport trucks without extra crane machinery.
