OEM SPS37 Hydraulic Power Pack Manufacturer, Quotes

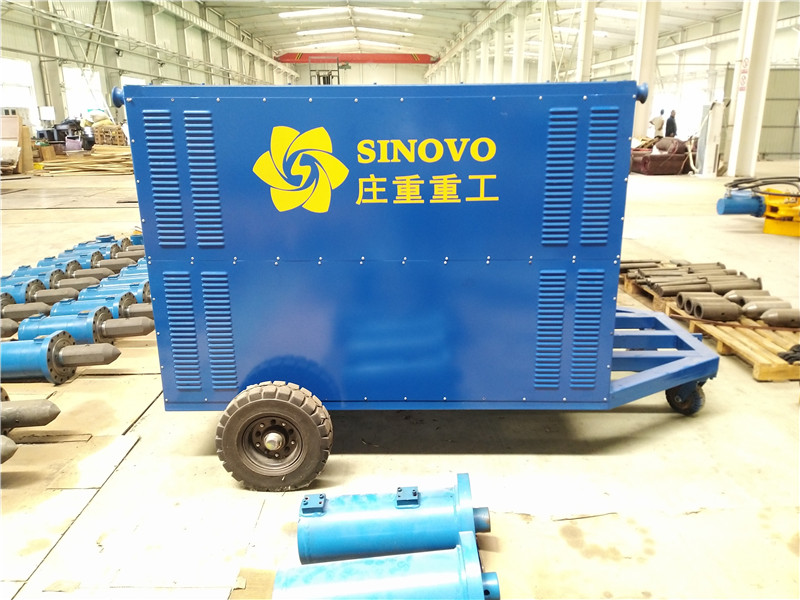

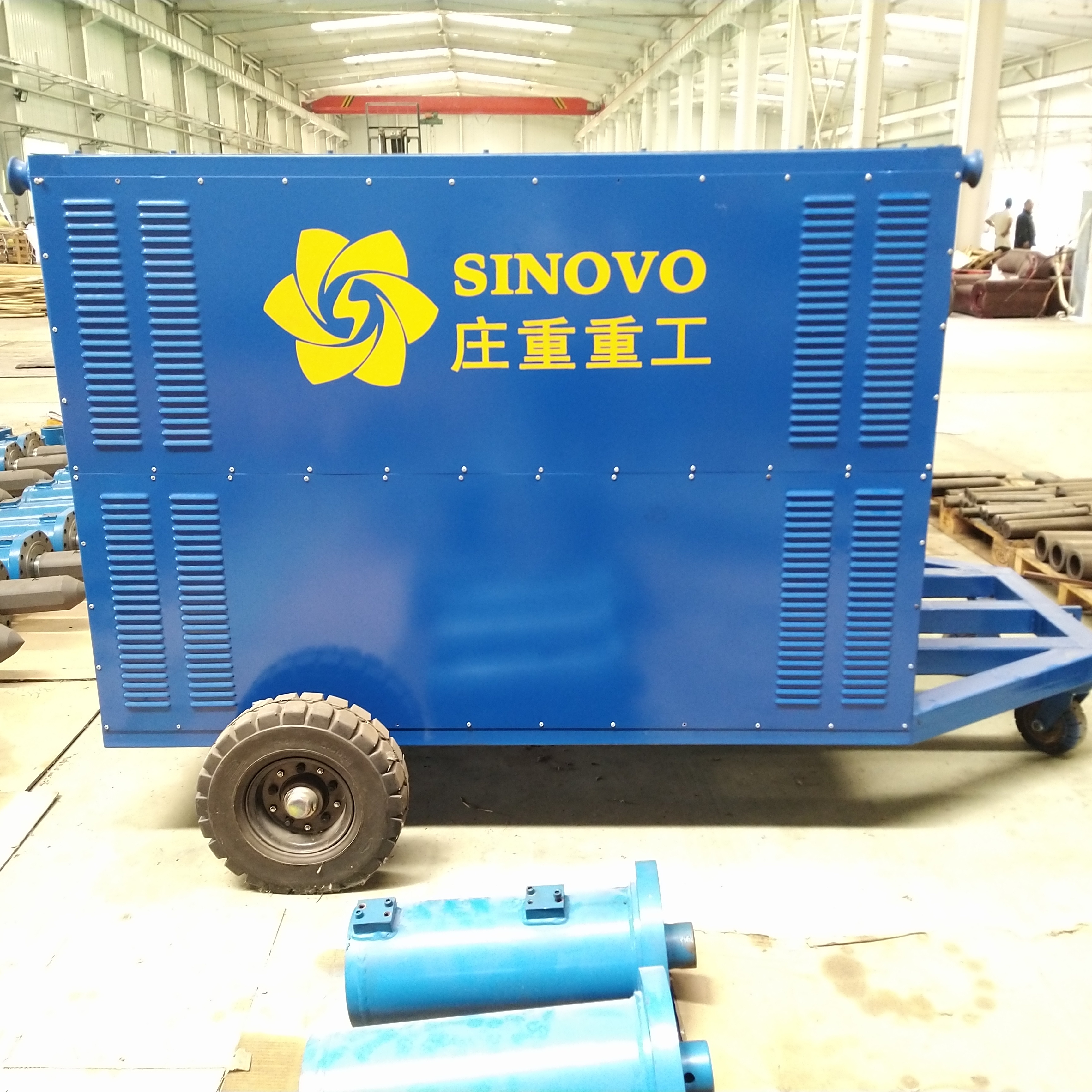

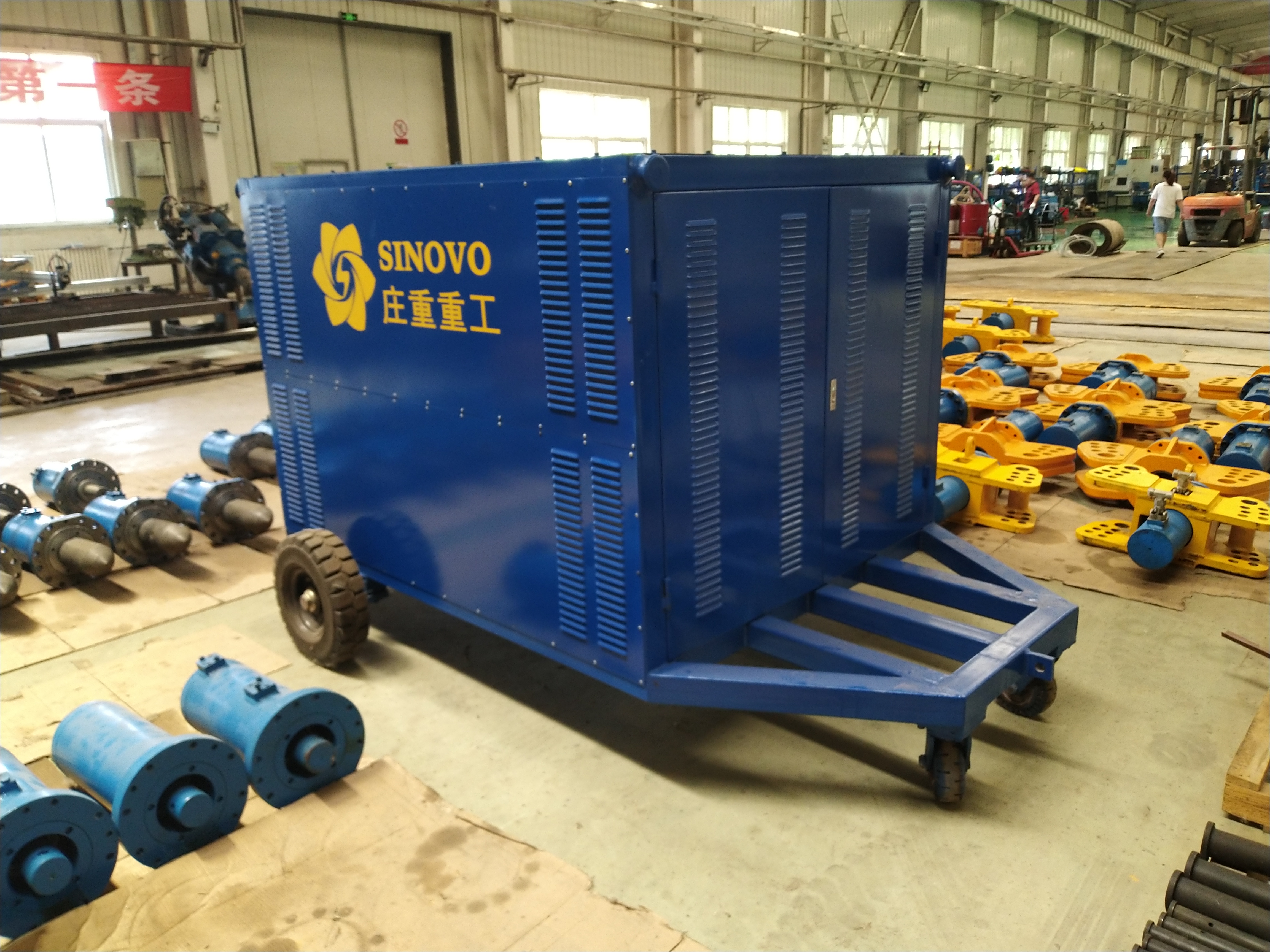

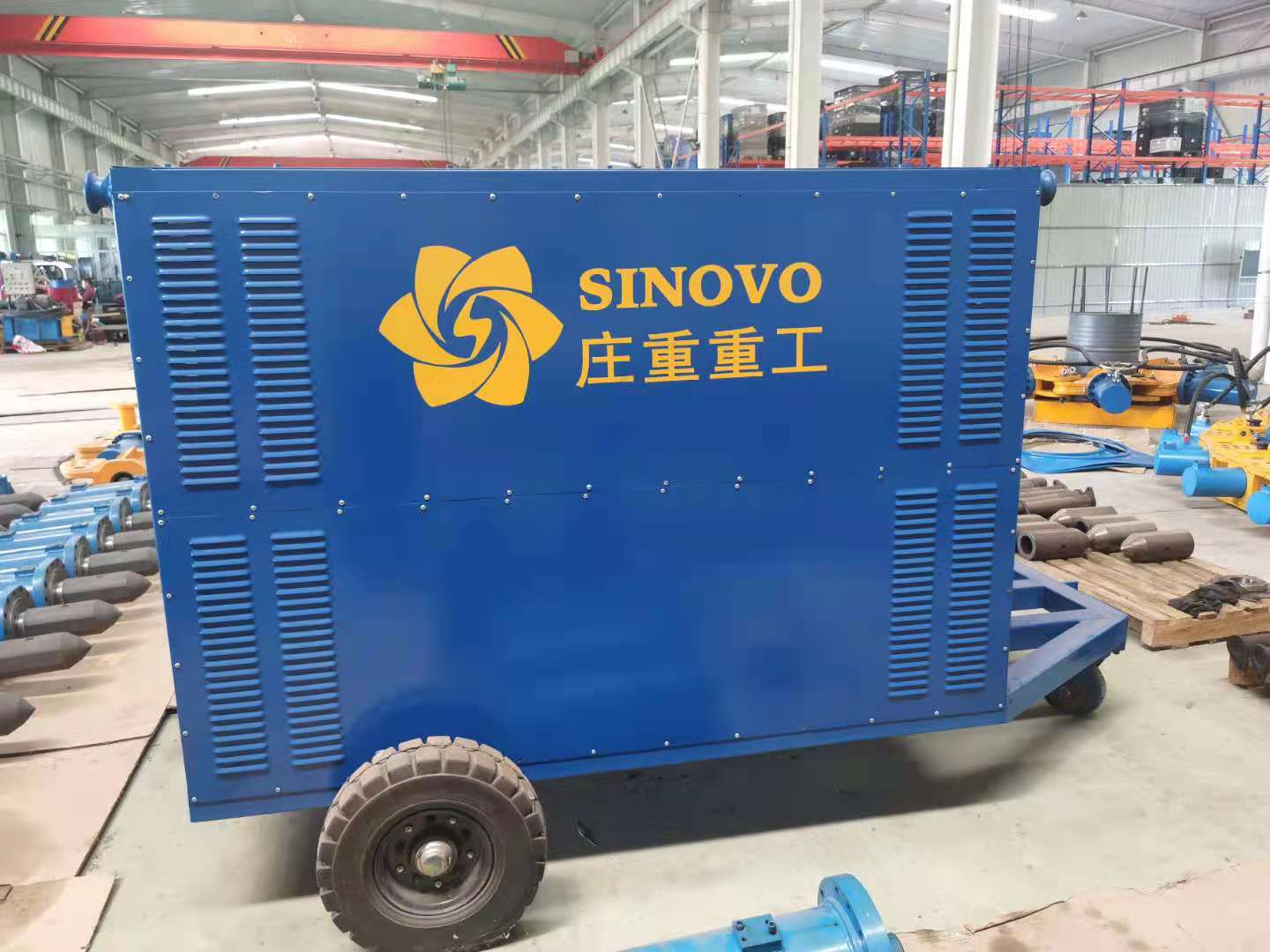

This hydraulic power pack can be equipped with hydraulic pile driver, hydraulic breaker, hydraulic shovel and hydraulic winch. It has the characteristics of high work efficiency, small size, light weight and strong power. It can be widely used in highway municipal maintenance, gas tap water repair, earthquake and fire rescue operations, etc. It can effectively drive combined hydraulic rescue tools in earthquake and fire rescue operations.
This hydraulic power station can be equipped with hydraulic pile driver, hydraulic breaker, hydraulic shovel and hydraulic winch. It has the characteristics of high work efficiency, small size, light weight and strong power. It can be widely used in highway municipal maintenance, gas tap water repair, earthquake and fire rescue operations, etc. It can effectively drive combined hydraulic rescue tools in earthquake and fire rescue operations.
Key System Features
1

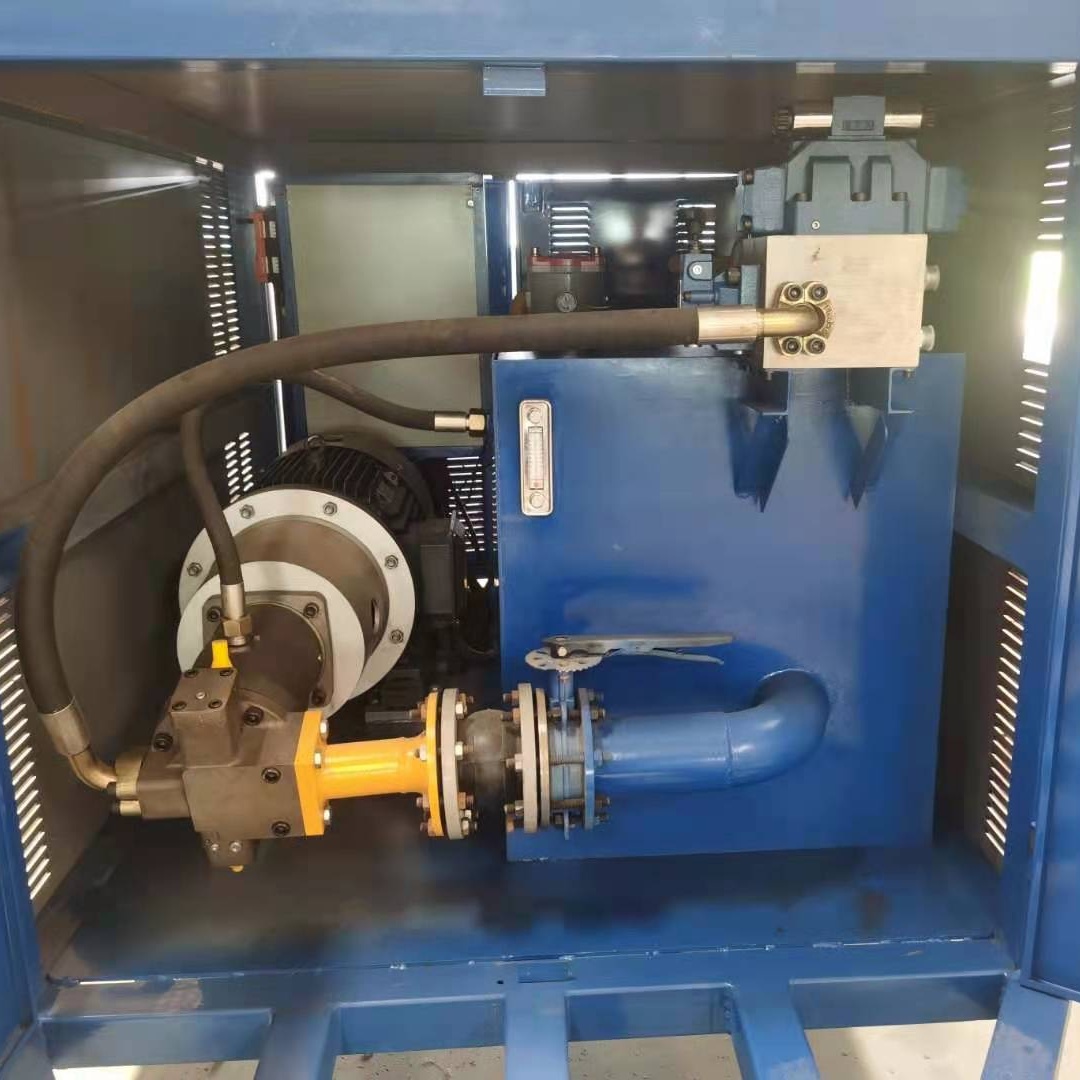

The hydraulic system adopts the horizontal structure beside the pump motor group, and the pump motor is assembled on the side of the oil tank. The system has compact structure, small floor area, and good self-priming and heat dissipation of the oil pump.
2
The oil return port of the system is equipped with oil return filter and other accessories to ensure that the cleanliness of the working medium reaches 8 grade in nas1638. This can prolong the service life of hydraulic components and reduce the failure rate.
3

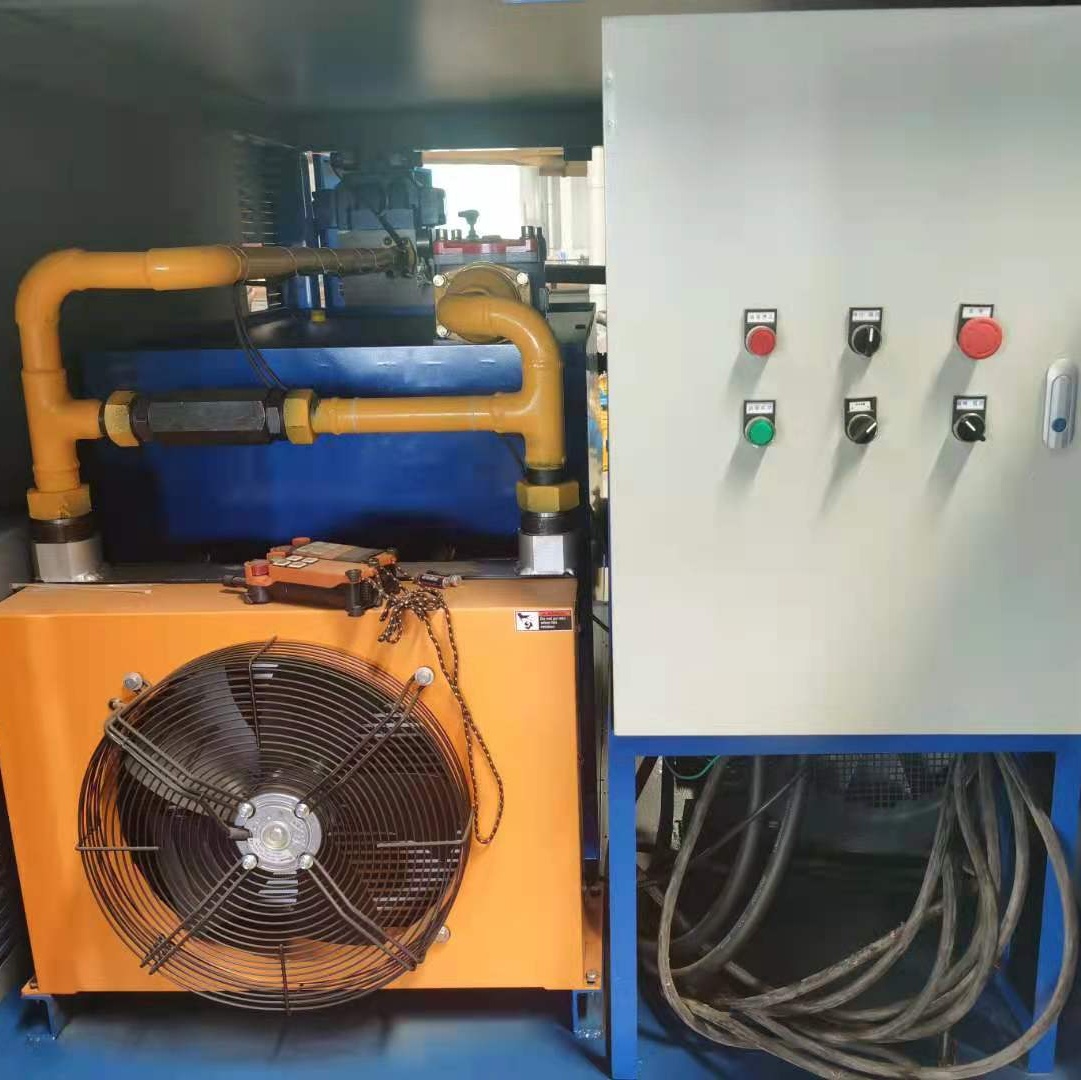

The oil temperature control loop keeps the working medium of the system in a suitable temperature range. It ensures the service life of oil and seal, reduces system leakage, reduces system failure rate and ensures reliable operation of the system.
4
The hydraulic system adopts the structure of pump source and valve group, which is compact and easy to install and maintain.
Technical Specifications
Hydraulic system working pressurePmax=31.5MPa
Oil pump flow240L/min
Motor power37kw
Power380V 50HZ
Control voltageDC220V
Fuel tank capacity500L
System oil normal working temp.28 °C ≤ T ≤ 55 °C
Working mediumN46 anti-wear hydraulic oil
Oil working cleanliness requirements8 (NAS1638 standard)
Frequently Asked Questions
What tools can this hydraulic power station be equipped with?
It can be equipped with various tools including a hydraulic pile driver, hydraulic breaker, hydraulic shovel, and hydraulic winch.
What are the primary applications of this system?
This station is widely utilized in highway municipal maintenance, gas and tap water pipe repairs, as well as earthquake and fire rescue operations.
How does the horizontal structure configuration benefit operations?
The horizontal layout positions the pump motor beside the group on the oil tank, which provides a compact structure that saves floor area while delivering excellent self-priming and heat dissipation.
What measures ensure the cleanliness of the hydraulic oil?
The oil return port is equipped with an oil return filter and accessories designed to keep the working medium cleanliness at an 8 grade (NAS1638 standard), prolonging component service life.
How is the working oil temperature regulated?
An oil temperature control loop regulates the system, keeping the medium temperature between 28 °C and 55 °C. This protects the oil and seals, reduces leakage, and ensures reliable operation.
