Technical Specifications
| Item |
Unit |
Parameter |
| Model |
- |
QSM11-C400 |
| Rated Power |
kW |
298 |
| Max. output torque |
kN﹒m |
360 |
| Rotary Speed |
r/min |
5-20 |
| Max. Drilling Diameter |
mm |
φ2500 |
| Max. Drilling Depth |
m |
92（102m） |
| Max. pull-down piston push |
kN |
240 |
| Max. pull-down piston pull |
kN |
320 |
| Max. pull-down piston stroke |
m |
6 |
| Max. pull-down piston push |
kN |
/ |
| Max. pull-down piston pull |
kN |
/ |
| Max. pull-down piston stroke |
m |
/ |
| Max. pulling force |
kN |
320 |
| Max. line speed |
m/min |
72 |
| Max. pulling force |
kN |
100 |
| Max. line speed |
m/min |
65 |
| Mast Rake（Slide/forwards/backwards） |
° |
±4°/5°/15° |
| Max. traveling speed |
km/h |
1.5 |
| Max. grade ability |
% |
35 |
| Min. clearance |
mm |
445 |
| Track shoe width |
mm |
800 |
| Distance between tracks |
mm |
3500-4800 |
| Working pressure |
MPa |
32 |
| Overall Drilling Weight |
t |
92 |
| Working condition |
mm |
11000×4800×24586 |
| Transportation condition |
mm |
17380×3500×3810 |
Key Features
- Special hydraulic telescopic crawler chassis and large-diameter slewing ring have super stability and convenient transportation.
- Cummins turbocharged engine adopts advanced electro-hydraulic control.
- Maximum drilling diameter of φ2500 mm and maximum drilling depth of 92 m (equipped with QSM11 engine model).
- Applicable for concrete cast in situ pile for foundation construction projects such as urban construction, railway, highway, bridge, subway, and building.

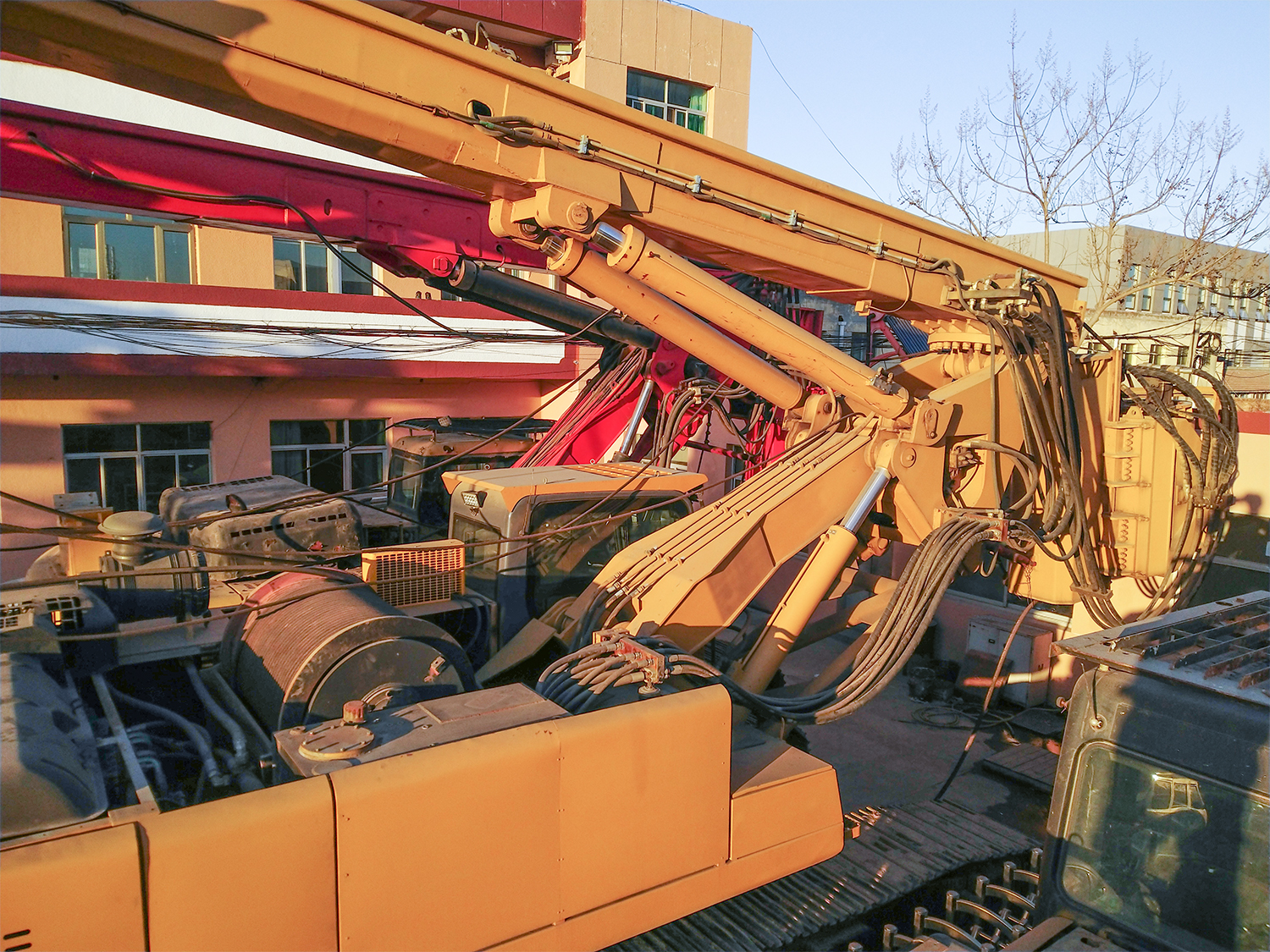

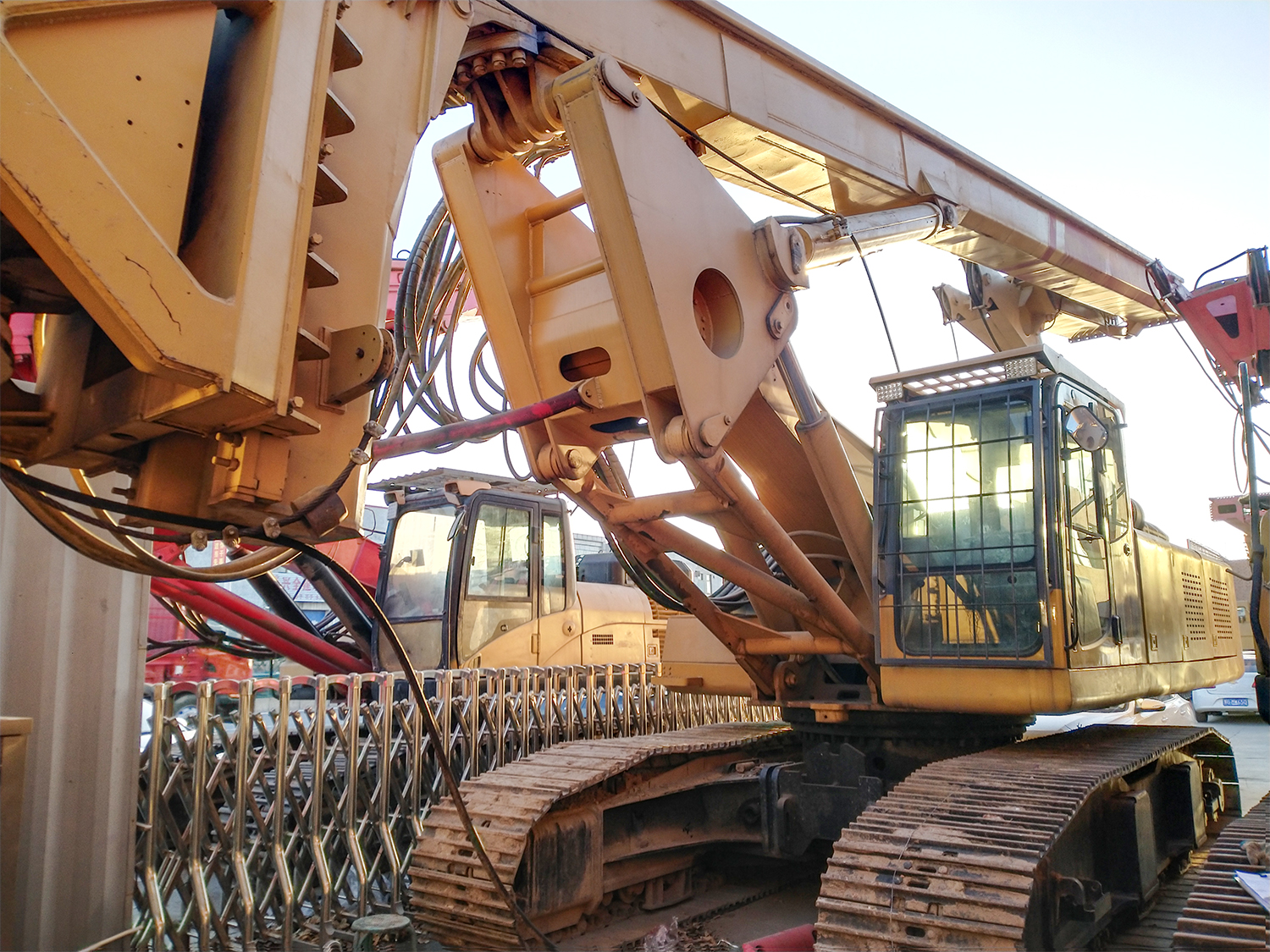

There is a used XCMG XR360 rotary drilling rig for sale, with maximum diameter and depth of 2500mm and 96m, 7500 working hours, equipped with 5 * 508 * 15m friction Kelly bar, the machine is in nice condition and refurbished.
Frequently Asked Questions
What engine is equipped on this rotary drilling rig?
This rotary drilling rig is equipped with a Cummins QSM11-C400 turbocharged engine that utilizes advanced electro-hydraulic control and delivers a rated power of 298 kW.
What is the maximum drilling capacity in terms of diameter and depth?
The machine supports a maximum drilling diameter of φ2500 mm and reaches a maximum drilling depth of 92 meters (expandable to 102 meters). The used XR360 model on sale features a depth capability of up to 96 meters.
What are the main structural advantages of this rig's chassis?
It features a special hydraulic telescopic crawler chassis and a large-diameter slewing ring, providing superior stability during operations and allowing for convenient transportation.
What are the target applications for this drilling rig?
It is primarily designed for concrete cast-in-situ pile foundation construction, widely used in urban construction, railways, highways, bridges, subways, and general building projects.
What is the specific configuration and status of the used XR360 rig?
The used XCMG XR360 rotary drilling rig has 7,500 working hours, comes equipped with a 5 * 508 * 15m friction Kelly bar, and is in a fully refurbished, nice operating condition.
What are the transport and working dimensions of the machine?
Under working conditions, the dimensions are 11000×4800×24586 mm. For transportation, the dimensions compress to 17380×3500×3810 mm to ensure convenient hauling.
