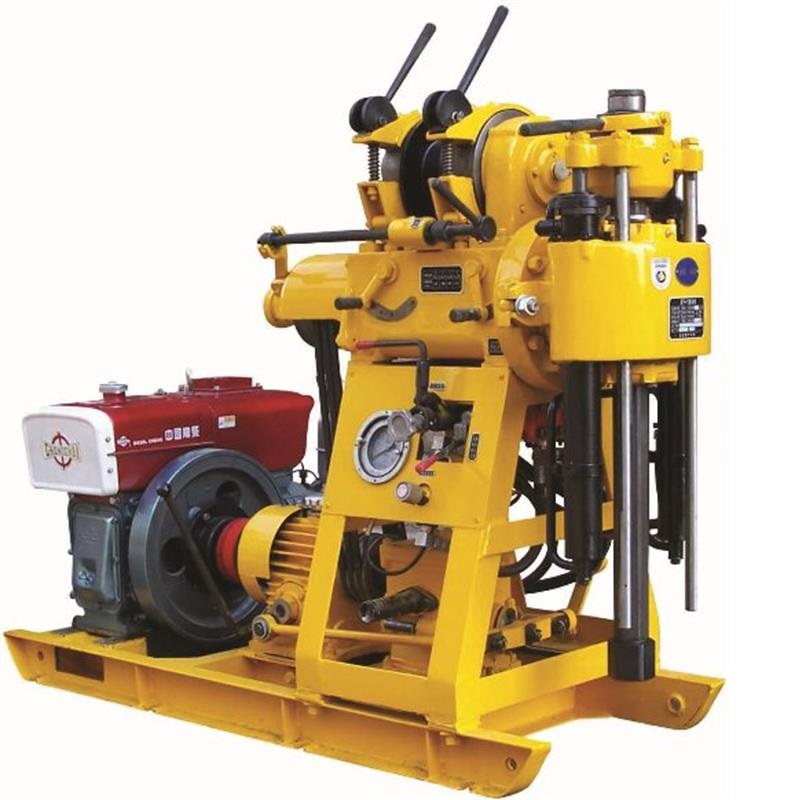

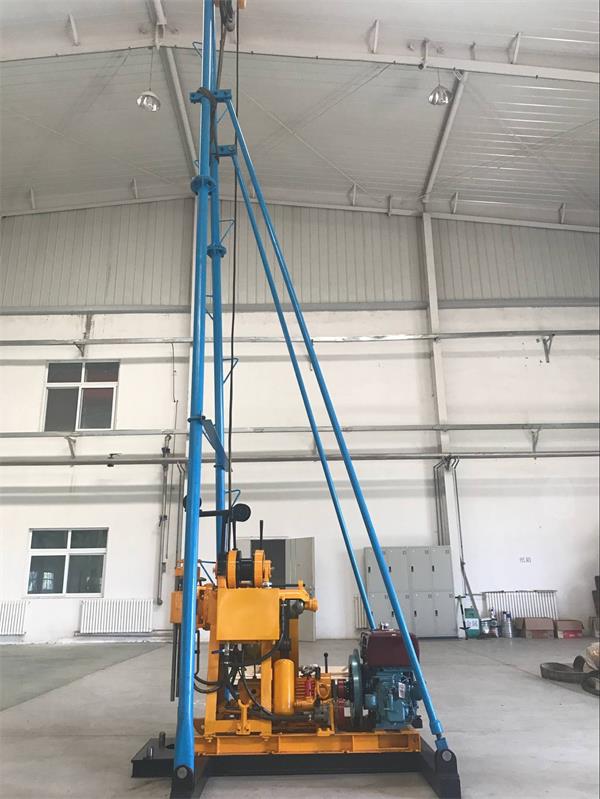

Best XY-1 Core Drilling Rig Factories, Company

Geological exploration, physical geography exploration, road and building exploration, and blasting drilling holes etc.

Send Inquiry

Product Description

Applications & Capability

Geological exploration, physical geography exploration, road and building exploration, and blasting drilling holes etc.

Diamond bits, hard alloy bits and steel-shot bits could be selected to meet different layers.

Suitable for 2 to 9 stages siliceous skin clay and bedding course etc. layers.

The nominal drilling depth is 100 meters; the maximum depth is 120 meters. The nominal diameter of initial hole is 110mm, the maximum diameter of initial hole is 130 mm, and the final hole diameter is 75 mm.

Key Features & Advantages

Easy operation and high efficiency with the integrated hydraulic feeding system.

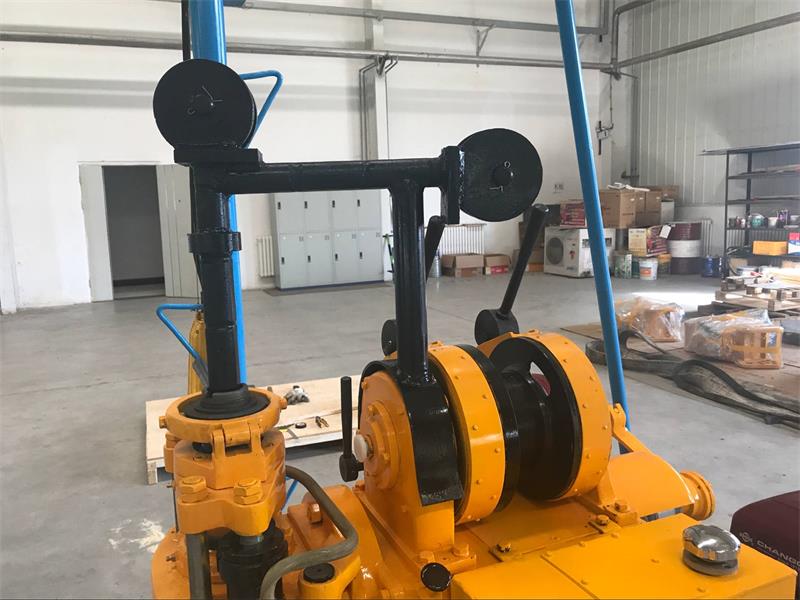

Equipped with a ball-type chuck and driving rod, enabling continuous rotation without stopping while the spindle is relit.

Clear pressure indicator at the bottom hole for easy observation and control of well conditions.

Close control levers designed for convenient, safe, and highly reliable operations.

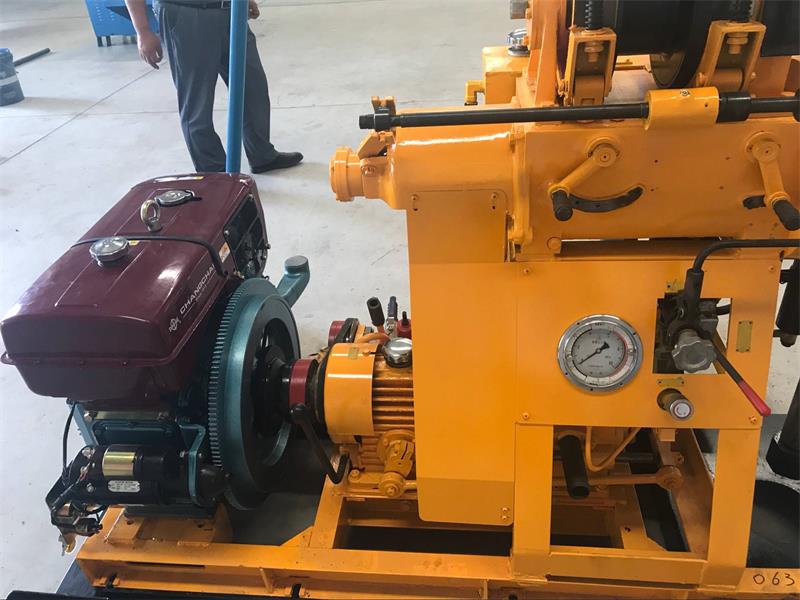

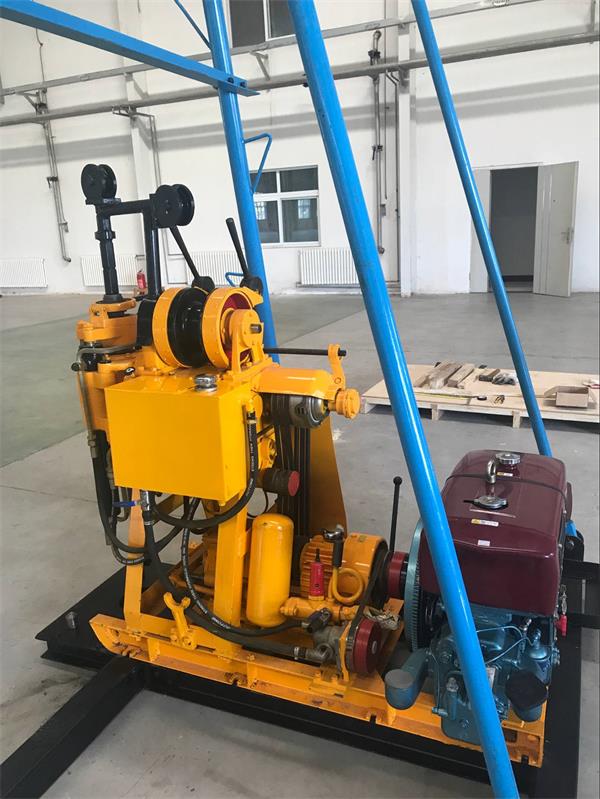

Compact footprint sharing the same structural base for installation of the rig, water pump, and diesel engine.

Lightweight design that is exceptionally easy to assemble, disassemble, and transport across plains and mountainous terrains.

Technical Specifications

System Group	Parameter Specifications		Values
Fundamental parameters	Max. Drilling Depth		100m
	Diameter of the initial hole		110mm
	Diameter of the final hole		75mm
	Diameter of drilling rod		42mm
	Angle of drilling		90°-75°
Rotation unit	Spindle speed (3 positions)		142, 285, 570rpm
	Spindle stroke		450mm
	Max. feeding pressure		15KN
	Max. lifting capacity		25KN
	Max. lifting speed without load		3m/min
Hoisting	Max. lifting capacity (single wire)		10KN
	Rotation speed of drum		55, 110, 220rpm
	Diameter of the drum		145mm
	Circumferential velocity of the drum		0.42, 0.84, 1.68m/s
	Diameter of the wire rope		9.3mm
	Drum capacity		27m
	Brake diameter		230mm
	Brake band width		50mm
Water pump	Max. displacement	With electrical motor	77L/min
	Max. displacement	With diesel engine	95L/min
	Max. pressure		1.2Mpa
	Diameter of liner		80mm
	Stroke of piston		100mm
Hydraulic oil pump	Model		YBC-12/80
	Nominal pressure		8Mpa
	Flow		12L/min
	Nominal speed		1500rpm
Power unit	Type of diesel (ZS1100)	Rated power	10.3KW
	Type of diesel (ZS1100)	Rated rotating speed	2000rpm
	Type of electrical motor (Y132M-4)	Rated power	7.5KW
	Type of electrical motor (Y132M-4)	Rated rotating speed	1440rpm
Overall dimension			164010301440mm
Total weight (not include power unit)			500kg

Frequently Asked Questions

What are the primary applications for this drilling rig?

This drilling rig is ideal for geological exploration, physical geography exploration, road and building construction exploration, and blasting hole drilling.

What is the maximum drilling depth and hole diameter?

The nominal drilling depth is 100 meters, with a maximum depth capability of 120 meters. The initial hole diameter starts at a nominal 110mm (up to 130mm maximum), and the final finished hole diameter is 75mm. Please note that exact depth varies based on soil and geological layers.

What types of drill bits can be used with this equipment?

It is compatible with diamond bits, hard alloy bits, and steel-shot bits, allowing you to easily configure the setup to match the exact requirements of different geological stratum and soil conditions.

Can this drilling rig handle complex soil and rock layers?

Yes, it is highly suitable for drilling through 2 to 9 stages of siliceous skin clay, bedding courses, and other mixed geological layers.

What power source units are available for this rig?

The equipment can be driven by a ZS1100 Diesel Engine (rated at 10.3KW / 2000rpm) or a Y132M-4 Electrical Motor (rated at 7.5KW / 1440rpm), depending on the power availability at your work site.

Is the unit easy to transport and deploy?

Absolutely. The compact design mounts the rig, water pump, and engine on a shared base, minimizing required footprint. Its lightweight structure ensures it can be quickly assembled, disassembled, and transported into both plain and remote mountainous regions.
