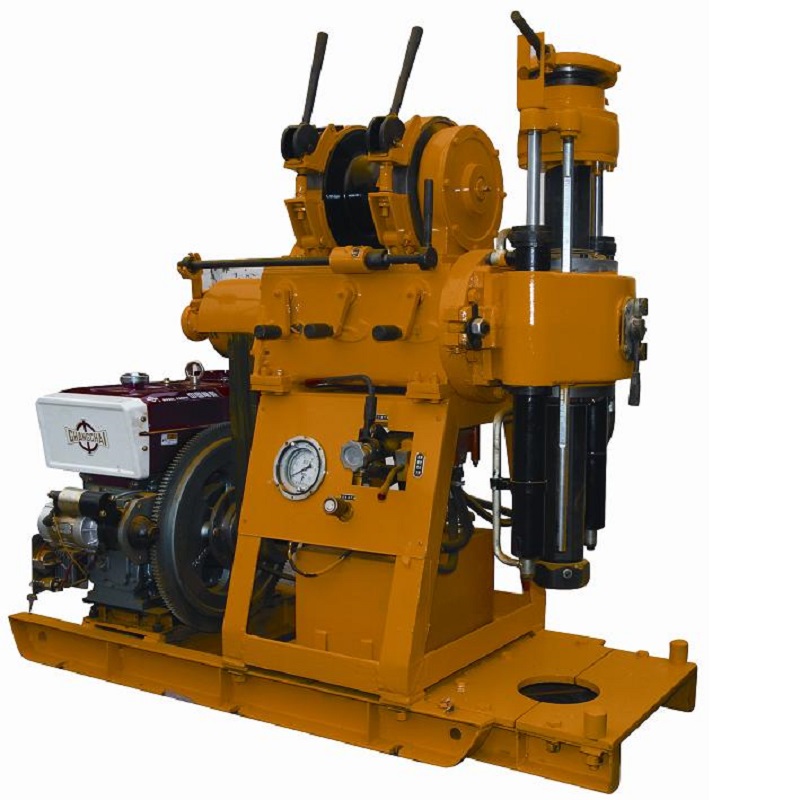

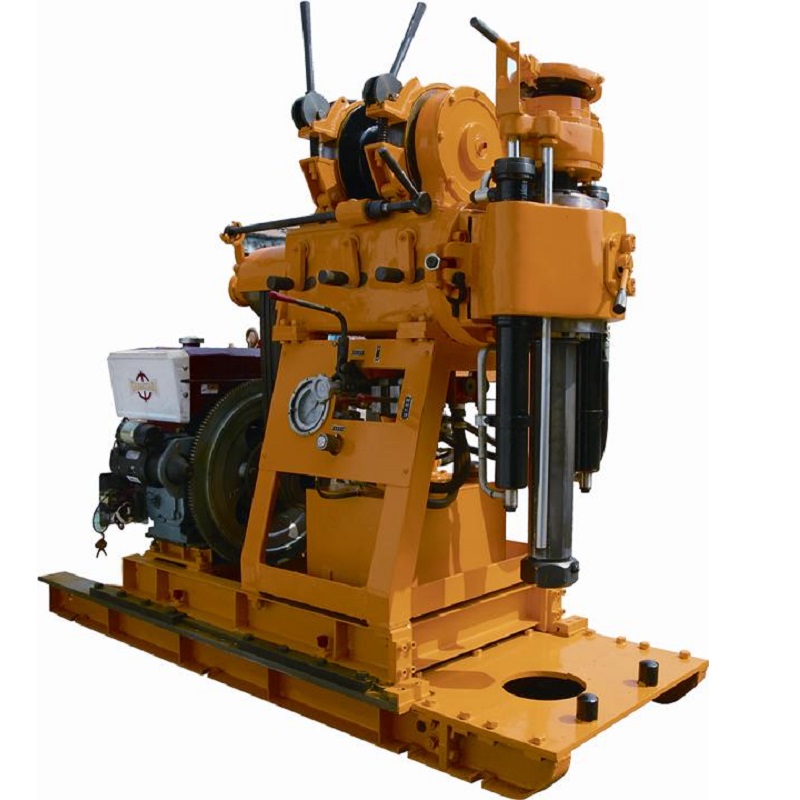

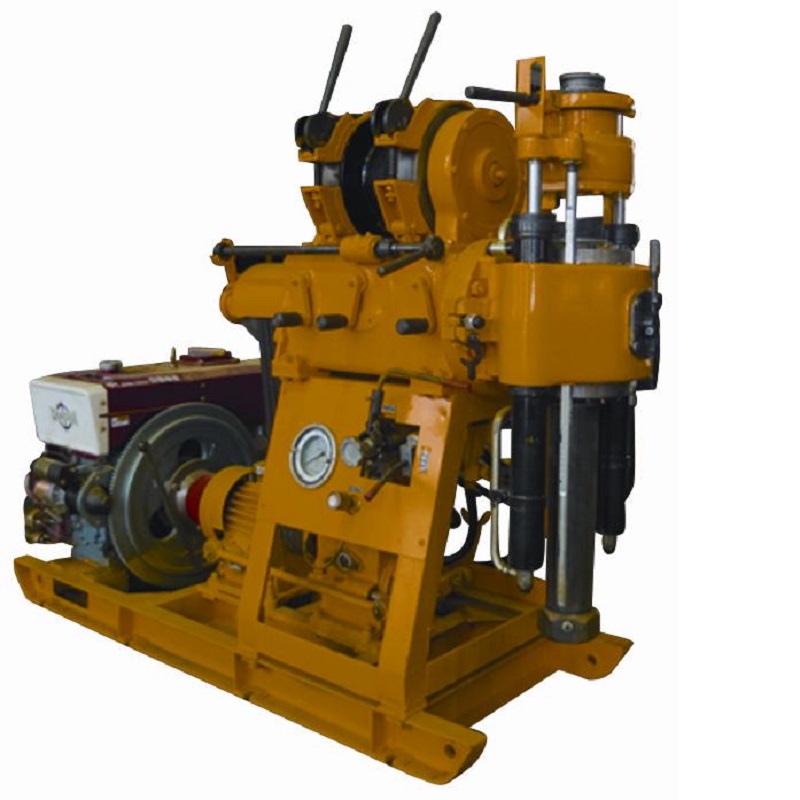

CE Certification XY-200B Core Drilling Rig Factory, Products
XY-44 drilling rig is mainly adapted to diamond bit drilling and carbide bit drilling of solid bed. It can also be used for engineering geology and groundwater exploration; shallow layer oil and natural gas exploitation, even hole for sap ventilation and sap drain. The drilling rig has compact, simple and suitable construction. It is light, and can be assembled and disassembled conveniently. The appropriate range of rotation speed gives the drill a high drilling efficiency.
(2) The machine has top ball clamping structure and hexagonal kelly bar, can realize the Non-stop recheck. High working efficiency, easy operation, safe and reliable.
(3) Equipped with pressure gauge at the bottom of hole, it is convenient to know the situation in the hole.
(4) The handles collect, the machine is easy to operation.
(5) Drilling rig structure is compact, small volume, light weight, easy to disassemble and moving .it is suitable to work on the plain and mountain area.
(6) Spindle is eight side structure, expand diameter of spindle, which can enter into Kelly bar with large diameter and suitable to transmit with large torque.
(7) Diesel engine adopts electric start.
Technical Specifications
Category
Parameter Name
Specification Value
Fundamental parameters
Drilling depth
Φ75mm
200m
Φ91mm
150m
Φ150mm
100m
Φ200mm
50m
Diameter of Kelly bar
50mm
Angle of drilling hole
75°-90°
Rotating device
Rotate speed of spindle
Positive rotating
71,142,310,620 r/min
Reverse rotating
71,142,310,620 r/min
Spindle stroke
450mm
Lifting capacity of spindle
25KN
Feeding capacity of spindle
15KN
Max. working torque
1600N.m
Max. upward moving speed without loading
0.05m/s
Max. downward moving speed without loading
0.067m/s
Winch
Rotate speed of drum
16,32,70,140 r/min
Lifting speed (2nd layer)
0.17, 0.34, 0.73, 1.46m/s
Maximum lifting capacity (single rope)
20KN
Rope diameter
11mm
Drum diameter
165mm
Brake wheel diameter
280mm
Brake belt diameter
55mm
Skid device of drilling rig
Skid stroke
400mm
Distance of leaving hole
250mm
Oil pump
Model No.
YBC-12/80
Rated discharge capacity
12L/min
Rated pressure
8MPa
Rated rotating speed
1500r/min
Power
Diesel engine model
ZS1115M
Rated power
16.2KW
Rated rotating speed
2200r/min
Water pump
Max. discharge capacity
95L/min
Max. allowed pressure
1.2Mpa
Working pressure
0.7Mpa
Number of stroke (numbers/min)
120
Cylinder liner diameter
80mm
Piston stroke
100mm
If user choose drilling rig without water pump, we suggest to use variable mud pump which not less than BW-100 type.
Model Configurations
MODEL
DIMENSION (mm)
WEIGHT (kg)
XY-200B
1800*950*1450
700
XY-200B-1
1780*950*1350
630
XY-200B-2
1450*950*1350
550
XY-200B-3
1860*950*1450
770
XY-200B(GS)
1800*950*1450
700
XY-200B(GS)-1
1780*950*1350
630
XY-200B(GS)-2
1450*950*1350
550
XY-200B(GS)-3
1860*950*1450
770
PS: The rotate speed of (GS) series core drilling rig has the gear of 840r/min. User can choose according to actual situation.
Frequently Asked Questions
What are the primary applications of this core drilling rig?
It is designed for engineering geological exploration in railways, water & electricity, transportation, bridge, dam foundations, and other building structures. It is also suitable for geological core drilling, physical exploration, small grout/blast holes, and small well drilling.
What are the maximum drilling depths for different hole diameters?
The drilling depths are: 200 meters for Φ75mm, 150 meters for Φ91mm, 100 meters for Φ150mm, and 50 meters for Φ200mm.
What type of power system and starting mechanism does it feature?
It uses a ZS1115M model diesel engine with a rated power of 16.2KW and a rated rotating speed of 2200r/min. The diesel engine adopts an electric start mechanism.
Can this drilling rig be used without a built-in water pump?
Yes. If you choose a configuration without a water pump, it is suggested to use a variable mud pump of at least the BW-100 type.
What is special about the (GS) series core drilling rig?
The (GS) series core drilling rig features an additional spindle rotation speed gear of 840r/min, allowing users to choose according to their actual working situation.
Is the equipment layout suitable for remote or mountainous areas?
Yes. The drilling rig structure is designed to be compact, low-volume, and lightweight, making it easy to disassemble and transport. It is suitable for work in both plains and mountain areas.
