High-Quality XY-2B Core Drilling Rig Factories, Exporter

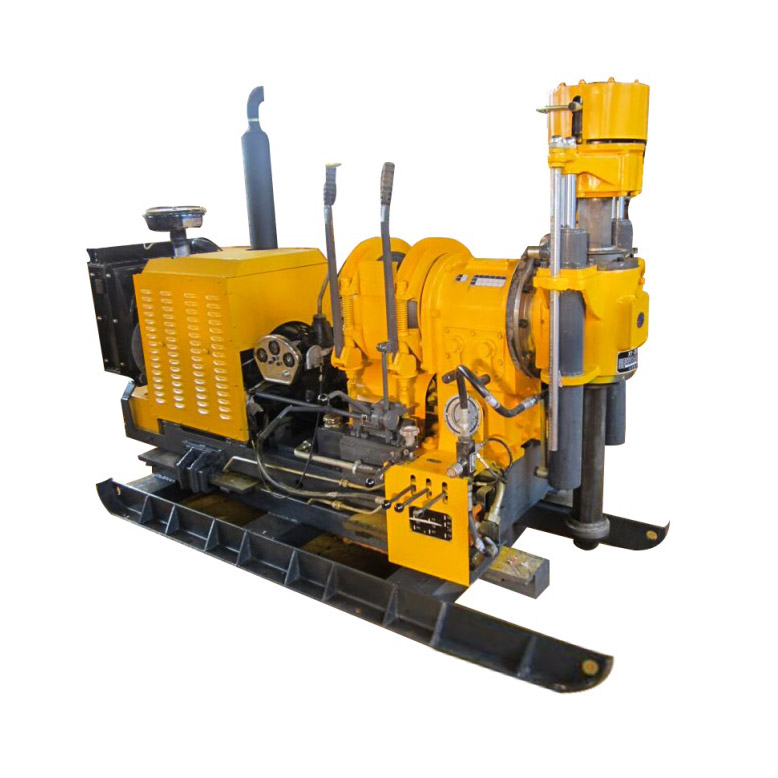

XY-2B drilling rig is type of vertical shaft drill, which can be powered by diesel engine or electric motor. It is mainly used for diamond bit drilling and carbide bit drilling of solid bed. It also can be used in exploring drilling and base or pile hole drilling.

Send Inquiry

Product Description

✓

Compact size and light in weight of mechanical transmission, major diameter of vertical shaft, long distance of support span and good rigidity, hexagonal Kelly ensure the torque transfer.

✓

High speed and suitable range of speed to meet varies need of small diameter diamond bit drilling, big carbide bit drilling and all kinds of the engineering holes.

✓

In hydraulic system, feeding pressure and speed can be adjusted while drilling to suitable for various stratums.

✓

Through hydraulic oil pressure gauge at the hole-bottom, obtain information about feeding pressure.

✓

Using the transmission and clutch of automobile to achieve the good generalization, easy repairing and maintenance.

✓

Close levers, convenient operation.

✓

The spindle has the octagon section so give more torque.

Technical Specifications

Fundamental parameters	Drilling depth		Ф76mm	300m
			Ф219mm	150m
			Ф500mm	50m
	Diameter of drilling rod			50,60mm
	Angle of drilling			70°-90°
Rotation unit	Co-rotation			70,146,179,267,370, 450,677,1145r/min
	Reverse rotation			62,157r/min
	Spindle stroke			550mm
	Spindle pulling force			68KN
	Spindle feeding force			46KN
	Max. output torque			2550N.m
Hoist	Lifting speed			0.64,1.33,2.44m/s
	Lifting capacity			25,15,7.5KN
	Cable diameter			15mm
	Drum diameter			200mm
	Brake diameter			350mm
	Brake band width			74mm
Frame moving device	Frame moving stroke			410mm
	Distance away from hole			300mm
Hydraulic oil pump	Type			CBW-E320
	Rated pressure			8Mpa
	Rated flow			40L/min
Power unit	Type of diesel (N458Q)	Rated power		24.6KW
		Rated speed		1800r/min
	Type of electrical motor (Y180L-4)	Rated power		22KW
		Rated speed		1450r/min
Overall dimension				250011001700mm
Rig weight	with diesel engine			1550kg
	with electric motor			1450kg

Frequently Asked Questions

What are the drilling depth capabilities of this equipment?

The drilling depth capability depends on the diameter configuration: it can reach up to 300 meters with a Ф76mm configuration, 150 meters with Ф219mm, and 50 meters with Ф500mm.

What types of power units can be configured with this drilling rig?

This rig can be configured with either a Diesel Engine (Model N458Q with a rated power of 24.6KW at 1800r/min) or an Electrical Motor (Model Y180L-4 with a rated power of 22KW at 1450r/min).

How does the hydraulic system improve drilling operations?

The hydraulic system allows feeding pressure and speed to be adjusted while drilling, making it adaptable to different stratums. Additionally, a bottom-hole pressure gauge provides real-time information about feeding pressure.

Does this rig allow for angled drilling?

Yes, the drilling angle for this rig can be adjusted and operated within a range of 70° to 90°.

Why does the rig use automotive transmission components?

By utilizing a standard automobile transmission and clutch, the rig benefits from excellent component generalization, which ensures parts are easily accessible and simplifies repair and maintenance work.

What is the total weight and dimension of the drilling rig?

The overall dimension is 2500*1100*1700mm. The weight is 1550kg when configured with a diesel engine, and 1450kg when configured with an electric motor.
