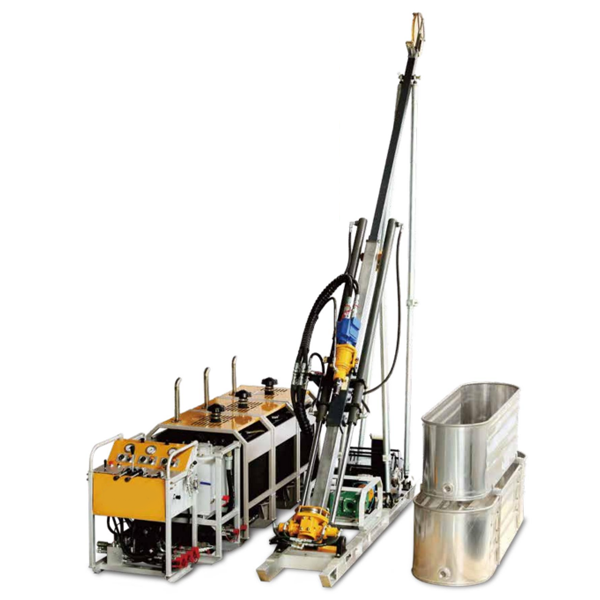

The fully hydraulic portable rock core drilling rig introduces Canadian portable drilling rig technology, featuring original core components imported and domestically assembled. The technology is mature and reliable, adopting a lightweight modular design, integrated control of the power unit, and a patented sliding frame. It can drill at a constant pressure with high drilling speeds. This high-performance drilling rig aligns with policies aimed at developing green mines and implementing green exploration. The series includes F300D, F600D, F800D, and F1000D hosts, widely used in geological prospecting and exploration, basic engineering, water conservancy, hydropower, and tunnel strip engineering exploration. It is particularly skilled in rock core drilling and exploration in mountainous areas, forests, plateaus, and other complex terrains with inconvenient transportation.
Utilizes minimally invasive drilling technology that eliminates the need for road construction, reduces damage to vegetation and landscape environment, and uses eco-friendly mud materials to maximize construction site protection.
Lightweight modular design for easy disassembly, with over 80% of structural components made of high-strength aluminum alloy. A single module weighs up to 160kg and can be transported by four people safely and conveniently.
International high-end brand hydraulic components with integrated systems offer high reliability, smooth operation, and minimal maintenance costs under severe working conditions.
Mast-type drilling frame eliminates the need for tower operations. Features hydraulic overload automatic protection, 12V DC daily power supply, constant pressure drilling, and thin-walled high-speed drilling tools.
Direct-connected drill pipes and full-hole casing drilling allow undisturbed rock cores to be taken from complex, fractured, and weathered formations with a recovery rate of over 97%.
Quick relocation, simple assembly (1-2 hours), and manual transport eliminate road-building costs. Requires only a 4x4m footprint, dramatically reducing infrastructure and prep expenses.
Adopts imported Kubota turbocharged diesel engines from Japan, with mature technology and strong power output. Equipped with original imported German KTR couplings for stable and reliable power delivery.
Utilizes internationally renowned hydraulic components, including imported multi-channel directional valves from Canada, integrated hydraulic circuit blocks, and Italian quick-change connectors.
Equipped with an Italian imported BOTOLINI mud pump and hydraulic drive. The ten-position control valve group accurately adjusts mud flow. The aluminum hydraulic mixer features a frame design that creates circulating eddies for an even, waste-free mud mixture.

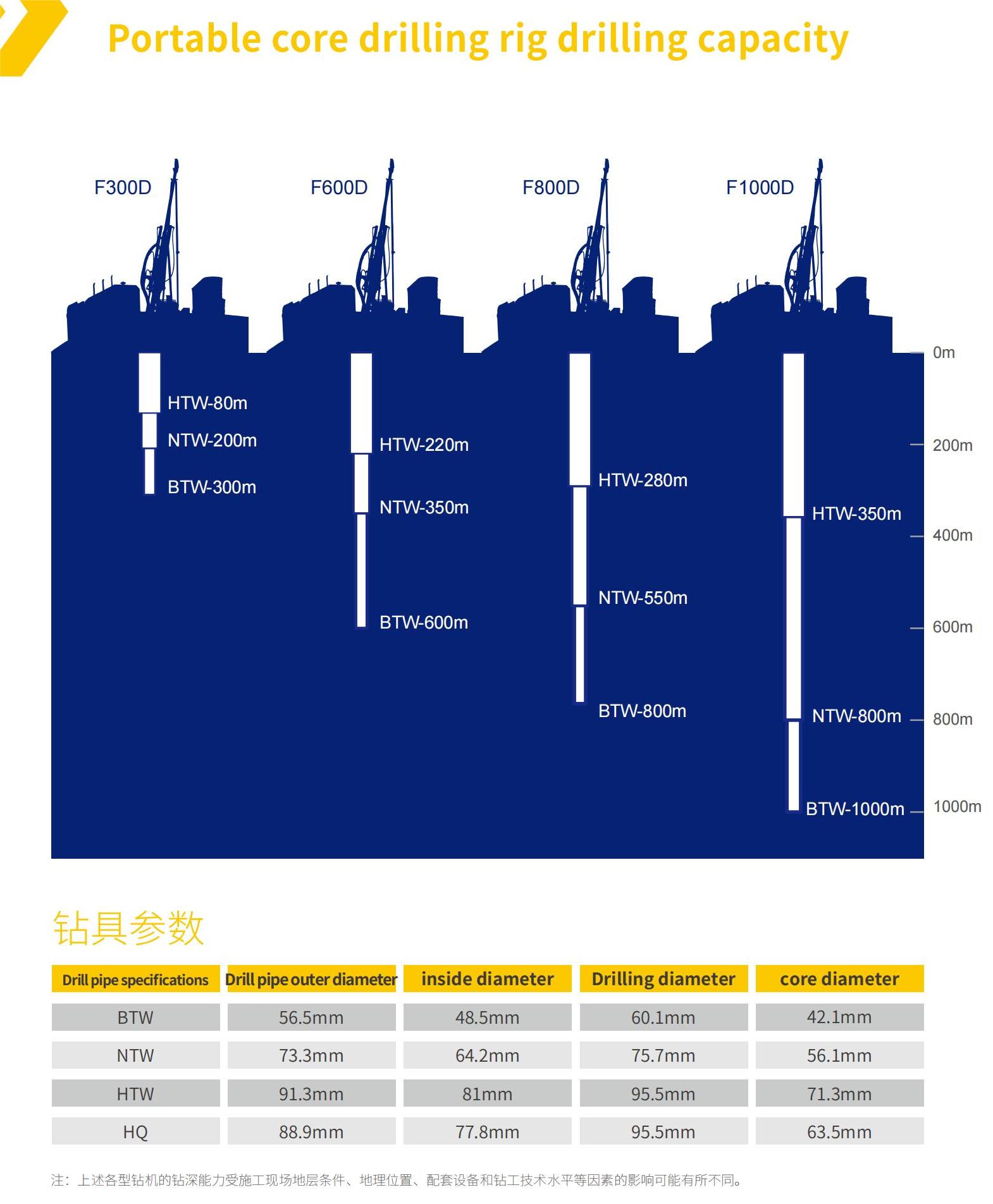

| System Unit | Project Parameter | F300D | F600D | F800D | F1000D |
| Drilling Unit | |||||
| Give progress | 1.8M | 1.8M | 1.8M | 1.8M | |
| Lift force | 70KN | 120KN | 130KN | 150KN | |
| Power head | ZK200 top drive | ZK600 top drive | ZK800 top drive | ZK1000 top drive | |
| Weight | 80Kg | 120Kg | 120Kg | 130Kg | |
| L×W×H (mm) | 2000×520×4200 | 2750×520×5200 | 2750×520×5200 | 3000×680×5500 | |
| Power Unit | |||||
| Engine | Kubota V1505T | Kubota D1105T | Kubota V1505T | Kubota V1505T | |
| Power | 1×33KW | 3×24KW | 3×33KW | 4×33KW | |
| Weight | 180Kg/unit | 160Kg/unit | 180Kg/unit | 180Kg/unit | |
| L×W×H (mm) | 910×620×940 | 910×600×840 | 910×620×940 | 910×620×940 | |
| Operational Unit | |||||
| Weight | 150Kg | 130Kg | 140Kg | 140Kg | |
| L×W×H (mm) | 508×762×1010 | 508×762×1010 | 508×762×1010 | 508×762×1010 | |
| Fuel Tank Unit | |||||
| Capacity | 55L water-cooling | 100L water-cooling | 100L water-cooling | 120L water-cooling | |
| Weight (empty) | 28kg | 45kg | 45kg | 50kg | |
| Weight (full) | 70Kg | 120Kg | 120Kg | 140Kg | |
| L×W×H (mm) | 630×257×303 | 876×559×940 | 876×559×940 | 892×572×980 | |
| Rope Winding | |||||
| Rope capacity | 300m | 800m | 1000m | 1000m | |
| Weight (empty) | 28kg | 45kg | 45kg | 60kg | |
| L×W×H (mm) | 430×260×200 | 500×450×400 | 500×450×400 | 500×450×400 | |
| Drill Pipe Clamp | |||||
| Max drill pipe size | PQ(PWL) | PQ(PWL) | PQ(PWL) | PQ(PWL) | |
| Clamping force | 5,000kg | 9,000kg | 12,000kg | 15,000kg | |
| Weight | 18kg | 23kg | 23kg | 30kg | |
| Mud Unit | |||||
| Mode | Botolini | Botolini | Botolini | Botolini | |
| Flow & pressure | 110Lpm, 75bar | 110Lpm, 75bar | 110Lpm, 75bar | 110Lpm, 75bar | |
| Way of working | Hydraulic transmission | Hydraulic transmission | Hydraulic transmission | Hydraulic transmission | |
| Weight | 35kg | 35kg | 35kg | 35kg | |
| L×W×H (mm) | 770×553×286 | 770×480×340 | 770×480×340 | 770×480×340 | |
| Appearance and Weight | |||||
| Machine Area | 2m×3m | 4m×4m | 4m×4m | 4m×4m | |
| Max module / Total weight | 180kg/800kg | 160kg/1300kg | 180kg/1350kg | 180kg/1550kg | |
These drilling rigs are widely used in geological prospecting, environmental exploration, basic engineering projects, water conservancy, hydropower development, and tunnel strip engineering exploration. They are especially suitable for complex terrains like mountains, forests, and plateaus.
Featuring a lightweight modular design, over 80% of structural components are made of high-strength aluminum alloy. A single module weighs at most 160kg, allowing 4 people to carry it. The entire foundation setup can be assembled or disassembled manually in just 1 to 2 hours.
By using a direct-connected drill pipe and executing full-hole casing drilling, the rig can successfully retrieve undisturbed rock cores from complex, fractured, and weathered formations with a recovery rate of over 97%.
The rig relies on minimally invasive drilling technology, completely eliminating the need for heavy road construction. This protects local vegetation and terrain. Additionally, the system utilizes eco-friendly mud formulations to reduce environmental impact.
They are powered by imported Japanese Kubota turbocharged diesel engines with German KTR couplings. The hydraulic systems feature Canadian multi-channel directional valves, Italian quick-change connectors, and Italian BOTOLINI mud pumps.
