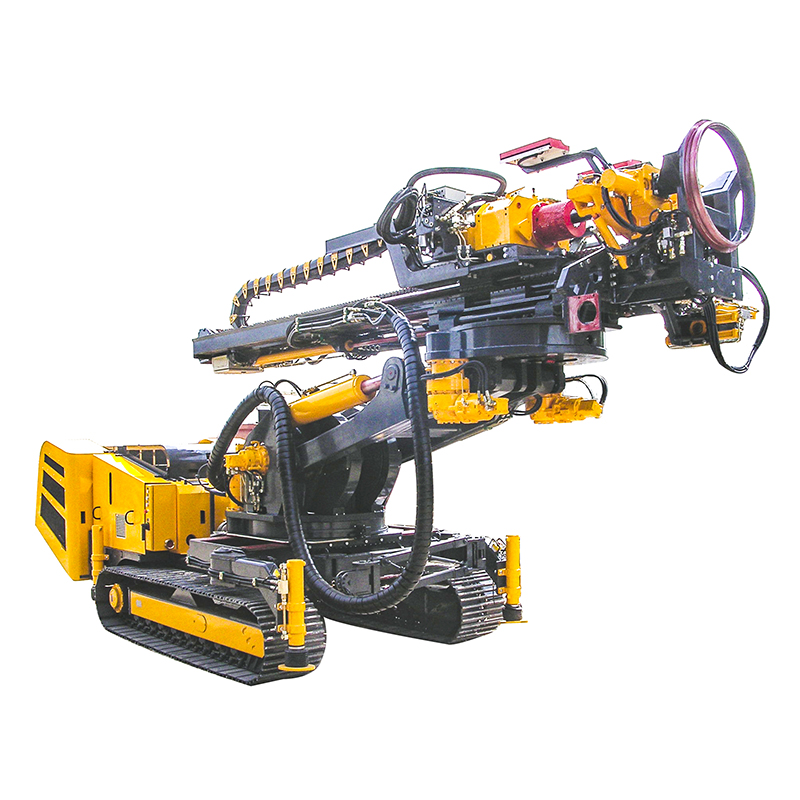

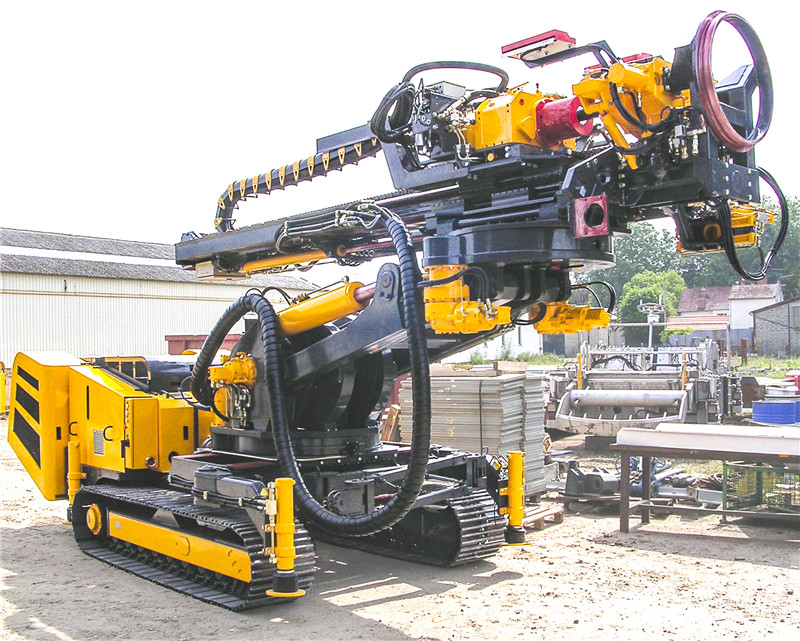

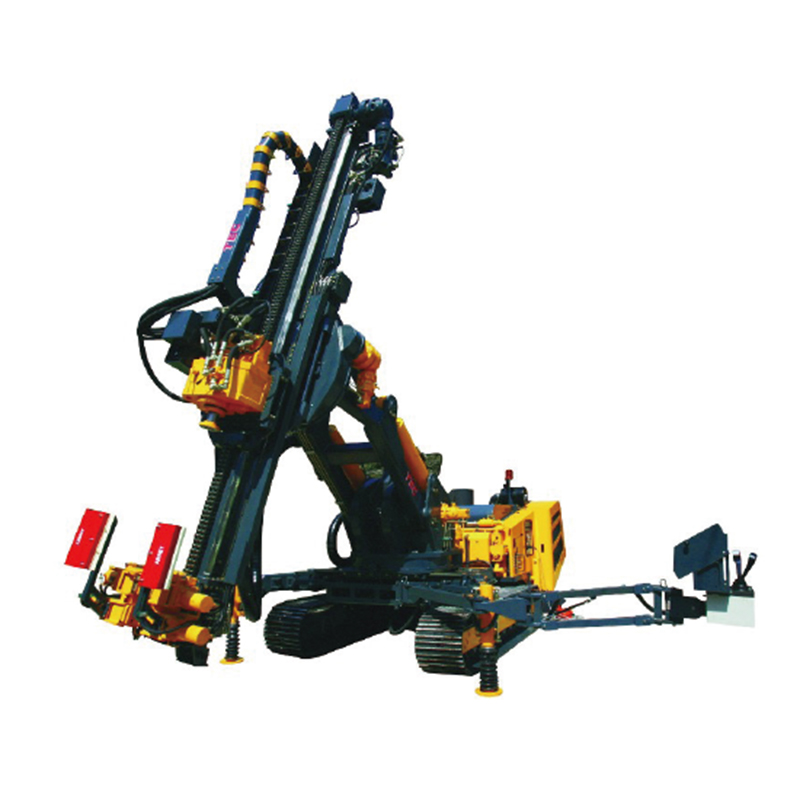

MEDIAN Tunnel Multifunction Rig is a multipurpose tunnel drilling rig. It is Corporate with France TEC and manufactured a new, full hydraulic and automatic intelligent machine. MEDIAN can be used for tunnel, underground and wide range projects.
Compact size, suitable for wide range projects.
Drilling rod: Level 360 degree, vertical 120 degree/-20 degree, 2650mm adjust range for any angles.
Drilling feeding stroke 3600mm, high efficiently.
Equipped clamp holder and breaker, full automatic, easy to operate.
Easy to locate drilling position, full angle drilling.
Hydraulic crawler drive, mobility, wired-remote control, safe and convenient.
| System Category | Specifications | Parameters | ||
|---|---|---|---|---|
| Fundamental parameters | Drilling diameter | 250-110mm | ||
| Drilling depth | 50-150m | |||
| Drilling angle | full range | |||
| Overall dimension | Horizon | 6400*2400*3450mm | ||
| Vertical | 6300*2400*8100mm | |||
| Drilling rig weight | 16000kg | |||
| Rotation unit (TPI700) | Rotation speed | Single motor | Low speed | 0-176r/min |
| High speed | 0-600r/min | |||
| Double motor | Low speed | 0-87r/min | ||
| High speed | 0-302r/min | |||
| Torque | 0-176r/min | 3600Nm | ||
| 0-600r/min | 900Nm | |||
| 0-87r/min | 7200Nm | |||
| 0-302r/min | 1790Nm | |||
| Rotation unit feeding stroke | 3600mm | |||
| Feeding system | Rotation lifting force | 70KN | ||
| Rotation feeding force | 60KN | |||
| Rotation lifting speed | 17-45m/min | |||
| Rotation feeding speed | 17-45m/min | |||
| Clamp holder | Clamp range | 45-255mm | ||
| Break torque | 19000Nm | |||
| Traction | Body width | 2400mm | ||
| Crawler's width | 500mm | |||
| Theory speed | 1.7Km/h | |||
| Rated traction force | 16KNm | |||
| Slope | 35° | |||
| Max. lean angle | 20° | |||
| Power | Single diesel engine | Rated power | 109KW | |
| Rated rotating speed | 2150r/min | |||
| Deutz AG 1013C air cooling | ||||
| Double diesel engine | Rated power | 47KW | ||
| Rated rotating speed | 2300r/min | |||
| Deutz AG 2011 air cooling | ||||
| Electricity motor | Rated power | 90KW | ||
| Rated rotating speed | 3000r/min | |||
The MEDIAN rig is a multipurpose machine designed for tunnel, underground, and a wide range of other engineering construction projects, especially in limited spaces due to its compact structure.
The mast of the machine can turn 360° horizontally and 120° to -20° vertically, with a height adjustment range of 2650 mm, allowing for full-angle drilling in all directions.
The rig supports a drilling diameter range of 250-110mm and can achieve a drilling depth between 50 to 150 meters.
It can be configured with a Single Diesel Engine (Deutz AG 1013C, 109KW), a Double Diesel Engine (Deutz AG 2011, 47KW), or an Electricity Motor (90KW).
The machine is easy to operate thanks to its electric controller, hydraulic crawler drive, and a wired-remote control system which makes operations safe and convenient.
Adjustable functions include the translation and rotation of the pivot, tilting angle adjustment of the mast, repositioning of the drilling hole, pull-down pressure adjustment, pull-up speed adjustment, and the rotation speed of the rotation head.
