Discount SK800 Multi-functional Anchor Drilling Rig Pricelist, Company

SK800 Multi-functional Anchor Drilling Rig: water and gas are dual-use, one machine is multi-purpose. It is suitable for anti-floating anchor, anchor cable anchoring, slope support, high-pressure rotary spraying, tunnel grouting, submerged hole into the rock, pit casing, core driling, miniature piles, steel pipe piles and so on.

Send Inquiry

Product Description

Technical Specifications

USAGE INFORMATION
Hole Diameter	φ90-φ500mm
Hole Depth	200m
Rod Diameter	φ76/89/102/114mm
Hammer	3”/4”/5”/6”/8”/10”/12”
Pipe Casing	101-219mm
High-pressure Rotary Spray	single/double tube
CYLINDER-DRIVEN PROPULSION BEAM
Single Propulsion Length	3600mm
Horizontal Drilling Height	2750mm
Gripper Diameter	200mm
Advancing Compensation	1260mm
Maximum Lifting Force	6T
Maximum Propulsion	3.3T
Maximum Lifting Speed	29m/min
Maximum Propulsion Speed	53m/min
Rotary Motor Left And Right	180°
ELECTRIC MOTOR
Power	55+18.5kw
Input Voltage	380v
Ground Clearance	335mm
Weight	7.9T
LengthWidthHeight	6.3x2.2x2.6m
Optional	hydraulic winches / oil mist / water tanks
POWER HEAD
Output Speed	0-170r/min
Output Torque	9000N.m

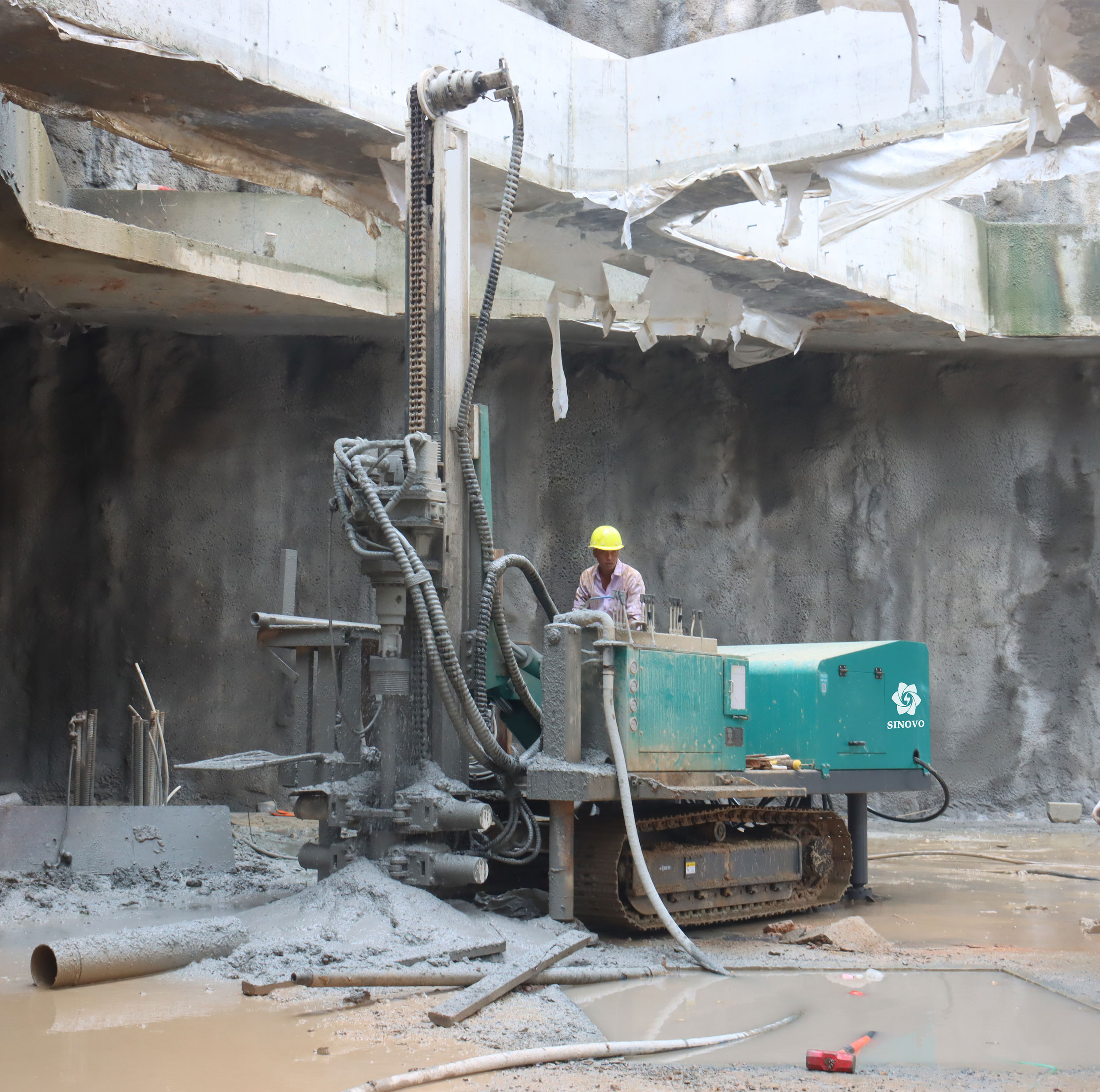

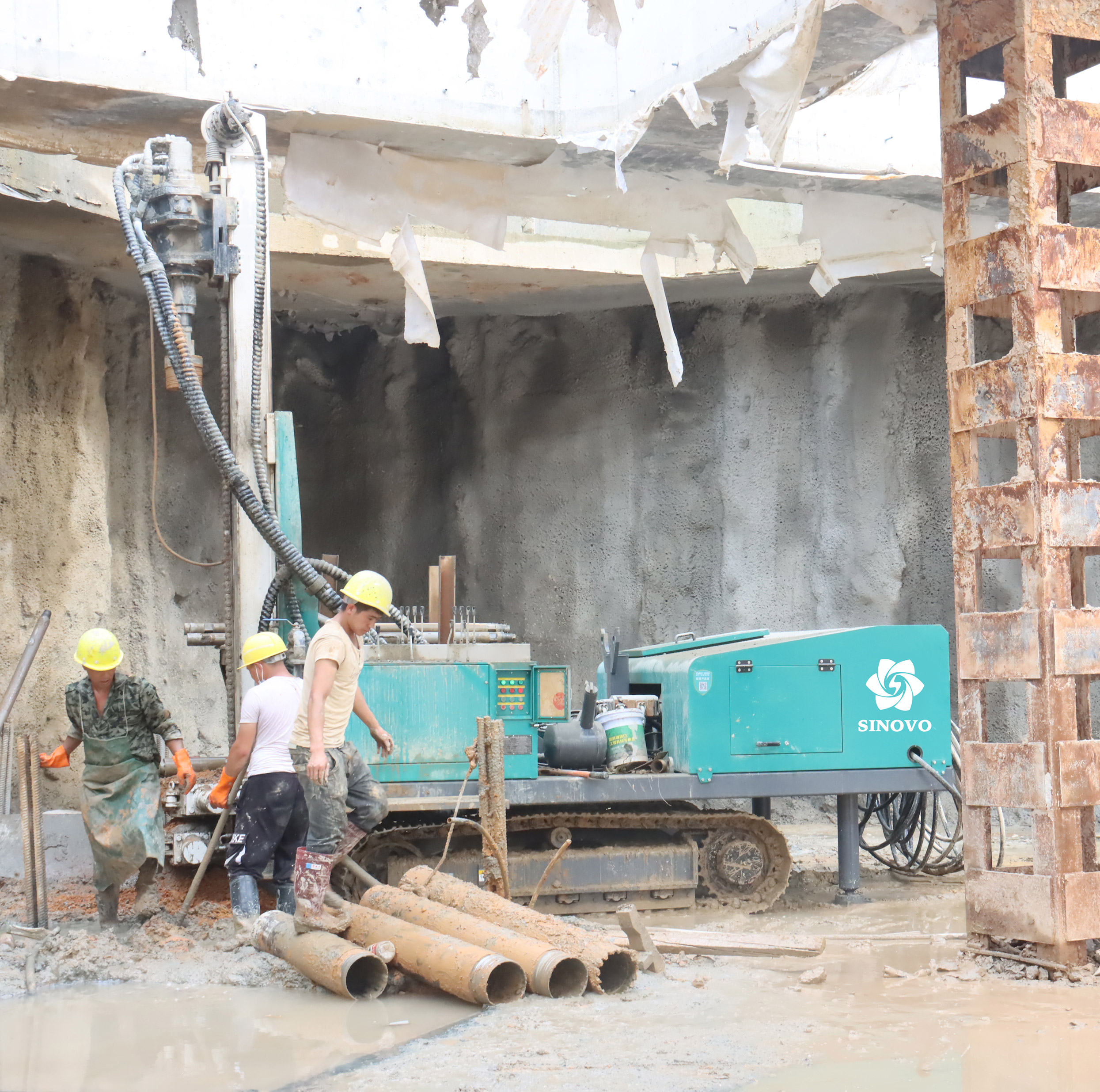

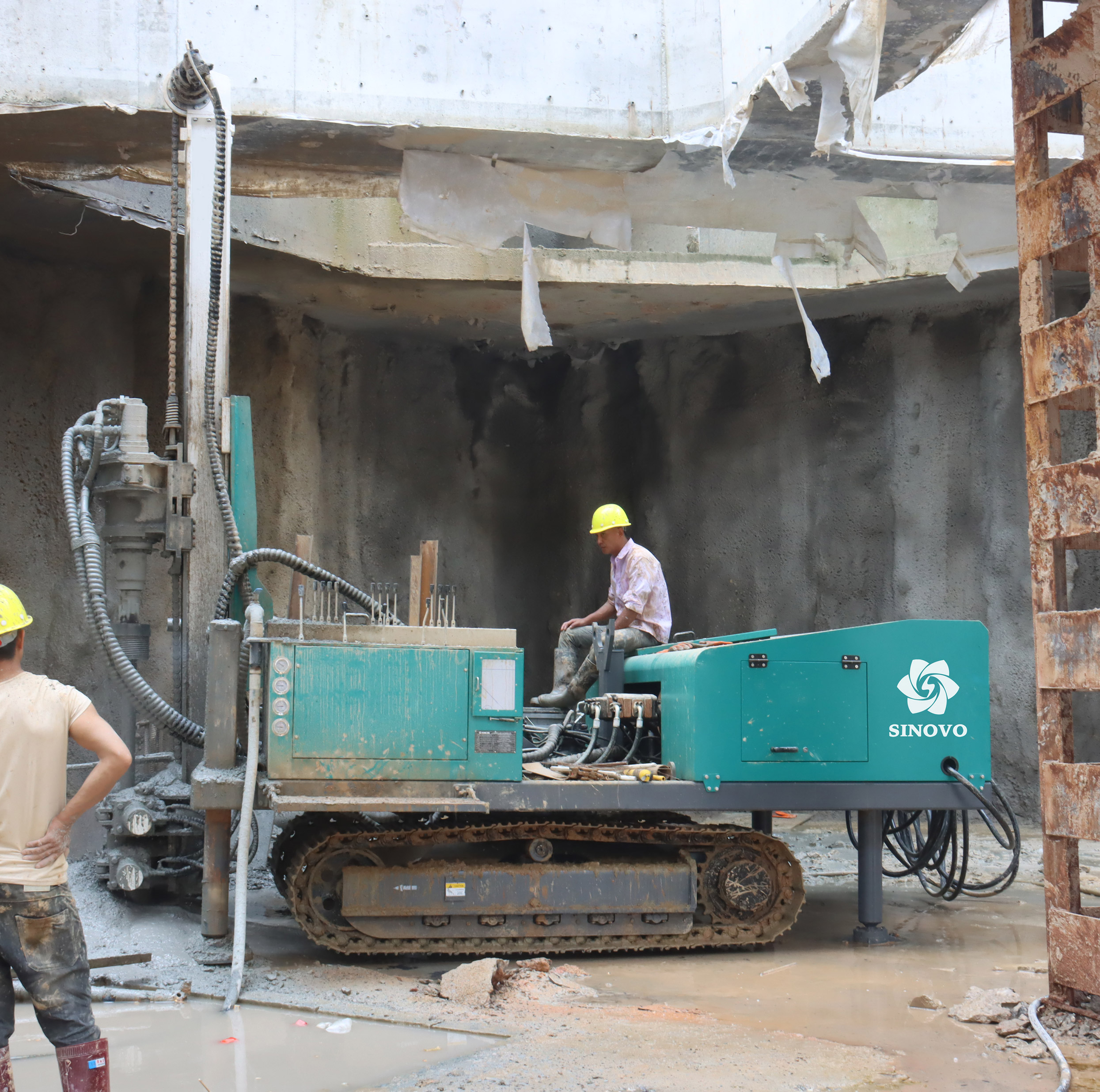

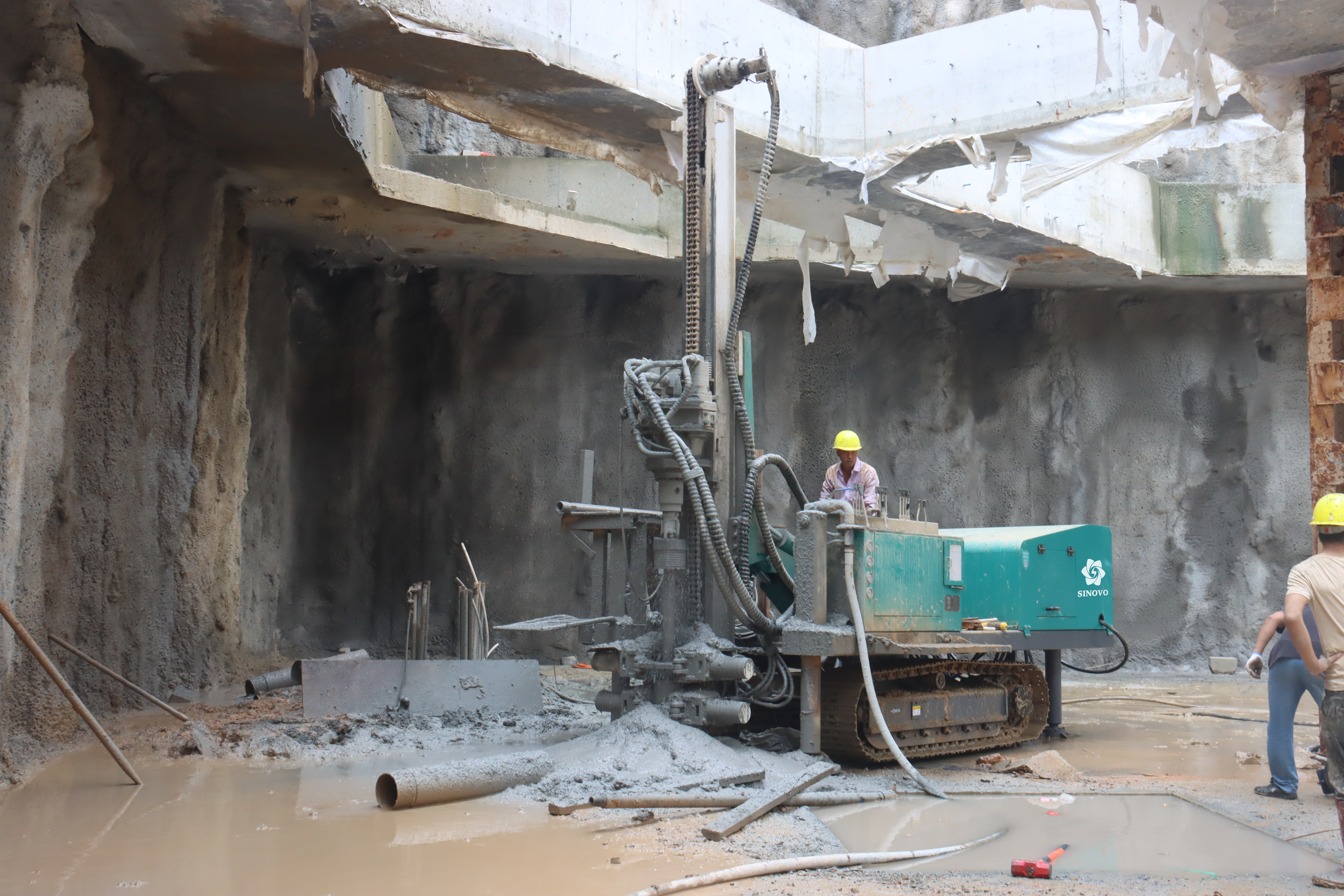

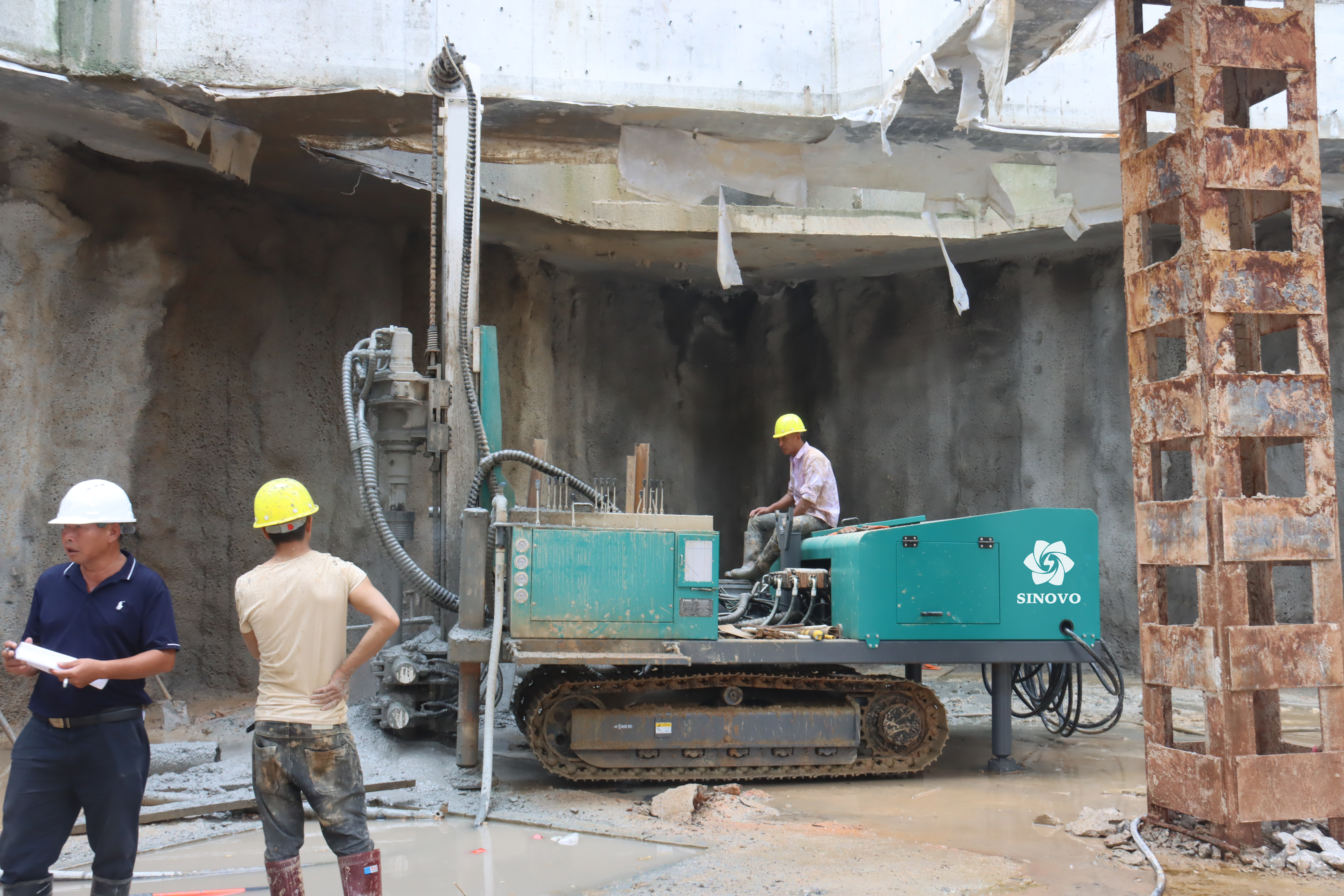

Product Showcase

Frequently Asked Questions

Q1: What are the maximum drilling capacity specs for this rig?

This equipment supports a drilling hole diameter of φ90 to φ500mm and is capable of reaching a maximum hole depth of 200m.

Q2: What power specifications does the electric motor require?

The system features a dual motor configuration rated at 55+18.5kw, operating under an input voltage of 380V.

Q3: How much lifting force and propulsion does the cylinder-driven beam deliver?

The cylinder-driven propulsion beam offers a maximum lifting force of 6T and a maximum propulsion of 3.3T, with a single propulsion length of 3600mm.

Q4: What is the torque output capability of the power head?

The power head delivers a maximum output torque of 9000N.m with an adjustable output speed range of 0 to 170r/min.

Q5: Are there any custom configurations or options available?

Yes, customers can choose optional auxiliary integrations including hydraulic winches, oil mist setups, and integrated water tanks.

Q6: What are the transport dimensions and overall weight of this machine?

The overall physical footprint is 6.3m (Length) x 2.2m (Width) x 2.6m (Height), with a ground clearance of 335mm and a total operational weight of 7.9T.
