| Specification parameters | |
|---|---|
| Engine Power | 153/2200KW |
| Max Thrust force | 350/700KN |
| Max Pullback force | 350/700KN |
| Max Torque | 13000/15800N.M |
| Max Rotary speed | 138rpm |
| Max Moving speed of power head | 38m/min |
| Max Mud pump flow | 400L/min |
| Size (L*W*H) | 6800x2240x2260mm |
| Weight | 11T |
| Diameter of drilling rod | φ73mm |
| Length of drilling rod | 3m |
| Max diameter of pullback pipe | φ1200mm |
| Max construction length | 450m |
| Incidence Angle | 11~20° |
| Climbing Angle | 15° |
Adopting first-class hydraulic walking drive device, wire-controlled operation makes loading, unloading, and site transfer fast and convenient. Equipped with medium 73 / medium 76 / 83 x 3000mm drill rods, the body occupies a moderate area, allowing it to meet the requirements of efficient construction in narrow job sites.
The circuit design is simple, resulting in a low failure rate and easy maintenance. The streamlined design, inspired by European and American styles, presents a beautiful and generous appearance. Maintenance and repair accessibility are prioritized, fully reflecting a people-oriented design concept. Humanized design features a high degree of automation with a standard equipped robotic arm, greatly improving work efficiency and reducing labor intensity.

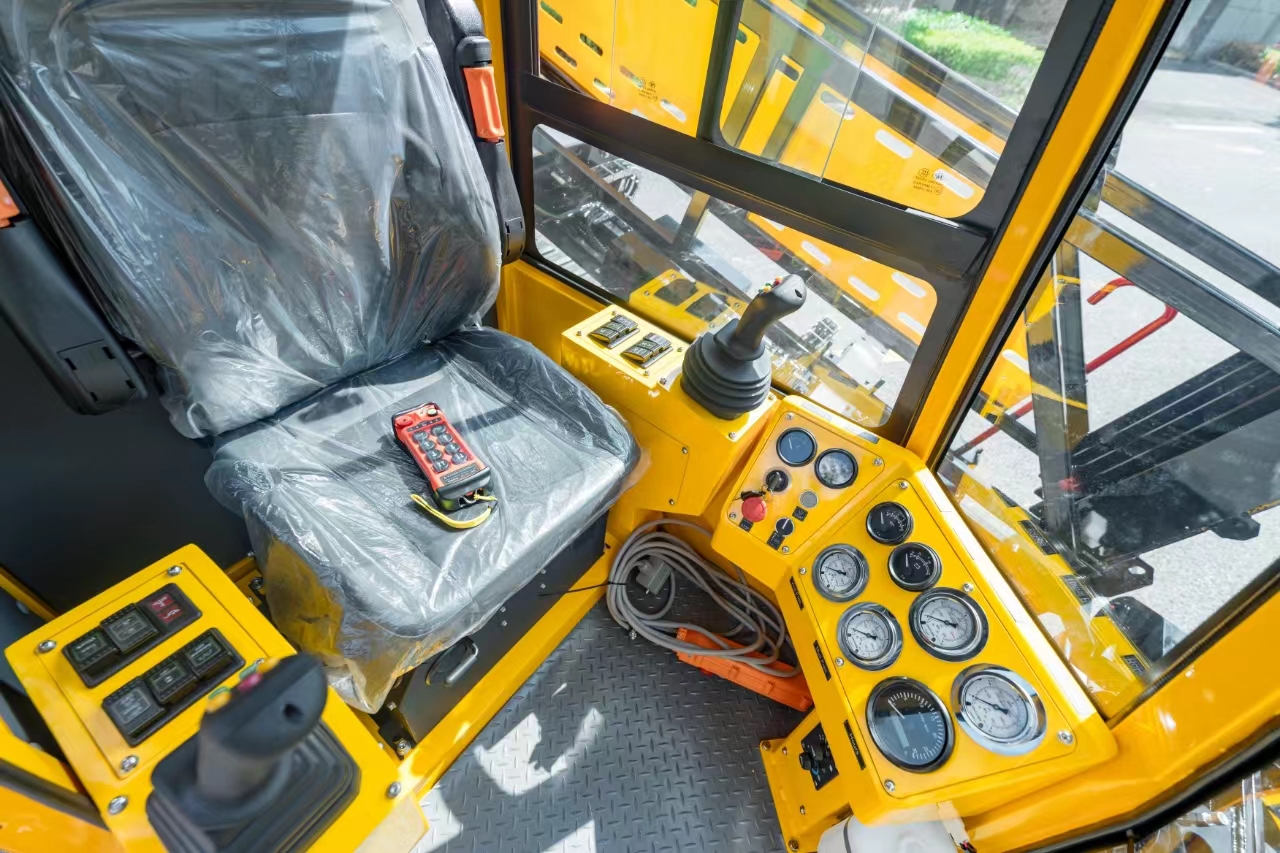

Cab (with heating and cooling air conditioning), automatic upper pole box, automatic hydraulic anchor, and automatic screw oil machine, etc., according to customer needs.
A1: It is equipped with a Dongfeng Cummins engine, which features strong power, stable performance, low fuel consumption, and low noise, making it highly suitable for urban construction projects.
A2: The drilling rig has a maximum construction length of 450 meters and can handle a maximum pullback pipe diameter of φ1200mm.
A3: The push-pull rotating hydraulic system adopts series-parallel control technology with first-class hydraulic components. The rotation of the power head is directly driven by an Eaton high-torque cycloidal motor with two levels of stepless speed regulation, while the push-pull speed can be adjusted in three levels.
A4: Yes, the body occupies a moderate area and is equipped with standard 73mm/76mm/83mm x 3000mm drill rods, making it perfect for efficient construction in narrow and confined sites.
A5: Optional configurations include a fully air-conditioned cab (heating and cooling), an automatic upper pole box, an automatic hydraulic anchor, and an automatic screw oil machine.
A6: The rig features a high degree of automation and comes standard with a robotic arm, which greatly improves onsite work efficiency and reduces physical labor intensity.
