Discount SHD20 horizontal directional drilling rig Supplier, Product
1 / 1
Discount SHD20 horizontal directional drilling rig Supplier, Product

Discount SHD20 horizontal directional drilling rig Supplier, Product

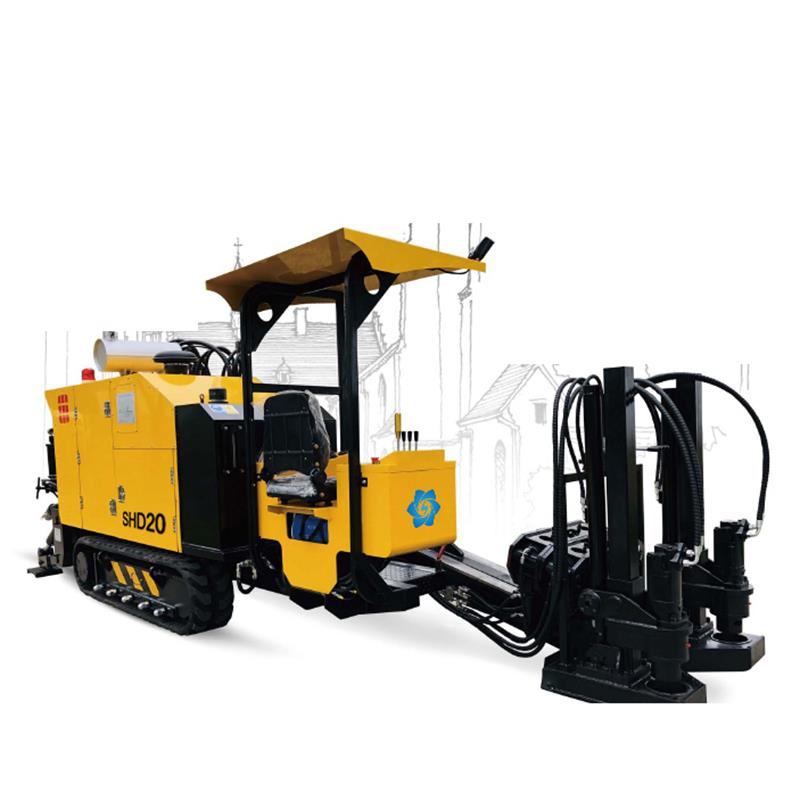

SHD20 Horizontal Directional Drills are mainly used in the trenchless piping construction and re-placement of the underground pipe. The SINOVO SHD series horizontal directional drills have the advantages of advanced performance, high efficiency and comfortable operation. Many key components of SHD series horizontal directional drilling rig adopt international famous products to guarantee the quality. They are the ideal machines for construction of the water piping, gas piping, electricity, telecommunication, heating system, crude oil industry.
Send Inquiry

Product Description

Technical Specifications
Engine Power 110/2200KW
Max Thrust force 200KN
Max Pullback force 200KN
Max Torque 6000N.M
Max Rotary speed 180rpm
Max Moving speed of power head 38m/min
Max Mud pump flow 250L/min
Max Mud pressure 8+0.5Mpa
Main machine size 5880x1720x2150mm
Weight 7T
Diameter of drilling rod φ60mm
Length of drilling rod 3m
Max diameter of pullback pipe φ150~φ700mm
Max construction length ~ 500m
Incidence Angle 11~20°
Climbing Angle 14°
Key Features & Structural Design
Chassis
Classic H-beam structure, steel track, strong adaptability and high reliability; Doushan walking reducer has stable and reliable performance; The anti shear sleeve leg structure can protect the oil cylinder from transverse force.
Cab
Single all-weather rotatable cab, easy to operate and comfortable.
Engine
Turbine torque increasing stage II engine, with large power reserve and small displacement, to ensure drilling power and emergency needs.
Hydraulic system
Closed energy-saving circuit is adopted for rotation, and open system is adopted for other functions. Load sensitive control, electro-hydraulic proportional control and other advanced control technologies are adopted. Imported components are of reliable quality.
Electrical system
For horizontal directional drilling construction technology, advanced intelligent control technology, CAN technology and imported high reliability controller are applied. Optimize the display position of each instrument, use larger instrument, easy to observe. By wire control, stepless speed regulation can be realized, and the operation is convenient. Engine speed, water temperature, oil pressure, hydraulic oil level temperature, return oil filter, power head limit and other parameters monitoring alarm, effectively protect the safety of the machine.
Drilling frame
High strength drilling frame, suitable for 3m drill pipe; It can slide the drill frame and adjust the angle easily.
Drill pipe gripper
Detachable gripper and truck mounted crane make it easy to load and unload drill pipe.
Walking by wire
Easy to operate, high and low speed adjustable.
Monitoring and protection
Engine, hydraulic pressure, filter and other parameters monitoring alarm, effectively protect the safety of the machine.
Emergency operation
Equipped with manual operation system to cope with special circumstances and protect construction safety.
Frequently Asked Questions
What are the engine power and pullback force ratings?
The system features a turbine torque increasing stage II engine with an engine power of 110/2200KW. The maximum pullback force and maximum thrust force are both rated at 200KN.
What length and diameter of drilling rods are recommended?
The high-strength drilling frame is designed for a drilling rod length of 3 meters and a drilling rod diameter of φ60mm.
What type of hydraulic and control systems are utilized?
The rotation system employs a closed energy-saving circuit, while open systems are used for other functions. It incorporates load-sensitive control and electro-hydraulic proportional control with high-quality imported components.
How does the machine monitor operational safety?
The electrical system includes comprehensive parameters monitoring and alarms for engine speed, water temperature, oil pressure, hydraulic oil level temperature, return oil filter, and power head limit to protect the machine.
What is the maximum construction length and pullback pipe diameter?
The machine supports a maximum construction length of approximately 500 meters, with a maximum pullback pipe diameter ranging from φ150 to φ700mm.
Does the machine support emergency manual operations?
Yes, the machine is equipped with a manual operation system for emergency situations to safeguard the operator and secure construction safety.
