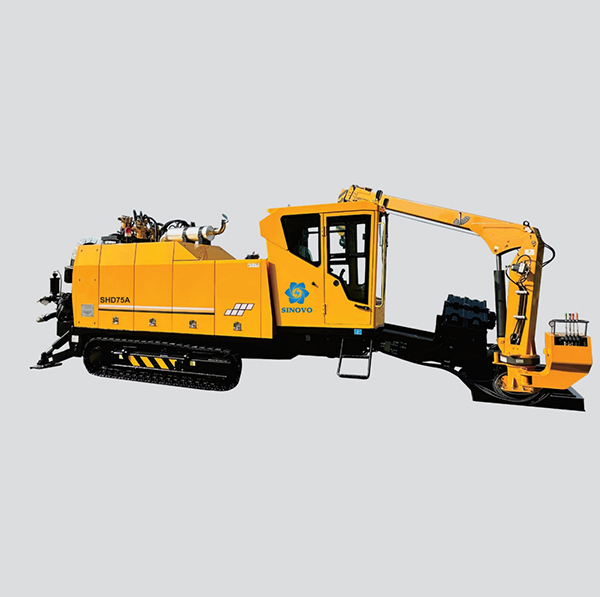

The rotation and thrust is equipped with USA Sauer closed-circuit system, which is efficient, stable and reliable. Rotation motor is originally imported from French Poclain which is famous all over the world, and push & pull motor is from Germany Rexroth and which increases work efficiency more than 20%, and totally saves about 20% energy compared with traditional system.

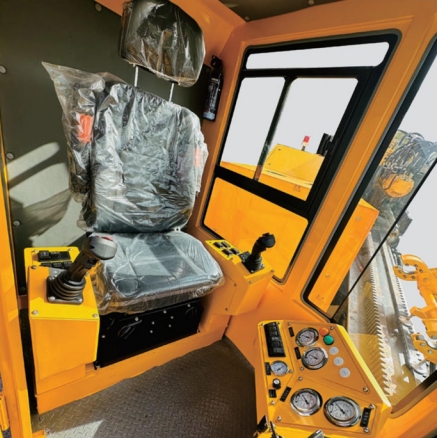

Electric control is adopted for rotation and push & pull, realizing more stable and reliable control and quicker response.
It is equipped with Cummins engine specialized in engineering machinery with strong power.
Driving head reserves reinforced power (push & pull force). Push & pull force can be increased to 1500KN, which ensures the safety of the big diameter construction.
Four bar linkage luffing structure is adopted for main girder, which highly increases entry angle range and ensures the large angle and rig tracks are not off ground, having improved the safety performance.
Wireless-control walking system can be used to ensure the safety in the process of walk, transfer and load & unload.
Reversible manipulator is convenient for loading and unloading drill rod,which can greatly reduce the workers labor intensity, and improve work efficiency.
With φ 102 or 114x4500mm drill rod, the machine can be used in medium field area,meeting the requirement for high efficiency construction in small place.
Main hydraulic components are from the international first-class hydraulic component manufacturer, which greatly improve the reliability of the product performance and safety.
Electric design is reasonable with low failure rate, which is easy to maintain.

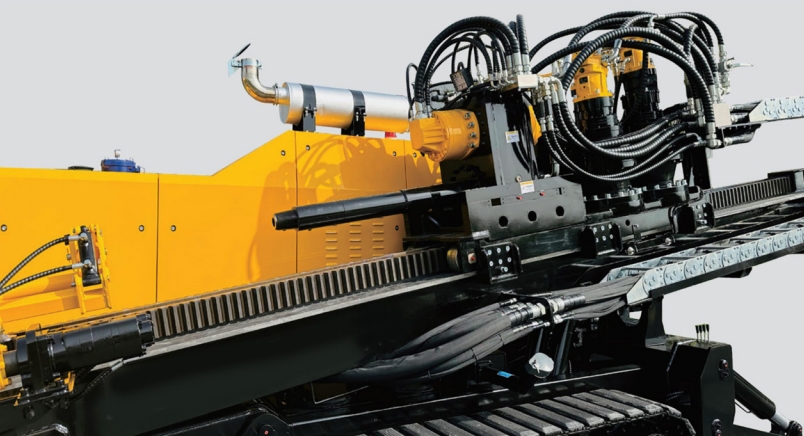

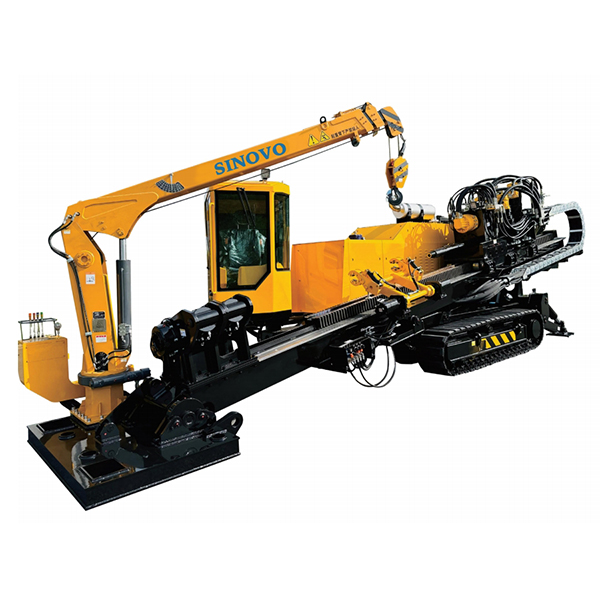

Rack and pinion structure is adopted for push & pull,which is good for high efficiency, long lifespan, stable work, and maintenance is also convenient.
Steel track with rubber plate can be loaded heavily and walks on all kinds of roads as well.
| Parameter | Specification Value |
|---|---|
| Engine Power | 264/2200KW |
| Max Thrust force | 750/1500KN |
| Max Pullback force | 750/1500KN |
| Max Torque | 40000N.M |
| Max Rotary speed | 130rpm |
| Max Moving speed of power head | 40m/min |
| Max Mud pump flow | 800L/min |
| Max Mud pressure | 10±0.5Mpa |
| Size(L*W*H) | 9600x2300x2480mm |
| Weight | 18T |
| Dia. of drilling rod | ф 102 or ф 114mm |
| Length of drilling rod | 4.5m |
| Max diameter of pullback pipe | ф 1500mm Soil Depended |
| Max construction length | 900m Soil Depended |
| Incidence Angle | 11~22° |
| Climbing Angle | 15° |
The drilling rig is equipped with a high-performance Cummins engine specifically designed for engineering machinery, delivering a strong power output of 264/2200KW.
The rig achieves a maximum thrust and pullback force of 750/1500KN, with reinforced power reserved at the driving head to ensure safety during large diameter pipe installations.
The system features a USA Sauer closed-circuit system for rotation and thrust. The rotation motor is imported from French Poclain, and the push & pull motor is from Germany Rexroth, which together increase efficiency by over 20% compared to traditional systems.
The rig is designed to work with φ 102mm or φ 114mm drill rods with a length of 4.5 meters, making it highly efficient for construction projects in medium-sized fields and confined spaces.
Yes. The rig is configured with a heavy-duty steel track featuring rubber plates. This setup supports substantial weight loads while allowing the machine to travel safely across all types of public and off-road pathways.
