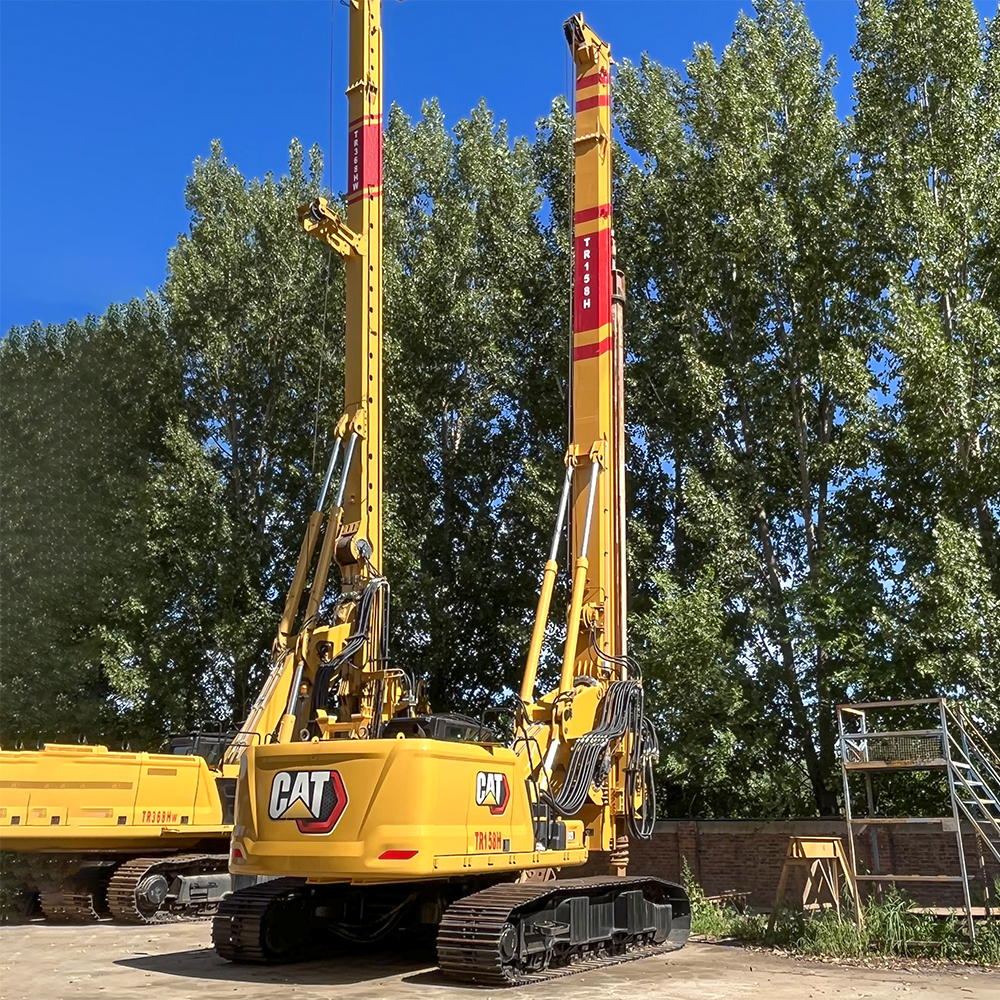

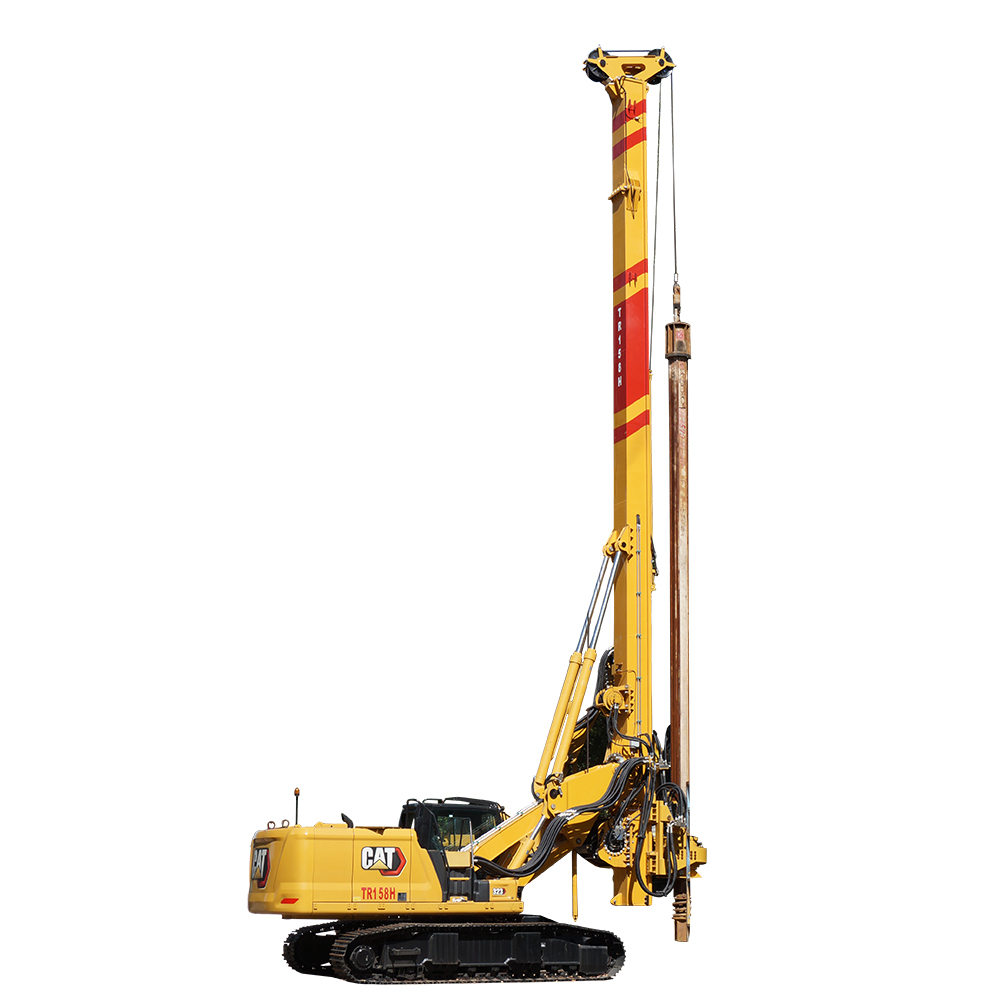

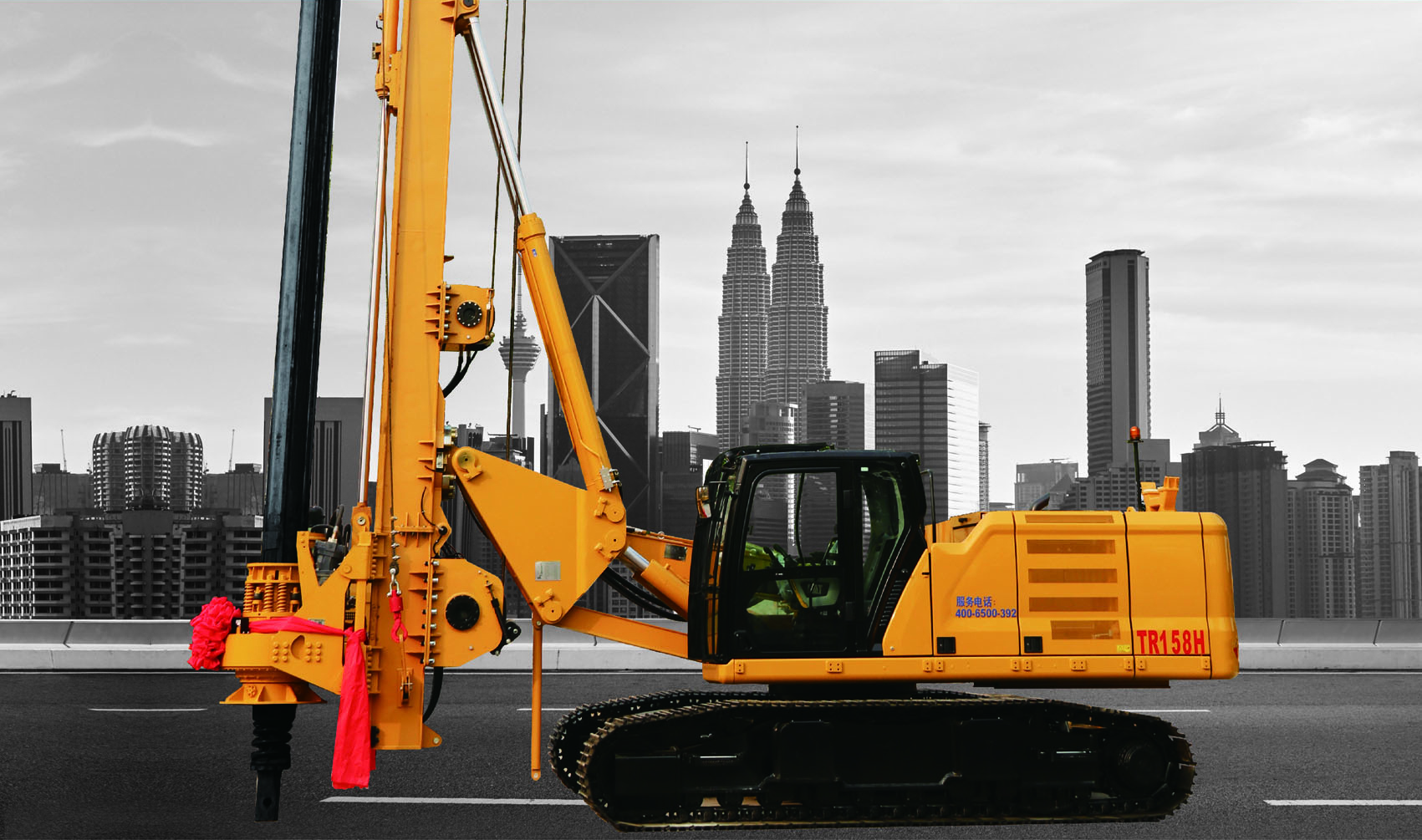

Famous 57.5m Depth TR158 Hydraulic Rotary Drilling Rig Manufacturer, Companies

The TR158 rotary drilling rig has a maximum output torque of 158KN-M, a maximum drilling diameter of 1500mm and a maximum drilling depth of 57.5m. It can be widely used in municipal, highway, railway bridges, large buildings, high-rise buildings and other construction fields, and can achieve efficientdrilling of hard rock.

Send Inquiry

Product Description

Technical Specifications

Specification Parameter	Value	Unit
Pile
Max. drilling diameter	1500	mm
Max. drilling depth	57.5	m
Rotary drive
Max. output torque	158	kN-m
Rotary speed	6~32	rpm
Crowd system
Max. crowd force	150	kN
Max. pulling force	160	kN
stroke of crowd system	4000	mm
Main winch
Lifting force (the first layer)	165	kN
wire-rope diameter	28	mm
Lifting speed	75	rm/min
Auxiliary winch
Lifting force (the first layer)	50	kN
Wire-rope diameter	16	mm
Mast inclination angle
Left/right	4	°
Forward	4	°
Chassis
Chassis model	CAT323	-
Engine manufacturer	CAT	CATERPILLAR
Engine model	C-7.1	-
Engine power	118	kw
Engine speed	1650	rpm
chassis overall length	4920	mm
Track shoe width	800	mm
Tractive force	380	kN
Overall machine
working width	4300	mm
working height	19215	mm

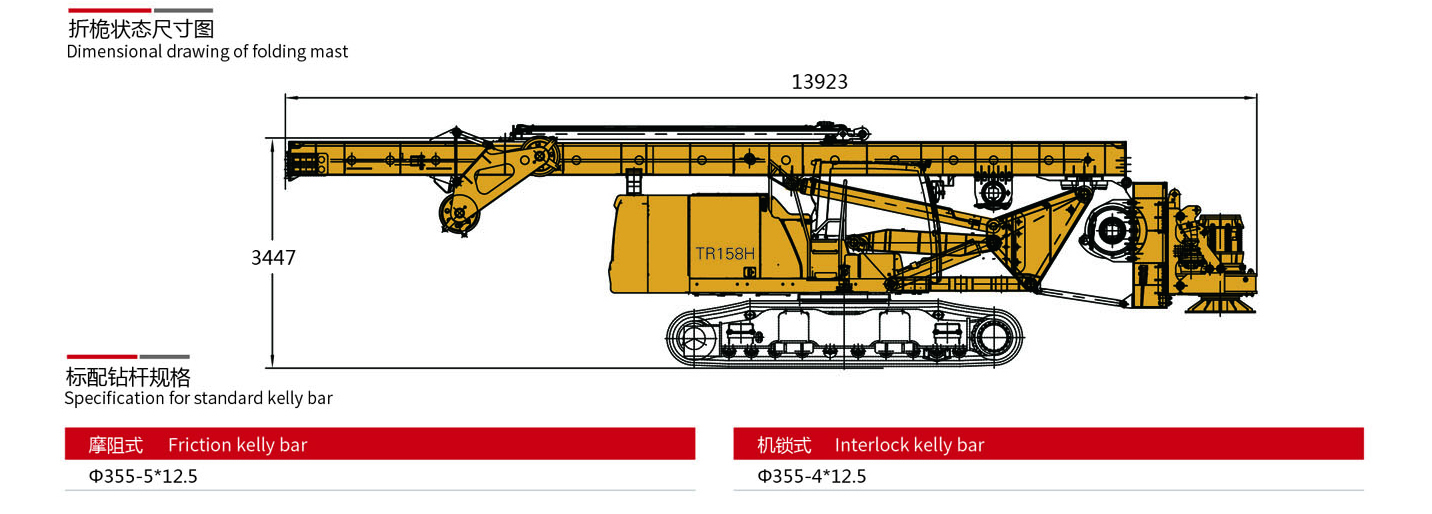

Transport length	13923	mm
Transport width	3000	mm
Transport height	3447	mm
Total weight（with kelly bar)	53.5	t
Total weight（without kelly bar)	47	t

Key Features & Performance Advantages

Smart System Upgrade

The latest system optimizes drilling operations, making use smarter and easier. This upgrade reduces maintenance costs by 20% through extended cycles, lower hydraulic oil use, elimination of pilot filters, magnetic shell filters, dust-resistant air filters, unified fuel/oil filters, and overall component versatility.

CAT Electronic Chassis

The TR158H rotary drilling rig adopts a new CAT electronic control chassis combined with a reinforced upper frame, significantly enhancing the overall operational stability and reliability.

Electronic Control System

The entire machine integrates full electronic control system monitoring. This improves component sensitivity, reduces response time, and substantially boosts overall work efficiency.

Optimized Hydraulic System

Eliminating the traditional pilot pump and fan pump in favor of a specialized electronic fan pump directly increases the net output power of the hydraulic system.

Advanced Power Head

The power head increases the guiding length of the drill pipe, protecting the assembly, prolonging the service life of the power head, and improving hole forming accuracy.

Flip-Chip Gear Box

Utilizing a state-of-the-art flip-chip gear box design on the power head dramatically facilitates maintenance accessibility and lowers long-term repair costs.

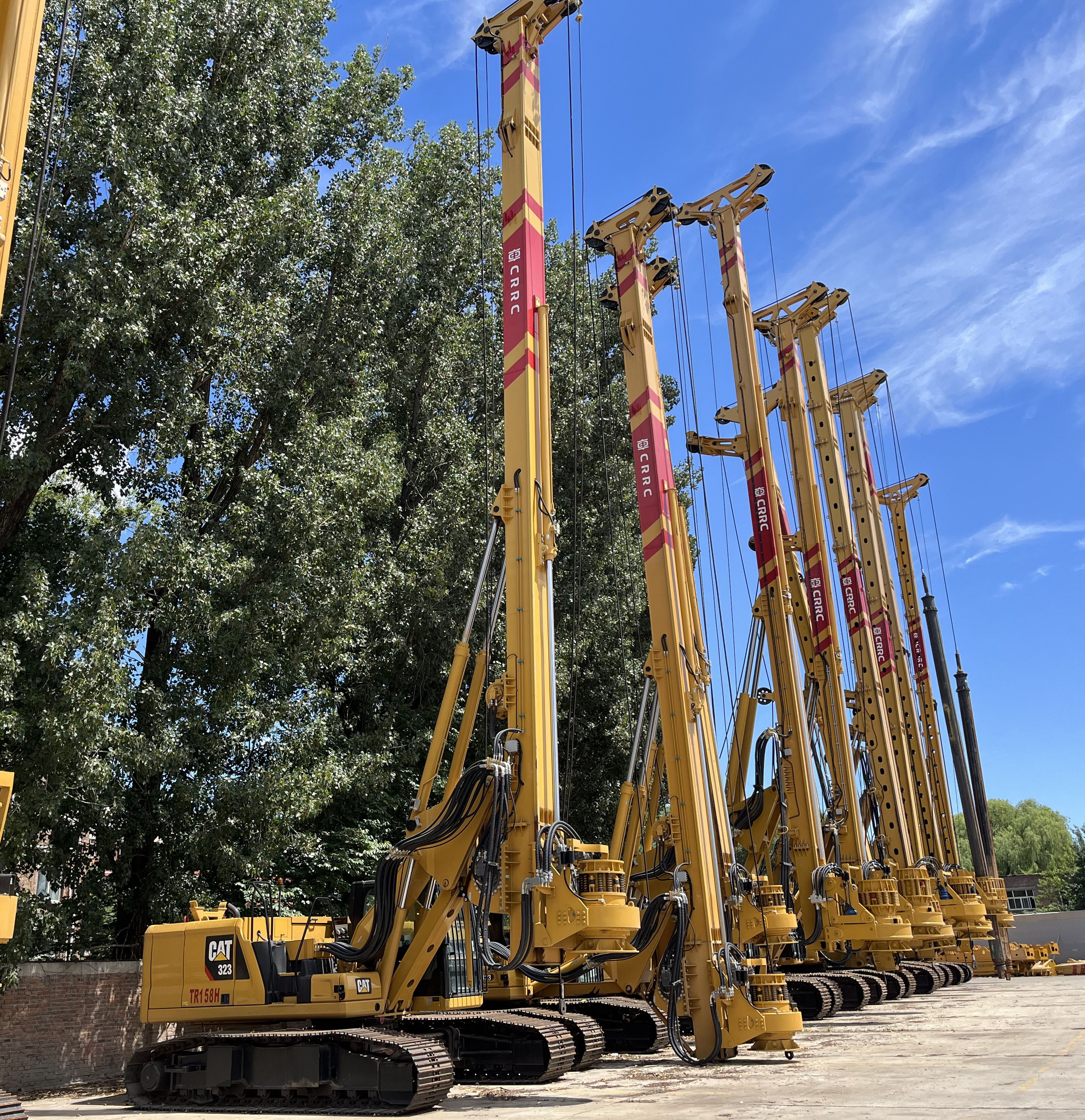

Product Media

Frequently Asked Questions (FAQ)

What are the maximum drilling depth and diameter capabilities of this rig?

The TR158H rotary drilling rig offers a maximum drilling diameter of 1500 mm and can reach a maximum drilling depth of 57.5 meters.

Which chassis and engine are used in this model?

This drilling rig is powered by a reliable CAT323 chassis and a CAT CATERPILLAR C-7.1 engine, providing a rated engine power of 118 kw at 1650 rpm.

How does the system upgrade help reduce maintenance costs?

The system optimizes drilling assistant functions, lowering maintenance costs by 20%. Key upgrades include extended maintenance cycles, reduced hydraulic oil usage, a magnetic shell filter, a dust-resistant air filter, and unified fuel/oil filtration compartments.

What benefits does the electronic fan pump provide to the hydraulic system?

By replacing traditional pilot and fan pumps with an electronic fan pump system, the configuration increases the overall net power output of the hydraulic system.

How is the design of the power head optimized for longevity and accuracy?

The power head is built with an increased drill pipe guiding length to prolong component lifespan and increase hole-forming accuracy. It also utilizes a flip-chip gear box configuration to lower maintenance expenses.

What is the total transport weight of the drilling rig?

The total weight of the machine is 53.5 tonnes with the kelly bar installed, and 47 tonnes when the kelly bar is removed.
