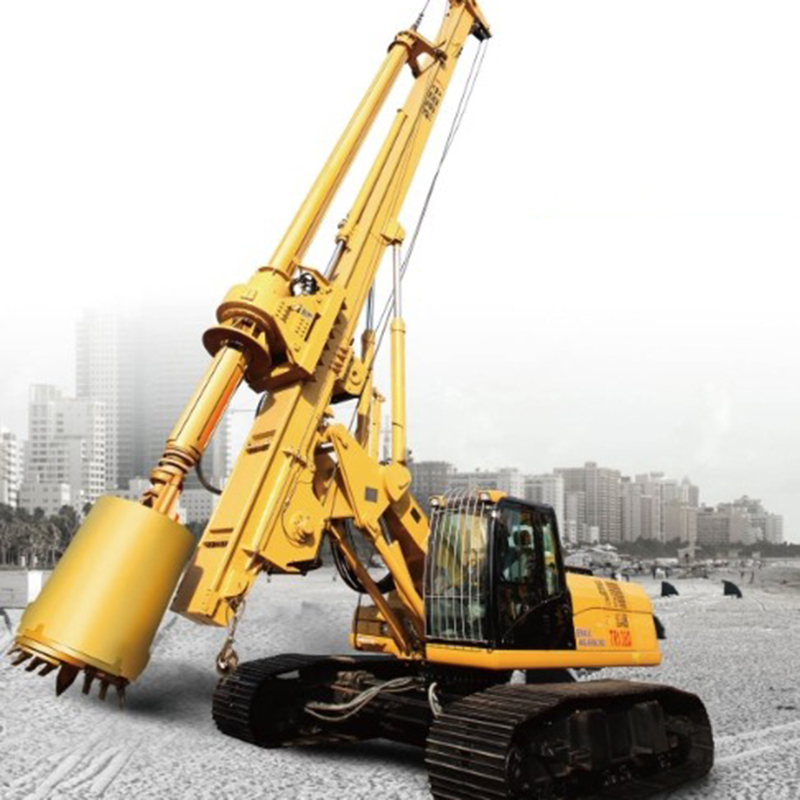

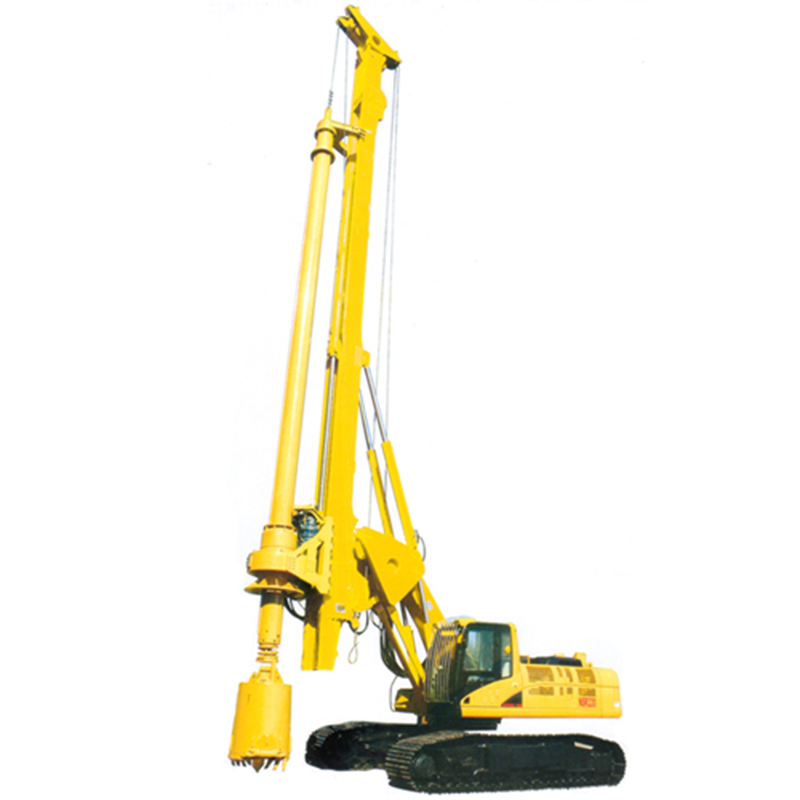

TR138D rotary drilling rig is new designed self-erecting rig which mounted on original Caterpillar 323D base, adopts advanced hydraulic loading back technology, integrates advanced electronic control technology. The whole performance ofTR138D rotary drilling rig has reached advanced world standards.

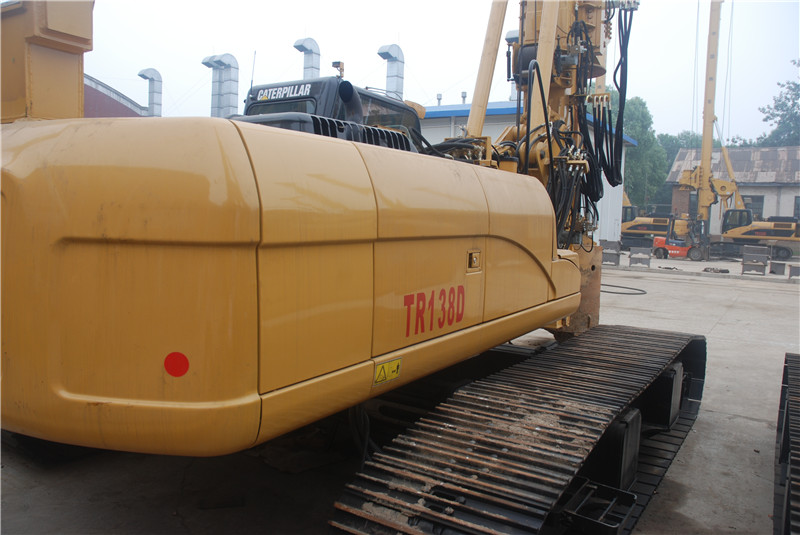

TR138D rotary drilling rig has adopted CAT C6. 4 engine with ACERTTM Technology offers more engine power and runs at lower for better fuel efficiency and reduced wear. turbo suction, supply 147 hp power, Optimal machine performance, more power output, less emission.
Advanced Hydraulic & Stability Design

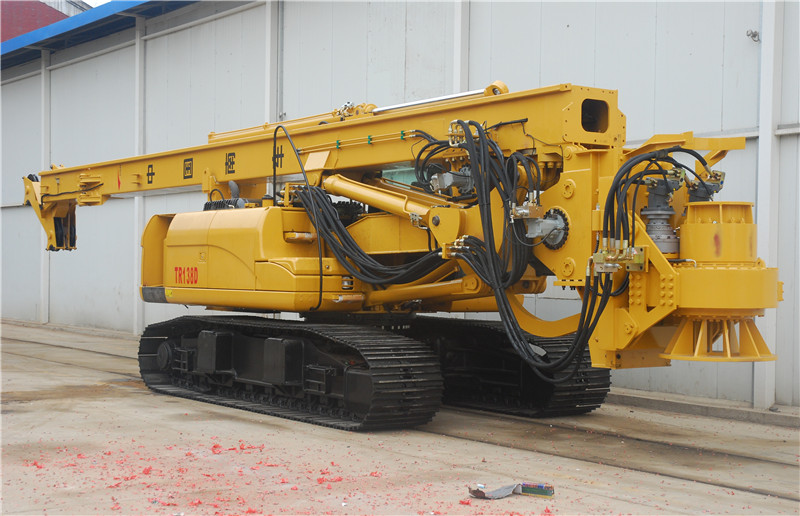

TR138D rotary drilling rig has new designing original hydraulic system. Hydraulic systems adopt Rexroth motor and valve, ensure power high efficiency when and where required. Wide crawler provides lower grounding pressure and improves the whole machine stability and adaptability. It is easy to work and transport by extendable crawler TR138D has separated auxiliary winch collocated on the mast from triangle parts, good view and maintenance more convenient, Compacted Parallelogram structure to reduce the length and height of the whole machine, reduce the machine, s request for the work space, easy for transportation.
Technical Specifications
TR138D Rotary drilling rig
Engine
Model
—
Cummins/CAT
Rated power
kw
123
Rated speed
r/min
2000
Rotary head
Max.output torque
kN·m
140
Drilling speed
r/min
0-38
Max. drilling diameter
mm
1500
Max. drilling depth
m
40/50
Crowd cylinder system
Max. crowd force
Kn
120
Max. extraction force
Kn
120
Max. stroke
mm
3100
Main winch
Max. pull force
Kn
140
Max. pull speed
m/min
55
Wire rope diameter
mm
26
Auxiliary winch
Max. pull force
Kn
50
Max. pull speed
m/min
30
Wire rope diameter
mm
16
Mast inclination Side/ forwards/ backwards
°
±4/5/90
Interlocking Kelly bar
—
ɸ355*4*10
Friction Kelly bar (optional)
—
ɸ355*5*10
Undercarriage
Max. traveling speed
km/h
2
Max. rotation speed
r/min
3
Chassis width (extension)
mm
3000/3900
Tracks width
mm
600
Caterpillar grounding Length
mm
3900
Working Pressure of Hydraulic System
Mpa
32
Total weight with kelly bar
kg
36000
Dimension
Working (Lx Wx H)
mm
7500x3900x15800
Transportation (Lx Wx H)
mm
12250x3000x3520
Intelligent Control & Operations
Electric Control & Components: Electric systems are from Pal-fin auto-control, optimal design of electric control system improves the control accuracy and the feedback speed. All of key components adopted first class international brand, increase the interchangeability and running stability, more reasonable depth measuring device.
The newest designed winch drum structure which the service life of steel wire rope extend to 3000m.

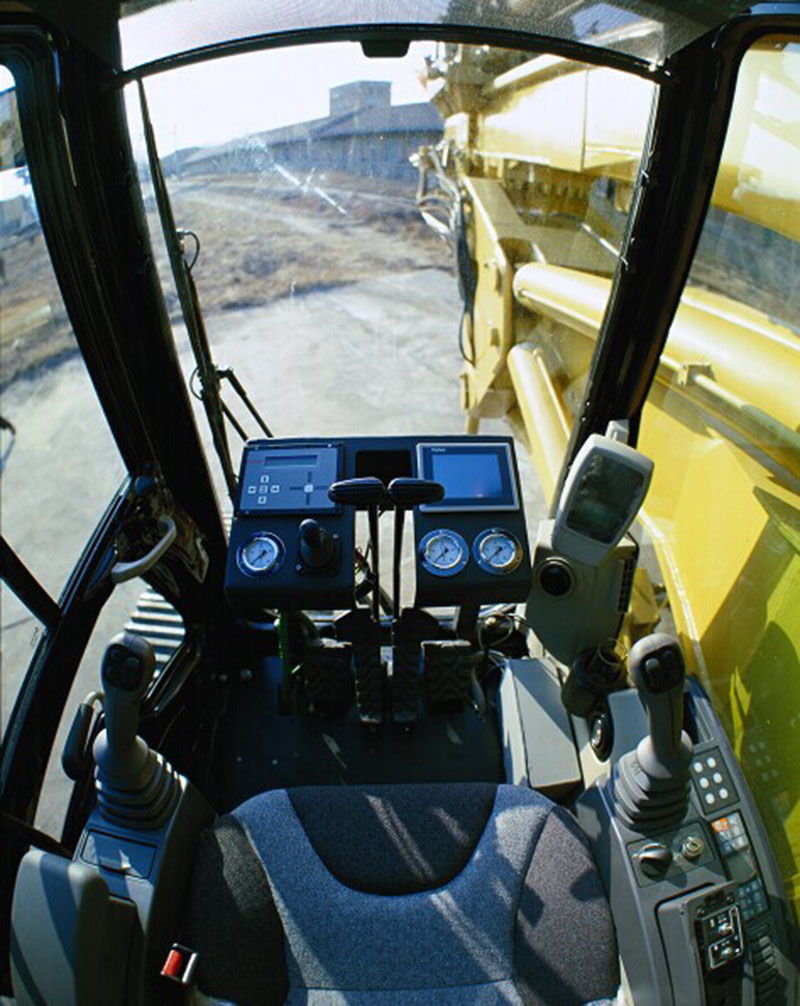

TR138D has a large-space soundproofed cabin with high-power air condition and luxurious damping seat provides driver high-comfort and pleasured working environment. At two side, there are very convenient and humanization-designed operating joystick, Touch screen and monitor show the parameters of system includes warning device for abnormal situation. The pressure gage can also provide more intuitive working condition for the operating driver. It has the pre-automatic detection function before starting the whole machine.
Design Principles & Field Application
TR138D rotary drilling rig is new designed self-erecting rig which mounted on original Caterpillar 323D base, adopts advanced hydraulic loading back technology, integrates advanced electronic control technology. The whole performance of TR138D rotary drilling rig has reached advanced world standards.
Key Applications:

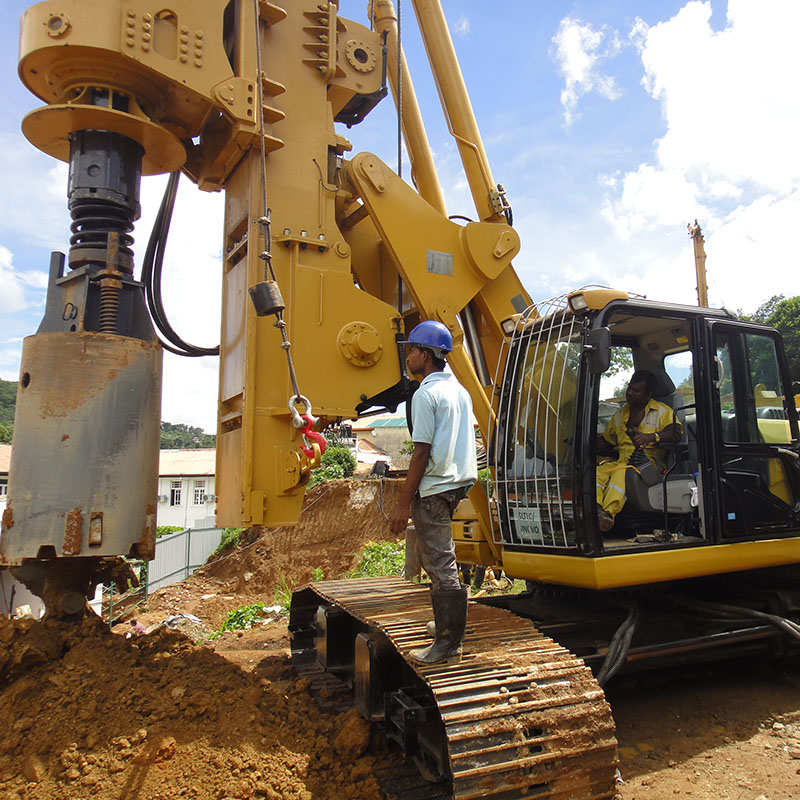

- Drilling with telescopic friction or interlocking kelly bar - standard
- Drilling cased bore piles (casing driven by rotary head or optionally by casing oscillator)
The corresponding improvement on both structure and control which makes the structure more simple and compact, the performance more reliable and the operation more humanized.
Frequently Asked Questions (FAQ)
What engine is utilized in the TR138D rotary drilling rig?
The TR138D features a CAT C6.4 engine with ACERT Technology delivering 147 hp, designed for optimal performance, reduced emissions, and high fuel efficiency. There is also a Cummins/CAT engine configuration option.
How does the extendable crawler assist in field operations?
The wide crawler design lowers grounding pressure, vastly improving stability and adaptability on challenging terrains. Because it is extendable, it can be retracted for easy transport.
What are the maximum drilling capabilities of the TR138D?
The drilling rig offers a maximum drilling diameter of 1500 mm and reaches a maximum drilling depth of 40/50 meters.
What components ensure the quality of the hydraulic and electrical systems?
The hydraulic system employs premium Rexroth motors and valves, while the electrical systems are powered by Pal-fin auto-control. All key parts are sourced from first-class international brands to guarantee stability and interchangeability.
What kind of operator comfort features does the cabin offer?
It includes a large, soundproofed cabin equipped with high-power air conditioning, a luxurious damping seat, user-friendly joysticks, and an advanced touch screen monitoring system with pre-automatic diagnostic functions.
Which drilling applications is the TR138D best suited for?
The machine is optimized for drilling with telescopic friction or interlocking kelly bars as standard, and for drilling cased bore piles (driven by either the rotary head or an optional casing oscillator).
