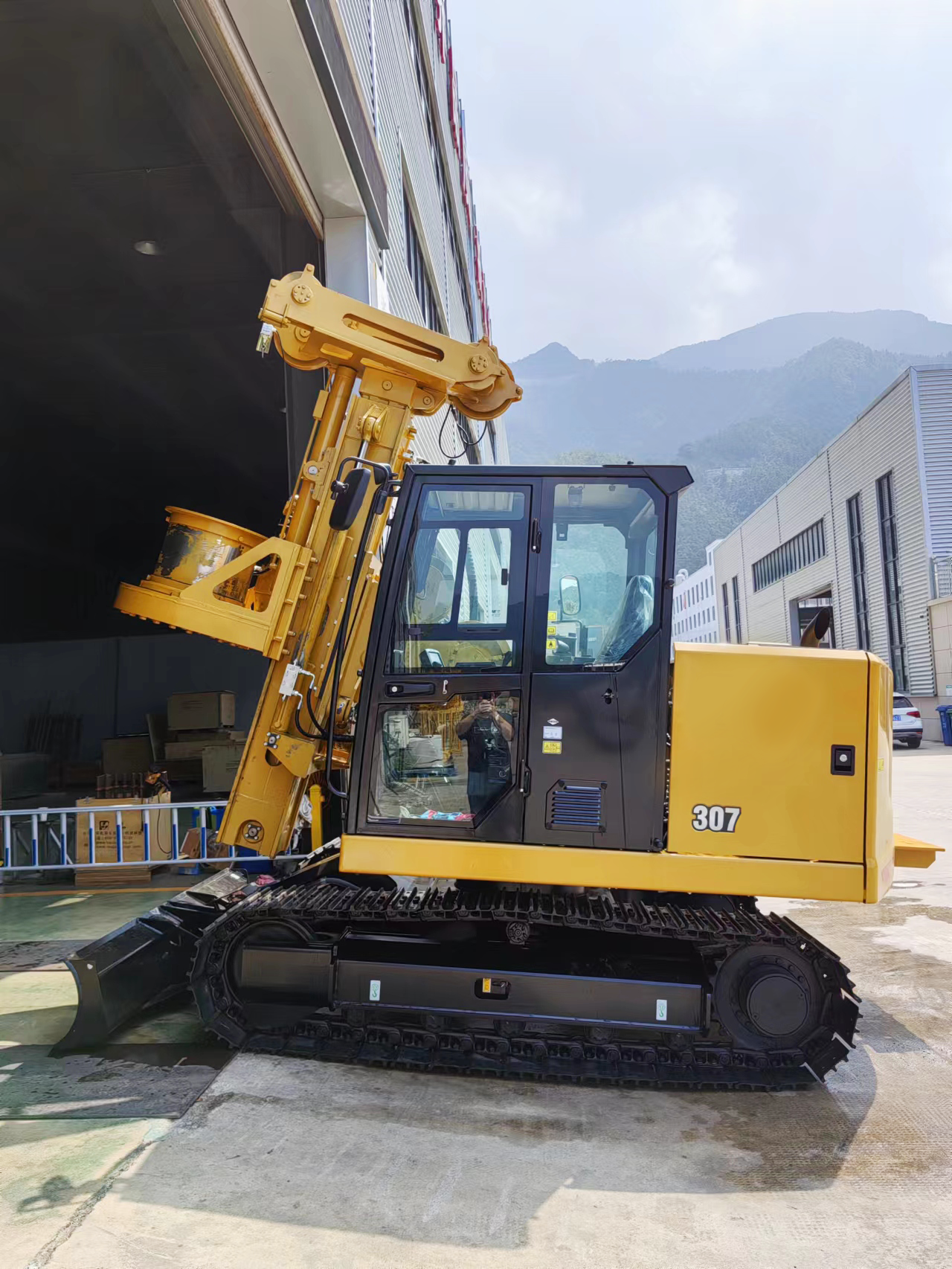

TR35 can move in very tight locations and limited access areas, equipped with special telescopic section mast to ground and reach the working position of 5000mm. TR35 is equipped with interlocking Kelly bar for drilling depth 18m. With the mini undercarriage width of 2000mm, TR35 can be for easy work on any surface.
Specially designed to navigate tight locations and highly restricted access areas.
Reaches up to 18m depth utilizing a robust interlocking Kelly bar system.
A narrow width of 2000mm ensures stable and easy work on various surface terrains.
| Parameters | Details / Component | Unit | Specification (TR35) |
|---|---|---|---|
| Model | TR35 | ||
| Engine | Brand | - | Yanmar |
| Power | kW | 44 | |
| Rotating speed | r/min | 2100 | |
| Rotary Head | Torque | kN.m | 35 |
| Rotating speed | rpm | 0-40 | |
| Max drilling diameter | mm | 1000 | |
| Max drilling depth | m | 18 | |
| Feeding Cylinder | Max pull force | kN | 40 |
| Max lifting force | kN | 50 | |
| Stroke | mm | 1000 | |
| Main Winch | Max lifting force | kN | 50 |
| Speed | m/min | 50 | |
| Rope dia | mm | 16 | |
| Auxiliary Winch | Max lifting force | kN | 15 |
| Speed | m/min | 50 | |
| Rope dia | mm | 10 | |
| Mast | Side | ° | ±4° |
| Forward | ° | 5° | |
| Kelly Bar | Out diameter | mm | 419 |
| Interlocking | m | 8*2.7 | |
| Weight | kg | 9500 | |
| L*W*H in working | mm | 5000×2000×5500 | |
| L*W*H in Transportation | mm | 5000×2000×3500 | |
| Shipped with Kelly bar | Yes | ||
The TR35 has a maximum drilling depth of 18 meters and is capable of reaching a maximum drilling diameter of 1000 mm.
Yes. The TR35 is specifically designed to operate in very tight locations and limited access areas. It features a narrow mini undercarriage width of 2000 mm and a special telescopic section mast.
It is powered by a Yanmar engine, providing a rated power of 44 kW at a rotating speed of 2100 r/min.
In the working position, the dimensions are 5000×2000×5500 mm. For transportation, the profile reduces down to 5000×2000×3500 mm.
The TR35 is equipped with an interlocking Kelly bar featuring an outer diameter of 419 mm and dimensions of 8*2.7 m. Additionally, the unit is shipped with the Kelly bar included.
The operational weight of the TR35 rotary drilling rig is 9500 kg.
