Product Description

Technical Specifications

Model	TR10
Kelly Bar Size
Max diameter of drilling hole	800mm
Maximum depth	12m
Min diameter of drilling hole	400mm
Diameter	Ø377mm
Chassis
Chassis type	Sany (base weight 3.5T)
Engine	Yanmar 3TNV88
Rated power / rpm	20.4KW / @2000rpm
Fuel tank capacity	50L
Inside of Cab noise level	69(dB)
Noise level	98(dB)
Hydraulic System
Main pump flow	88L/min
Hydraulic system working pressure	280bar
Max pressure of hydraulic system	315bar
Hydraulic tank capacity	40L
Whole Machine Dimensions & Weight
Whole Width	1680mm
Length of machine	3516mm
Transport height	2736mm
Track length	2155mm
Track plate width	300mm
Total weight (excluding bucket)	6T
Travel speed	4.4Km/h
Traction	36.8kN
Rotary Head
Rotary head type	Double motors
Maximum torque	10kNm
Maximum rotation speed	26 rpm
Spinoff speed	48rpm
Main Winch
Pull force of 1st layer	20kN
Maximum lifting and lowering speed	40m/min
Wire rope diameter	12mm
Auxiliary Winch
Pull force of 1st layer	10kN
Maximum lifting and lowering speed	40m/min
Wire rope diameter	12mm
Deflection Cylinder
Tension	60kN
Thrust	50kN
Stroke	Right deviation 550mm / Left deviation 800mm
Mast Expansion
Mast type	Mast telescopic cylinder two sections
Feeding force	30KN
Pull up force	35KN
Swing Angle of mast	Front 4° / Back 2° / Left and right Angle 5°
Stroke	1100mm
Ultra-Low Headroom Features
Maximum working height	3950mm
Minimum working height	3500mm

Note: Product technology changes are subject to change without prior notice.

Visual & Dimensional Overview

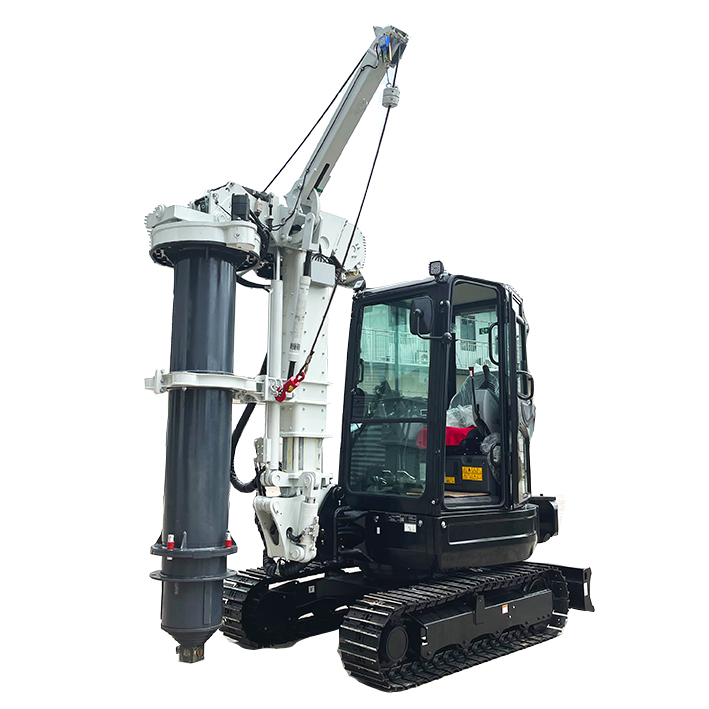

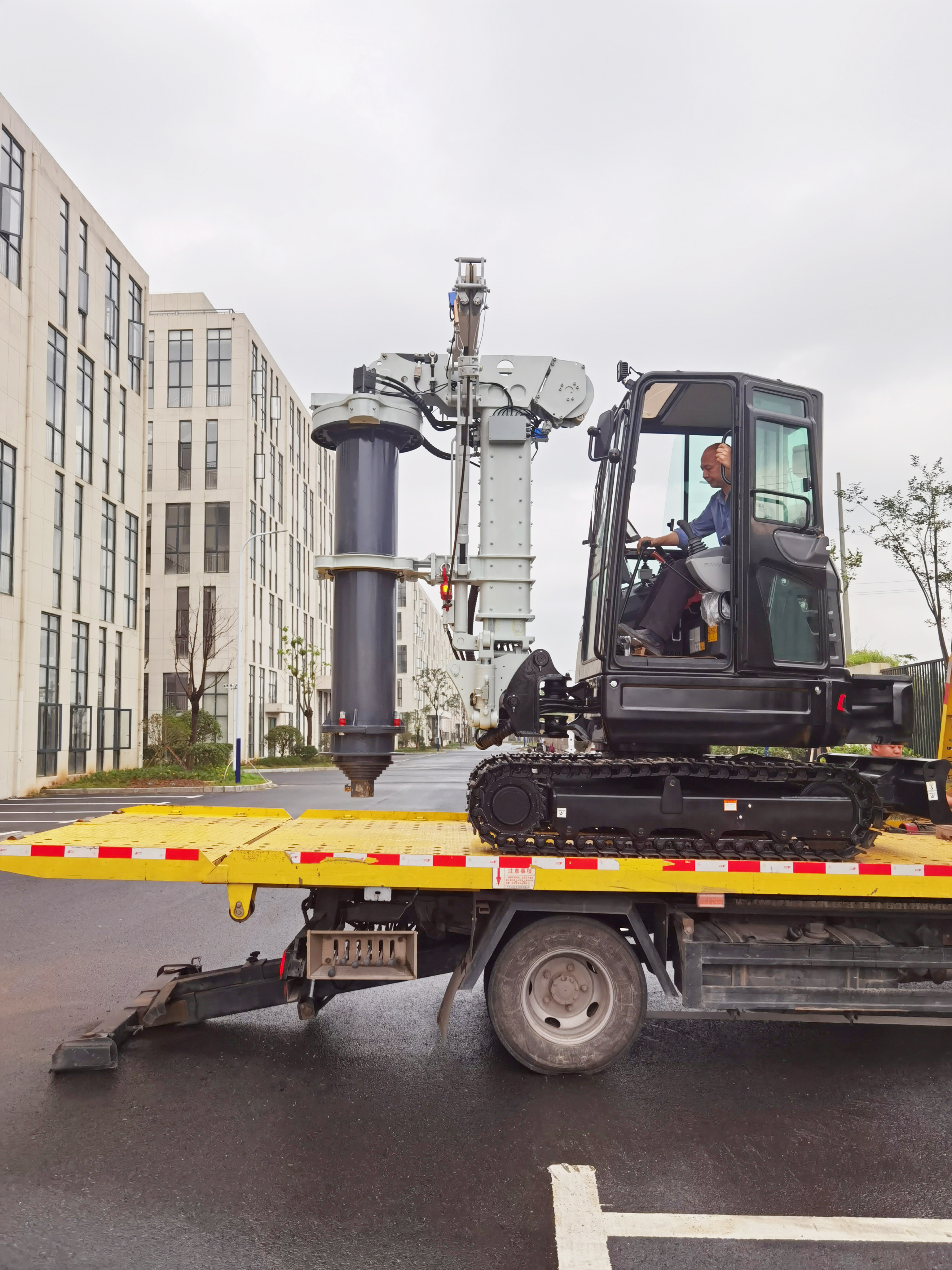

TR10 Rotary Drilling Rig

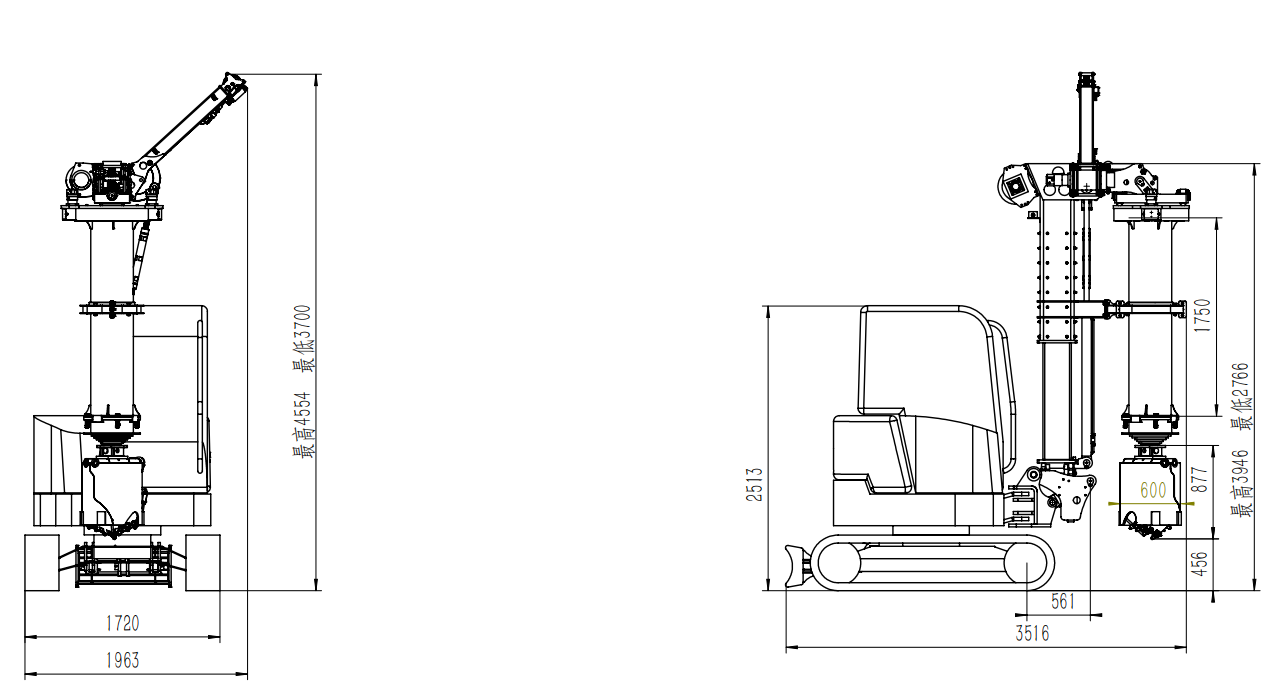

Working Dimensions

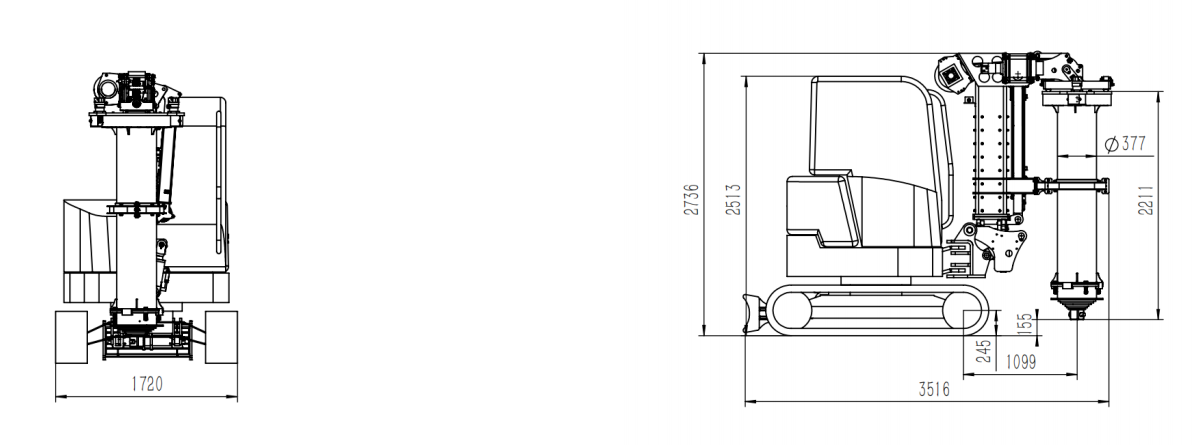

Transport Dimensions

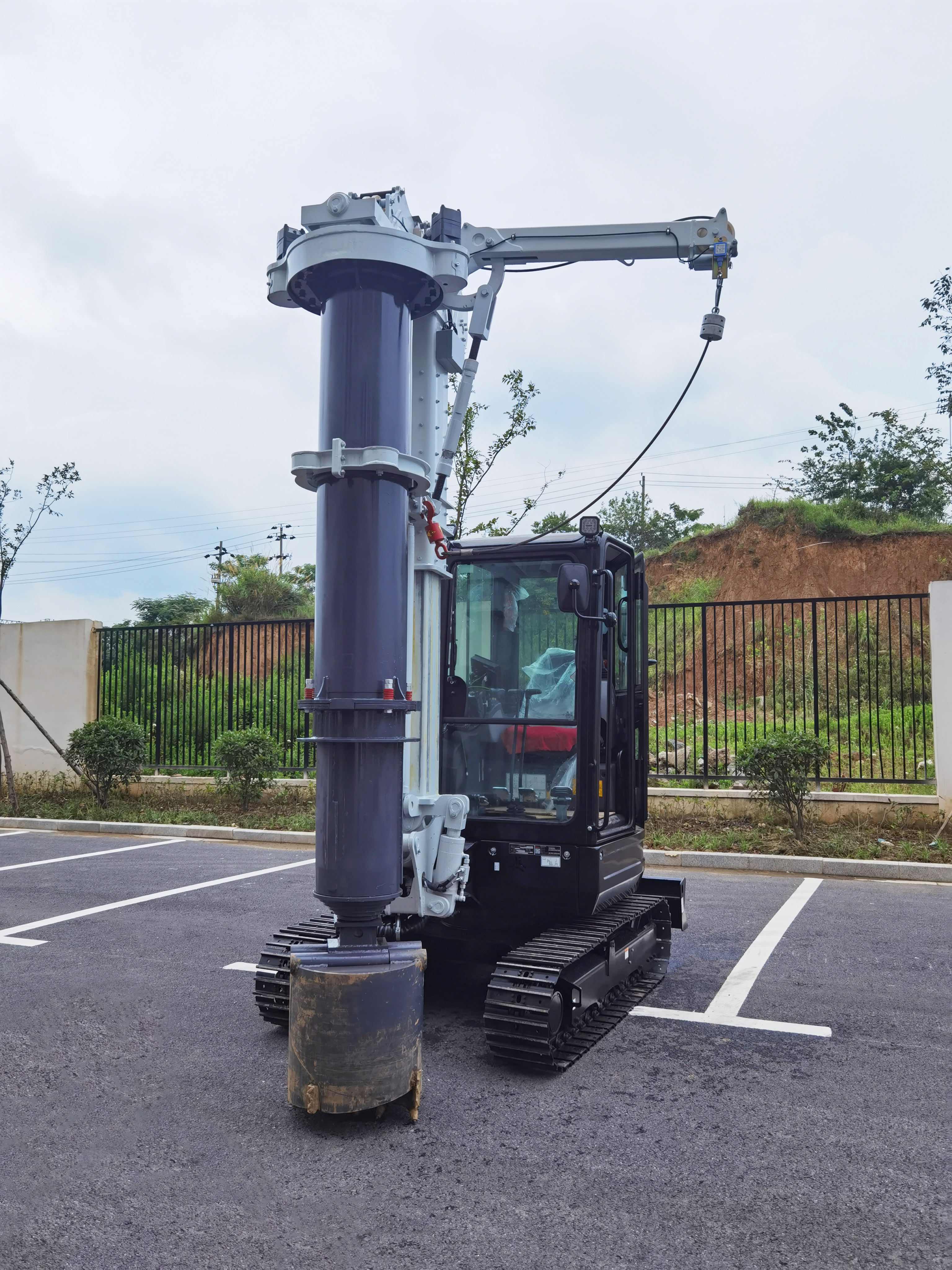

Rig Assembly View

Frequently Asked Questions (FAQ)

What is the drilling capacity of the TR10 rotary drilling rig?

The TR10 rotary drilling rig is designed for a maximum drilling depth of 12 meters. It can accommodate a drilling hole diameter ranging from a minimum of 400mm up to a maximum of 800mm, with a standard diameter of Ø377mm.

What engine and power configuration does the TR10 feature?

The TR10 is equipped with a Yanmar 3TNV88 engine, delivering a rated power of 20.4KW at 2000 rpm. It is built on a Sany chassis with a base weight of 3.5T, ensuring stable and reliable power performance.

Can the TR10 operate in low headroom environments?

Yes, the TR10 is designed for ultra-low headroom operations. Its maximum working height is 3950mm, and its minimum working height is 3500mm, making it ideal for restricted access sites.

What are the dimensions and total weight of the machine?

The TR10 has an overall machine length of 3516mm, a width of 1680mm, and a transport height of 2736mm. Its track length is 2155mm with a track plate width of 300mm. The total operating weight, excluding the bucket, is 6 tons.

What are the capabilities of the winches on the TR10?

The main winch provides a first-layer pull force of 20kN, while the auxiliary winch provides a first-layer pull force of 10kN. Both winches feature a maximum lifting and lowering speed of 40m/min and utilize a 12mm wire rope.

What torque and rotational speeds does the rotary head offer?

The rotary head is driven by double motors, delivering a maximum torque of 10kNm. It operates at a maximum rotation speed of 26 rpm, with a spinoff speed of 48 rpm for efficient soil discharge.
