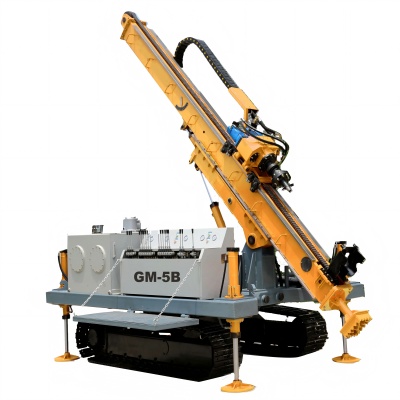

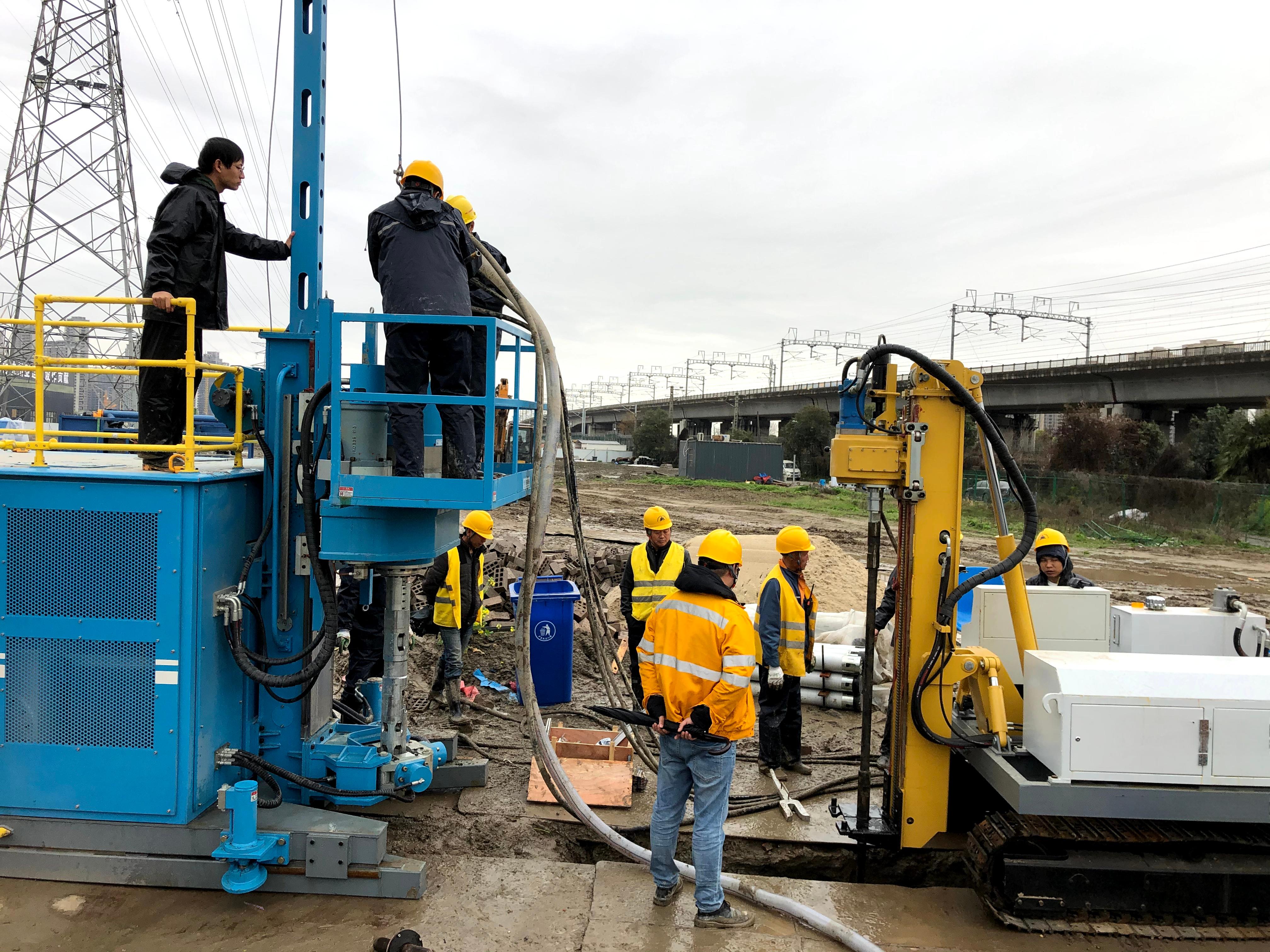

Famous GM-5B Crawler Type Full Hydraulic Engineering Drilling Rig Manufacturers, Companies

I. Application 1. Urban deep foundation pit support, soil nail wall support, railway and highway slope support. 2. Anti-floating anchor rods, thin underground continuous walls, and anti-seepage walls in foundation treatment. 3. Pipe shed grouting and water stop grouting in tunnel engineering. 4. Rock and soil blasting hole construction for highways, mines, hydropower dams, etc. 5. Foundation reinforcement, water-blocking and plugging. engineering, soft foundation treatment and geological disaster control for various industrial and civil buildings such as railways, highways, bridges, roadbeds, and dam foundations. 6. Engineering construction of anchor drilling, down-the-hole vertical drilling, casing drilling and drill rod casing composite drilling. 7. It can be used for single tube and double tube construction of general rotary grouting engineering.

Send Inquiry

Product Description

Main Features

It adopts full hydraulic rotary head transmission, stepless speed change, high drilling efficiency and low labor intensity.
The hydraulic system of the drilling rig is stable, reliable and has a long service life.
The rotary head adopts hydraulic speed change mode and is equipped with high and low gears to meet the requirements of various formations and different drilling processes.
The drilling rig has the function of crawler self-moving, and the equipment is easy and fast to move.
The frame rotation adopts a large-diameter slewing bearing. When necessary, the hole position can be easily turned to the side of the crawler for manual work.
The structure is compact, centralized operation, convenient and safe.
The column can be telescopic forward and backward to meet the needs of anchor construction.
The standard configuration adopts a single clamp at the hole mouth and is equipped with a special shackle tool. It is more convenient to disassemble the drill rod. A double clamp can also be selected to reduce the labor intensity and operation time of loading and unloading the drill rod.

Construction Scope of the Drilling Rig

It is suitable for high-speed drilling and mud slag removal in soil, sand and other formations; three-wing drill bits and one-shaped drill bits for drilling.
It is suitable for air down-the-hole hammer drilling and air slag removal in rock and broken layers.
Suitable for bottom hole hydraulic hammer drilling and mud slag removal in broken layers, sand and gravel layers and other strata with high water content.
Drill rod drilling and casing composite drilling.
Single-tube, double-tube, three-tube rotary spraying, swing spraying, fixed spraying and other rotary spraying processes can be realized (customer optional).
It can be used as a complete set of equipment with high-pressure grouting pump, mud mixer, rotary spraying, swing spraying drilling tools, guide, nozzle, three-wing drill bit, straight drill bit, composite drill bit.
It can be seamlessly connected with domestic and foreign drilling tools through reducers.

Technical Specifications

Max. torque	8000 N.m
Speed	0-140 r/min
Max. stroke of the rotary head	3400 mm
Max. lifting force of the rotary head	60 kN
Max. allowable pressure of rotary head	30 kN
Drilling rod diameter	Ф50 mm, Ф73mm, Ф89 mm
Drilling angle	0° ~ 90°
Rotary head lifting/pressurizing speed	Spraying adjustment speed 0 ~ 0.75/1.5m/min
Rotary head rapid lifting	0 ~ 13.3 / 0 ~ 26.2 m/min
Motor power	55+11 kW
Column extension	900 mm
Climbing capacity	20°
Traveling speed	1.5 km/h
Overall dimension	(Working) 326022005500 mm (Transportation) 500022002300 mm
Total weight	6500 kg

Frequently Asked Questions

Q1: What are the primary advantages of the rotary head system?

A: The drilling rig adopts a full hydraulic rotary head transmission with stepless speed change and hydraulic speed change modes. Equipped with high and low gears, it ensures high drilling efficiency, low labor intensity, and adapts smoothly to various geological formations.

Q2: What types of drilling methods and processes can this rig perform?

A: The rig is highly versatile and supports air down-the-hole hammer drilling, mud slag removal drilling, bottom hole hydraulic hammer drilling, drill rod and casing composite drilling, as well as single-tube, double-tube, and three-tube rotary, swing, or fixed spraying processes.

Q3: How mobile is this equipment on construction sites?

A: This drilling rig features crawler self-moving capabilities, allowing easy and fast positioning. It has a climbing capacity of 20° and a traveling speed of 1.5 km/h for convenient onsite maneuverability.

Q4: What are the maximum torque and speed specifications?

A: The rig provides a maximum torque of 8000 N.m and offers a rotation speed range of 0 to 140 r/min, making it suitable for tough drilling requirements.

Q5: Which drill rod diameters are compatible with this equipment?

A: It is compatible with standard drill rod diameters of Ф50 mm, Ф73mm, and Ф89 mm.

Q6: Can it connect with other third-party drilling tools?

A: Yes. The rig can be seamlessly connected with both domestic and foreign drilling tools through compatible reducers.
