Swing Angle of automatic spraying device can be set arbitrarily.
The lower holder is a floating four-kick, which has uniform clamping force and does not damage the drill pipe.

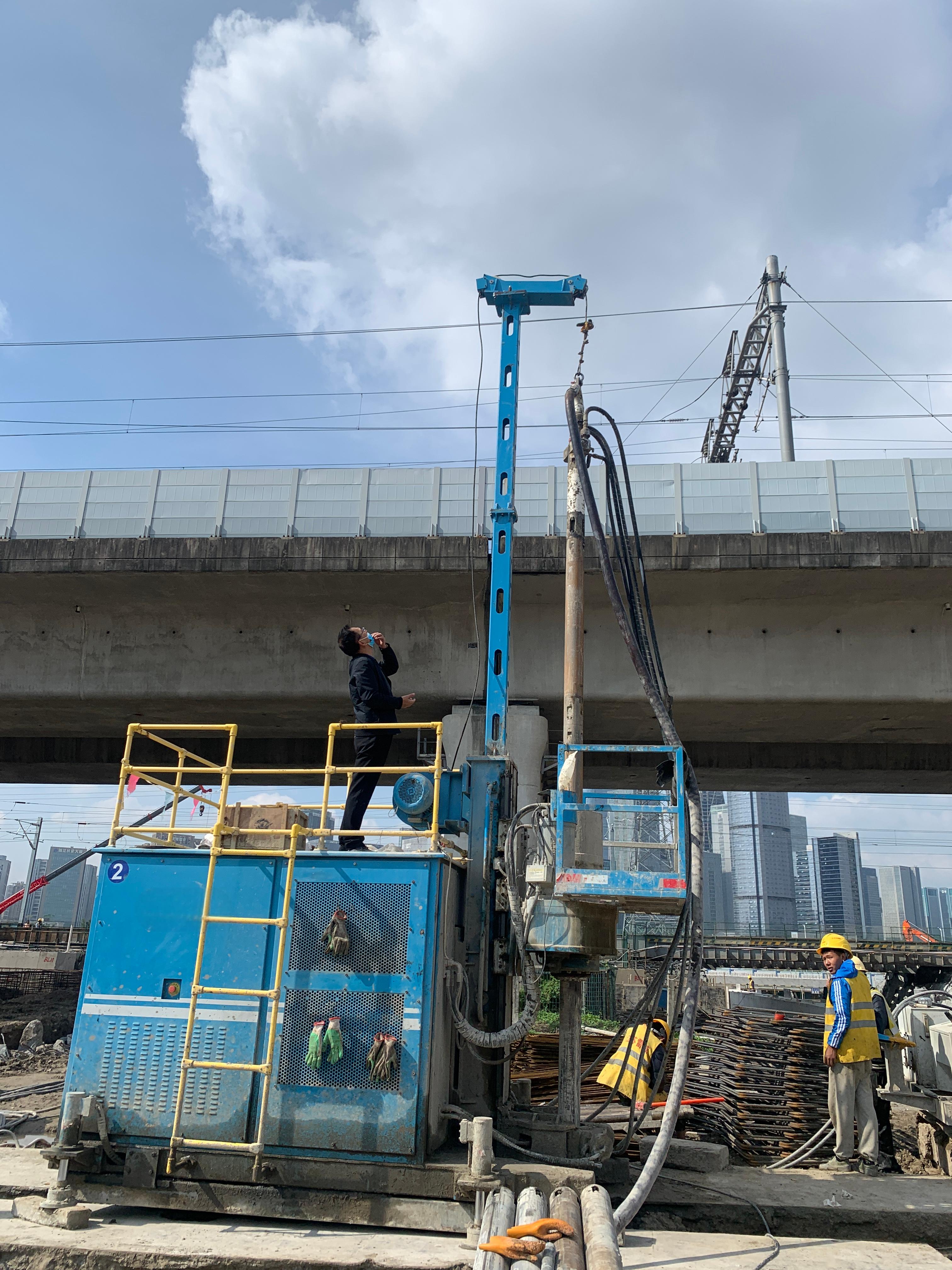

Suitable for construction under bridge and in tunnel, and convenient to move the machine to the hole.
Hydraulic leg step performance: 4-point hydraulic leg support.
Visual interface, which can adjust the attitude according to the construction parameters and set the rotary/raising speed of the power head in real time.

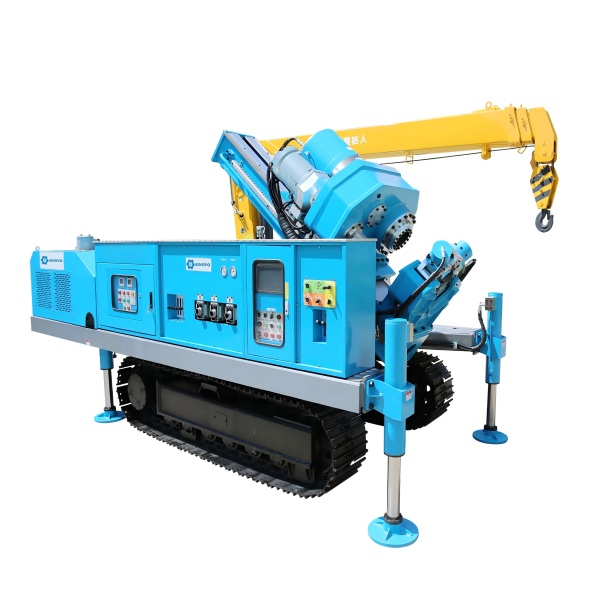

Equipped with a 3-ton crane arm, which can effectively reduce labor intensity.
| Parameters and names | Multi-tube horizontal rotary drilling rig SGZ-150S |
|---|---|
| Spindle bore | 150 mm |
| Main shaft speed | High speed 0~48 rpm and low speed 0~24 rpm |
| Main shaft torque | High speed 6000 N·m low speed 12000 N·m |
| Feed travel | 1000 mm |
| Feed rate | 0~2 m/min when rising and 0~4 m/min when falling |
| The center of the power head is high | 1850 mm (above ground level) |
| Maximum feed force of the power head | 50 kN |
| Maximum lifting force of the power head | 100 kN |
| Power of motor | 45 kW+11kW |
| Maximum lifting weight of the boom | 3.2 T |
| Maximum boom extension | 7.5 m |
| Cantilever rotation Angle | 360° |
| Outline dimension | 4800*2200*3050 mm (including boom) |
| Overall weight | 9 T |
The SGZ-150S horizontal rotary drilling rig has a spindle bore size of 150 mm.
Yes, this drilling rig is specifically designed for construction under bridges and inside tunnels, making it easy and convenient to move the machine directly to the hole site.
The main shaft features two settings: a high-speed mode (0~48 rpm with 6000 N·m torque) and a low-speed mode (0~24 rpm with 12000 N·m torque).
It features a lower holder with a floating four-kick mechanism. This configuration provides a uniform clamping force to ensure stable operations without damaging the drill pipe.
The crane arm boom has a maximum lifting capacity of 3.2 tons, a maximum extension length of 7.5 meters, and supports a full 360-degree cantilever rotation.
The equipment is powered by a dual-motor setup configuration of 45 kW + 11 kW.
