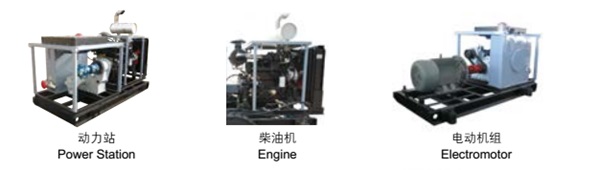

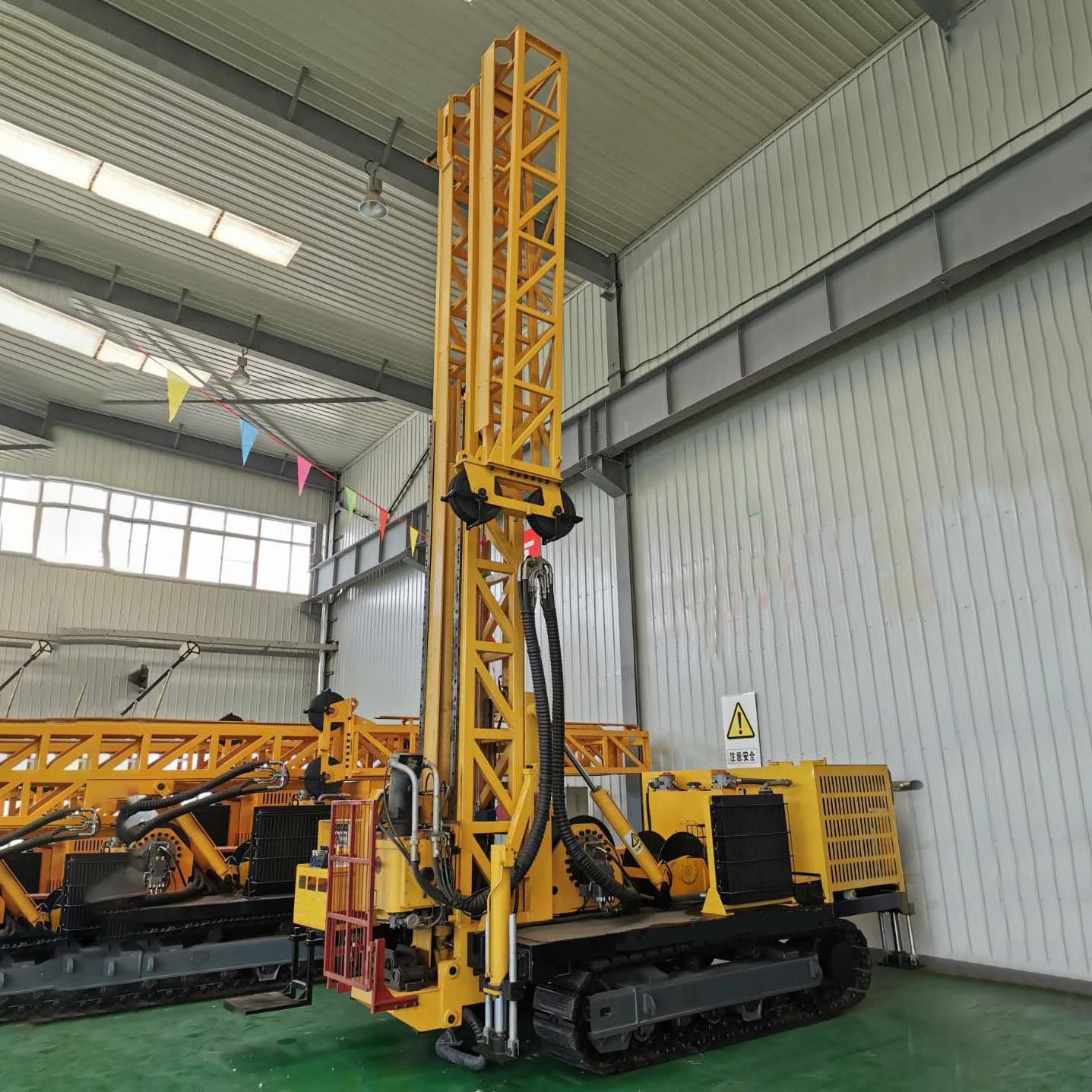

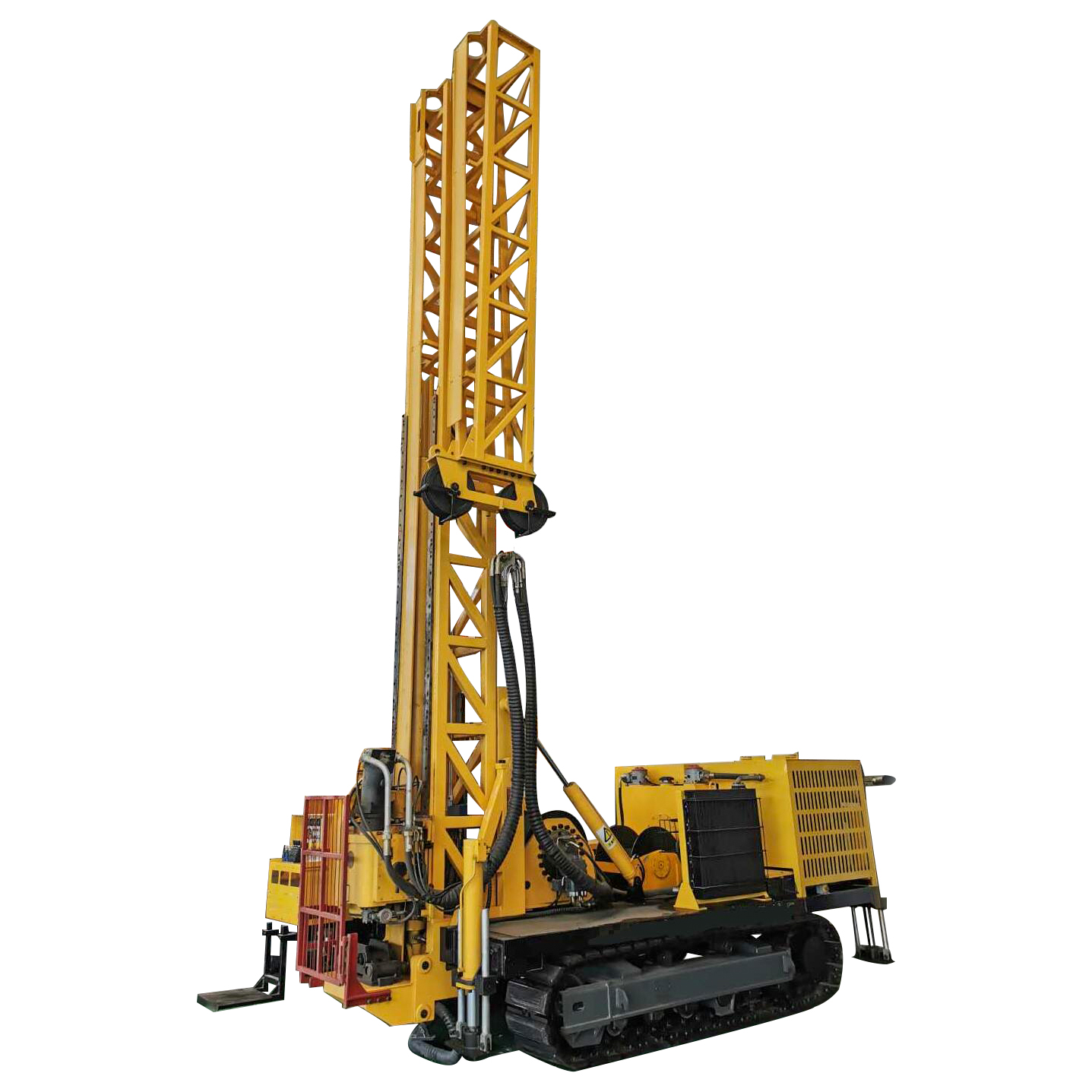

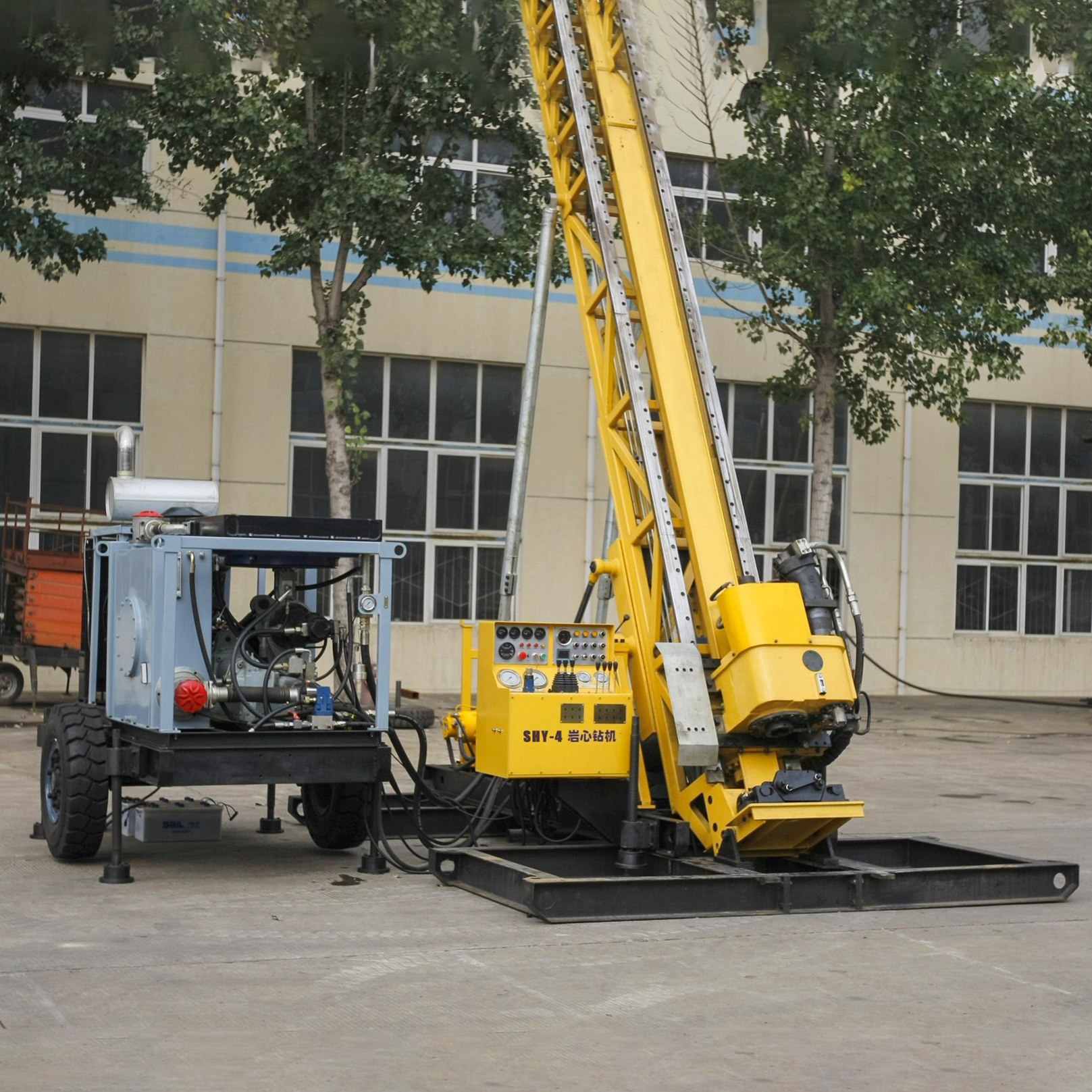

The rig is comprised of modular components and can be easily disassembled into smaller, more transportable sections. The heaviest components weigh less than 500kg/760kg. Switching the power pack between Diesel and Electric is quick and effortless even when on site.
The rig offers a smooth hydraulic transmission operating at low noise levels. Whilst providing convenience to the operation, it is highly labor-saving and focuses on promoting work safety on site.
The rotation head (Patent NO.: ZL200620085555.1) features a step-less speed transmission, offering a wide range of speeds and torque (up to 3 speeds). The rotation head can be side racked via hydraulic rams for added convenience and efficiency, especially during rod trips.
Hydraulic chuck jaws and foot clamps (Patent NO.: ZL200620085556.6) offer a fast, reliable, and neutral clamping action. The foot clamps are designed to suit various different drill rod sizes via the use of different size slip jaws.
Feed stroke at 3.5 meters reduces operation time, improves drilling efficiency, and reduces inner tube core blockages.

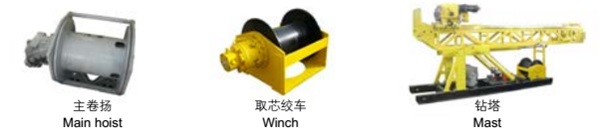

Braden main winch (USA) features a stepless speed transmission from Rexroth. Single rope hoist capacity is up to 6.3t (13.1t on double). The wireline winch is also equipped with a stepless speed transmission, offering a wide speed range.
Equipped with all the essential gauges, including: Rotation speed, Feed Pressure, Ammeter, Voltmeter, Main Pump/Torque gauge, Water pressure gauge. Enabling the driller to oversee the entire operation of the drill rig at a simple glance.
| Item | SHY-4 | SHY-6 | |
|---|---|---|---|
| Drilling capacity | Ф55.5mm(BQ) | 1500m | 2500m |
| Ф71mm(NQ) | 1200m | 2000m | |
| Ф89mm(HQ) | 500m | 1300m | |
| Ф114mm(PQ) | 300m | 600m | |
| Rotator Capacity | RPM | 40-920rpm | 70-1000rpm |
| Max Torque | 2410N.m | 4310N.m | |
| Max Feeding Power | 50kN | 60kN | |
| Max Lifting Power | 150kN | 200kN | |
| Diameter of Chuck | 94mm | 94mm | |
| Feed stroke | 3500mm | 3500mm | |
| Capacity of Main Hoist | Hoisting Force(single wire/dual wire) | 6300/12600kg | 13100/26000kg |
| Main hoist speed | 8-46m/min | 8-42m/min | |
| Steel Wire Diameter | 18mm | 22mm | |
| Steel Wire Length | 26m | 36m | |
| Capacity of Steel Wire Hoist | Hoisting Force | 1500kg | 1500kg |
| Main hoist speed | 30-210m/min | 30-210m/min | |
| Steel Wire Diameter | 6mm | 6mm | |
| Steel Wire Length | 1500m | 2500m | |
| Mast | Mast Height | 9.5m | 9.5m |
| Drilling Angle | 45°- 90° | 45°- 90° | |
| Mast Mode | Hydraulic | Hydraulic | |
| Motivity | Mode | Elect/ Engine | Elect/ Engine |
| Power | 55kW/132Kw | 90kW/194Kw | |
| Main Pump Pressure | 27Mpa | 27Mpa | |
| Chuck Mode | Hydraulic | Hydraulic | |
| Clamp | Hydraulic | Hydraulic | |
| Weight | 5300kg | 8100kg | |
| Transport Way | Tyre Mode | Tyre Mode | |
Yes. The rig features modular components and can be disassembled into smaller sections for transport. The heaviest components weigh less than 500kg or 760kg depending on configuration.
Yes, the power pack configuration allows you to switch between Diesel and Electric operation quickly and effortlessly directly on site.
With a BQ size rod, the SHY-4 reaches up to 1500m and the SHY-6 reaches up to 2500m. For larger PQ size rods, the capacities are 300m for the SHY-4 and 600m for the SHY-6.
The extended 3.5-meter feed stroke reduces overall operation cycle times, improves drilling process efficiency, and minimizes potential inner tube core blockages.
The rig is equipped with key diagnostic gauges including: Rotation speed, Feed Pressure, Ammeter, Voltmeter, Main Pump/Torque, and Water pressure, enabling simple and comprehensive monitoring of the operation.
The mast system enables operators to pull drill rods at lengths of up to 6 meters. This makes rod trips considerably faster and enhances general workflow safety on site.
