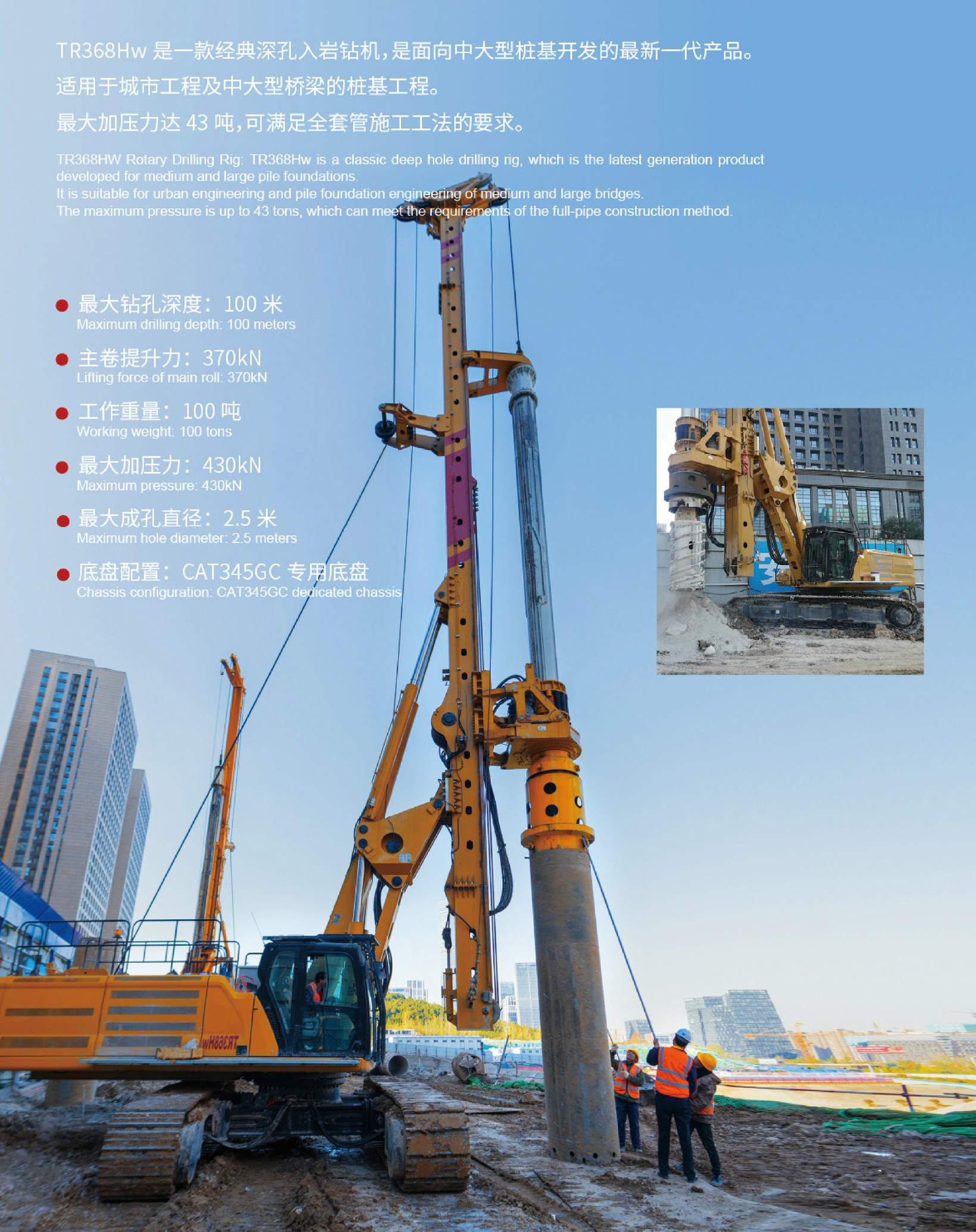

TR368Hw is a classic deep hole drilling rig, which is the latest generation product developed for medium and large pile foundations. The maximum pressure can reach 43 tons, which can meet the requirements of the full casing construction method. it is suitable for urban engineering and pile foundation engineering of medium and large bridges.

Send Inquiry

Product Description

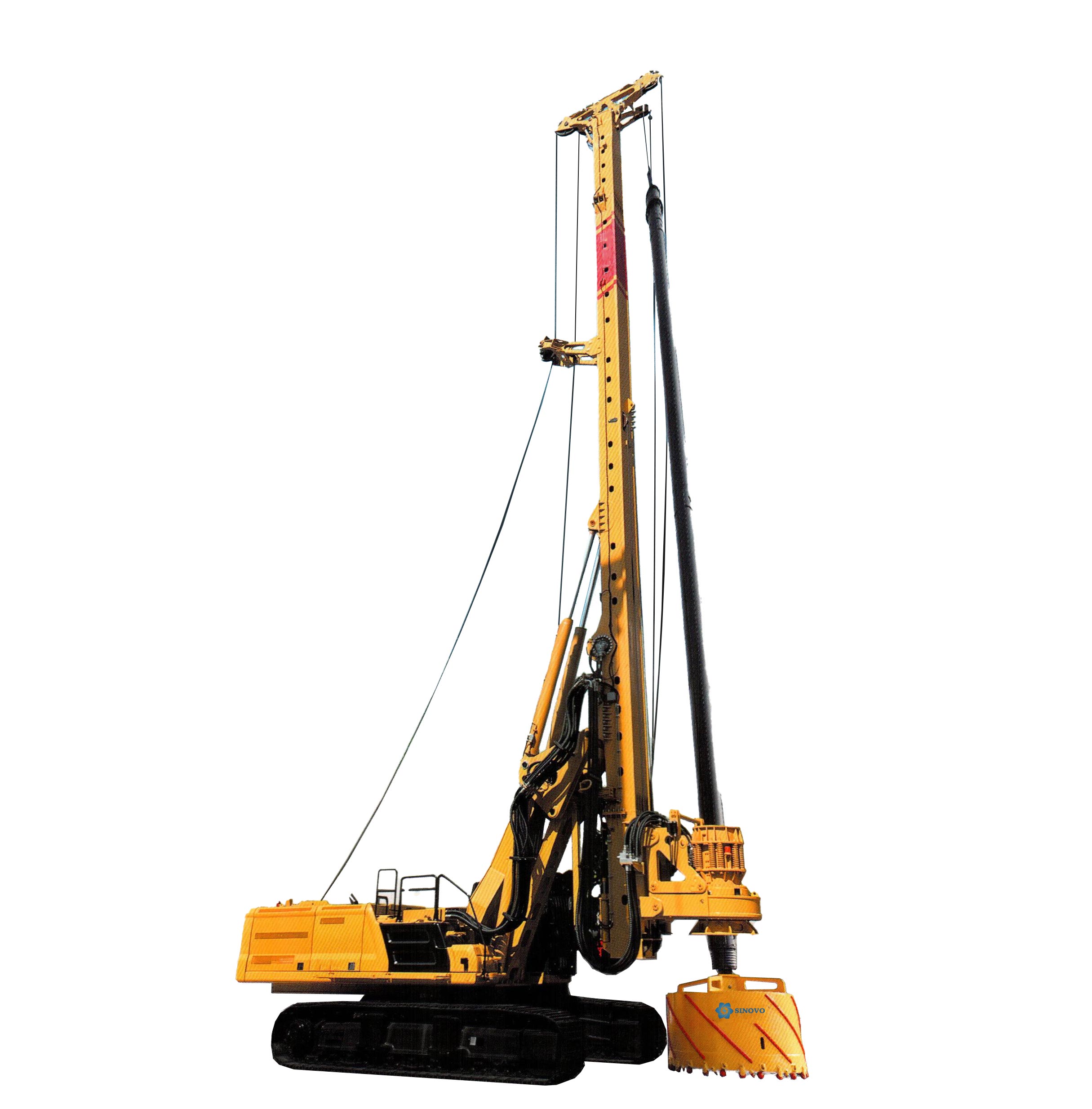

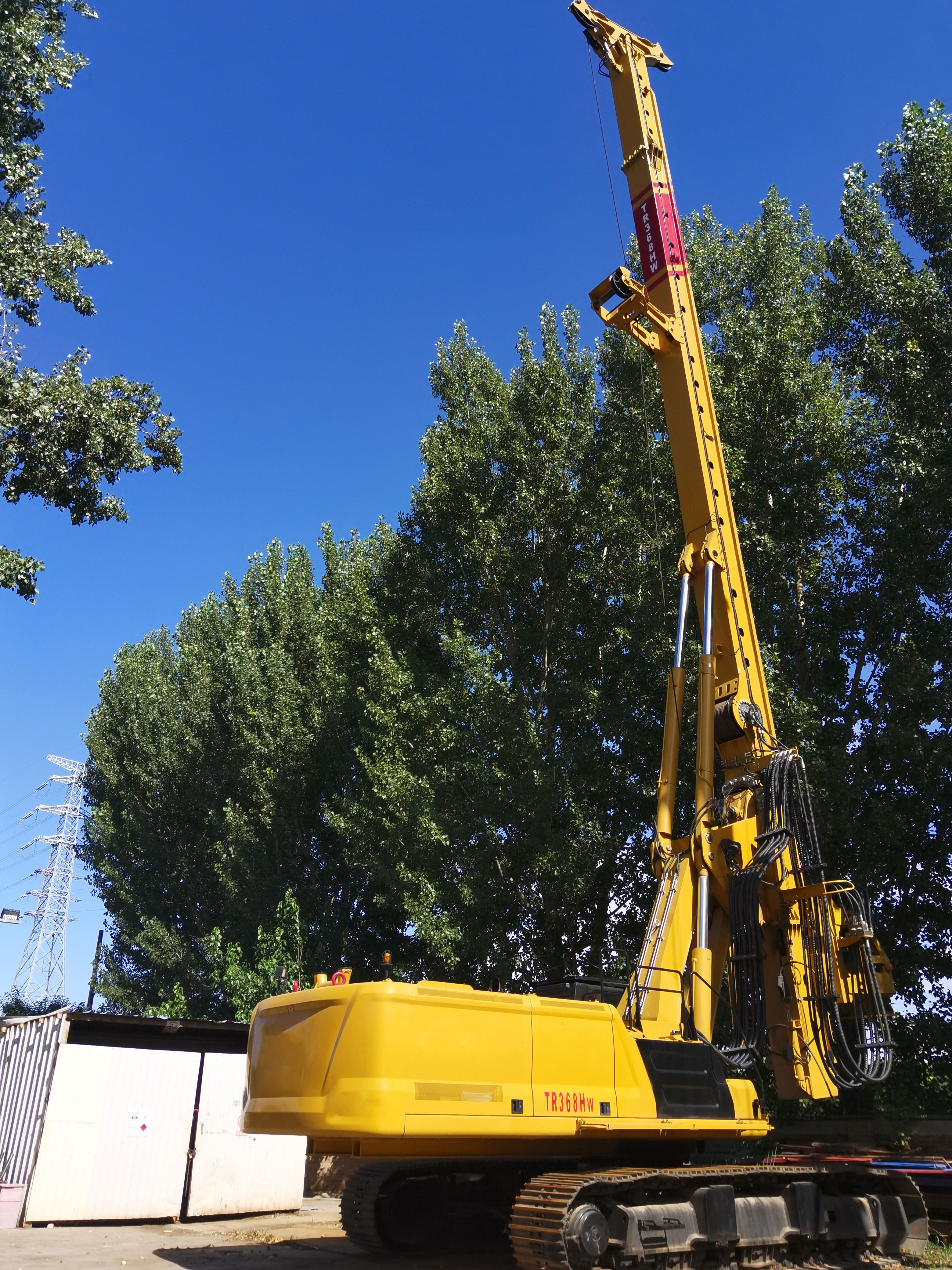

New Generation Rotary Drilling Rig

ALL-Electric Control Technology

Innovative design of the industry’s first all-electric control technology, which is controlled by electrical signals throughout the entire process, subverts the traditional control method of rotary drilling rigs, and possesses super-generation technical advantages.

Core Component Upgrade

A new layout of the vehicle structure; The latest Carter rotary excavator chassis; A new generation of rotary heads, high-strength tension resistant drill pipes resistant drill pipes; hydraulic components such as main pumps and motors are all equipped with large displacement.

Positioning High-End

Guided by marker demand and guided by technological innovation, it is positioned to develop high-quality pile foundation construction machinery to solve the problems of low construction efficiency, high construction cost and severe pollution of ordinary drilling rigs, and to provide high-end quality products for construction enterprises.

Smart Solutions

It is positioned to provide customers with overall construction solutions, especially in complex application environments and geological conditions, to improve the construction revenue of construction projects and achieve win-win cooperation with customers. Realize win-win cooperation with customers.

Main parameters	Parameter	Unit
Pile
Max. drilling diameter	2500	mm
Max. drilling depth	100/65	m
Rotary drive
Max. output torque	370	KN-m
Rotary speed	6~23	rpm
Crowd system
Max. crowd force	430	KN
Max. pulling force	430	KN
Stroke of crowd system	9000	mm
Main winch
Lifting force (the first layer)	370	KN
Wire-rope diameter	36	mm
Lifting speed	73/50	m/min
Auxiliary winch
Lifting force (the first layer)	110	KN
Wire-rope diameter	20	mm
Mast inclination angle
Left/right	5	°
Forward	5	°
Chassis
Chassis model	CAT345GC
Engine manufacturer	卡特彼勒CAT	CATERPILLAR
Engine model	C-9.3B
Engine power	259	KW
Engine speed	1750	rpm
Chassis overall length	5988	mm
Track shoe width	800	mm
Tractive force	680	KN
Overall machine
Working width	4300	mm

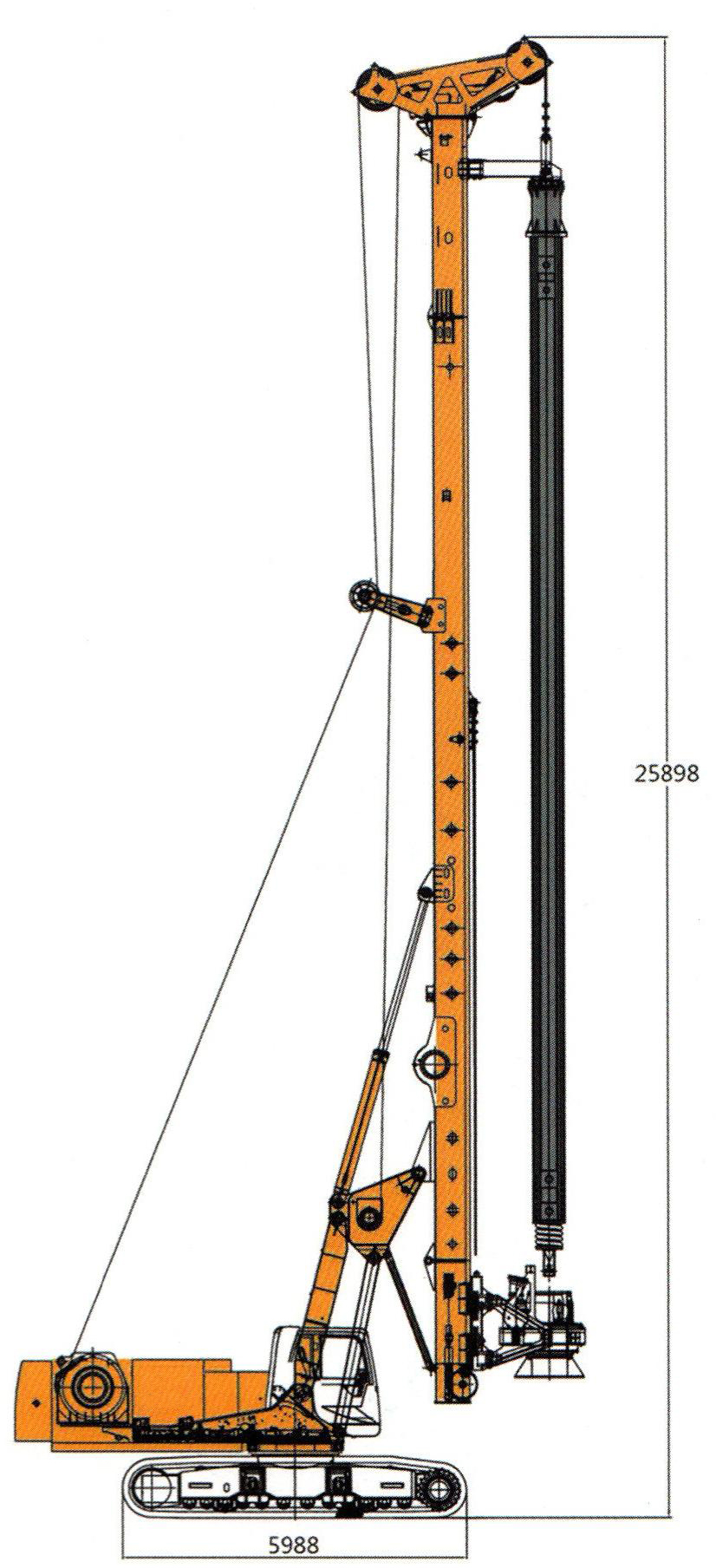

Working height	25898	mm

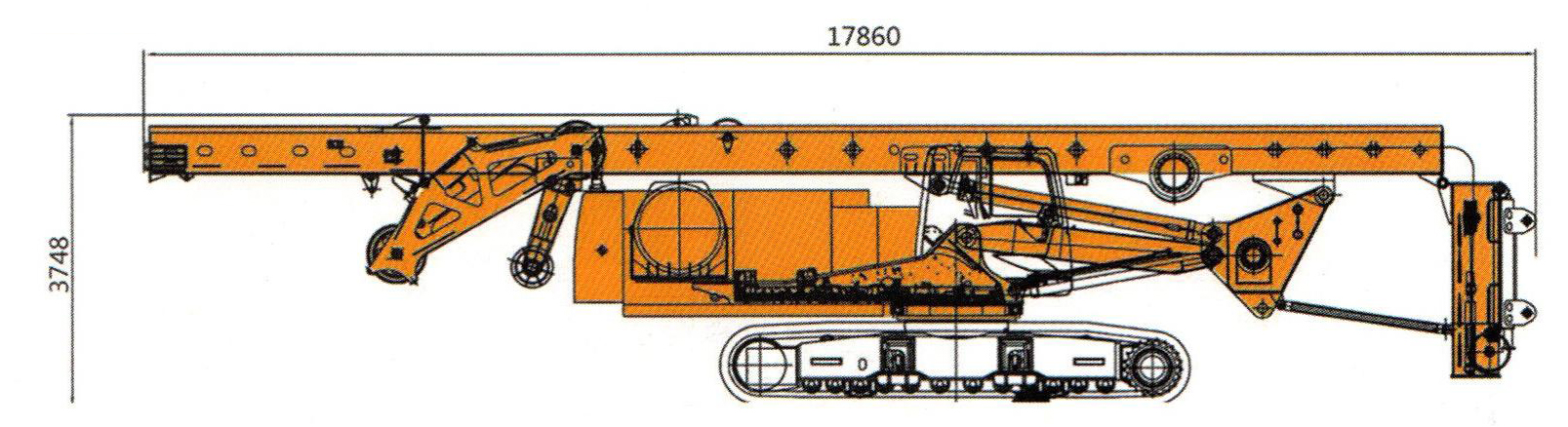

Transport length	17860	mm
Transport width	3000	mm
Transport height	3748	mm
Total weight (with kelly bar)	100	t
Total weight (without kelly bar)	83	t

Specification for standard Kelly bar

Friction Kelly bar: ∅530-6*18 Interlock Kelly bar: ∅530-4*18

Specification for special Kelly bar

Interlock Kelly bar: ∅530-4*19

Frequently Asked Questions

What are the technical advantages of the all-electric control technology?

The all-electric control technology operates via electrical signals throughout the entire process. This subverts traditional mechanical control methods, providing faster response times, higher precision, and enhanced overall operational efficiency.

Which chassis and engine model power this rotary drilling rig?

The rig is equipped with the latest Caterpillar CAT345GC rotary excavator chassis and powered by a high-efficiency Caterpillar C-9.3B engine delivering 259 KW of power at 1750 rpm.

What are the maximum drilling capacities of this machinery?

This rotary drilling rig is designed for large-scale operations, capable of achieving a maximum drilling diameter of 2500 mm and a maximum drilling depth of 100 meters (or 65 meters depending on configuration).

What Kelly bar specifications are available?

Standard configurations include Friction Kelly bar (∅530-6*18) and Interlock Kelly bar (∅530-4*18). For special applications, an Interlock Kelly bar with ∅530-4*19 specifications is also available.

What challenges does this high-end drilling rig resolve?

It is specifically designed to solve common limitations found in ordinary drilling rigs, such as low construction efficiency, high operation costs, and severe environmental pollution, while delivering premium quality output for complex foundation works.
