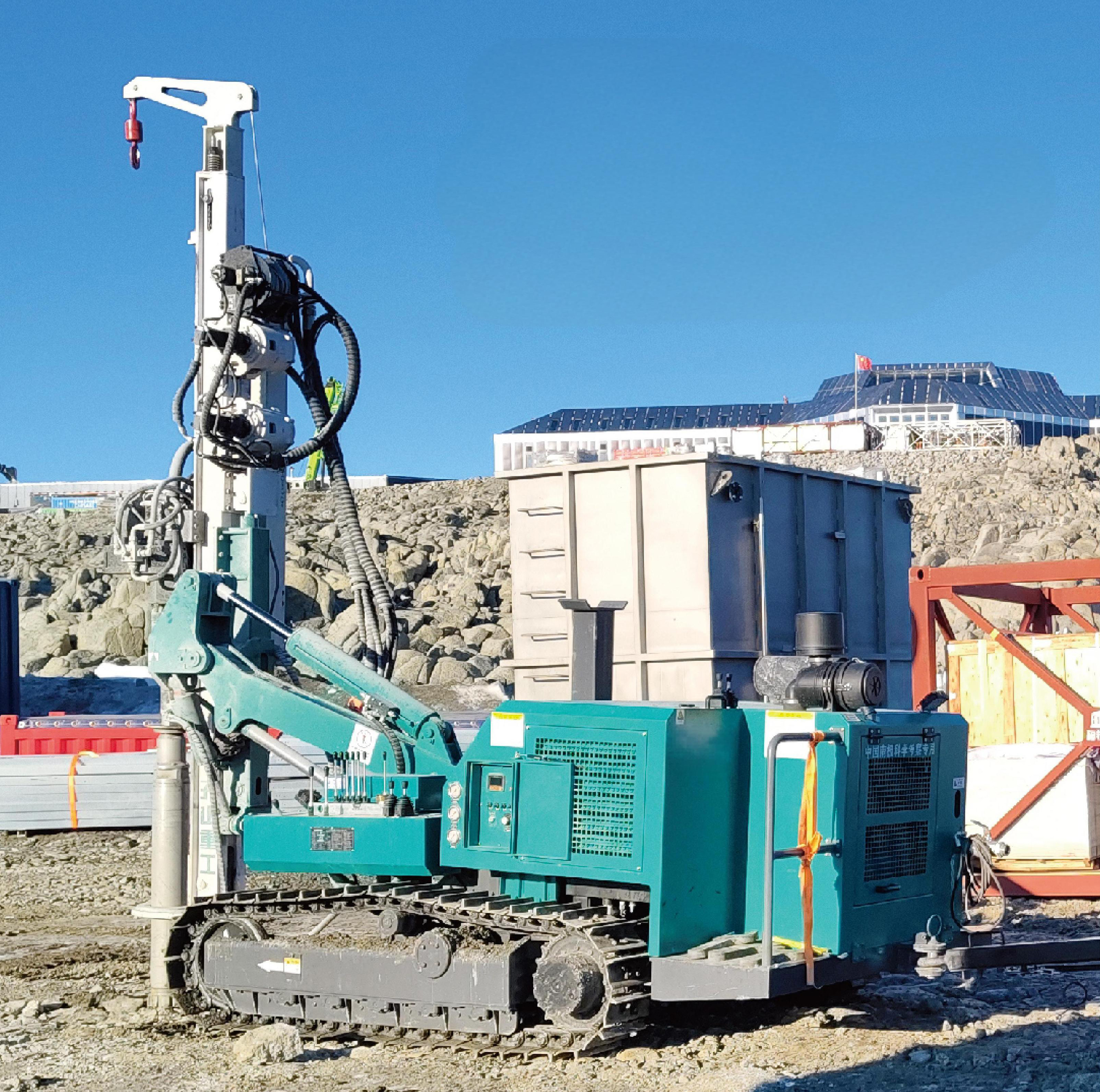

Q: What range of hole diameters can this drilling rig achieve?
This drilling rig is capable of drilling hole diameters ranging from 115mm up to 500mm, accommodating a wide variety of project requirements.
Q: What are the specifications of the engine installed?
The rig features a high-performance Yuchai engine meeting national stage III emission standards, with a rated power of 73.5kw at an engine speed of 2200r/min.
Q: What is the maximum torque capability of the power head?
The power head offers two-stage operation speeds of 40/80r/min and delivers a maximum rotation torque range of 4000/8500Nm.
Q: How mobile and stable is the rig on rough terrains?
With a climbing ability of less than 25°, travel speed of 3km/h, and a chassis levelling angle of ±13°, the machine maintains excellent stability and mobility on uneven surfaces.
Q: What is included in the standard equipment package?
The standard configuration is equipped with an upper operation unit, a foot pedal control setup, and a drill pipe holder for safe and efficient operations.
Q: What are the transport dimensions and overall weight?
The shipping dimensions are 7000×2300×2760mm (LxWxH), and the total weight of the rig is 8100kg, excluding the drilling tools.
