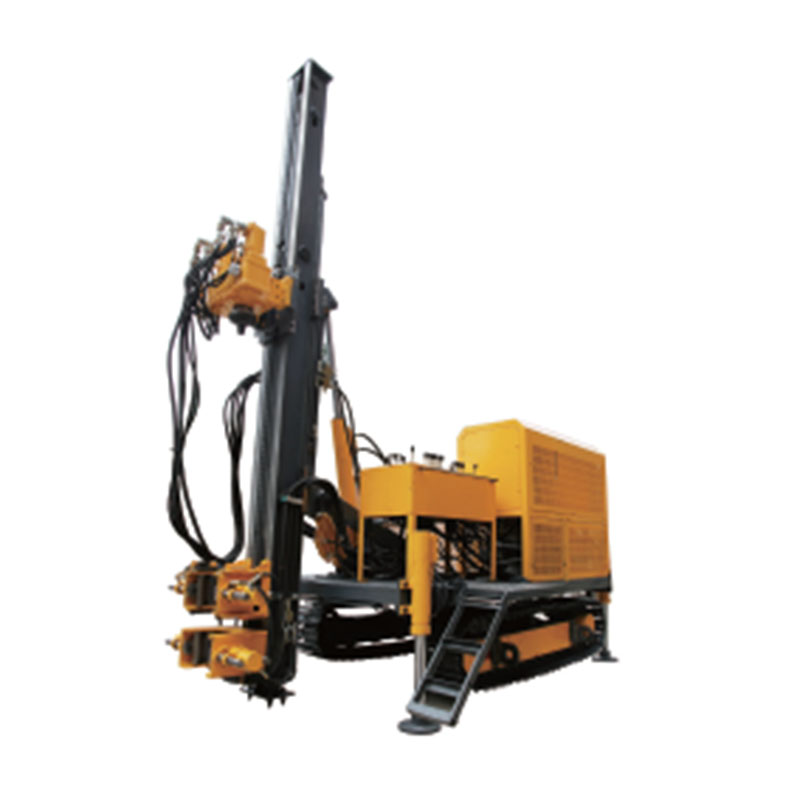

Buy QDGL-3 Anchor Drilling Rig Pricelist, Products

Using for urban construction, mining and multiple purpose, including side slope support bolt to deep foundation, motorway, railway, reservoir and dam construction. To consolidate underground tunnel, casting, pipe roof construction, and pre-stress force construction to large scale bridge. Replace foundation for ancient building. Work for mine exploding hole.

Send Inquiry

Product Description

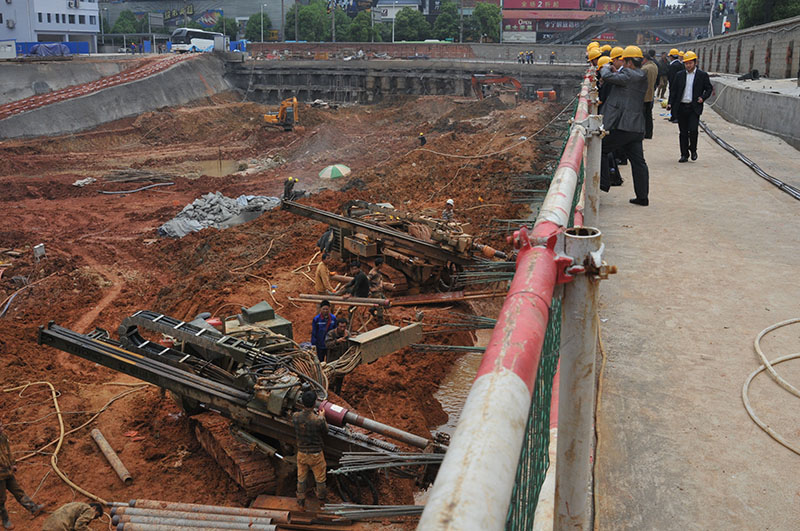

QDGL-2B anchor drilling rig is used for urban construction, mining and multiple purpose, including side slope support bolt to deep foundation, motorway, railway, reservoir and dam construction. To consolidate underground tunnel, casting, pipe roof construction, and pre-stress force construction to large scale bridge. Replace foundation for ancient building. Work for mine exploding hole.

Technical Specifications

Model	Hydraulic drive drilling head rig
Fundamental parameters	Drilling depth		20-140m
	Drilling diameter		300-110mm
	Overall dimension		430017002000mm
	Total weight		4400kg
Rotation unit speed and torque	High speed	0-84rpm	3400Nm
		0-128rpm	2700Nm
	Low speed	0-42rpm	6800Nm
		0-64rpm	5400Nm
Rotation unit feeding system	Type		single cylinder, chain belt
	Lifting force		63KN
	Feeding force		35KN
	Lifting speed		0-4.6m/min
	Rapid lifting speed		32m/min
	Feeding speed		0-6.2m/min
	Rapid feeding speed		45m/min
	Feeding stroke		2700mm
Mast displacement system	Mast move distance		965mm
	Lifting force		50KN
	Feeding force		34KN
Clamp holder	Clamping range		50-220mm
	Chuck power		100KN
Unscrew machine system	Unscrew torque		7000Nm
Crawler chaise	Crawler side driving force		5700N.m
	Crawler travel speed		1.8km/h
	Transit sloping angle		25°
Power(electric motor)	Model		Y250M-4-B35
	Power		55KW

Key Features & Advantages

Full hydraulic control, easy to operate, easy to move, good mobility, time-saving and labor-saving.
The rotary device of the drilling rig is driven by double hydraulic motors with large output torque, which improves the drilling stability of the drilling rig.
It can be equipped with a new angle changing mechanism to make the hole more convenient and the adjustment range larger, which can reduce the requirements of the working face.
The cooling system is optimized to ensure the working temperature of the hydraulic system is between 45 and 70 ℃.
It is equipped with a pipe following drilling tool, which is used to protect the wall of casing in unstable formation, and the conventional ball tooth bit is used to finish the hole. High drilling efficiency and good hole forming quality.
In addition to the crawler chassis, clamping shackle and rotary table, the rotary jet module can be selected to make the rig more suitable for engineering construction.
Main drilling methods: DTH hammer conventional drilling, spiral drilling, drill pipe drilling, casing drilling, drill pipe casing compound drilling.

Frequently Asked Questions

What are the primary applications of the QDGL-2B anchor drilling rig?

The QDGL-2B anchor drilling rig is designed for multiple purposes including urban construction, mining, side slope support, motorway, railway, reservoir, dam construction, tunnel consolidation, pipe roof construction, and bridge pre-stressing.

What is the drilling capacity (depth and diameter) of this rig?

The QDGL-2B features a drilling depth capacity of 20 to 140 meters, and supports drilling diameters ranging from 110mm up to 300mm.

What type of motor powers the QDGL-2B rig?

It is powered by an electric motor (Model Y250M-4-B35) with a total power output of 55KW.

What drilling methods can be utilized with this machine?

The rig supports several drilling methods: DTH hammer conventional drilling, spiral drilling, drill pipe drilling, casing drilling, and drill pipe casing compound drilling.

How is the hydraulic temperature regulated during operation?

The drilling rig features an optimized cooling system that consistently maintains the hydraulic system's working temperature between 45℃ and 70℃.

How does the double hydraulic motor setup improve performance?

The rotary device is driven by double hydraulic motors to deliver high output torque, which significantly increases the overall stability and efficiency during drilling operations.
