Its full hydraulic drive causes little noise during operation and has no influence on the surrounding environments.
The operating system is easy and convenient. Fewer operating workers are required to save cost for labor and machine maintenance during construction.
It's light weight makes it highly convenient for transportation.
Contact-free operation is enabled and it can be applied for construction on complex land forms.

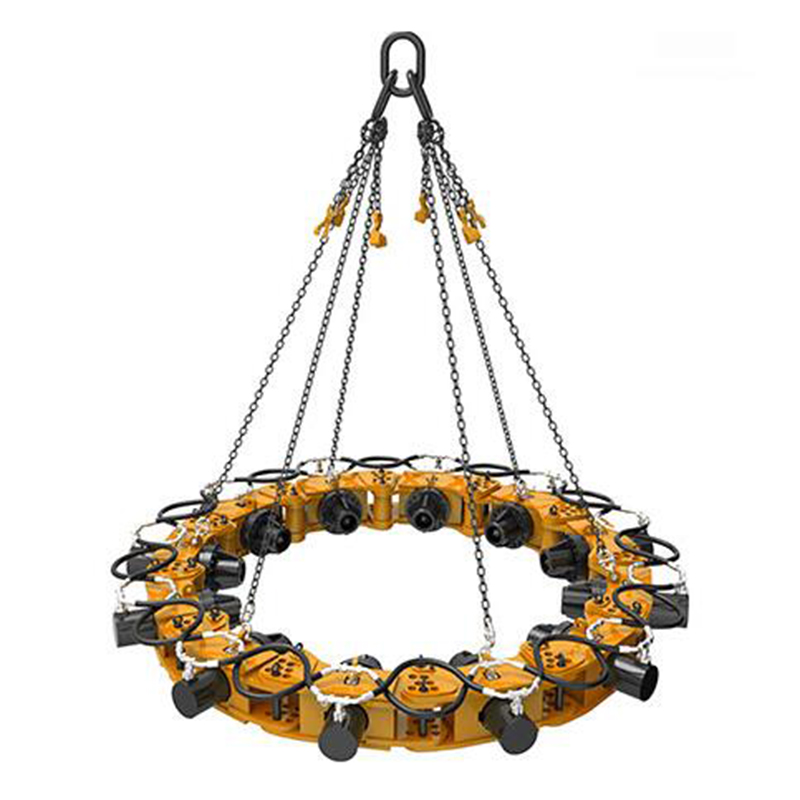

Driven by diverse power sources, it is compatible with excavators or hydraulic systems depending on construction site conditions. The telescopic sling lifting chains meet requirements of various land forms.
Made of military-grade material by first-class suppliers, ensuring reliable quality and extending its operational lifespan.

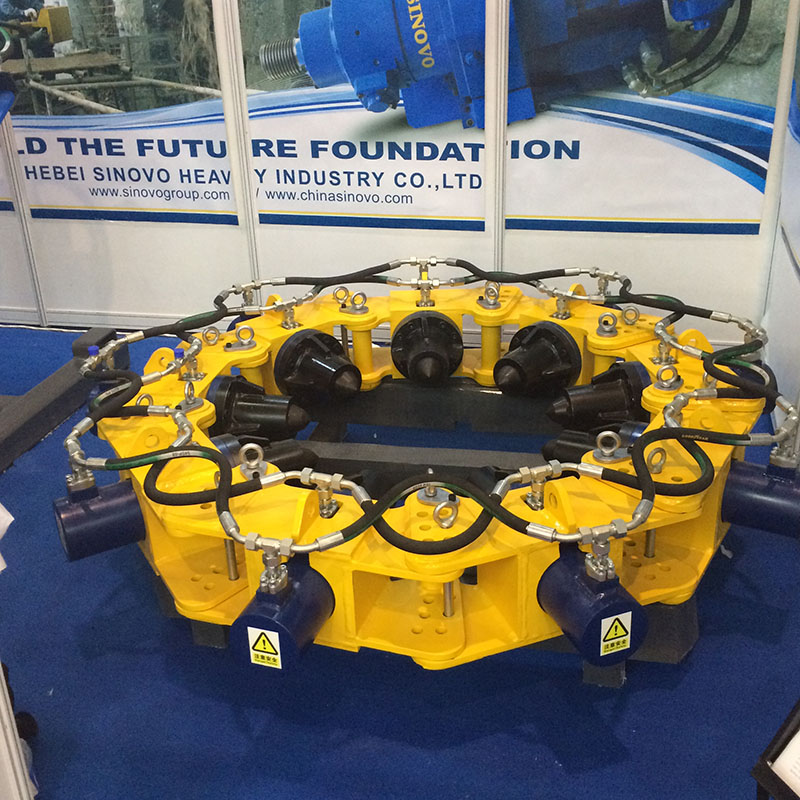

Small for convenient transportation. The replaceable and changeable modules make it applicable for piles of various diameters, allowing easy assembly and disassembly.
According to pile diameter, with reference to the construction reference parameters corresponding to the number of modules, directly connect the breakers to the work platform with a quick change connector.

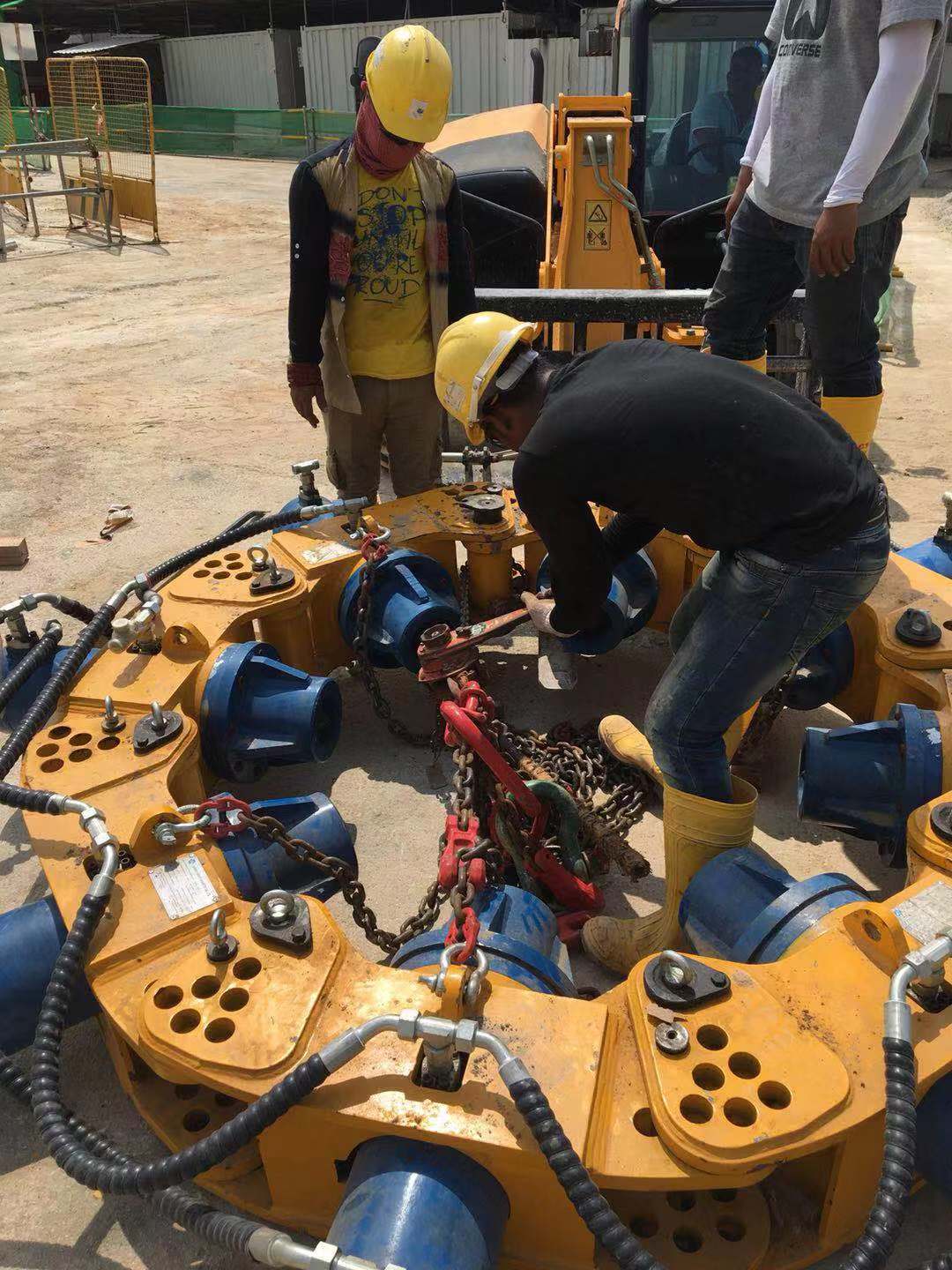

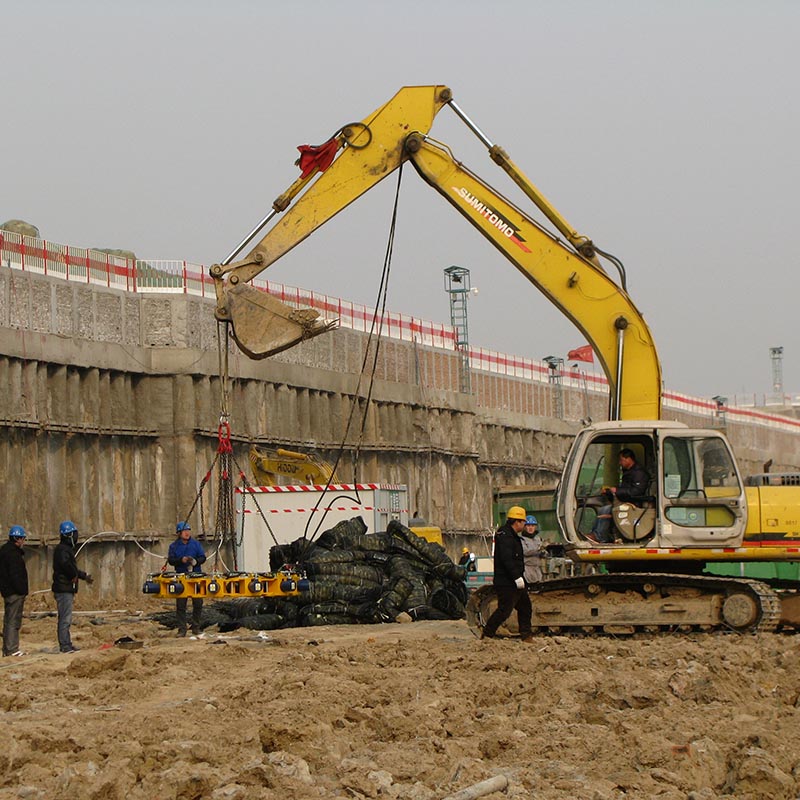

The working platform can be excavator, lifting device and hydraulic pump station combination, the lifting device can be truck crane, crawler cranes, etc.
Move the pile breaker to the working pile head section.
Adjust the pile breaker to the suitable height (please refer to construction parameter list when crushing the pile, otherwise the chain may be broken), and clamp the pile position to be cut.
| Module numbers | The diameter range (mm) | Platform weight(t) | Total pile breaker weight(kg) | Height of single crush pile(mm) |
|---|---|---|---|---|
| 7 | 300-400 | 12 | 920 | 300 |
| 8 | 450-500 | 13 | 1030 | 300 |
| 9 | 550-625 | 15 | 1140 | 300 |
| 10 | 650-750 | 18 | 1250 | 300 |
| 11 | 800-900 | 21 | 1360 | 300 |
| 12 | 950-1050 | 26 | 1470 | 300 |
Adjust the excavator's system pressure according to the concrete strength, and pressurize the cylinder until the concrete pile breaks under high pressure.

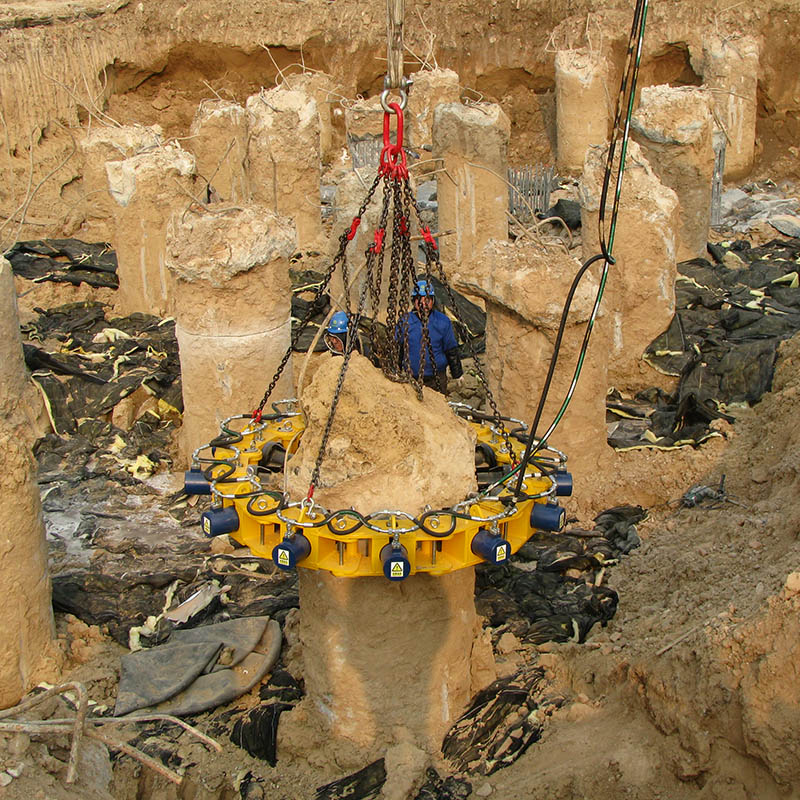

After the pile is crushed, hoist the concrete block.
Move the crushed pile to the designated position.
The hydraulic pile breaker has the following features: easy operation, high efficiency, low cost, less noise, more safety and stability. It imposes no impact force on the parent body of the pile, has no influence on the bearing capacity of the pile, and shortens the construction period greatly. It is applicable for pile-group works and is recommended strongly by the construction department and the supervision department.
| Model | SPA5 |
|---|---|
| Range of Pile diameter (mm) | Ф950-Ф1050 |
| Maximum Drill rod pressure | 320kN |
| Maximum stroke of hydraulic cylinder | 150mm |
| Maximum pressure of hydraulic cylinder | 34.3MPa |
| Maximum flow of single cylinder | 25L/min |
| Cut the number of pile/8h | 60pcs |
| Height for cutting pile each time | ≦ 300mm |
| Supporting the digging machine Tonnage (excavator) | ≧ 20t |
| One-piece module weight | 110kg |
| One-piece module size | 604 x 594 x 286mm |
| Work status dimensions | Ф2268 x 2500 |
| Total pile breaker weight | 1.5t |
It features a full hydraulic drive that generates minimal noise during operation, ensuring it does not negatively impact the surrounding environment.
No, the equipment imposes no impact force on the parent body of the pile and has no influence on the bearing capacity of the pile.
It is highly flexible and can connect to various machinery, including excavators, crane combinations, crawler cranes, and hydraulic pump stations.
The modular design allows modules to be easily assembled or disassembled. By changing the number of modules connected, the breaker can easily adapt to different pile diameters ranging from 300mm up to 1050mm.
The SPA5 model can cut up to 60 pieces of pile per 8-hour shift, with a maximum cutting height of less than or equal to 300mm per crush.
Adjusting the pile breaker to the correct height prevents structural overload; failure to refer to the construction parameter list during crushing may result in breaking the support chains.
