Famous 450-2000mm pile diameter hydraulic pile breaker Manufacturer, Factories

1 / 2

Famous 450-2000mm pile diameter hydraulic pile breaker Manufacturer, Factories

SPA series hydraulic pile breaker will not generate pressure wave, no vibration, noise and dust, and will not damage the pile foundation when breaking concrete piles. The machine has many advantages such as safety, high efficiency and energy saving in the field of concrete pile removal. With modular design, each module has a separate oil cylinder and drill rod, and the oil cylinder drives the drill rod to achieve linear motion. Multiple modules are combined to adapt to the construction of different pile diameters, and are connected in parallel through hydraulic pipelines to achieve synchronous action. The pile body is squeezed at multiple points on the same section at the same time, and the pile body at this section is broken.

Send Inquiry

Product Description

The hydraulic pile breaker is also called the hydraulic pile cutter. The construction of modern buildings requires foundation piling. In order to better connect the foundation piles with the ground concrete structure, the foundation piles generally extend out of the ground by 1 to 2 meters, so that the steel bars are completely preserved. On the ground, artificial air pick crushers are generally used for crushing, which is not only slow in efficiency but also high in cost.

Through continuous research and development experiments, the brand-new SPA series hydraulic pile breaker has been launched. The SPA series hydraulic pile breaker provides pressure to multiple oil cylinders of the pile breaker through the power source. Pile head cut off. During the construction of the pile breaker, the hydraulic pile breaker has the advantages of simple operation, high construction efficiency, low noise and low cost, and is suitable for pile group construction projects. SPA series hydraulic pile breaker adopts a highly modular combination. Through the pin-shaft connection module, it can be combined with different modules to cut off the diameter of the pile head within a certain range, including the square pile and the round pile.

Most of the traditional pile head breaking methods use methods such as hammer blowing, manual drilling or air pick removal; however, these traditional methods have many disadvantages such as shock damage to the internal structure of the pile head, and now hydraulic concrete pile breakers have been It is a new, fast and efficient concrete structure demolition tool invented by combining the advantages of the above-mentioned various demolition equipment and the characteristics of the concrete structure itself. Greatly reduce the labor intensity of workers and improve work efficiency. Combined with the demolition method of the concrete pile breaker, it takes only a few minutes to cut off a pile head.

Eco-Friendly & Safe Operation

SPA series hydraulic pile breaker will not generate pressure wave, no vibration, noise and dust, and will not damage the pile foundation when breaking concrete piles.

Highly Modular Design

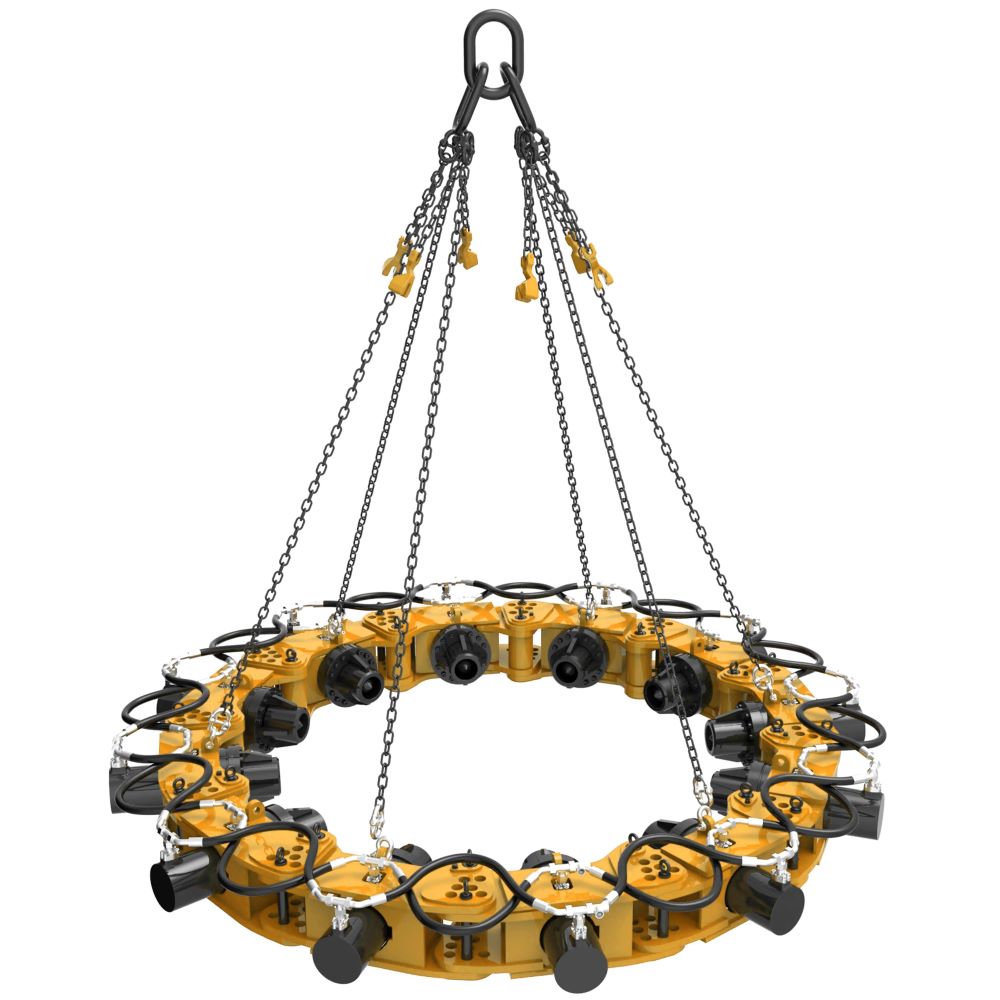

With modular design, each module has a separate oil cylinder and drill rod, and the oil cylinder drives the drill rod to achieve linear motion.

Synchronous Action Mechanism

Multiple modules are combined to adapt to the construction of different pile diameters, and are connected in parallel through hydraulic pipelines to achieve synchronous action.

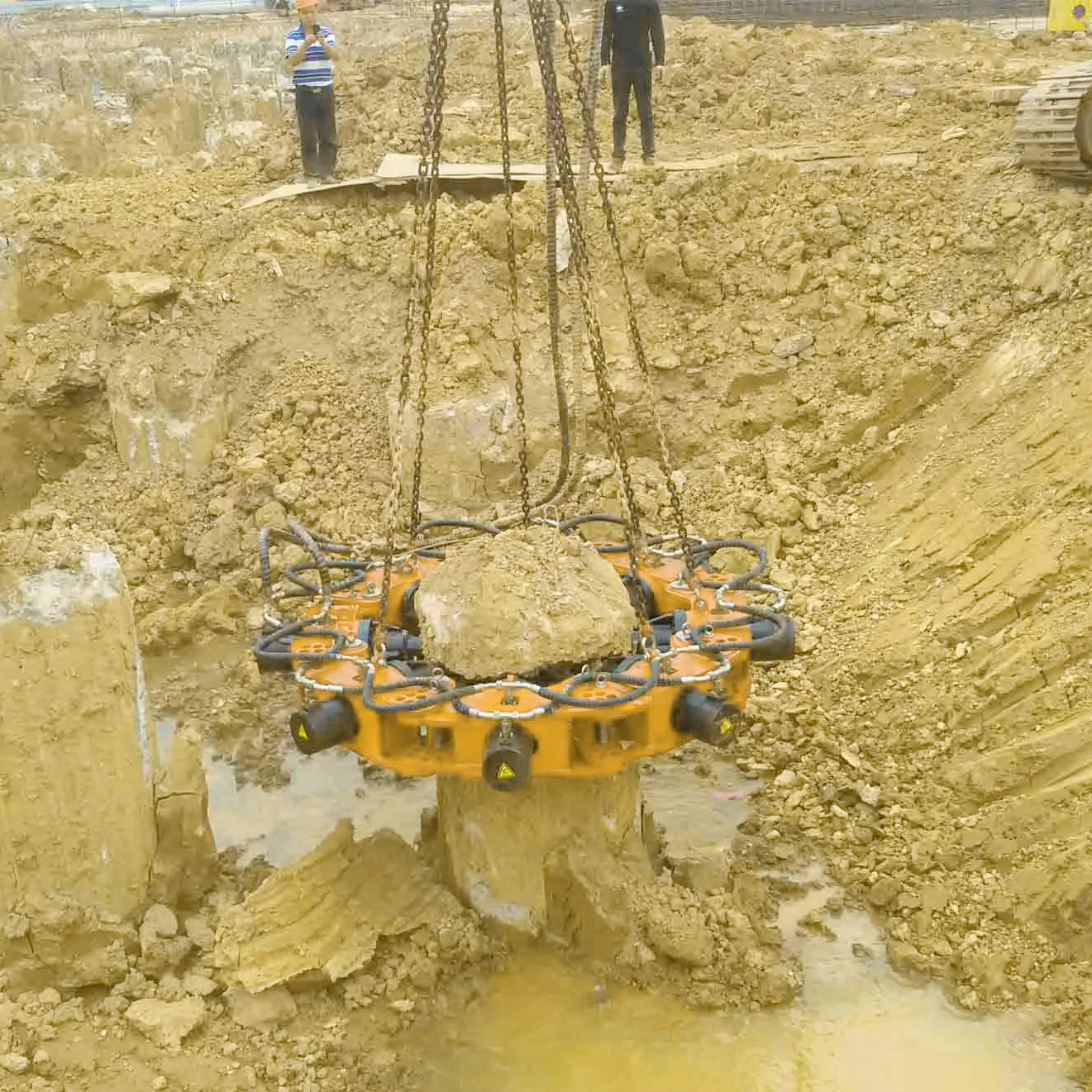

The pile body is squeezed at multiple points on the same section at the same time, and the pile body at this section is broken.

Module numbers	The diameter range (mm)	Platform weight(t)	Total pile breaker weight(kg)	Height of single crush pile(mm)
6	450-650	20	2515	300
7	600-850	22	2930	300
8	800-1050	26	3345	300
9	1000-1250	27	3760	300
10	1200-1450	30	4175	300
11	1400-1650	32.5	4590	300
12	1600-1850	35	5005	300
13	1800-2000	36	5420	300

Model	SPA8
Range of Pile diameter (mm)	Ф1800-Ф2000
Maximum Drill rod pressure	790kN
Maximum stroke of hydraulic cylinder	230mm
Maximum pressure of hydraulic cylinder	31.5MPa
Maximum flow of single cylinder	25L/min
Cut the number of pile/8h	30-100 pcs
Height for cutting pile each time	≦300mm
Supporting the digging machine Tonnage (excavator)	≧36t
One-piece module weight	410kg
One-piece module size	930x840x450mm
Work status dimensions	Ф3700x450
Total pile breaker weight	5.5t

Frequently Asked Questions (FAQ)

What is a hydraulic pile breaker?

A hydraulic pile breaker, also known as a hydraulic pile cutter, is an advanced demolition tool designed to efficiently cut and remove concrete foundation pile heads while fully preserving the inner steel bars.

What are the main advantages of using a hydraulic pile breaker?

Unlike traditional manual methods, the hydraulic pile breaker offers high construction efficiency, low noise levels, low operational costs, and simple operation, making it ideal for large-scale pile group construction projects.

Does the SPA series pile breaker cause damage to the pile foundation?

No. The SPA series hydraulic pile breaker operates without generating pressure waves, vibrations, noise, or dust, ensuring that the internal structure of the pile foundation remains completely undamaged.

How does the modular design benefit construction?

The modular system uses pin-shaft connections to combine modules of different sizes. This flexibility allows the equipment to adapt to various round and square pile diameters, executing synchronized multi-point squeezing actions on the pile sections.

How long does it take to cut off a pile head using this equipment?

By utilizing the multi-point synchronous hydraulic squeezing method, the machine dramatically reduces labor intensity and can cut off a single pile head in just a few minutes.
