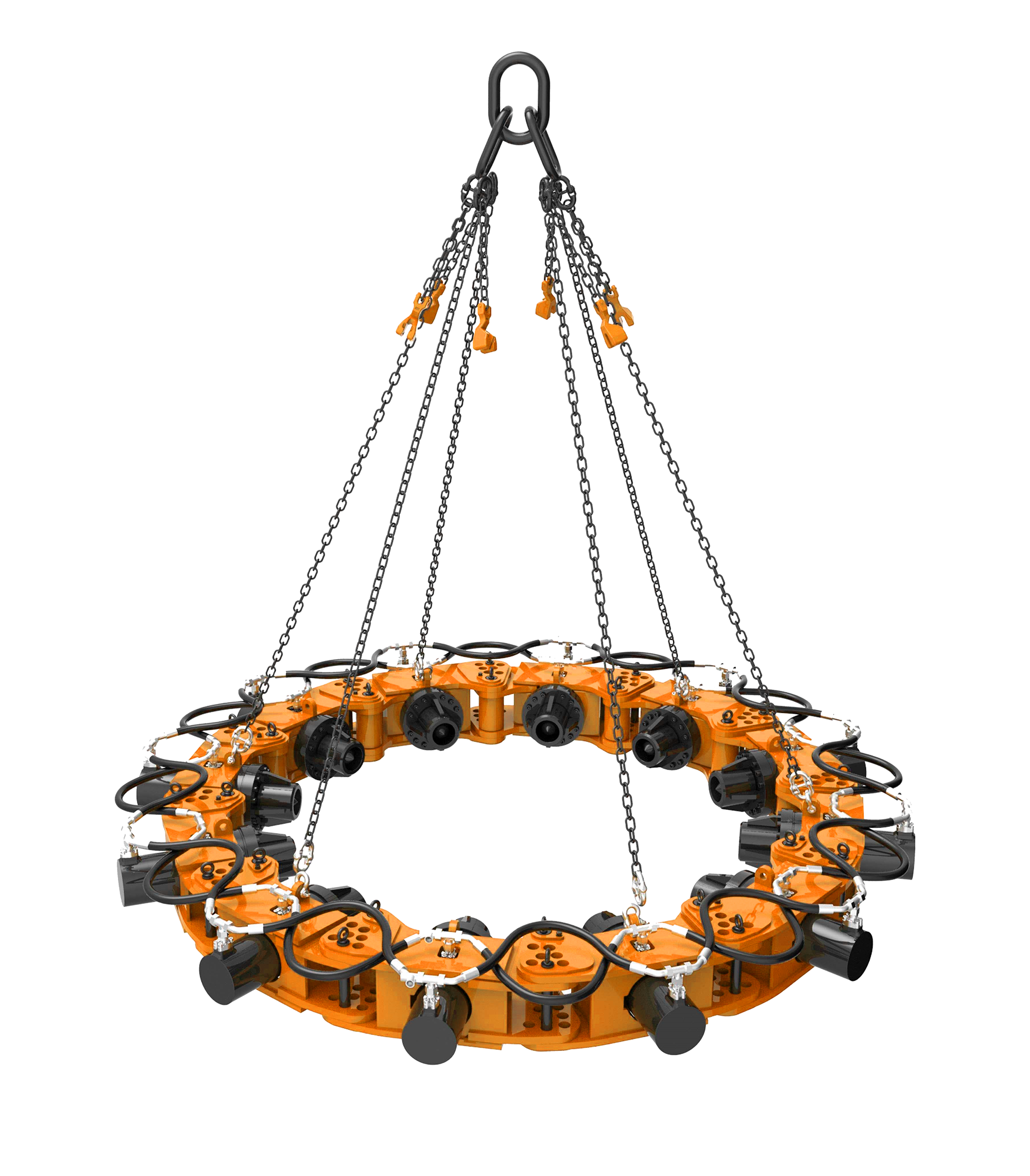

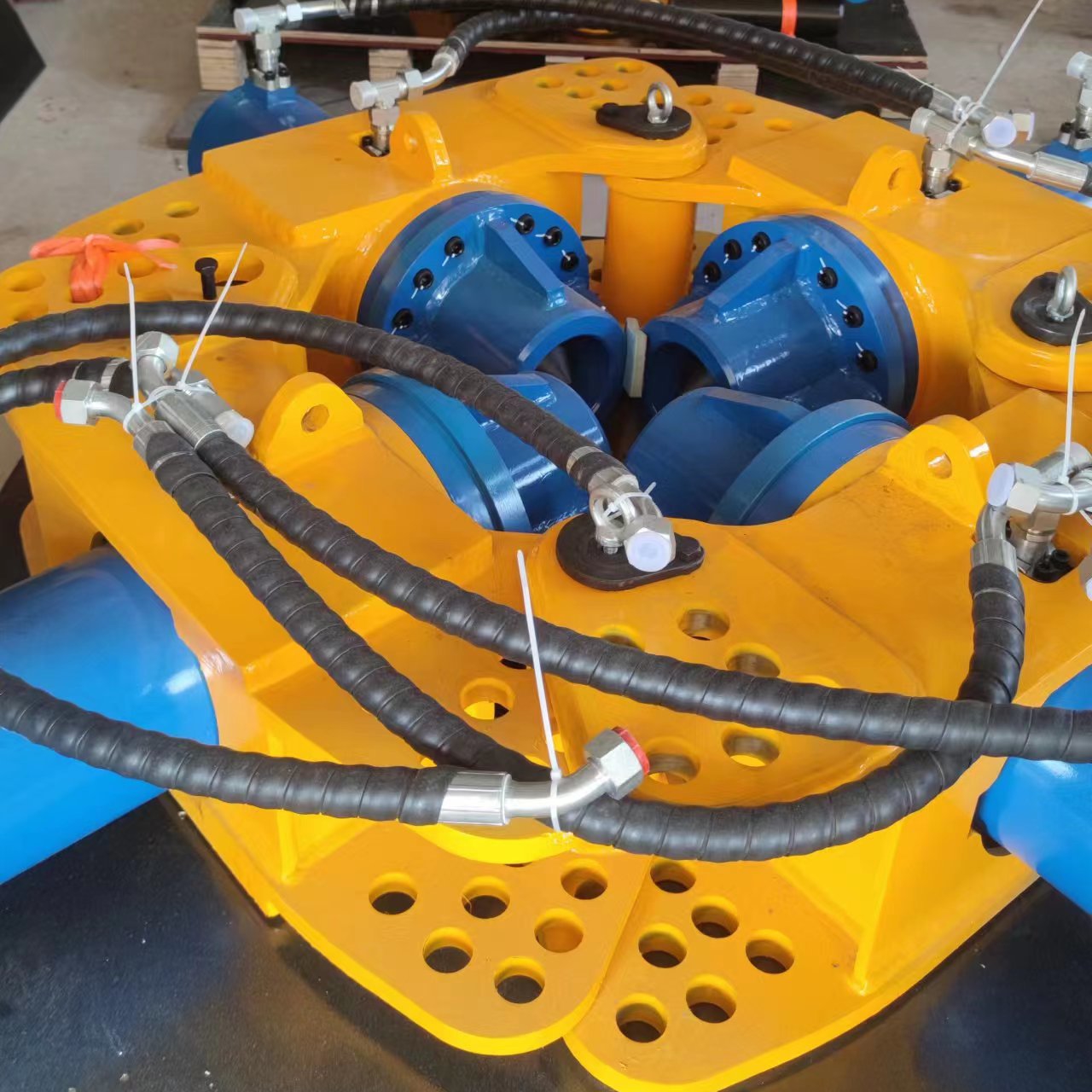

The leading hydraulic pile breaker with five patented technologies and adjustable chain, it is the most efficient equipment to break the foundation piles. Due to the modular design, the pile breaker can be used for breaking different sizes of pile. Equipped with the chains, it can work with different equipment to break piles.
The hydraulic pile breaker offers easy operation, high efficiency, and exceptionally low maintenance costs.
Designed for lower noise levels, enhanced operator safety, and highly stable mechanical performance during operation.

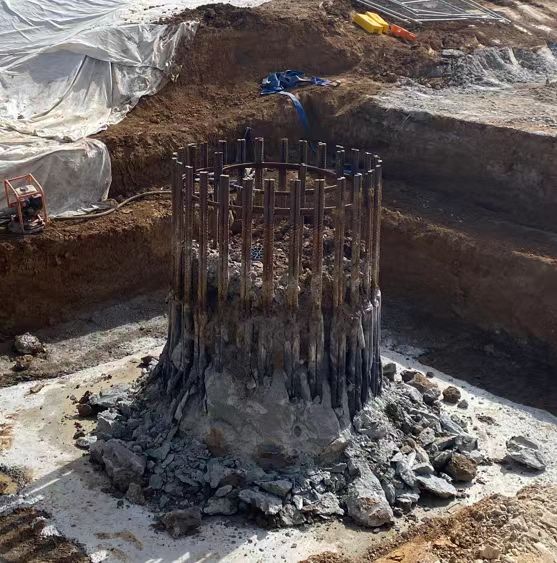

It imposes no impact force on the parent body of the pile and has no negative influence on the bearing capacity of the pile.
Greatly accelerates project schedules, making it highly recommended for large-scale pile-group works by construction and supervision departments.
| SPA8 PLUS截桩机各工况施工参考参数/Construction's Parameters | ||||
|---|---|---|---|---|
| 模块数量 Module numbers |
使用桩径/mm The diameter range |
最小挖机吨位/t Platform weight |
整机重量/kg weight |
单次截桩最大高度/mm Height of single crush pile |
| 6 | 450-600 | 20 | 2400 | 300 |
| 7 | 650-800 | 22 | 2800 | 300 |
| 8 | 850-1000 | 26 | 3200 | 300 |
| 9 | 950-1200 | 27 | 3600 | 300 |
| 10 | 1150-1400 | 30 | 4000 | 300 |
| 11 | 1350-1600 | 32 | 4400 | 300 |
| 13 | 1650-1800 | 35 | 5200 | 300 |
| 14 | 1850-2100 | 35 | 5600 | 300 |
| 15 | 2050-2300 | 40 | 6000 | 300 |
| 16 | 2250-2500 | 40 | 6400 | 300 |
It uses five patented technologies and features an adjustable chain, making it the most efficient equipment to break foundation piles while minimizing operation time and costs.
Yes. Thanks to its modular design, you can easily adjust the number of modules (ranging from 6 to 16 modules) to handle different pile diameters from 450 mm up to 2500 mm.
No. The hydraulic pile breaker imposes no impact force on the parent body of the pile and has no influence on the bearing capacity of the pile.
The single crush pile height is up to 300 mm per cycle for all specified module configurations.

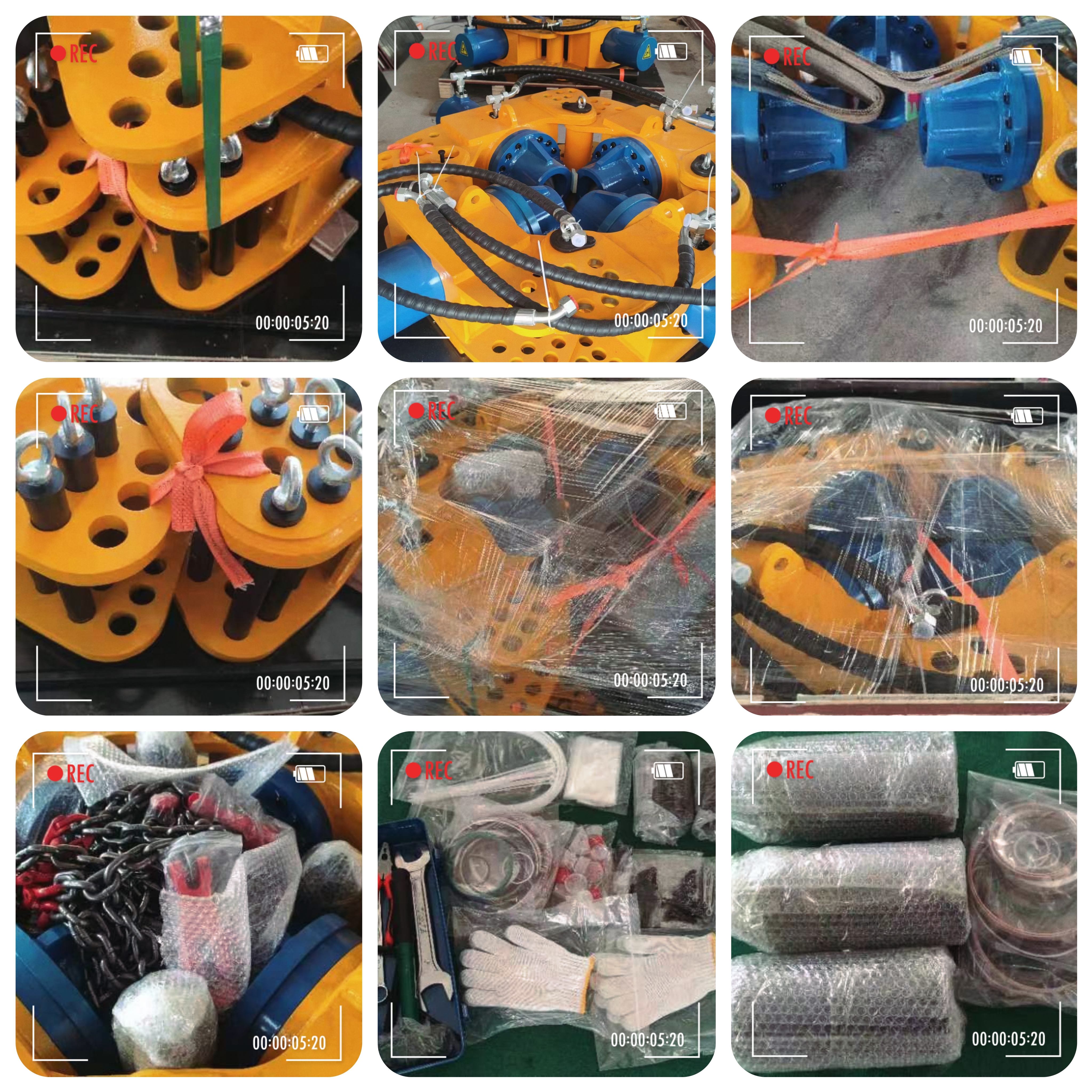

The pile breaker comes equipped with chains and can work with different platform equipment such as excavators, with a minimum platform weight requirement of 20t to 40t depending on the module count.
