Wholesale YTQH700B Dynamic compaction crawler crane Companies, Products

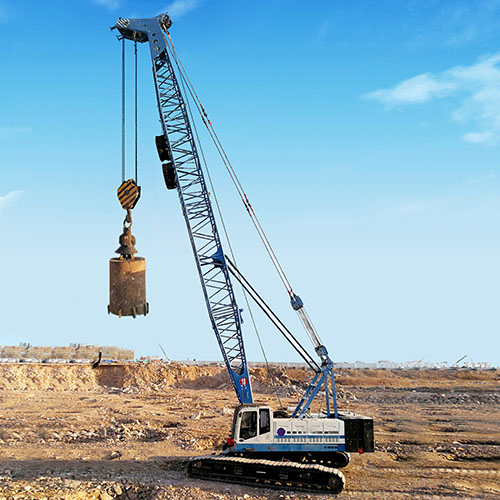

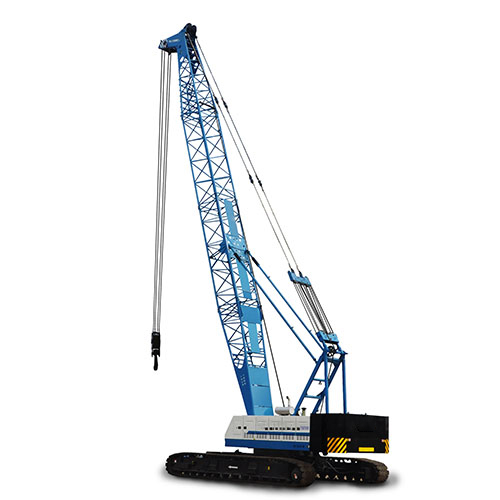

Strong professional and easy to operate. YTQH700B dynamic compaction crawler crane is a fully-slewing, multi-section truss-boom combination and fully hydraulically driven dynamic compaction hoisting machinery developed to meet market needs and combined with years of experience in production engineering lifting and compaction equipment. This model has the characteristics of high performance, high reliability, and beautiful appearance.

Send Inquiry

Product Description

Specifications

Item	Unit	YTQH700B
Compaction capacity	t.m	700（1500）
Hammer weight permit	t.m	32.5（75）
Wheel tread	mm	6410
Chassis width	mm	5850
Track width	mm	850
Boom length	mm	19～25（28）
Working angle	°	60～77
Max.lift height	mm	26.3
Working radius	mm	6.5～16.1
Max. pull force	t	18
Lift speed	m/min	0～98
Slewing speed	r/min	0～1.8
Travel speed	km/h	0～1.3
Grade ability	-	30
Engine power	kw	294
Engine rated revolution	r/min	1900
Total weight	t	95
Counter weight	t	30
Main body weight	t	32
Dimension(LxWxH)	mm	7025x3360x3200

Key Features

Wide application range of dynamic compaction construction

Excellent power performance

High strength, reliability and stability chassis

High boom strength

Big single rope line pull for lifting winch

Easy and flexible control

Long-time and high-power operation

Comfortable operation

Easy transportation

Frequently Asked Questions

Q: What is the compaction capacity of the YTQH700B?

The YTQH700B dynamic compaction machine features a standard compaction capacity of 700 t.m, with a maximum capacity potential of up to 1500 t.m.

Q: What are the engine specifications of the YTQH700B?

It is powered by an engine with a rated output power of 294 kW at an engine rated speed of 1900 r/min, ensuring reliable performance for high-power, long-time operations.

Q: What is the total weight and dimension layout of the equipment?

The equipment has a total weight of 95 tonnes, which includes a 30-tonne counterweight and a main body weight of 32 tonnes. Its transport dimensions are 7025mm x 3360mm x 3200mm (LxWxH).

Q: What are the details regarding the boom system and its working angles?

The boom length ranges from 19 to 25 meters (expandable to 28 meters) with a working angle of 60 to 77 degrees, achieving a maximum lifting height of 26.3 meters.

Q: How stable and mobile is the chassis design on site?

The YTQH700B is built with a high-strength chassis featuring a wheel tread of 6410 mm, chassis width of 5850 mm, and track width of 850 mm, offering a grade ability of 30 and travel speeds up to 1.3 km/h.
