| Parameter Item | Unit | Data Specification | |
|---|---|---|---|
| Drill hole depth | m | ≤250 | |
| The hole diameter | mm | 450-2000 | |
| Spindle speed | r/min | 11 | |
| Spindle power | KW | (5.5-7.5)*2 | |
| The spindle torque | N.m | 12000 | |
| Winch lifting force | T | 15 | |
| Reverse circulation pump | Flow | m³/h | 500 |
| Power | KW | 30 | |
| Generating set | Rated voltage | V | 380 |
| Rated current | A | 115 | |
| Rated speed | r/min | 1500 | |
| Rated power | KW | 64 | |
| Drill pipe | mm | Ф168*2000/Ф180*2000 | |
| Main power supporting power | - | 4105-6105 diesel engine | |
| Overall dimension | mm | 9000*2400*3300 | |
| Weight | T | 13 | |

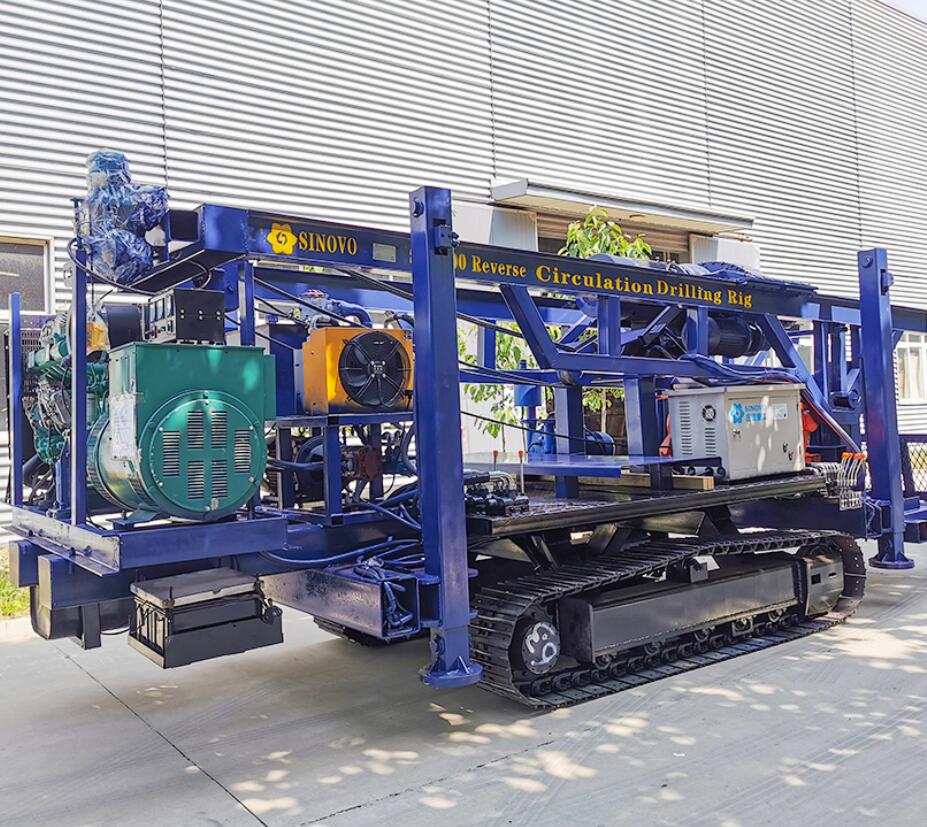

This drilling rig is capable of achieving a maximum drill hole depth of up to 250 meters, with a versatile hole diameter capacity ranging from 450 mm to 2000 mm.
The integrated generating set features a rated power of 64 KW, operates at a rated voltage of 380V and rated current of 115 A, with a rated speed of 1500 r/min.
The built-in reverse circulation pump has a high-capacity flow rate of 500 m³/h and is supported by a 30 KW power rating.
The main power supporting power of this machinery is powered by a reliable 4105-6105 diesel engine.
The overall physical dimensions of the machinery are 9000*2400*3300 mm, and it has a total operating weight of 13 Tons.
The winch offers a lifting force capacity of 15 Tons, while the spindle provides a torque rating of 12000 N.m with a speed of 11 r/min.
