The SPL 800 hydraulic pile breaker cuts the wall with a width of 300-800mm and a rod pressure of 280kn.
SPL800 hydraulic pile breaker adopts multiple hydraulic cylinders to squeeze and cut off the wall from different points at the same time. Its operation is simple, efficient and environment-friendly.

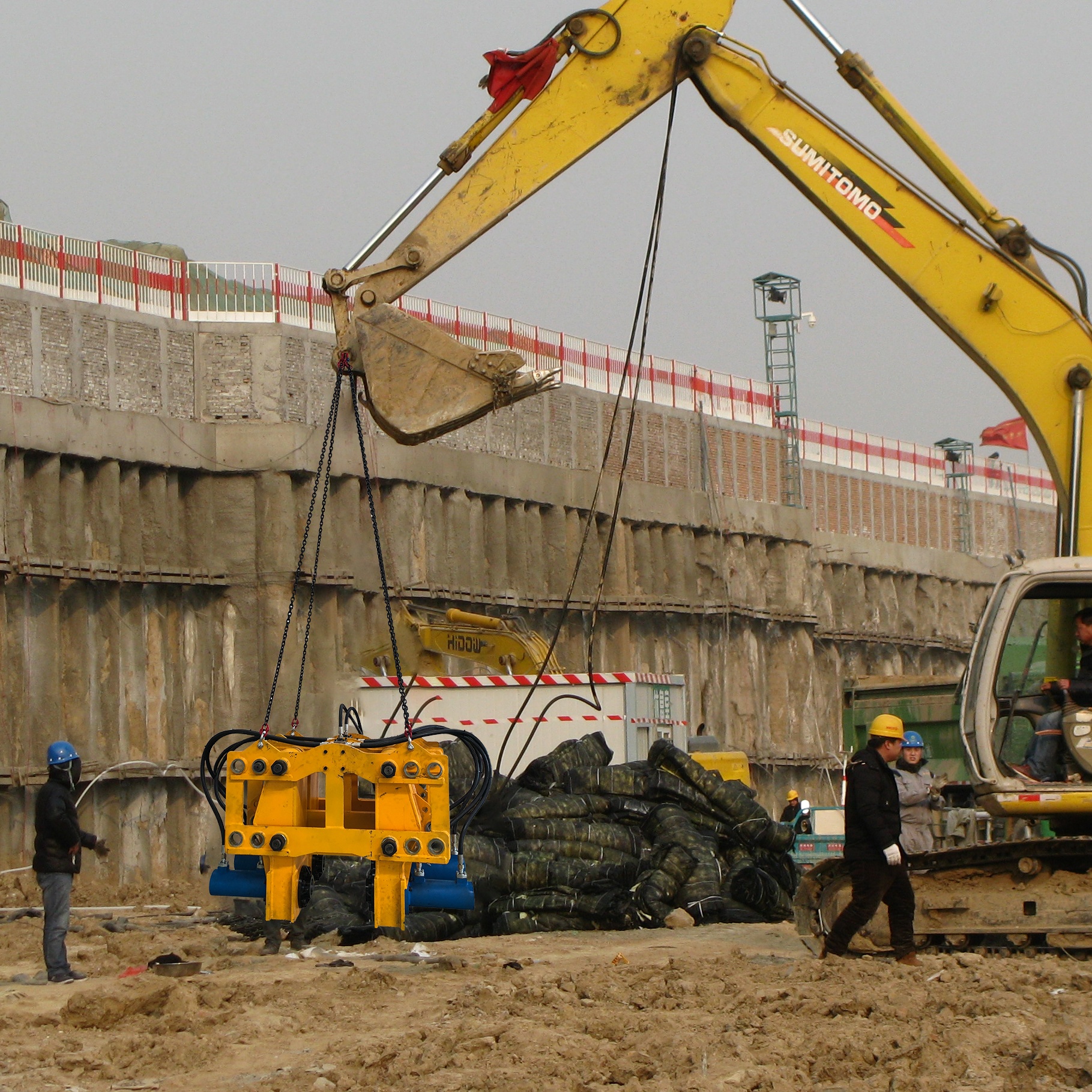

The equipment operation needs to be connected to the power source, which can be fixed pump station or other mobile construction machinery and equipment. Generally, the pump station is used in the pile construction of high-rise buildings, and the mobile excavator is used as the power source in other buildings.
Technical Specifications
| Name |
Hydraulic Pile Breaker |
| Model |
SPL800 |
| Cut wall width |
300-800mm |
| Maximum drill rod pressure |
280kN |
| Maximum stroke of cylinder |
135mm |
| Maximum pressure of cylinder |
300bar |
| Maximum flow of single cylinder |
20L/min |
| Number of cylinders on each side |
2 |
| Wall dimension |
400*200mm |
| Supporting the digging machine tonnage (excavator) |
≥7t |
| Wall breaker dimensions |
1760*1270*1180mm |
| Total wall breaker weight |
1.2t |
Key Features & Advantages
Environmental Protection
Fully hydraulic drive, low operating noise and no impact on the surrounding environment.
Low Operation Cost
The operating system is simple and convenient, requiring fewer operators during construction, saving labor and machine maintenance costs.
Compact & Light
SPL800 pile breaker has small volume, convenient transportation and light weight.
High Safety Standards
Non-contact operation, suitable for construction in complex terrain.
Excellent Universality
It can be driven by a variety of power sources and can be compatible with excavator or hydraulic system according to the situation of construction site. The connection of various construction machinery is flexible, universal and economical. The telescopic chain can meet the construction requirements of various terrains.
Long Service Life
It is manufactured by professional military material suppliers with reliable quality and long service life.
Modular & Flexible Design
Small in size and convenient for transportation; The module is easy to disassemble, replace and combine, and is suitable for piles of various diameters.
SPL800 hydraulic pile breaker is easy to move and has a wide working face. It is suitable for construction projects with long piles and long lines.
Frequently Asked Questions
Q1: What is the cutting range and drill rod pressure of the SPL800 hydraulic pile breaker?
The SPL800 hydraulic pile breaker is designed to cut walls with a width of 300mm to 800mm, utilizing a maximum drill rod pressure of 280kN.
Q2: What power sources can be used to run the SPL800?
It can be connected to either a fixed pump station (commonly used in pile construction for high-rise buildings) or other mobile construction machinery such as an excavator.
Q3: Why is the SPL800 considered an environment-friendly pile breaker?
The equipment features a fully hydraulic drive, resulting in low operating noise and no impact or disturbance to the surrounding environment during construction.
Q4: How does the SPL800 adapt to different pile diameters and complex terrains?
The modules of the SPL800 are easy to disassemble, replace, and combine, allowing compatibility with various pile diameters. Additionally, the telescopic chain design helps it meet construction demands on complex terrains.
Q5: What are the requirements for the supporting excavator?
The SPL800 requires a supporting digging machine (excavator) with a tonnage of 7 tons or greater (≥7t) to serve as a reliable power source.
Q6: What makes the SPL800 cost-effective for construction projects?
Its operating system is simple and convenient, requiring fewer operators during construction. This effectively reduces both labor costs and machine maintenance expenses.
