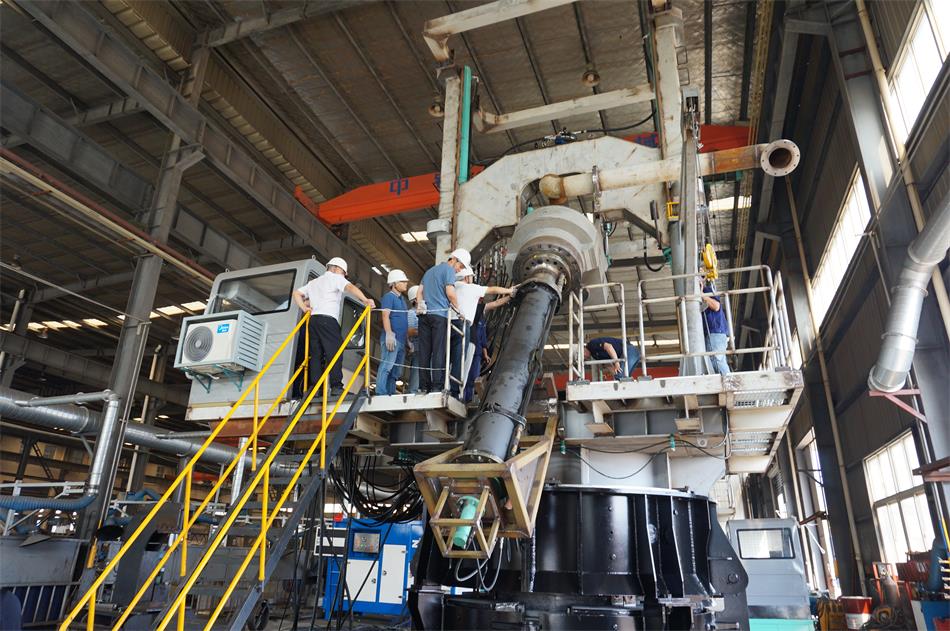

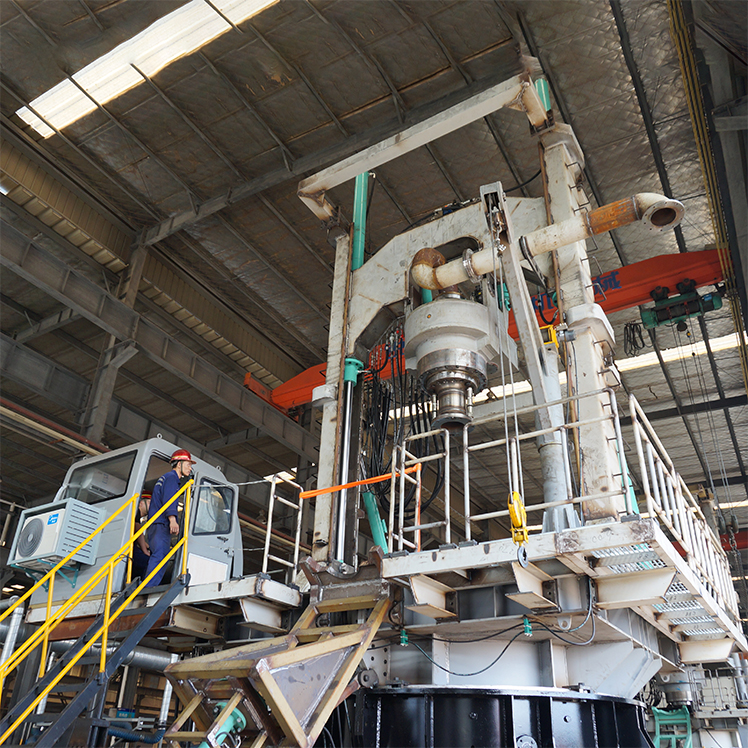

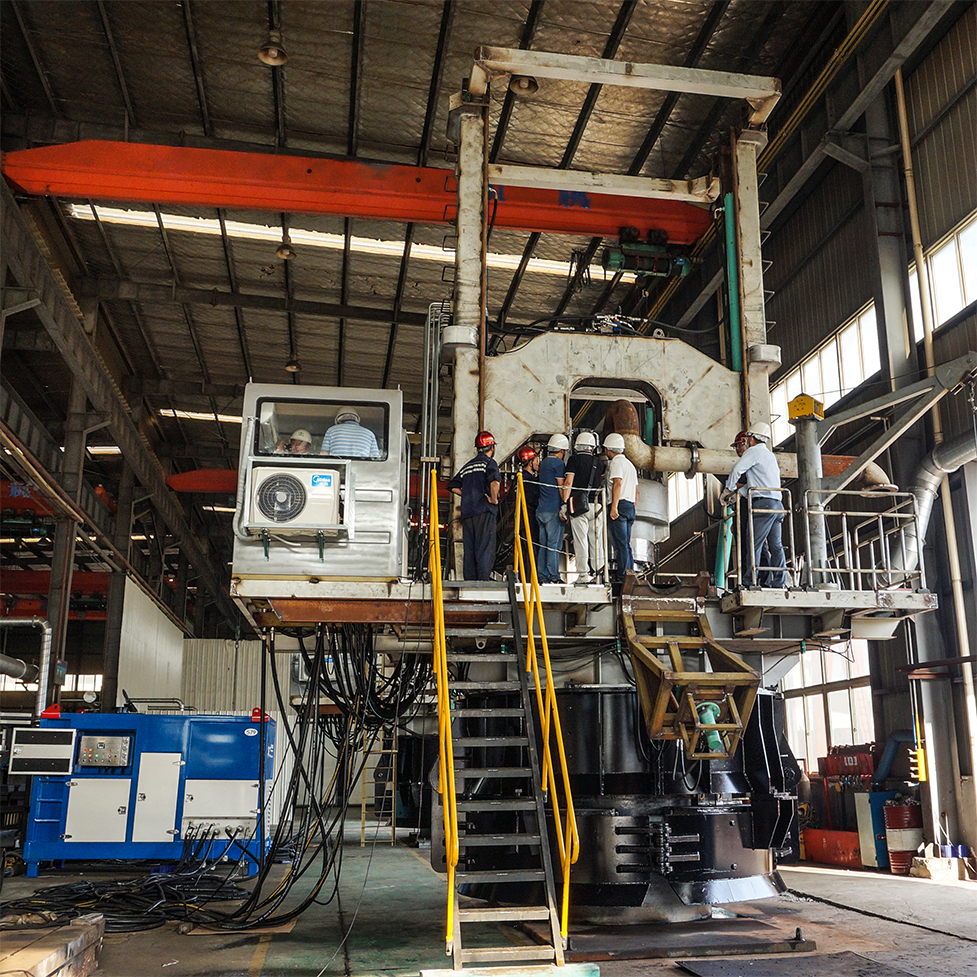

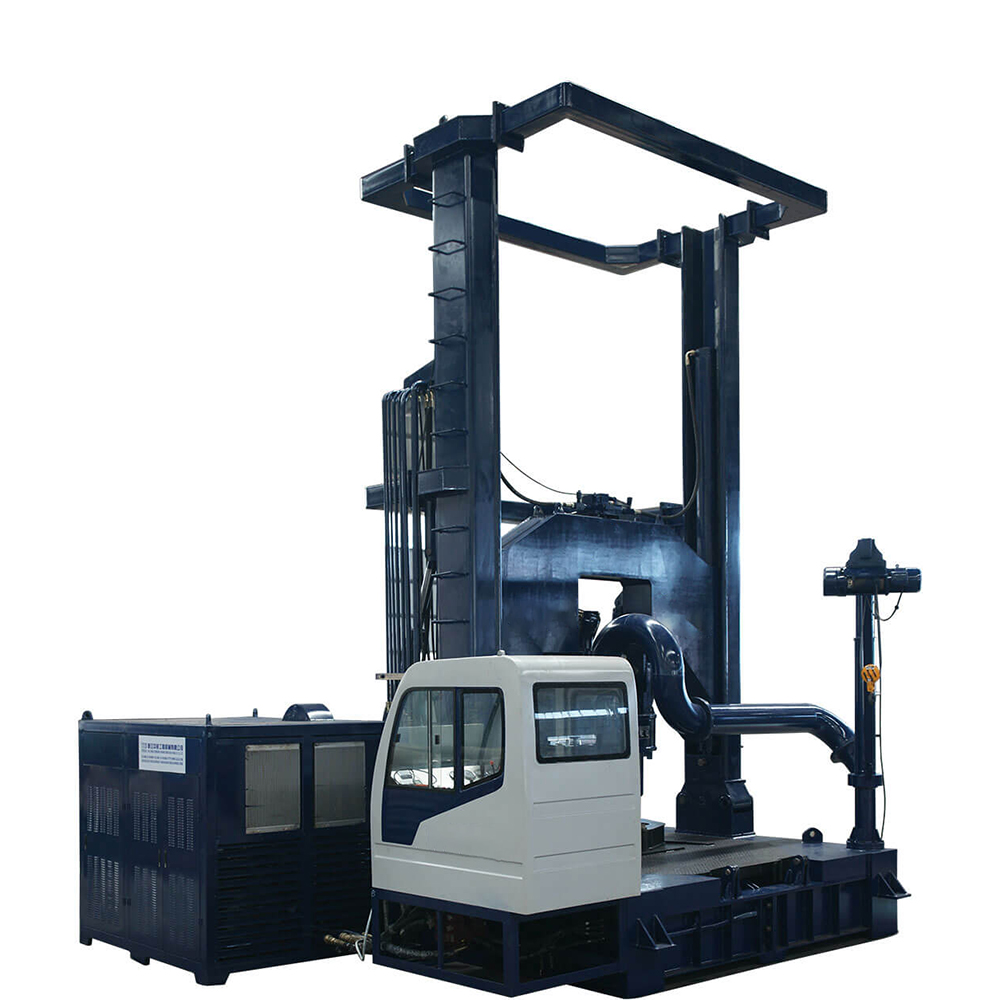

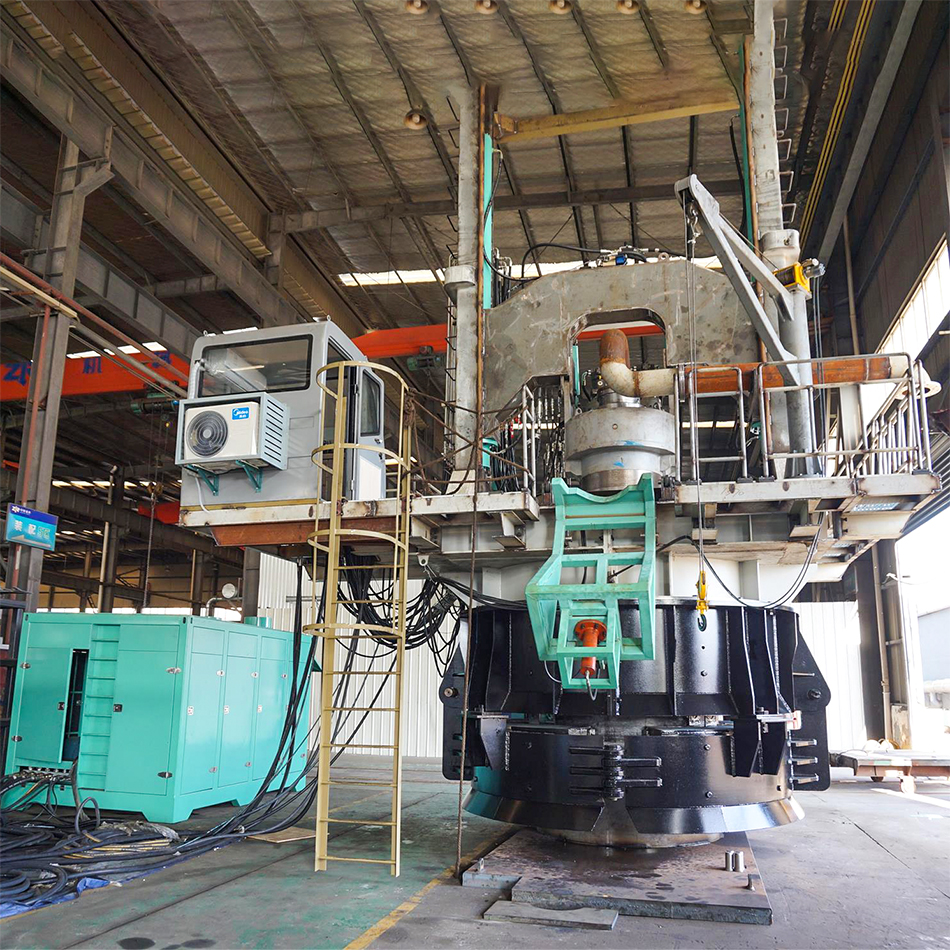

ZJD series full hydraulic drilling rigs are mainly used for the drilling construction of pile foundations or shafts in complex formations such as large diameter, large depth or hard rock. The maximum diameter of this series of drilling rigs is 5.0 m, and the deepest depth is 200m. The maximum strength of the rock can reach 200 Mpa.
ZJD series full hydraulic drilling rigs are mainly used for the drilling construction of pile foundations or shafts in complex formations such as large diameter, large depth or hard rock. The maximum diameter of this series of drilling rigs is 5.0 m, and the deepest depth is 200m. The maximum strength of the rock can reach 200 Mpa. It is widely used in the drilling of large-diameter pile foundations such as large-scale land buildings, shafts, port wharfs, rivers, lakes, and sea bridges. It is the first choice for large-diameter pile foundation construction.
Technical Specifications
Item
Name
Description
Unit
Data
Remark
1
Basic parameters
Size
ZJD2800/280
Max Diameter
mm
Φ2800
Rated power of engine
Kw
298
Weight
t
31
Downforce of cylinder
KN
800
Lifting fore of cylinder
KN
1200
Cylinder stroke
mm
3750
Max speed of rotary head
rpm
400
Min speed of rotary head
rpm
11
Constant torque at low speed
Min speed torque
KN.m
280
Length of hydraulic hose
m
40
Max load of pile cap
KN
600
Engine power
Kw
298
Engine model
QSM11/298
Max flow
L/min
780
Max working pressure
bar
320
Dimension
m
6.2x5.8x9.2
2
Other parameters
Inclination angle of rotary head
deg
55
Max Depth
m
150
Drill rod
Φ351*22*3000
Q390
Inclination angle of guide frame
deg
25
Key Features & Advantages
1
Full hydraulic continuously variable transmission is equipped with imported transmission components, which has reliable and stable transmission performance, adopts frequency conversion motor, which is efficient and energy saving. Reasonable optimization of power configuration, strong and powerful, high work efficiency, fast hole formation.
2
The hydraulic and electrical dual-circuit control system increases the reliability of equipment operation. The electrical control system adopts PLC, monitoring screen, wireless communication module and combines manual control to form a dual-circuit control method, which can be remotely controlled by remote control or can be manually completed operation.
3
Full hydraulic power rotating head, providing large torque and large lifting force to overcome complex formations such as gravel and rocks and hard rock formations.
4
The operating system is a combination of wireless remote control, manual and automatic operation.
5
Optional counterweight to pressurize the bottom of the hole to ensure the verticality of the hole and improve the drilling efficiency.
6
A dual-mode operating system with intelligent operation and wireless operation. The intelligent system uses advanced sensor technology to display real-time operating parameters of equipment, real-time storage and printing of construction data, multi-point video monitoring system combined with GPS positioning, GPRS remote real-time transmission and monitoring of drilling rig site operations happening.
7
It is relatively small in size and light in weight. It is easy to disassemble the drilling rig. All electrical and hydraulic connectors involved in disassembly and assembly use aviation plugs or quick connectors, and structural parts have disassembly and assembly signs.
8
Tilting suspension power head and tilting frame, combined with hydraulic auxiliary crane, compact and reasonable structure, safe and convenient to disassemble and assemble drill pipe and drill bit.
9
Large-diameter drill pipes and double-walled drill pipes adopt high-pressure gas lift sealing device and advanced RCD construction method to achieve fast footage.
10
The operation room is installed on the working platform, which is convenient for operation and comfortable environment. The temperature adjustment equipment can be installed on your own.
11
Optional stabilizer to assist drilling to control the verticality and hole accuracy and reduce drill tool wear.
12
The equipment configuration function can be selected according to actual construction needs, with specific efficiency and diversified choices:
A. Install inclined platform feet for inclined pile construction;
B. Drill rod auxiliary crane with hydraulically driven telescopic boom and hydraulic hoist;
C. The mobile walking system of the drilling rig (walking or crawler);
D. Electric drive system or diesel power drive system;
E. Combined drilling tool system;
F. Set of counterweight drill pipe counterweight or integral flange connection counterweight;
G. Drum type or split type stabilizer (centralizer);
H. The user can specify brand imported components.
Frequently Asked Questions (FAQ)
What are the primary applications of ZJD series drilling rigs?
ZJD series full hydraulic drilling rigs are mainly used for the drilling construction of pile foundations or shafts in complex formations. They are widely applied in large-scale land buildings, port wharfs, rivers, lakes, and sea bridges.
What is the maximum drilling capacity in terms of diameter and depth?
This series of drilling rigs can support a maximum drilling diameter of up to 5.0 meters and reach a maximum depth of 200 meters, making it highly effective for deep foundation operations.
Can these rigs drill through hard rock formations?
Yes, the ZJD series is designed to handle complex formations including hard rock, with a maximum rock strength capability reaching up to 200 Mpa.
What control options are available on the ZJD drilling rigs?
The equipment features a dual-circuit control system. It combines an electrical system (utilizing PLC, monitoring screens, and wireless communication) with manual operation controls, allowing operators to work either via wireless remote or manual interfaces.
Are there options to construct inclined piles?
Yes, the rigs offer flexible equipment configuration functions. For inclined pile construction, you can optionally install inclined platform feet and make use of the tilting frame system.
How is the drilling efficiency optimized for deep holes?
Drilling efficiency is enhanced using advanced features such as an optional counterweight to pressurize the bottom of the hole (ensuring verticality), optional stabilizers, and an advanced RCD construction method with a high-pressure gas lift sealing device.
