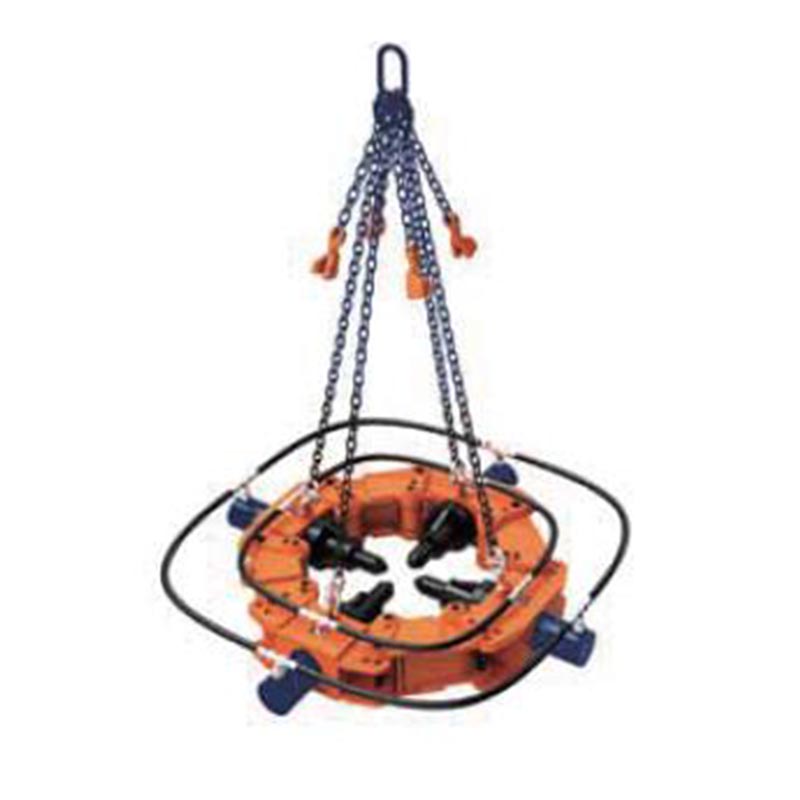

Buy SPF400A Hydraulic Pile Breaker Suppliers, Company

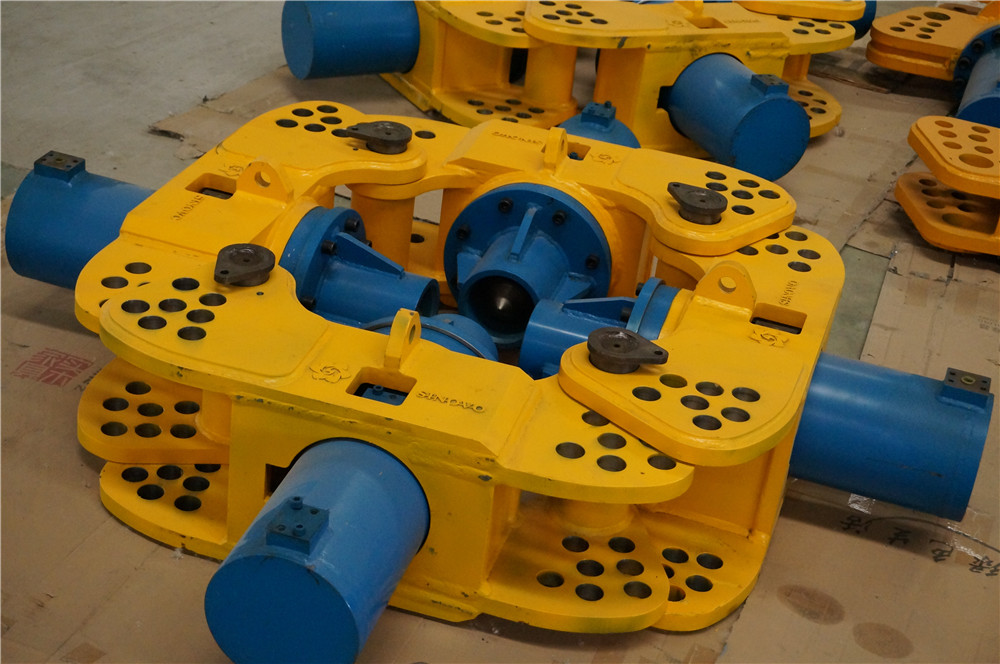

The fully hydraulic pile breaker adopts an advanced modular design. Through modular versatility, it can break both round and square piles by changing module combinations, making it a dual-purpose machine. It can be used in conjunction with excavators, crawler cranes, and other equipment for pile breaking operations, making it the most effective foundation pile breaking equipment currently available.
The leading hydraulic pile breaker with five patented technologies and adjustable chain, it is the most efficient equipment to break the foundation piles. Due to the modular design the pile breaker can be used for breaking different sizes of piles. Equipped with the chains, it can work with different equipment to break piles.
Key Features
1. Environment-friendly
Its full hydraulic drive causes little noise during operation and no influence on the surrounding environments.
2. Low-cost
The operating system is easy and convenient. Fewer operating workers are required to save cost for labor and machines maintenance during construction.
3. Multi-function
Module generalization is realized with our SPF400A square pile machine. It can be used for both circular piles and square piles by changing the module combination.
4. Small volume
It's light for convenient transportation.
5. Safety
Contact-free operation is enabled and it can be applied for construction on complex land form.
6. Universal property
It can be driven by diverse power sources and is compatible with excavators or hydraulic system according to the construction sites conditions. It is flexible to connect multiple construction machines with universal and economical performance. The telescopic sling lifting chains meet the requirements of various land forms.
7. Long service life
It is made of military material by first-class suppliers with reliable quality, extending its service life.
8. Convenience
it’s small for convenient transportation. Replaceable and changeable module combination makes its applicable for piles with various diameters. The modules can be assembled and disassembled easily and conveniently.
Construction Steps
1
According to pile diameter, with reference to the construction reference parameters corresponding to the number of modules, directly connect the breakers to the work platform with a quick change connector;
2
The working platform can be excavator, lifting device and hydraulic pump station combination, the lifting device can be truck crane, crawler cranes, etc;
3
Move the pile breaker to the working pile head section;
4
Adjust the pile breaker to the suitable height (please refer to construction parameter list when crushing the pile, otherwise the chain may be broken), and clamp the pile position to be cut;
Length of drill rod
Pile Diameter (mm)
Remark
170
300-400
Standard Configuration
206
200-300
Optional Configuration
5
Adjust the excavator's system pressure according to the concrete strength, and pressurize the cylinder until the concrete pile breaks under high pressure;
6
After the pile is crushed, hoist the concrete block;
7
Move the crushed pile to the designated position.
The hydraulic pile breaker has the following features: easy operation, high efficiency, low cost, less noise, more safety and stability. It imposes no impact force on the parent body of the pile and no influence on the bearing capacity of the pile, and shortens the construction period greatly. It is applicable for pile-group works and is recommended strongly by the construction department and the supervision department.
Specifications
Model
SPF400A
Range of Pile diameter (mm)
300-400
Maximum Drill rod pressure
325kN
Maximum stroke of hydraulic cylinder
150mm
Maximum pressure of hydraulic cylinder
34.3MPa
Maximum flow of single cylinder
25L/min
Cut the number of pile/8h
160
Height for cutting pile each time
≦300mm
Supporting the digging machine Tonnage(excavator)
≧7t
Work status dimensions
1600X1600X2000mm
Total pile breaker weight
750kgs
Frequently Asked Questions (FAQ)
What types of piles can the SPF400A pile breaker handle?
By changing the module combination, the SPF400A square pile machine can be used for breaking both circular piles and square piles.
What is the range of pile diameters compatible with this equipment?
The standard configuration handles pile diameters from 300 to 400 mm (with 170mm drill rod), and the optional configuration supports diameters from 200 to 300 mm (with 206mm drill rod).
Which working platforms can be used with the hydraulic pile breaker?
It can connect to excavators, lifting devices combined with hydraulic pump stations, truck cranes, crawler cranes, and other compatible machinery.
How many piles can this machine crush in a standard 8-hour shift?
The SPF400A is highly efficient and capable of cutting up to 160 piles per 8-hour shift.
What is the minimum excavator tonnage required to support this equipment?
It requires a supporting digging machine (excavator) with a tonnage of 7 tons or greater.
Is this equipment safe for complex construction environments?
Yes. It enables contact-free operation, making it highly secure and easy to apply for construction on complex landforms.
