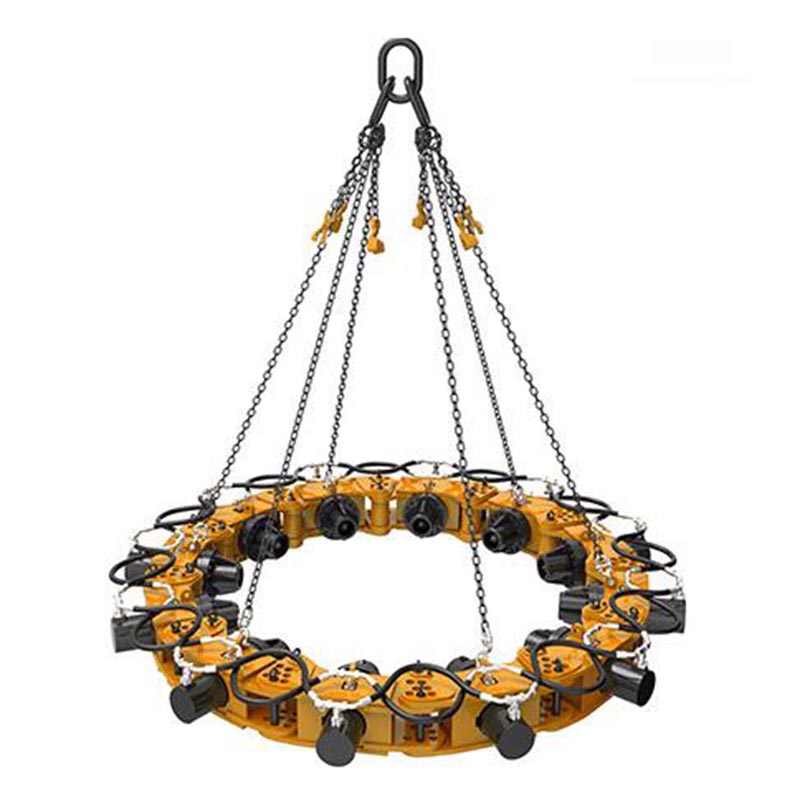

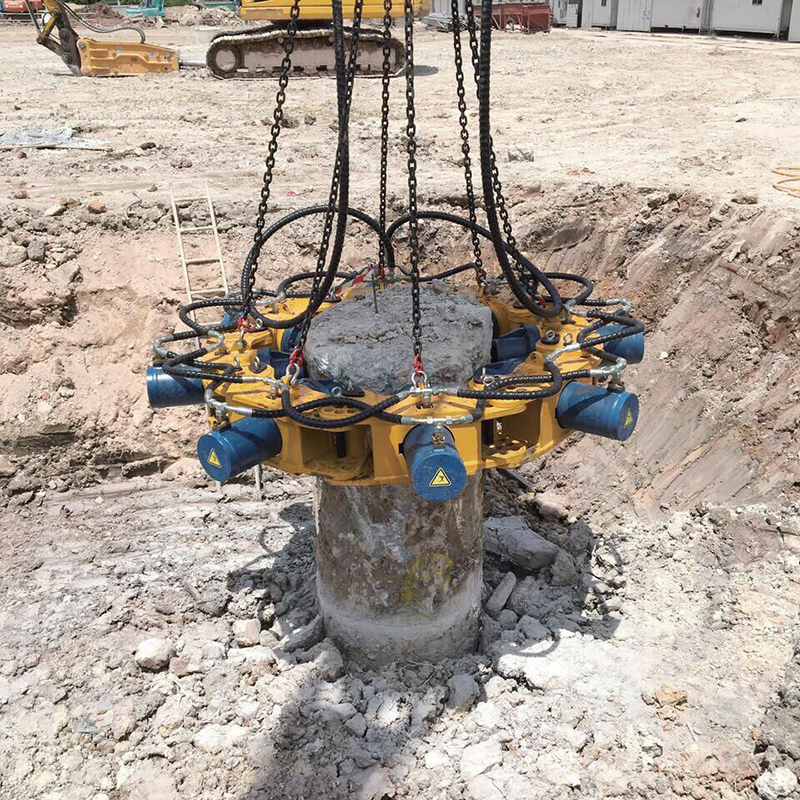

The fully hydraulic pile breaker, adopting advanced modular design, the pile breaker can be used to break piles of different sizes by adjusting the number of modules. Equipped with an adjustable chain, it can work with different equipment to break piles,, is the most effective equipment for breaking foundation piles.
The leading hydraulic pile breaker with five patented technologies and adjustable chain, it is the most efficient equipment to break the foundation piles. Due to the modular design the pile breaker can be used for breaking different sizes of piles. Equipped with the chains, it can work with different equipment to break piles.
Key Features
1. Low-cost
The operating system is easy and convenient. Fewer operating workers are required to save cost for labor and machines maintenance during construction.
2. Environment-friendly
Its full hydraulic drive causes little noises during operation and no influence on the surrounding environments.
3. Safety
Contact-free operation is enabled and it can be applied for construction on complex land form.
4. Small volume
It's light for convenient transportation.
5. Universal property
It can be driven by diverse power sources and is compatible with excavators or hydraulic system according to the construction sites conditions. It is flexible to connect multiple construction machines with universal and economical performance. The telescopic sling lifting chains meet the requirements of various land forms.
Operation Guide (Steps 1 - 4)
1
According to pile diameter, with reference to the construction reference parameters corresponding to the number of modules, directly connect the breakers to the work platform with a quick change connector;
2

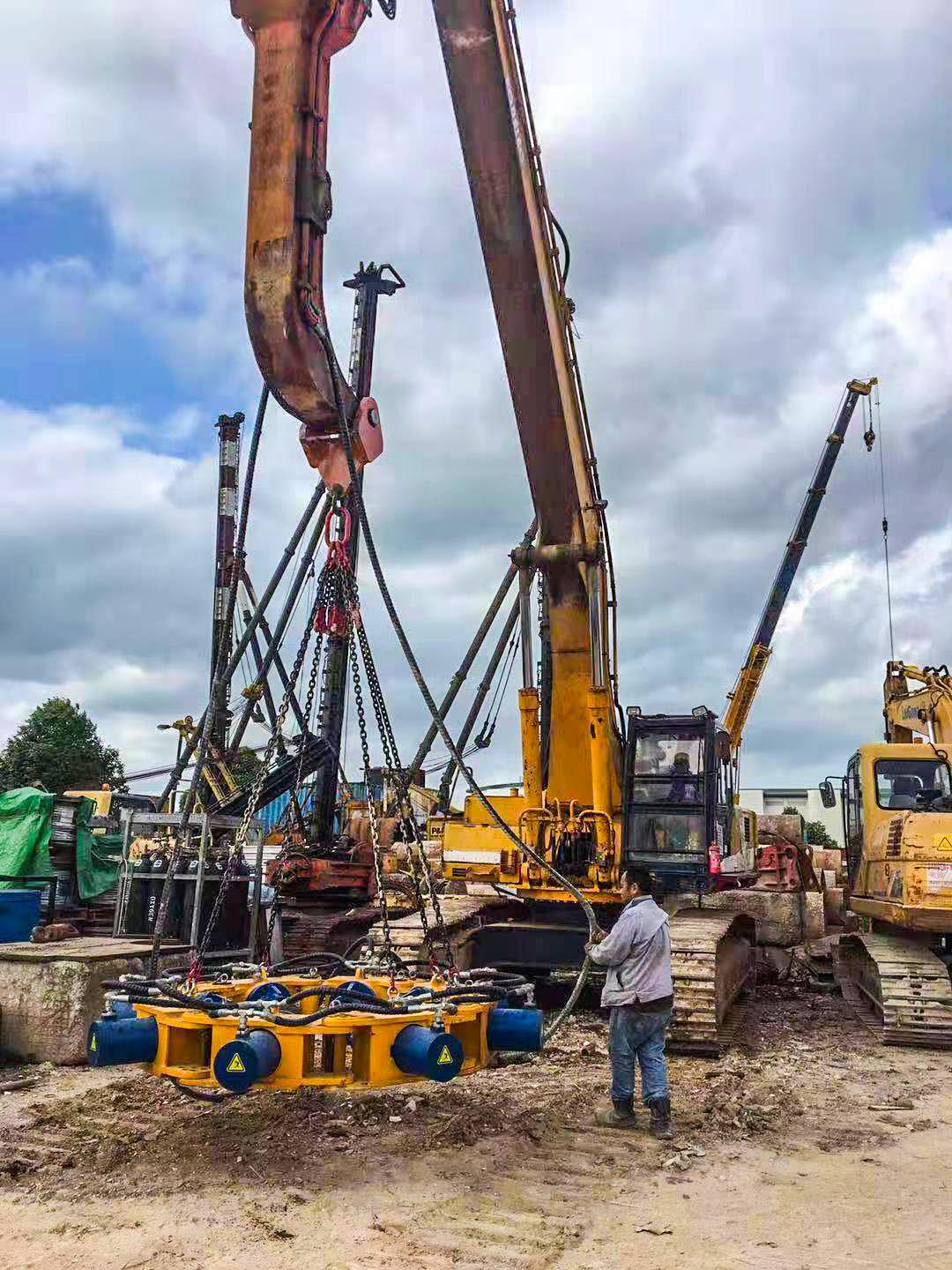

The working platform can be excavator, lifting device and hydraulic pump station combination, the lifting device can be truck crane, crawler cranes, etc;
3
Move the pile breaker to the working pile head section;
4
Adjust the pile breaker to the suitable height (please refer to construction parameter list when crushing the pile, otherwise the chain may be broken), and clamp the pile position to be cut;
Construction Reference Parameters
Module numbers
The diameter range (mm)
Platform weight(t)
Total pile breaker weight(kg)
Height of single crush pile(mm)
6
450-650
20
2515
300
7
600-850
22
2930
300
8
800-1050
26
3345
300
9
1000-1250
27
3760
300
10
1200-1450
30
4175
300
11
1400-1650
32.5
4590
300
12
1600-1850
35
5005
300
13
1800-2000
36
5420
300
Operation Guide (Steps 5 - 7)
5

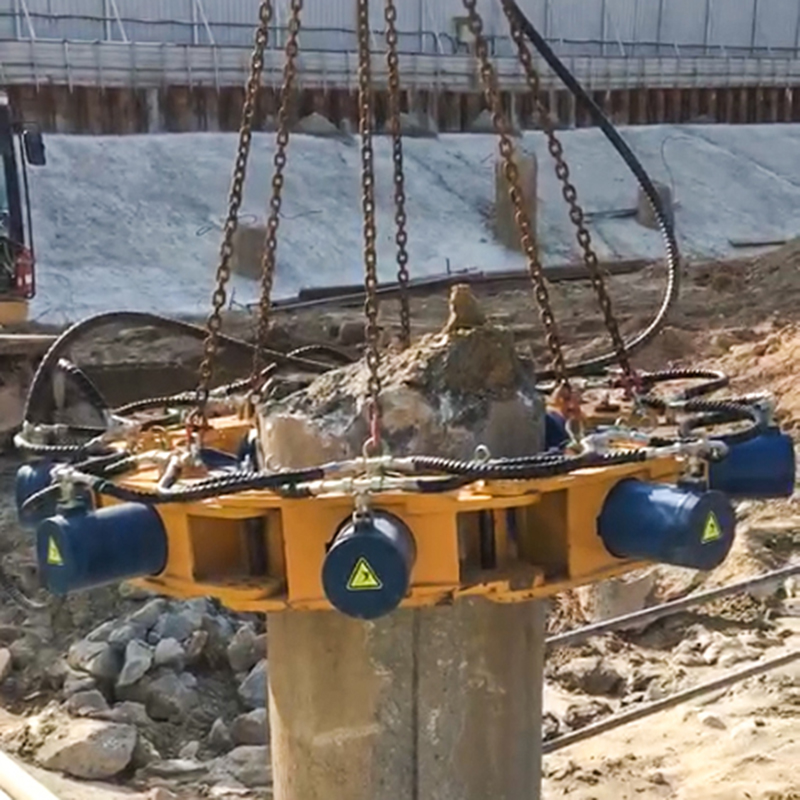

Adjust the excavator's system pressure according to the concrete strength, and pressurize the cylinder until the concrete pile breaks under high pressure;
6

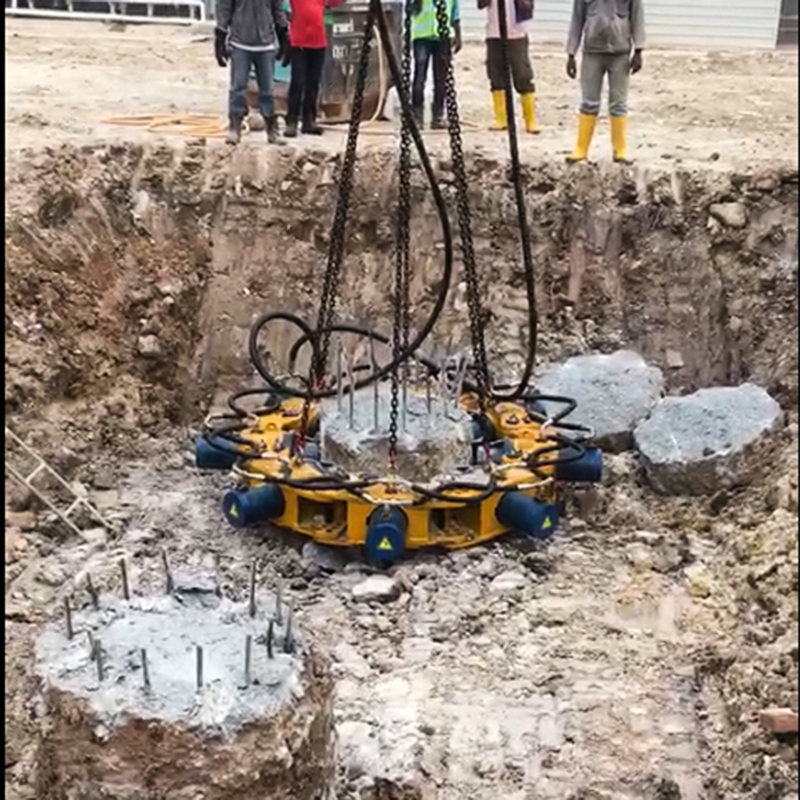

After the pile is crushed, hoist the concrete block;
7
Move the crushed pile to the designated position.
The hydraulic pile breaker has the following features: easy operation, high efficiency, low cost, less noise, more safety and stability. It imposes no impact force on the parent body of the pile and no influence on the bearing capacity of the pile, and shortens the construction period greatly. It is applicable for pile-group works and is recommended strongly by the construction department and the supervision department.
6. Convenience

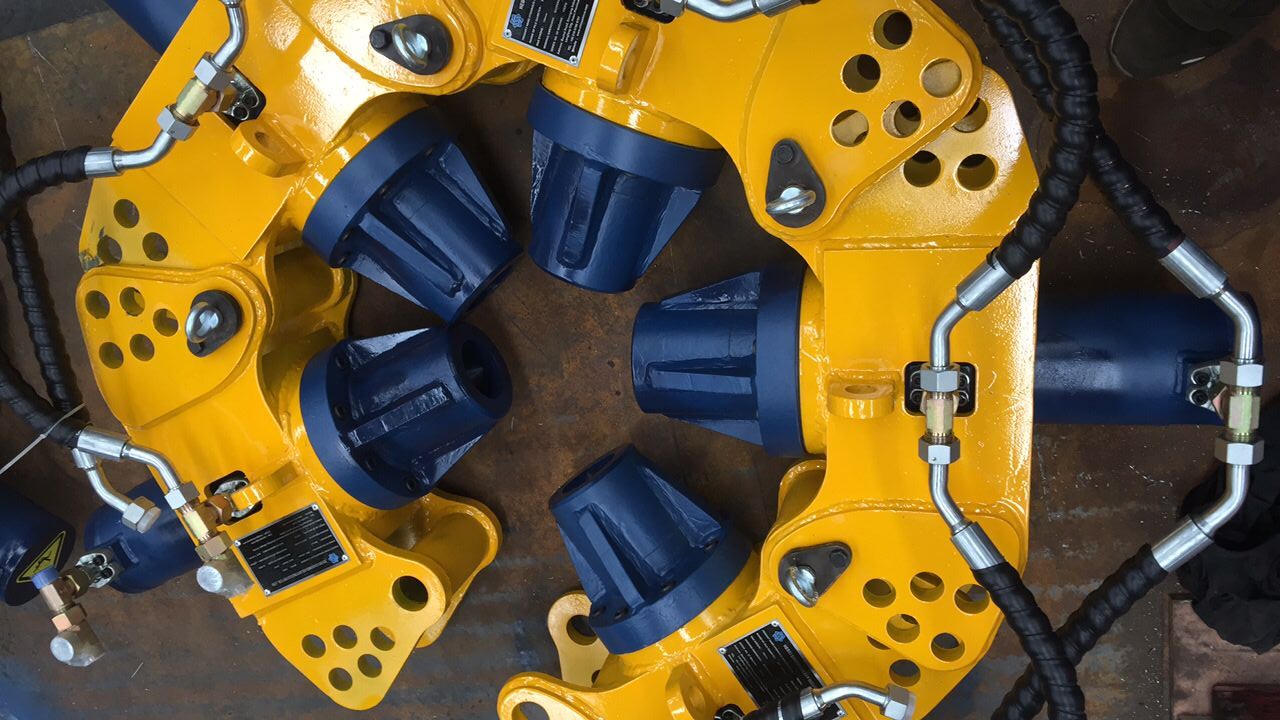

it’s small for convenient transportation. Replaceable and changeable module combination makes its applicable for piles with various diameters. The modules can be assembled and disassembled easily and conveniently.
7. Long service life
It is made of military material by first-class suppliers with reliable quality, extending its service life.
Specification (a group of 13 modules)
Model
SPA8
Range of Pile diameter (mm)
Ф1800-Ф2000
Maximum Drill rod pressure
790kN
Maximum stroke of hydraulic cylinder
230mm
Maximum pressure of hydraulic cylinder
31.5MPa
Maximum flow of single cylinder
25L/min
Cut the number of pile/8h
30-100 pcs
Height for cutting pile each time
≦300mm
Supporting the digging machine Tonnage (excavator)
≧36t
One-piece module weight
410kg
One-piece module size
930x840x450mm
Work status dimensions
Ф3560x3000
Total pile breaker weight
5.0t
Frequently Asked Questions (FAQ)
Q1: How does the modular design benefit different pile breaking projects?
The modular design allows the breaker to adjust to various pile diameters by adding or removing module combinations. This makes the equipment highly versatile and adaptable for different site requirements.
Q2: What equipment can be used as a working platform for the pile breaker?
It can be connected to diverse power sources and machinery. Common working platforms include excavators, lifting devices (such as truck cranes and crawler cranes), and hydraulic pump station combinations.
Q3: Does using this hydraulic pile breaker damage the parent pile structure?
No. The hydraulic pile breaker operates without imposing impact forces on the parent body of the pile. It has no negative influence on the structural integrity or bearing capacity of the pile.
Q4: How many concrete piles can the SPA8 model break in a typical shift?
Under standard operations, a group of 13 modules (Model SPA8) can cut between 30 to 100 pieces of concrete piles within an 8-hour work shift.
Q5: Is the equipment easy to transport and assemble on site?
Yes, it features a small, lightweight volume designed for convenient transportation. The modular components can be easily and quickly assembled or disassembled on construction sites.
Q6: What materials are used to ensure the long service life of the pile breaker?
The equipment is manufactured using high-quality military-grade materials sourced from first-class suppliers, ensuring maximum durability, reliable performance, and an extended operational lifespan.
