The operating system is easy and convenient. Fewer operating workers are required to save cost for labor and machines maintenance during construction.
Its full hydraulic drive causes little noises during operation and no influence on the surrounding environments.
It's light for convenient transportation. Replaceable and changeable module combination makes its applicable for piles with various diameters. The modules can be assembled and disassembled easily and conveniently.

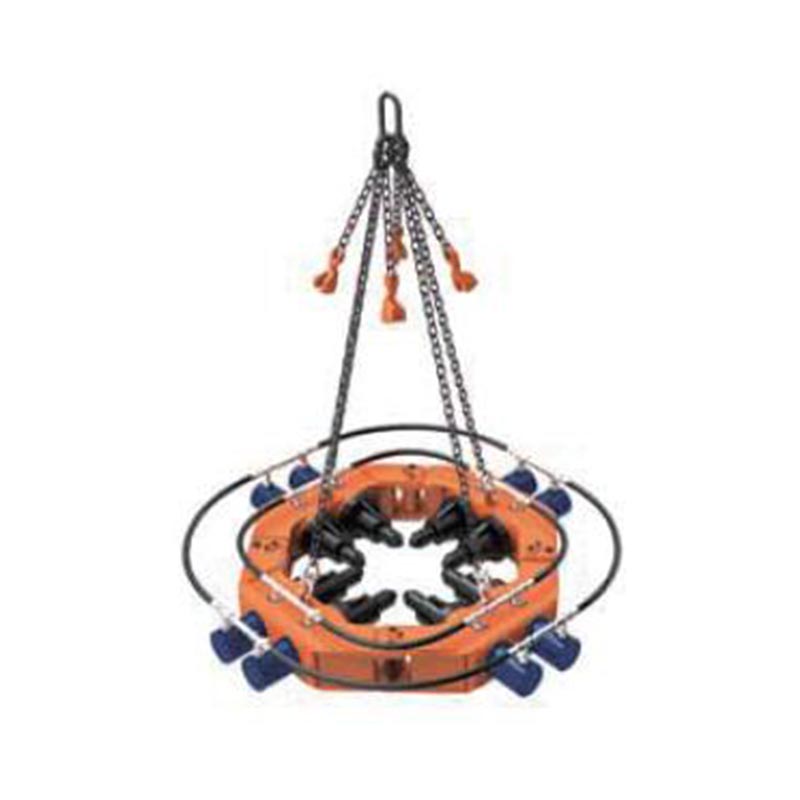

Module generalization is realized with our SPF500A square pile machine. It can be used for both circular piles and square piles by changing the module combination.
Contact-free operation is enabled and it can be applied for construction on complex land form.
It can be driven by diverse power sources and is compatible with excavators or hydraulic system according to the construction sites conditions. It is flexible to connect multiple construction machines with universal and economical performance. The telescopic sling lifting chains meet the requirements of various land forms.
It is made of military material by first-class suppliers with reliable quality, extending its service life.
According to pile diameter, with reference to the construction reference parameters corresponding to the number of modules, directly connect the breakers to the work platform with a quick change connector;
The working platform can be excavator, lifting device and hydraulic pump station combination, the lifting device can be truck crane, crawler cranes, etc;
Move the pile breaker to the working pile head section;
Adjust the pile breaker to the suitable height (please refer to construction parameter list when crushing the pile, otherwise the chain may be broken), and clamp the pile position to be cut;
Adjust the excavator's system pressure according to the concrete strength, and pressurize the cylinder until the concrete pile breaks under high pressure;
After the pile is crushed, hoist the concrete block;
Move the crushed pile to the designated position.
| Length of drill rod (mm) | Pile Diameter (mm) | Remark |
|---|---|---|
| 170 | 400-500 | Standard Configuration |
| 206 | 300-400 | Optional Configuration |
| Parameters | Details / Limits |
|---|---|
| Model | SPF500A |
| Range of Pile diameter (mm) | 400-500 |
| Maximum Drill rod pressure | 325kN |
| Maximum stroke of hydraulic cylinder | 150mm |
| Maximum pressure of hydraulic cylinder | 34.3MPa |
| Maximum flow of single cylinder | 25L/min |
| Cut the number of pile/8h | 120 |
| Height for cutting pile each time | <= 300mm |
| Supporting the digging machine Tonnage(excavator) | >= 12t |
| Work status dimensions | 1710X1710X2500mm |
| Total pile breaker weight | 960kgs |
The SPF500A can handle both circular and square concrete foundation piles by simply changing the modular module combination.
The modular design allows the breaker to be configured easily for different pile diameters (ranging from 300mm to 500mm), ensuring quick assembly, disassembly, and easy transportation.
It is highly compatible and can be powered by standard excavators (minimum 12-ton capacity), hydraulic pump stations, truck cranes, or crawler cranes.
No. Since the crushing force is applied via balanced hydraulic drive, it does not exert impact force on the parent body of the pile, preserving the overall bearing capacity.
No, the full hydraulic system operation ensures minimal noise and vibration, making it environmentally friendly and safe for construction in noise-sensitive or urban areas.
