| Length of drill rod | Pile Diameter (mm) | Remark |
|---|---|---|
| 170 | 400-500 | Standard Configuration |
| 206 | 300-400 | Optional Configuration |
According to pile diameter, with reference to the construction reference parameters corresponding to the number of modules, directly connect the breakers to the work platform with a quick change connector.
The working platform can be excavator, lifting device and hydraulic pump station combination, the lifting device can be truck crane, crawler cranes, etc.

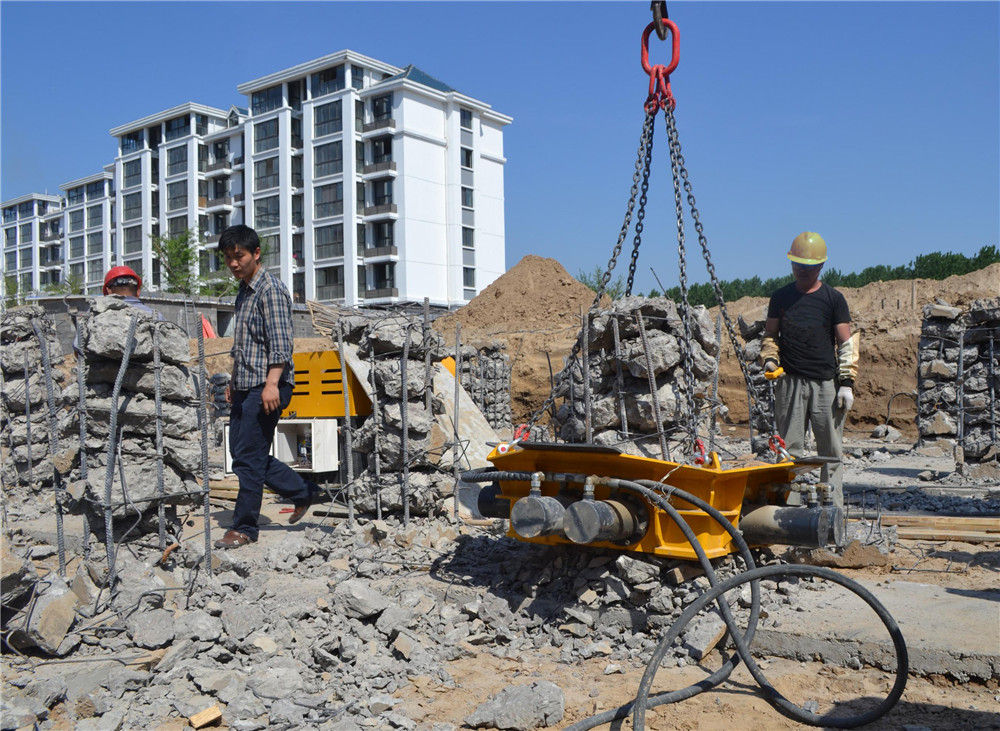

Move the pile breaker to the working pile head section.

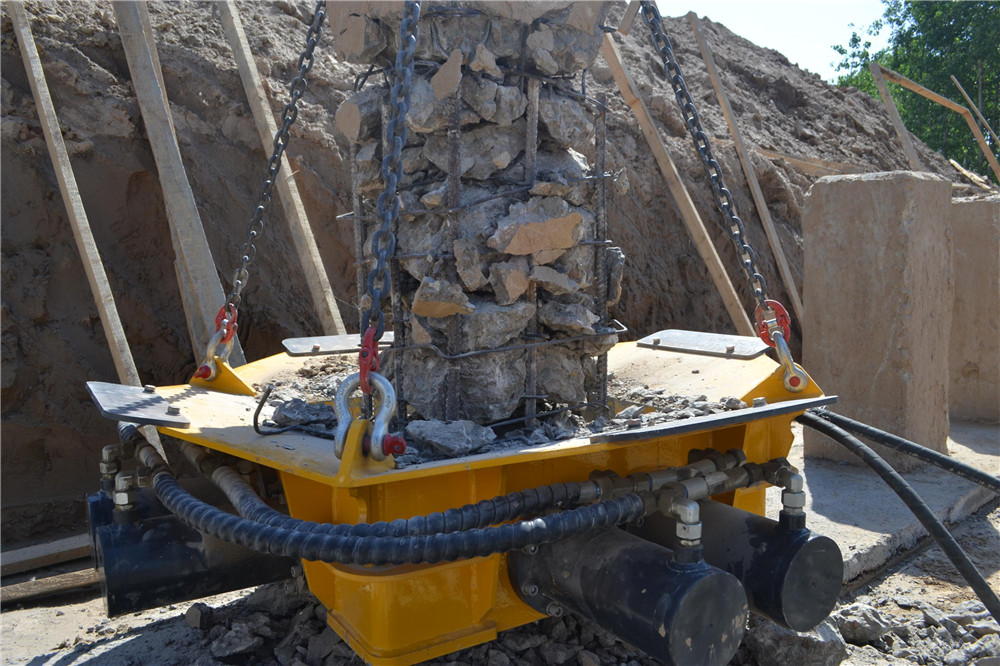

Adjust the pile breaker to the suitable height (please refer to construction parameter list when crushing the pile, otherwise the chain may be broken), and clamp the pile position to be cut.
Adjust the excavator's system pressure according to the concrete strength, and pressurize the cylinder until the concrete pile breaks under high pressure.
After the pile is crushed, hoist the concrete block.
Move the crushed pile to the designated position.
Its full hydraulic drive causes little noises during operation and no influence on the surrounding environments.
The operating system is easy and convenient. Fewer operating workers are required to save cost for labor and machines maintenance during construction.
It's light for convenient transportation.
Contact-free operation is enabled and it can be applied for construction on complex land form.
It can be driven by diverse power sources and is compatible with excavators or hydraulic system according to the construction sites conditions. It is flexible to connect multiple construction machines with universal and economical performance. The telescopic sling lifting chains meet the requirements of various land forms.
It is made of military material by first-class suppliers with reliable quality, extending its service life.

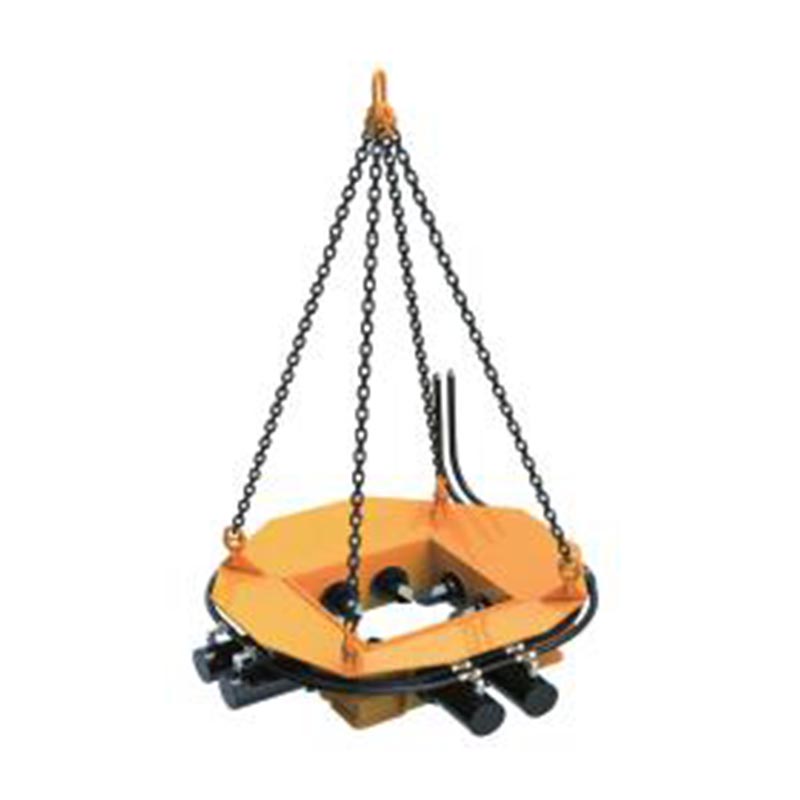

| Model | SPF500B |
|---|---|
| Range of Pile diameter (mm) | 400-500 |
| Maximum Drill rod pressure | 325kN |
| Maximum stroke of hydraulic cylinder | 150mm |
| Maximum pressure of hydraulic cylinder | 34.3MPa |
| Maximum flow of single cylinder | 25L/min |
| Cut the number of pile/8h | 120 |
| Height for cutting pile each time | ≦300mm |
| Supporting the digging machine Tonnage(excavator) | ≧12t |
| Work status dimensions | 1710X1710X2500mm |
| Total pile breaker weight | 960kgs |
It is highly efficient equipment designed to break foundation piles, featuring adjustable chains and advanced patented technologies. It has no negative impact on the pile's bearing capacity or parent body.
The pile breaker can be connected to excavators, hydraulic pump stations, or lifting devices such as truck cranes and crawler cranes via quick-change connectors.
The SPF500B model can cut approximately 120 piles within an 8-hour shift, handles piles with diameters of 400-500mm, and requires a supporting excavator tonnage of 12 tons or more.
Yes. The full hydraulic drive ensures minimal noise levels, making it environmentally friendly. It supports contact-free operation, meaning it can be safely used on complex terrains.
For pile diameters ranging between 400-500mm, a 170mm drill rod length is standard. For pile diameters of 300-400mm, an optional 206mm drill rod length is used.
