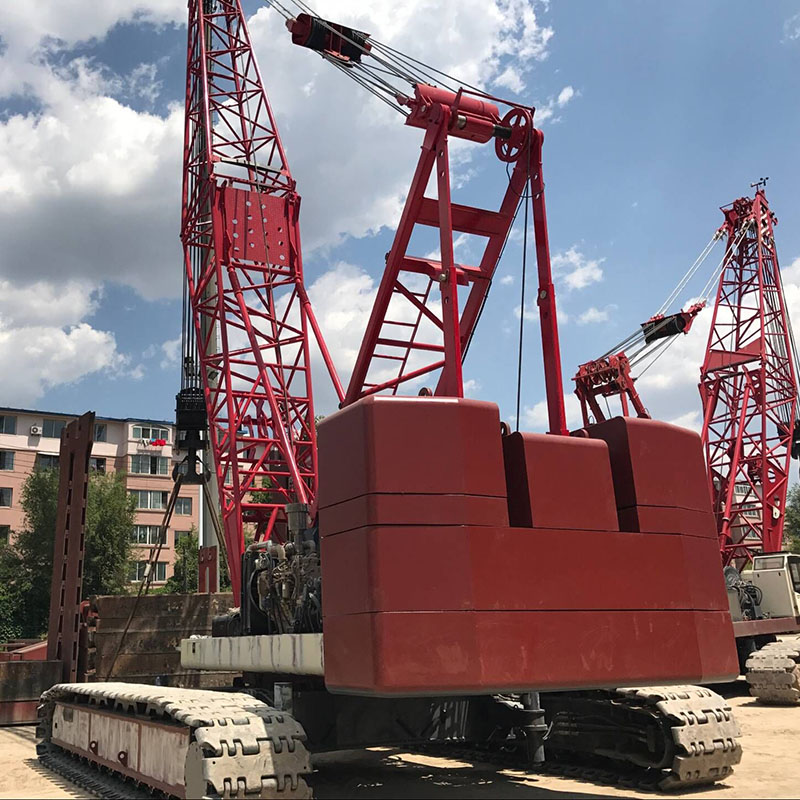

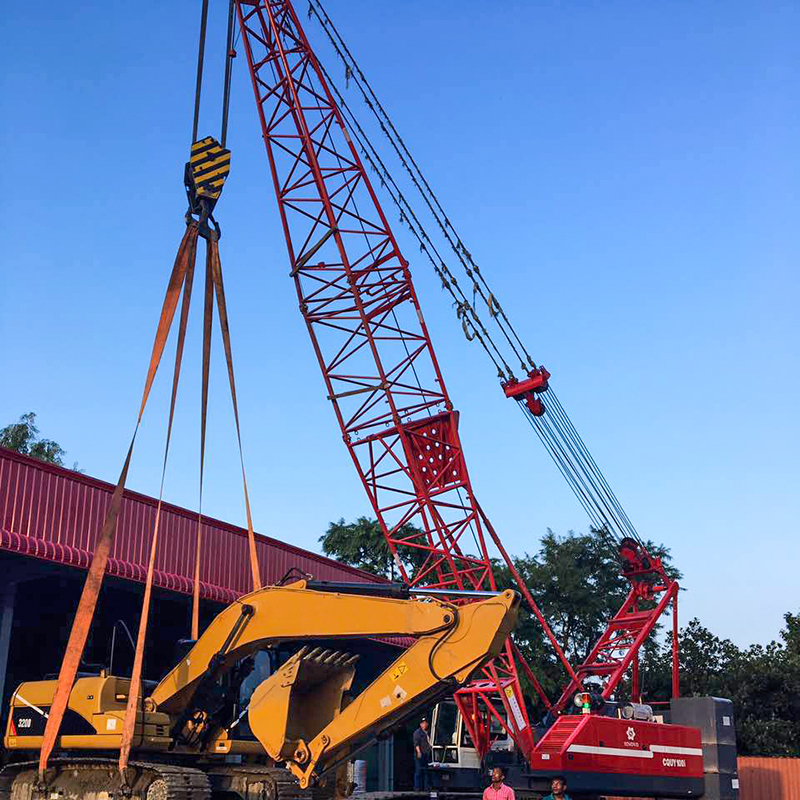

High-Quality CQUY100 Hydraulic Crawler Crane Quotes, Company

1. The main components of the power system and hydraulic diversion are equipped with imported parts; 2. Optional self loading and unloading function, easy to disassemble and assemble; 3. The fragile and consumable structural parts of the whole machine are self-made parts, and the unique structural design, which is convenient for maintenance and low cost;

Send Inquiry

Product Description

Item			Unit	Data
Max. rated lifting capacity			t	100
Boom length			m	13-61
Fixed jib length			m	9-18
Boom+fixed jib max. length			m	52+18
Hook blocks			t	100/50/25/9
Working speed	Rope speed	Main winch hoist, lower (rope dia. Φ22mm)	m/min	105
		Aux. winch hoist, lower (rope dia. Φ22mm)	m/min	105
		Boom hoist, lower (rope dia. Φ18mm)	m/min	60
	Slewing Speed		r/min	2.5
	Travel Speed		km/h	1.5
Single line pull			t	8
Gradeablity			%	30
Engine			KW/rpm	194/2200(domestic)
Slewing radius			mm	4737
Transport dimension			mm	1172035003500
Crane mass (with basic boom &100t hook)			t	93
Ground bearing pressure			Mpa	0.083
Counter weight			t	29.5

Key Product Advantages

The main components of the power system and hydraulic diversion are equipped with imported parts.
Optional self loading and unloading function, making it easy to disassemble and assemble.
Fragile and consumable structural parts are self-made with a unique structural design, ensuring convenient maintenance and low operating costs.
Most machine components are processed through a dust-free paint automatic assembly line.
Fully complies with European CE standards.

Frequently Asked Questions

What is the maximum rated lifting capacity of this crawler crane?

The maximum rated lifting capacity of this hydraulic crawler crane is 100 tonnes.

What are the boom and fixed jib lengths available?

The main boom length ranges from 13m to 61m, and the fixed jib length ranges from 9m to 18m. The maximum combined length of the boom and fixed jib is 52m + 18m.

What type of engine power system is used?

The crane is equipped with a domestic engine rated at 194 KW at an engine speed of 2200 rpm. The main components of the power system and hydraulic diversion are also equipped with imported parts.

What are the travel and slewing speeds of this crane?

The crane has a maximum travel speed of 1.5 km/h and a maximum slewing speed of 2.5 r/min, providing precise control and maneuverability during operations.

Is this hydraulic crawler crane certified for safety standards?

Yes, this hydraulic crawler crane is manufactured in full compliance with European CE standards.

How is the ease of assembly and maintenance handled?

It features an optional self-loading and unloading system for easy disassembly and assembly. Additionally, fragile structural parts are self-made with a unique design to keep maintenance simple and costs low.
