Product Description

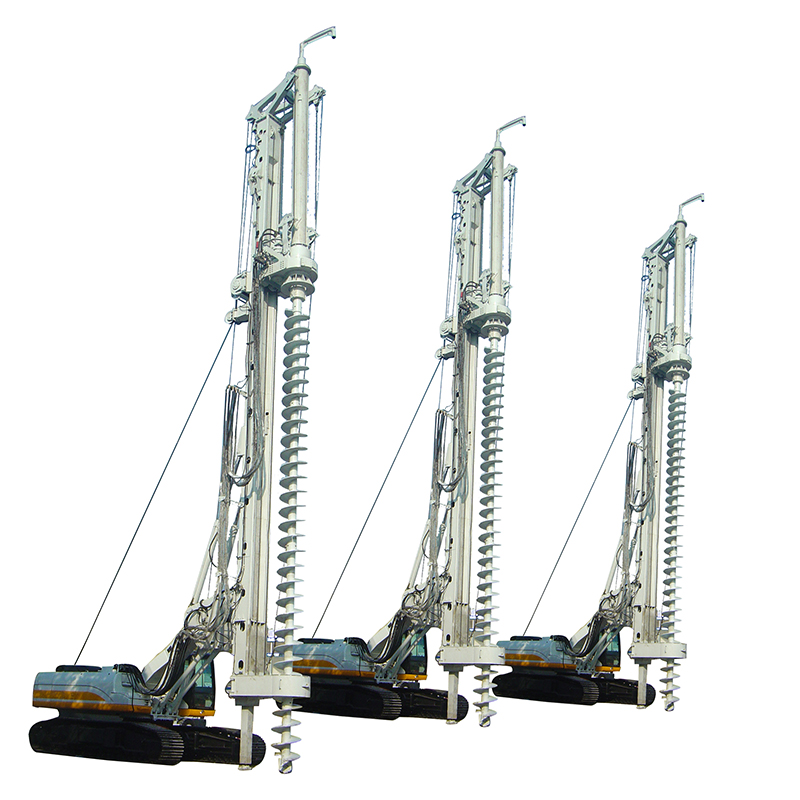

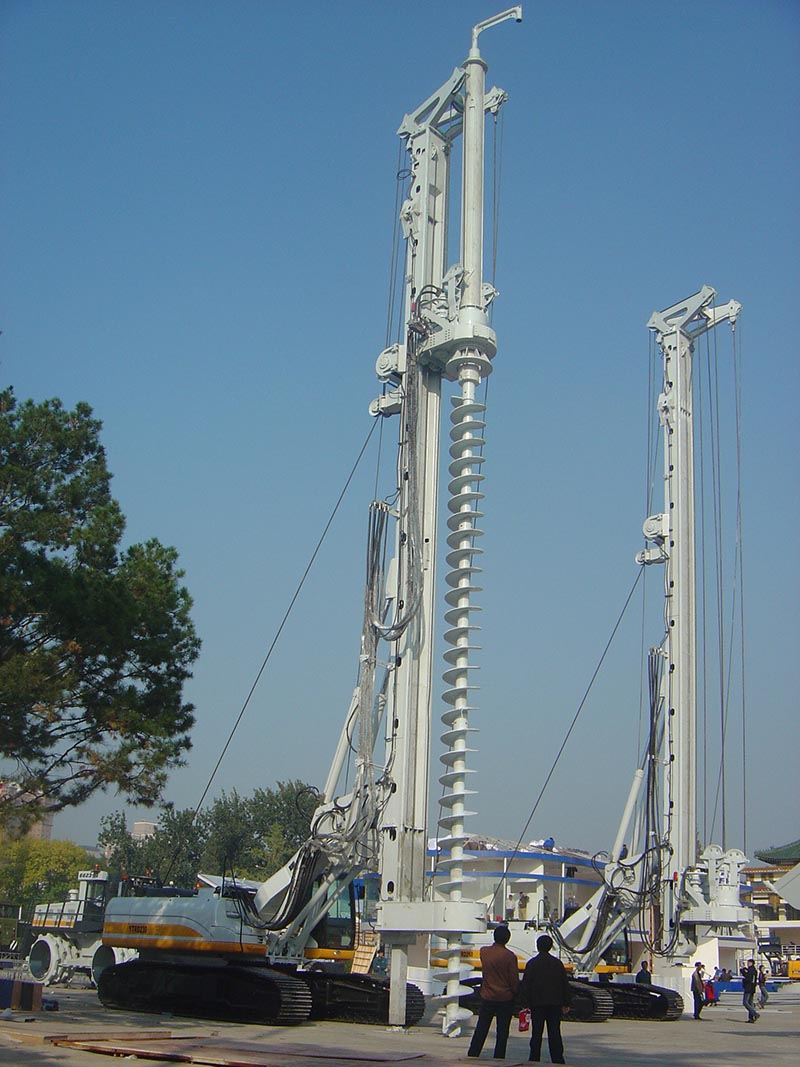

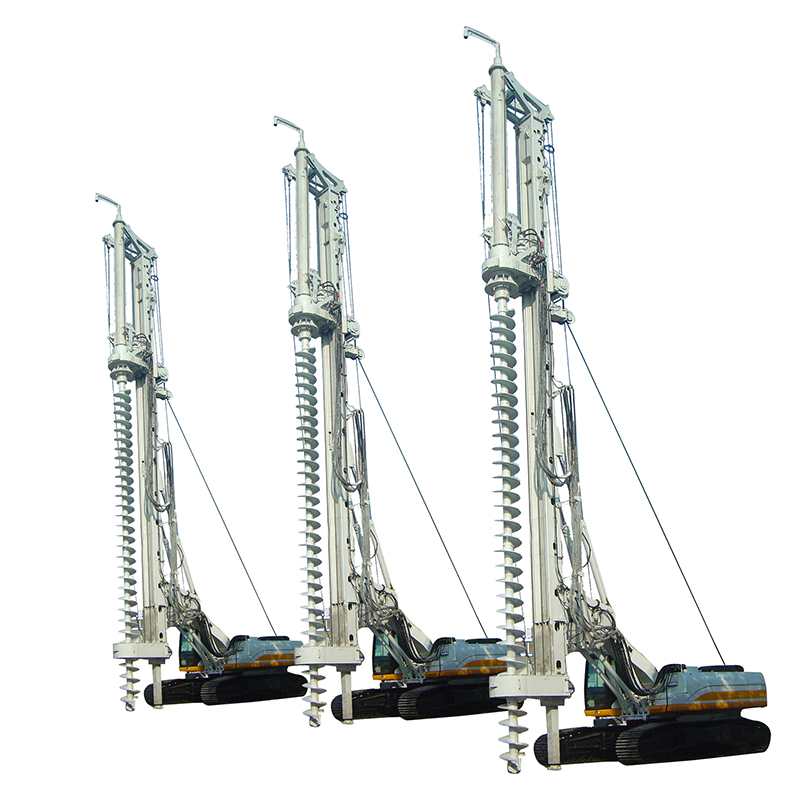

CFA drilling equipment based on continuous flight auger drilling technique is mainly used in construction to create concrete piles. CFA piles continue the advantages of the driven piles and the bored piles, which are versatile and require no removal of soil. This drilling method enables the drilling equipment to excavate a wide variety of soils, dry or water-logged, loose or cohesive, and also to penetrate through low capacity, soft rock formation like tuff, loamy clays, limestone clays, limestone and sandstone etc. The maximum diameter of piling reaches 1.2 m and max. depth achieves 30 m, helping overcome problems formerly connected to project and execution of pilings.

Key Technical Features

1. The leading self-propelled hydraulic long spiral drilling rig, can change transport state into working state rapidly;
2. High-performance hydraulic system and control system ensure the machine efficient construction and real-time monitor;
3. With concrete volume display system, can realize the precise construction and measurement;
4. The innovative depth measurement system has higher precision than ordinary rig;
5. All-hydraulic power head construction, the output torque is stable and smooth;
6. Power head can change torque according to the needs of construction, which ensures higher efficiency;
7. Mast automatically adjusts the vertical to enhance the accuracy of the hole;
8. The innovative design Wind-fire Wheels ensures work safer in nighttime;
9. The Humanized rear design can increase storage space effectively;

Technical Specifications

Parameter	Euro Standards	U.S. Standards
Max drilling depth	20m	66 ft
Max drilling diameter	1000mm	39in
Engine model	CAT C-9	CAT C-9
Rated power	213KW	286HP
Max torque for CFA	100kN.m	73730lb-ft
Rotating speed	6～27rpm	6～27rpm
Max crowd force of winch	210kN	47208lbf
Max extraction force of winch	210kN	47208lbf
Stroke	13500mm	532in
Max pulling force of main winch (the first layer)	200kN	44960lbf
Max pulling speed of main winch	78m/min	256ft/min
Wire line of main winch	Φ28mm	Φ1.1in
Undercarriage	CAT 330D	CAT 330D
Track shoe width	800mm	32in
width of crawler	3000-4300mm	118-170in
Whole machine weight	65T	65T

Frequently Asked Questions (FAQ)

Q1: What is the main application of CFA drilling equipment?

A1: CFA (Continuous Flight Auger) drilling equipment is primarily used in the construction industry to construct high-quality, stable concrete piles.

Q2: What kinds of soil formations can this equipment handle?

A2: This versatile method allows excavation across dry, water-logged, loose, or cohesive soils. It can also successfully penetrate soft rock formations such as tuff, loamy clays, limestone clays, limestone, and sandstone.

Q3: What are the main benefits of using CFA piles over other piling options?

A3: CFA piles combine the distinct advantages of both driven piles and bored piles. They are exceptionally versatile and require no soil removal during the construction process.

Q4: What are the maximum diameter and depth capacities of this rig?

A4: The equipment has a maximum pile diameter configuration reaching up to 1.2 meters and a maximum drilling depth capability of up to 30 meters, depending on project specs.

Q5: How is precise construction achieved with this equipment?

A5: Precision is guaranteed through an integrated concrete volume display system and an innovative, high-precision depth measurement system that outperforms standard rigs.

Q6: What engine power and undercarriage components are utilized?

A6: The drilling rig is equipped with a high-performance CAT C-9 engine yielding a rated power of 213KW (286HP) and utilizes a robust CAT 330D undercarriage for optimal stability.
