CE Certification VY1200A static pile driver Factories, Product

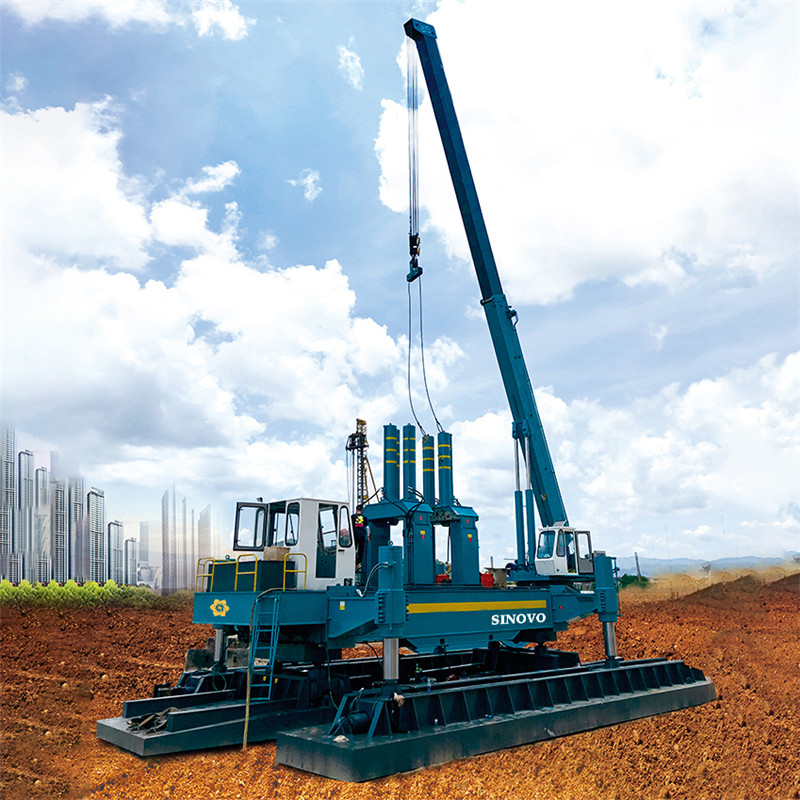

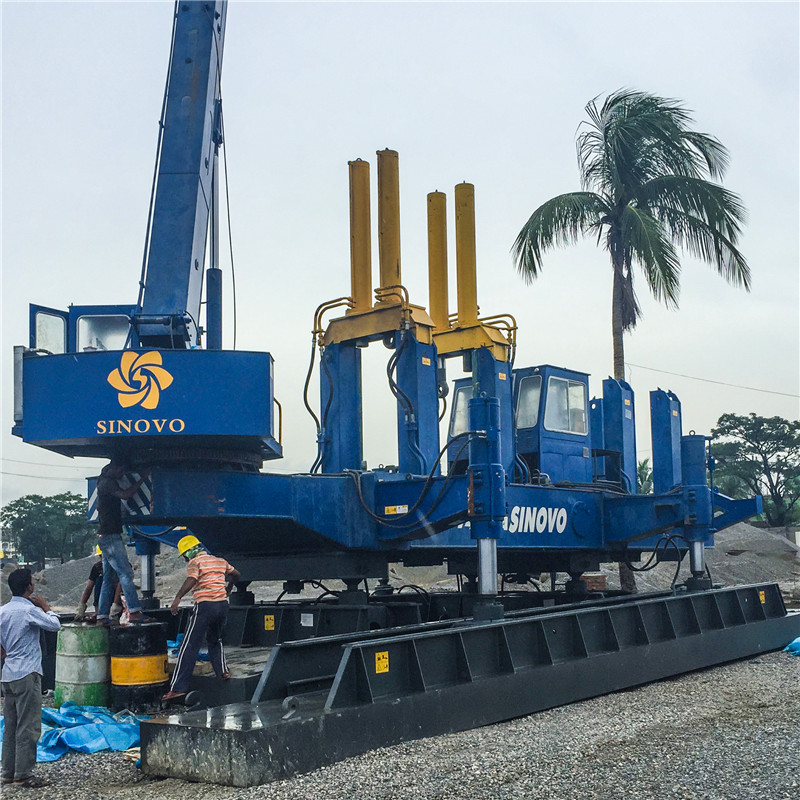

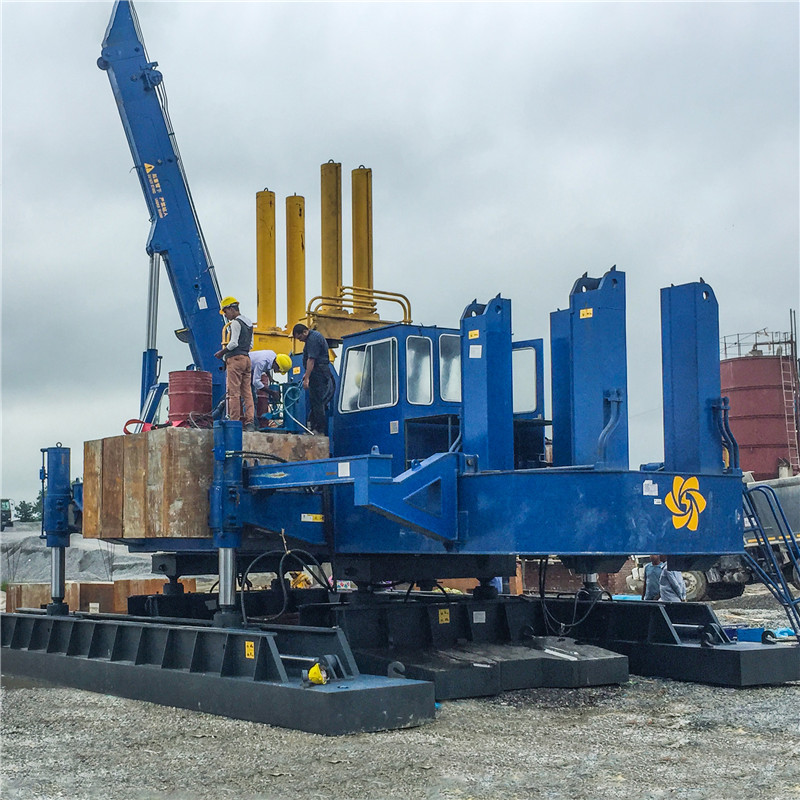

VY1200A static pile driver is a new type of foundation construction machinery which adopts full hydraulic static pile driver. It avoids the vibration and noise caused by the impact of the pile hammer and the air pollution caused by the gas emitted during the operation of the machine. The construction has little impact on the nearby buildings and residents' life. Working principle: the weight of the pile driver is used as the reaction force to overcome the friction resistance of the pile side and the reaction force of the pile tip when pressing the pile, so as to press the pile into the soil. According to the market demand, sinovo can provide 600 ~ 12000kn pile driver for customers to choose, which can adapt to different shapes of precast piles, such as square pile, round pile, H-steel pile, etc.

Send Inquiry

Product Description

Model Parameters

Model Parameter		VY1200A
Max. piling pressure(tf)		1200
Max. piling speed(m/min)	Max	7.54
Max. piling speed(m/min)	Min	0.56
Piling stroke(m)		1.7
Move stroke(m)	Longitudinal Pace	3.6
Move stroke(m)	Horizontal Pace	0.7
Slewing angle(°)		8
Rise stroke(mm)		1100
Pile type (mm)	Square pile	F400-F700
Pile type (mm)	Round pile	Ф400-Ф800
Min. Side Pile Distance(mm)		1700
Min. Corner Pile Distance(mm)		1950
Crane	Max. hoist weight(t)	30
Crane	Max. pile length(m)	16
Power(kW)	Main engine	135
Power(kW)	Crane engine	45
Overall dimension(mm)	Work length	16000
	Work width	9430
	Transportation height	3390
Total weight(t)		120

Key Features & Advantages

1. Civilized Construction

Low noise, no pollution, clean site, and low labor intensity during operations.

2. Energy Saving

The VY1200A static pile driver adopts a low-loss, constant-power variable hydraulic system design, which greatly reduces energy consumption and improves output efficiency.

3. High Efficiency

Equipped with a high-power and large-flow hydraulic system. Features multi-level piling speed control and a short-auxiliary-time piling mechanism to maximize machine productivity. Each 8-hour shift can install hundreds to over 1,000 meters of piles.

4. High Reliability

Designed for both round and H-steel pile applications. Configured with high-reliability parts:

Inverted outrigger oil cylinder design completely prevents traditional outrigger damages.
16-cylinder pile clamping box with multi-point clamping protects pipe piles and ensures excellent pile quality.

5. Easy Disassembly & Maintenance

Built on over a decade of continuous refinements. Every component is optimized to allow easy disassembly, transportation, and daily maintenance.

Frequently Asked Questions (FAQ)

Q: What is the maximum piling pressure of the VY1200A?

The VY1200A static pile driver provides a maximum piling pressure of 1200 tf.

Q: What dimensions and types of piles can the VY1200A support?

It supports square piles with dimensions from F400 to F700, and round piles with diameters from Ф400 to Ф800.

Q: How does the energy-saving system of the VY1200A work?

It integrates a low-loss, constant-power variable hydraulic system designed to dramatically reduce overall energy consumption while maximizing output efficiency.

Q: What features protect the piles from damage during operation?

The pile driver uses a specialized 16-cylinder pile clamping box design featuring multi-point clamping. This protects pipe piles from concentrated forces and guarantees high pile-forming quality.

Q: Is the VY1200A easy to transport and maintain?

Yes, the machine has been optimized over ten years of design improvements to ensure that disassembly, logistics, and on-site maintenance can be handled as conveniently as possible.

Q: What is the expected daily piling capacity of this machine?

Thanks to its high-power hydraulic system and short-auxiliary-time mechanism, the machine can reach piling speeds up to 7.54 m/min, installing hundreds to over 1000 meters of piles per 8-hour shift.
