| Parameter / Specification | Model: VY700A | |
|---|---|---|
| Max. piling pressure (tf) | 700 | |
| Max. piling speed (m/min) | Max | 6.65 |
| Min | 0.84 | |
| Piling stroke (m) | 1.8 | |
| Move stroke (m) | Longitudinal Pace | 3.6 |
| Horizontal Pace | 0.7 | |
| Slewing angle (°) | 8 | |
| Rise stroke (mm) | 1100 | |
| Pile type (mm) | Square pile | F300-F600 |
| Round pile | Ø300-Ø600 | |
| Min. Side Pile Distance (mm) | 1400 | |
| Min. Corner Pile Distance (mm) | 1635 | |
| Crane | Max. hoist weight (t) | 16 |
| Max. pile length (m) | 15 | |
| Power (kW) | Main engine | 119 |
| Crane engine | 30 | |
| Overall Dimension (mm) | Work length | 14000 |
| Work width | 8290 | |
| Transportation height | 3360 | |
| Total weight (t) | 702 | |

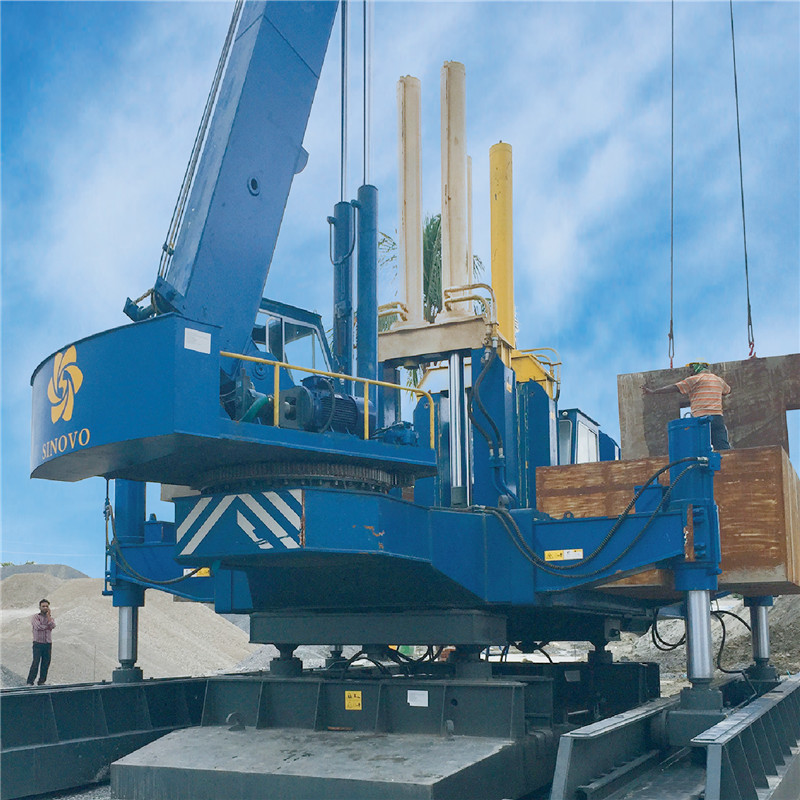

The Hydraulic Static Pile Driver enjoys the common features of pile drivers such as high efficiency, energy saving, environmental friendliness, and more. In addition, it incorporates several unique technical design characteristics:
Unique clamping mechanism for each jaw dynamically adjusts to the shaft bearing surface, ensuring the maximum contact area with the pile to avoid structure damage.
Specially designed side/corner piling structure boosts overall capacity, delivering a pressure force up to 60%-70% of the main piling—outperforming standard hanging systems.
An automatic fuel replenishment system triggers if a cylinder leaks oil, maintaining a high reliability of the clamping pile and high quality construction output.
Engineered to prevent floating of the machine at rated pressure, significantly increasing operation safety margins during heavy-duty tasks.
Includes an integrated lubrication cup design that ensures continuous lubrication, vastly extending the working life of the rail wheels.
Constant and high-flow power hydraulic system configuration to achieve optimal, high-efficiency piling performance under various conditions.
A: The VY700A model delivers a maximum piling pressure of 700 tf, making it suitable for heavy-duty foundation operations.
A: It can handle square piles ranging from F300 to F600 mm, and round piles from Ø300 to Ø600 mm.
A: The clamping mechanism features a unique design where each jaw is adjusted to match the shaft bearing surface. This ensures the largest possible contact area, distributing pressure evenly to prevent pile damage.
A: The unique side and corner piling structure provides pressure forces up to 60%-70% of the main piling. This drastically improves the efficiency and reliability of side/corner operations compared to standard hanging systems.
A: The system operates with a main engine power of 119 kW and a crane engine power of 30 kW, ensuring consistent operational efficiency.
A: The walking mechanism includes a specialized lubrication cup design. This enables long-lasting, durable lubrication to minimize wear and extend the service life of the rail wheels.
