As a reliable pilling rig manufacturer, the company mainly produces hydraulic pilling rigs, which can be used together with hydraulic pile hammer, multi-purpose pile hammer, rotary pilling rig, and CFA pile drilling equipment.

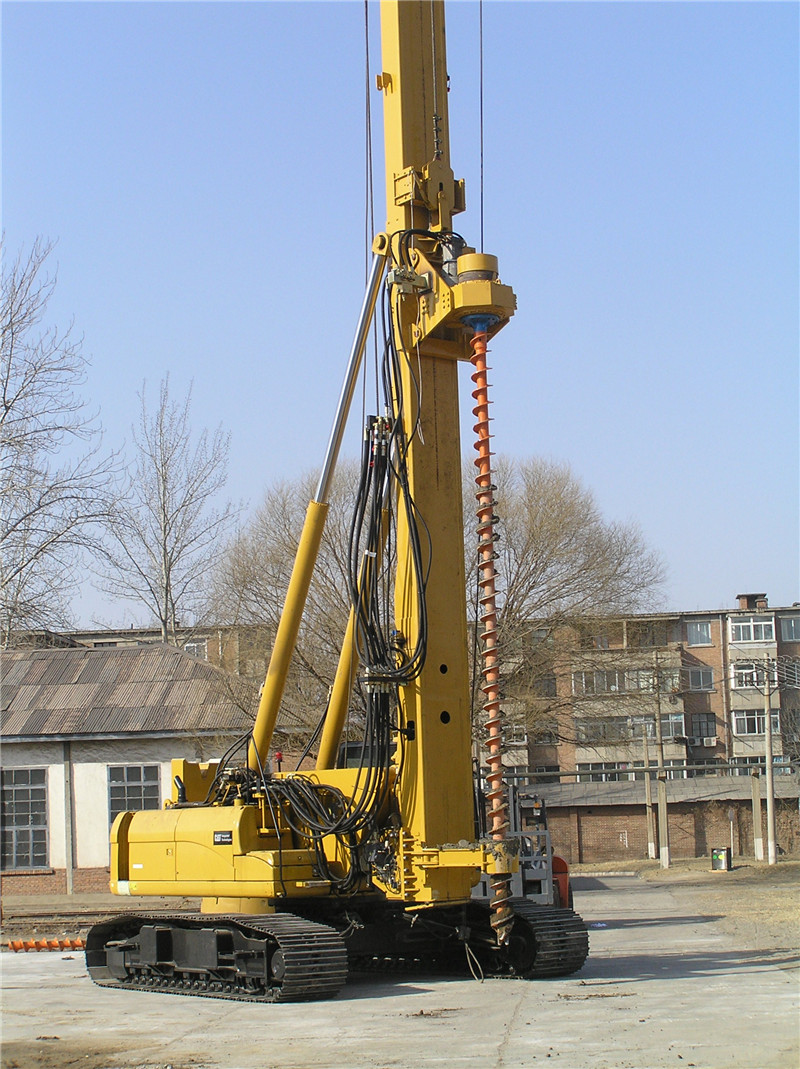

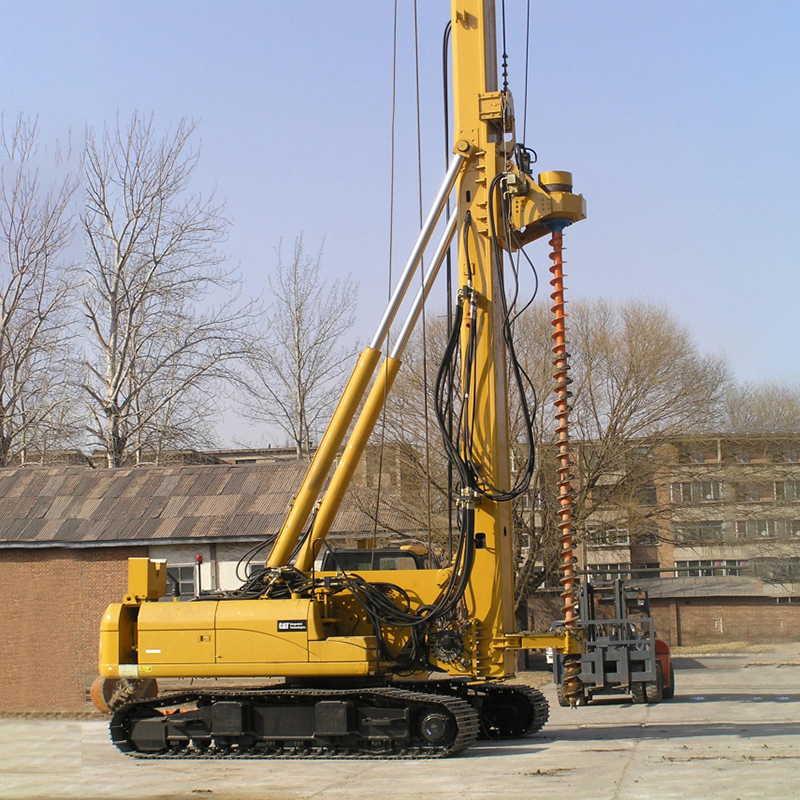

Our TH-60 hydraulic pilling rig is a newly-designed construction machine that is widely used in the construction of highways, bridges, and building etc. It is based on Caterpillar undercarriage and consist of hydraulic impact hammer which includes hammer, hydraulic hoses, power pack, bell driving head.
This hydraulic pilling rig is a reliable, versatile and durable machine. Its max pile hammer is 300mm and the max pile depth is 20m per impacting which allow our pilling rig to suit requirements of many foundation engineering projects.
Modular Design & Customization
As a result of modular design of their components, our hydraulic pilling rigs can be used in a variety of applications when fitted with the following devices:
- Different types of mast, each with different extension pieces and components
- Different models of rotary heads with optional hydraulic rotary drilling pile hammer, auger
- Service winch
Supported Pile Types
Tube Pile
Square Pile
In Situ Pile Steel Tube
H-pile
Steel Board
CFA pile
Bore pile
Frequently Asked Questions
What applications is the TH-60 hydraulic pilling rig suitable for?
The TH-60 is a newly-designed construction machine widely used in foundation engineering for highways, bridges, and building construction.
What is the undercarriage system used in the TH-60?
It is based on a high-durability Caterpillar (CAT325D) undercarriage, ensuring excellent stability and load capacity during operations.
What are the maximum drilling capabilities of the TH-60?
It features a maximum drilling depth of 30m, a drilling diameter of 400mm, and a maximum drilling torque of 60KN.m.
What kinds of piles can be driven by this equipment?
Due to its multifunctional design, it can drive Tube Piles, Square Piles, In Situ Steel Tube Piles, H-piles, Steel Boards, CFA piles, and Bore piles.
Can the rig components be customized or adapted for different tasks?
Yes. Due to the modular design of its components, the pilling rig can be fitted with different types of masts, rotary heads, hydraulic pile hammers, augers, or service winches to suit various field requirements.
What are the engine options and power ratings?
The TH-60 is powered by either a C7 or Cummins engine, with a rated power output of 186KW.
