Cheap SU Series Multifunctional Tracked Pile Frame. Suppliers, Pricelist

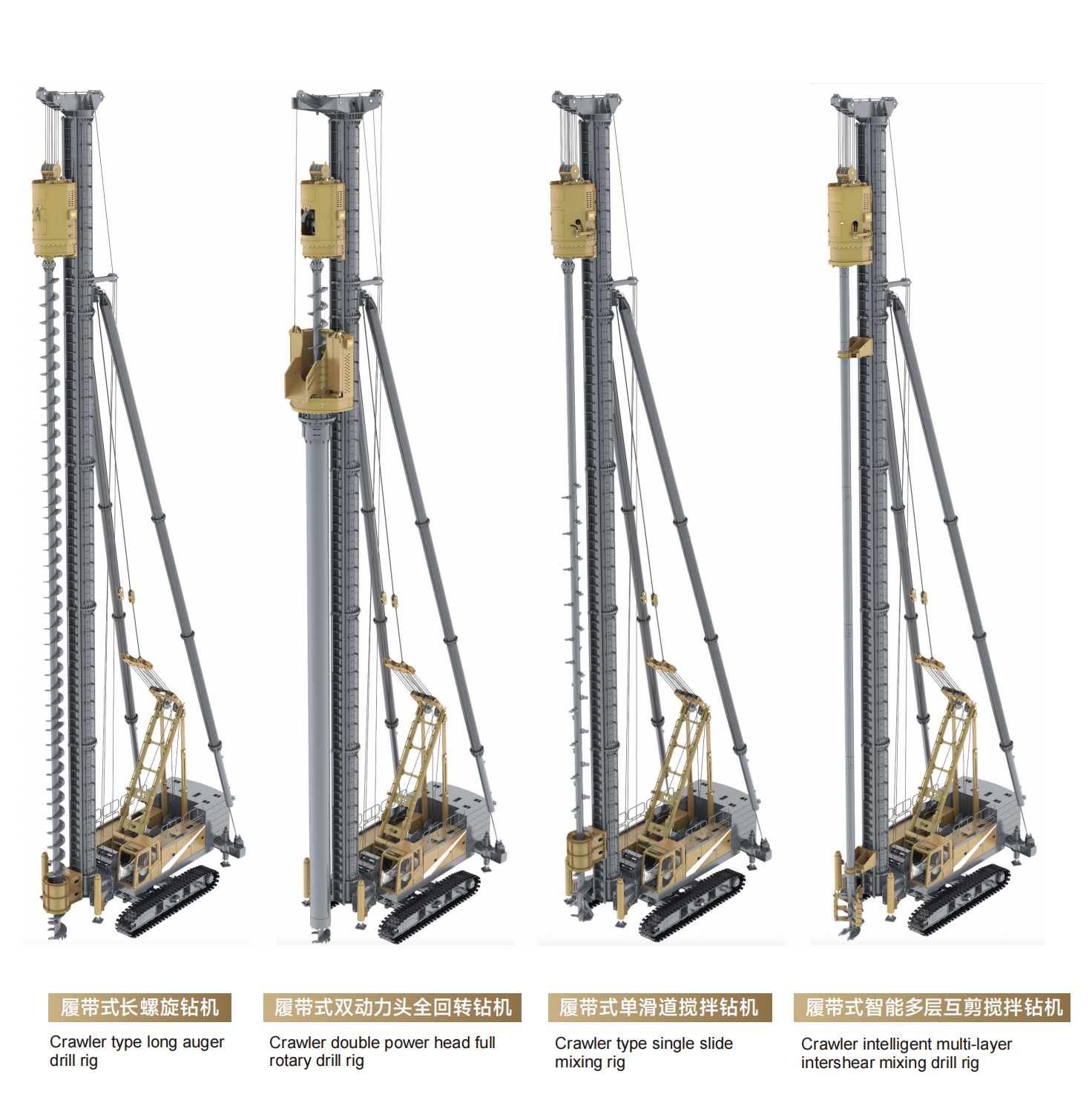

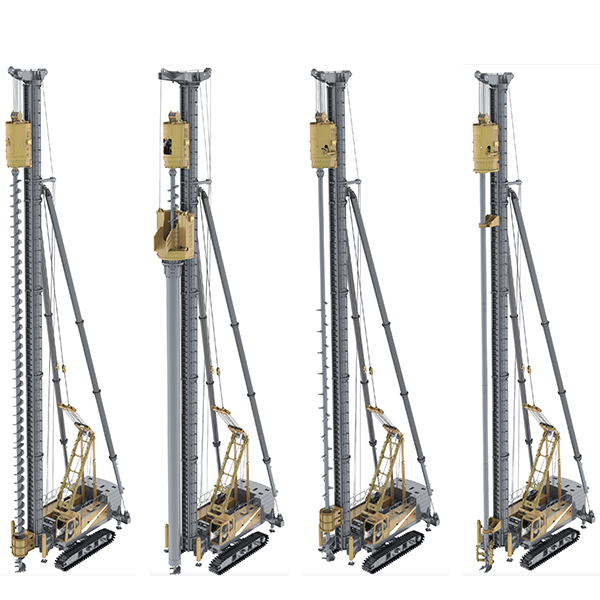

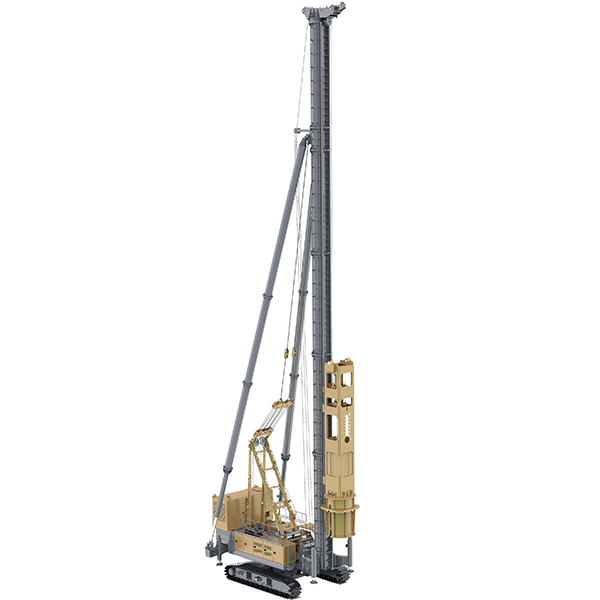

The SU series multifunctional tracked pile frame is a hydraulic tracked multifunctional drilling rig independently developed by HEBEI SINOVO , which has the characteristics of high performance, high configuration, intelligence, safety and stability, and convenient disassembly and assembly. This drilling rig can be equipped with working devices such as long spiral, hydraulic hammer/down the hole hammer, single axis/double axis/multi axis mixer, etc., to meet the construction needs of different pile types, geology, and environments. The SU80 multifunctional drilling rig is applied in long spiral working conditions, solving the technical problem of traditional long spiral drilling and grouting pile construction that cannot enter rock layers for construction and has shallow drilling depths. Especially in complex formations such as high backfill prone to collapse and sand and gravel, it has obvious efficiency advantages and has gained high market recognition.

Send Inquiry

Product Description

Multi-functional Capability

Equipped with working devices such as long spiral, hydraulic hammer/down the hole hammer, single axis/double axis/multi axis mixer, etc., to meet the construction needs of different pile types, geology, and environments.

Strong Construction Capacity

The column can reach up to 54 meters in height, with a hole depth of 49 meters and a hole diameter of 1.2 meters, meeting the rigorous needs of most pile foundation construction.

High Configuration Stability

The hydraulic system adopts products from top domestic suppliers, with a front and rear four-leg oil cylinder design, optimized structural matching, large grounding area, and high overall stability.

High Construction Efficiency

Equipped with Dongfeng Cummins engines that meet the National IV emission standards, ensuring a strong and continuous construction power output.

Convenient & Flexible Transition

The tracked vehicle design allows for flexible walking and self-propulsion on site, resulting in significantly low transportation transition costs.

High Winch Reliability

Equipped with a dual free fall winch featuring a wet clutch, which ensures smooth and controlled load lowering operations during intensive tasks.

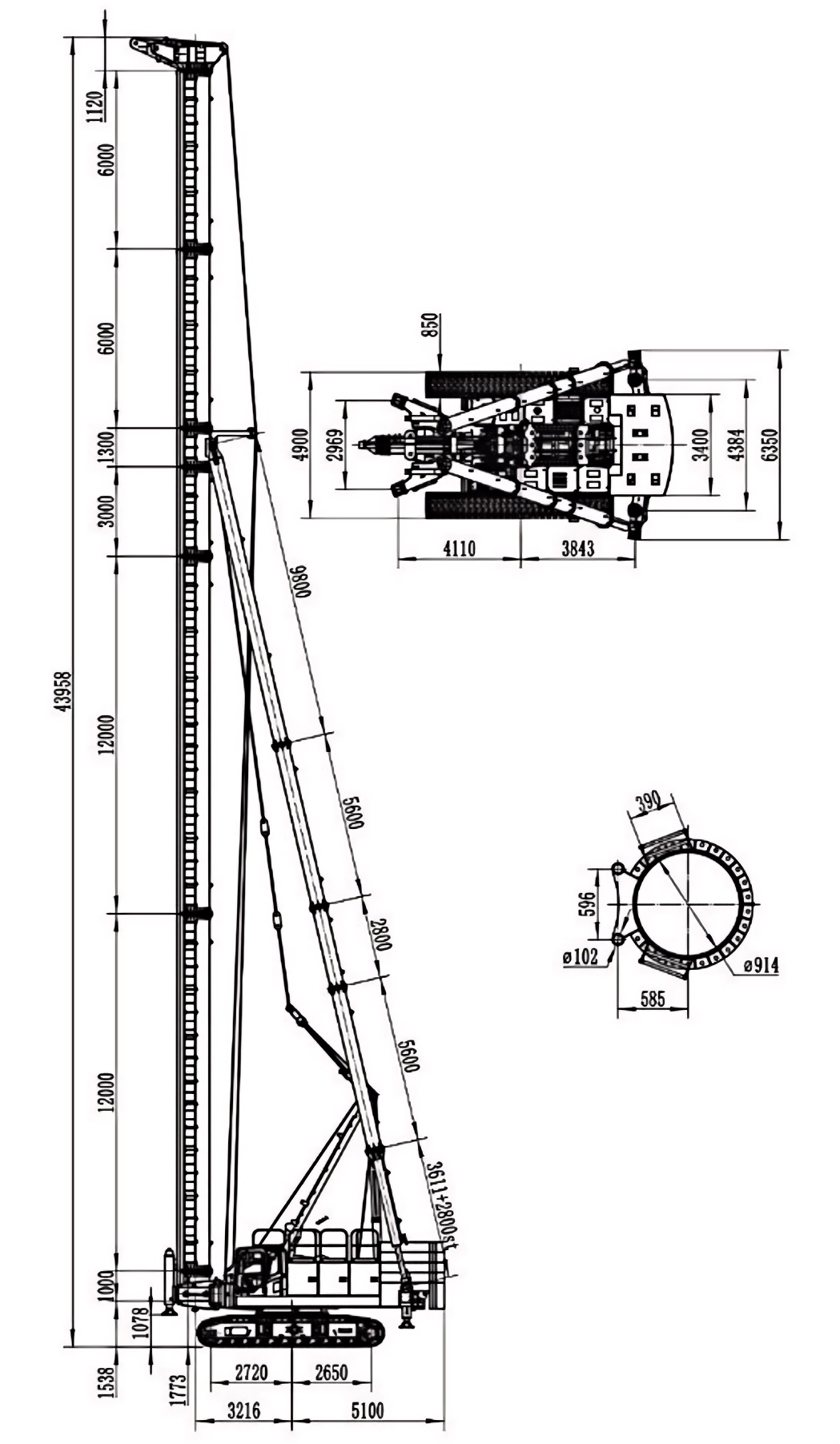

Item		Unit	SU180 tracked pile frame	SU240 tracked pile frame	SU120 tracked pile frame
Leader	length	m	42	54	33
	Barrel diameter	mm	Φ914	Φ1014	Φ714
	Leader guide central distance	mm	Φ102×600	Φ102×600	Φ102×600
	Maximum drawing force	t	70	85	50
	Adjust the Angle from left to right	。	±1.5	±1.5	±1.5
	Adjust travel in front and rear direction	mm	200	200	200
	Skew cylinder stroke	mm	2800	2800	2800
Main winch	Single rope lifting capacity	t	12	12	8
	Max. rope lifting speed	m/min	41~58	30~58	30~60
	Wire rope diameter	mm	22	22	20
	Wire rope length	m	620	800	400
Aux.winch	Single rope lifting capacity	t	12	12	8
	Max. rope lifting speed	m/min	41~58	30~60	30~60
	Wire rope diameter	mm	22	22	20
	Wire rope length	m	580	500	400
Third winch	Single rope lifting capacity	t	14	14	/
	Max. rope lifting speed	m/min	38~50	38~50
	Wire rope diameter	mm	22	22
	Wire rope length	m	170	300
Winch of lifting frame	Single rope lifting capacity	t	14	14	6
	Max. rope lifting speed	m/min	32~43	32~43	32~43
	Wire rope diameter	mm	22	22	16
	Wire rope length	m	240	300	200
Onboard turning speed		rpm	2.7	2.7	2.5
Engine	Brand		Dongfeng Cummins	Dongfeng Cummins	Dongfeng Cummins
	Model		L9CS4-264	L9CS4-264	B5.9CSIV 190C
	Emission standard		National Ⅳ	National Ⅳ	National Ⅳ
	Power	kW	194	194	140
	Rated speed	rpm	2000	2000	2000
	Fuel tank volume	L	450	450	350
Track Chassis	Width: Expansion/contraction	mm	4900/3400	5210/3610	4400/3400
	Track width	mm	850	960	800
	Grounding length	mm	5370	5570	5545
	Running speed	km/hr	0.85	0.85	0.85
	Grade ability		30%	30%	30%
	Average pressure to ground	kPa	177	180	170
	Maximum walking weight	t	165	240	120
Counter weight		t	22	40	18
Total weight ( excluding column and counterweight )		t	62	74	40

Frequently Asked Questions

What types of working attachments can these tracked pile frames support?

They can be configured with various auxiliary working tools, including long spirals, hydraulic or down-the-hole hammers, and single, double, or multi-axis mixers to handle multiple piling configurations and ground conditions.

What is the maximum column height and hole depth capacity?

For the SU240 model, the leader column can reach up to 54 meters in height, enabling a maximum drilling hole depth of 49 meters and a maximum hole diameter of 1.2 meters.

What kind of engine powers these tracked pile frames?

They are powered by highly efficient Dongfeng Cummins engines (e.g., L9CS4-264 and B5.9CSIV 190C models) that comply with the National IV emission standards for clean and powerful operations.

How is the overall machine stability ensured during high-load piling?

Stability is secured using high-specification hydraulic components, a structural layout featuring front and rear four-leg oil cylinders, and an expansive track grounding footprint.

How easy is it to transport and move the pile frame between job sites?

The self-propelled tracked chassis allows for easy maneuvering directly on construction sites. The modular footprint design makes transition and logistics economical and straightforward.

What safety and reliability features does the winch system offer?

The main and auxiliary winches are engineered with a dual free-fall configuration and integrated wet clutch systems, allowing smooth control during heavy load lowering operations.
