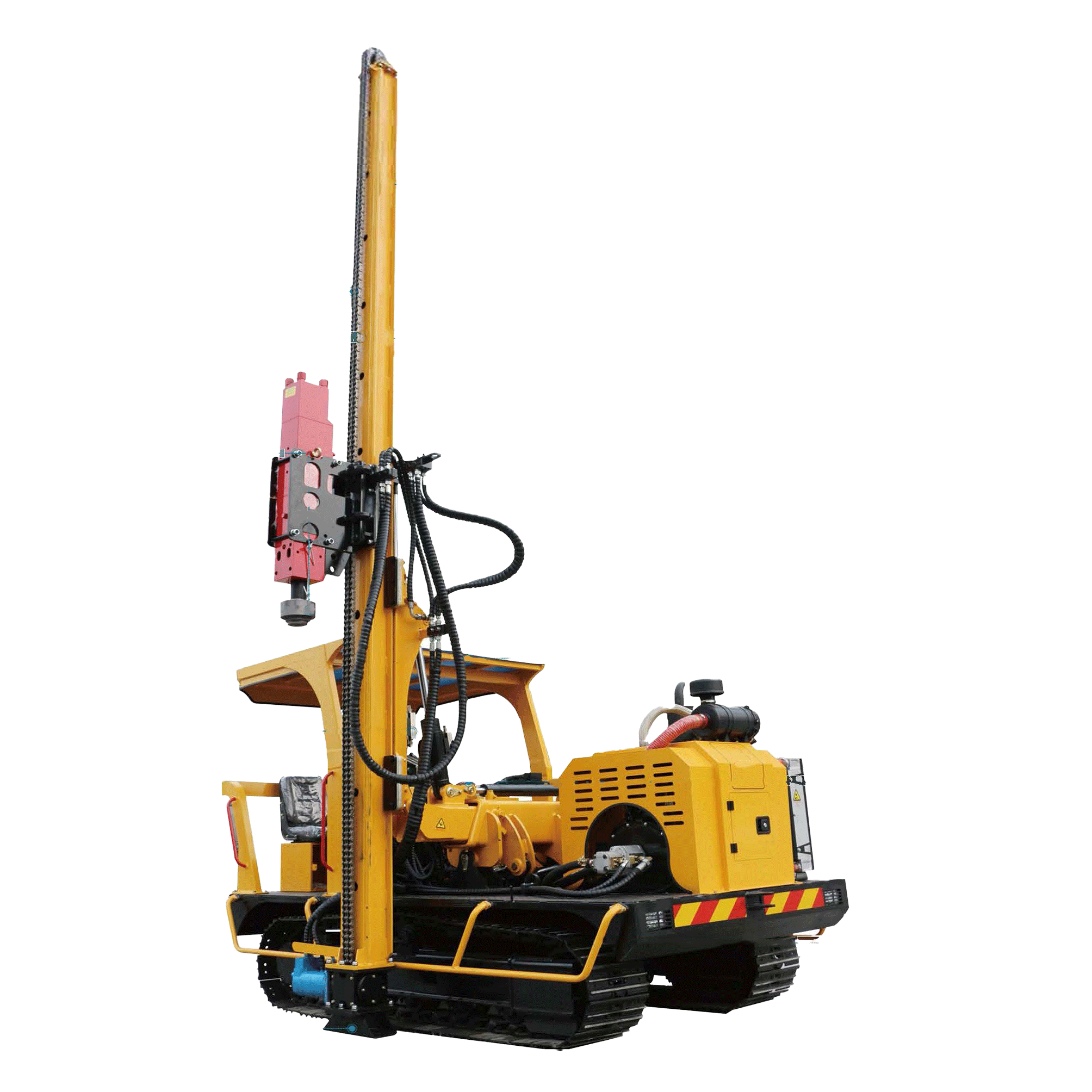

Discount SR526D SR536D Hydraulic Piling Rig Factory, Products

Driving shed reinforced structure strong and shock resistant.
Max stroke of hammer can recache 5.5m (Standard pilling stroke height up to 3.5 meters)
Guide rail equipped with double-row; chain makes machine high safety coefficient.
High frequency hydraulic hammer with borer pole diameter 85mm impact power up to 1400 joules.
Equipped with angle digital indicator to adjust angle quickly.
Guard rail vertical to the ground when piling, can most reduce the effect of vibration on pile perpendicularity.
Driving shed reinforced structure strong and shock resistant.

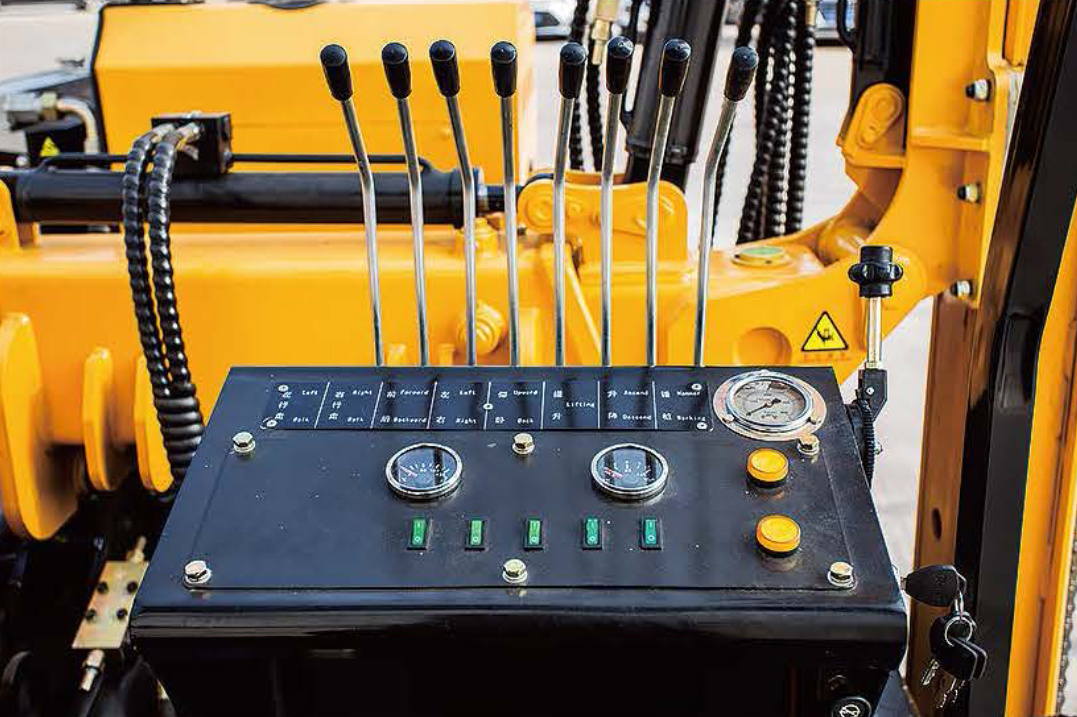

High control accuracy of operation valve Easy and smooth.
The crawler chassis is equipped with protection and make safety first.

Send Inquiry

Product Description

Key Features & Advantages

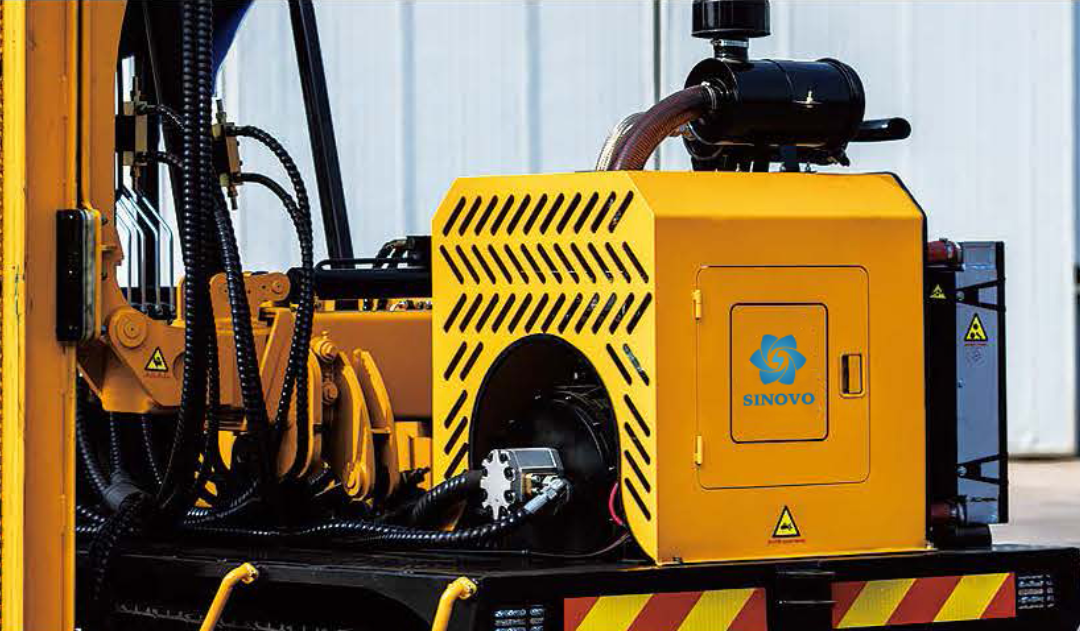

Driving shed reinforced structure strong and shock resistant.
Max stroke of hammer can reach 5.5m (Standard piling stroke height up to 3.5 meters).
Guide rail equipped with double-row; chain makes machine high safety coefficient.
High frequency hydraulic hammer with borer pole diameter 85mm impact power up to 1400 joules.
Equipped with angle digital indicator to adjust angle quickly.
Guard rail vertical to the ground when piling, can most reduce the effect of vibration on pile perpendicularity.
Driving shed reinforced structure strong and shock resistant.
High control accuracy of operation valve Easy and smooth.
The crawler chassis is equipped with protection and make safety first.

Technical Specifications

TECHNICAL PARAMETER
Transport Shape size (LWH)	6500 x 2200 x 2700 mm
Working Shape size (LWH)	3500 x 2200 x 7500 mm
Track size (LWH)	2550 x 1700 x 530 mm
Vehicle Weight	4500 - 5200 kg
Engine Power	70 kW
Flow rate of hydraulic system (L/min)	113.4
Pressure of hydraulic system (MPa)	20
Mast Stroke	200 - 5500 mm
Piling Height	200 - 5500 mm
Hydraulic Hammer Type	Y360 (85mm drill rod)
Piling Efficiency (mm/min)	3200
Drilling Depth	≤3500 mm
Borehole Diameter	50 - 300 mm
Maximum Climbing Ability	30° (57.7%)
Maximum Walking Speed	3.8 km/h
Left and Right Sliding Stroke	≤500 mm
Maximum Inclination Angle of Sliding Guide Frame	Left 30° / Right 8°
Front and Rear Adjusting Angle of Frame	Front 75° / Rear 15°
Min. Ground Clearance	230 mm
Effective Capacity of Hydraulic Tank	80 L
Effective Capacity of Diesel Tank	80 L

Frequently Asked Questions

Q1: What is the maximum piling height and mast stroke of the machine?

A1: The machine features a mast stroke and piling height ranging from 200 mm to 5500 mm, with a standard piling stroke height of up to 3.5 meters.

Q2: What is the specifications and impact power of the hydraulic hammer?

A2: It is equipped with a high-frequency Y360 hydraulic hammer featuring an 85mm borer pole diameter, delivering an impact power of up to 1400 joules.

Q3: How does the machine ensure structural stability and operator safety?

A3: The machine is designed with a reinforced driving shed structure that is strong and shock-resistant. Additionally, the crawler chassis is fully protected, and the double-row chain guide rail ensures a high safety coefficient.

Q4: What are the slope climbing and movement capabilities of this piling machine?

A4: The machine features a maximum climbing ability of 30° (57.7%) and can reach a maximum walking speed of 3.8 km/h, making it highly mobile on various terrains.

Q5: What are the transport and working dimensions of the equipment?

A5: The transport size is 6500 x 2200 x 2700 mm, and it expands to a working size of 3500 x 2200 x 7500 mm when operationally deployed.

Q6: How adjustable is the guide frame during piling operations?

A6: The sliding guide frame supports a maximum inclination angle of Left 30° / Right 8°, a front/rear adjustment angle of Front 75° / Rear 15°, and a left/right sliding stroke of up to 500 mm.
