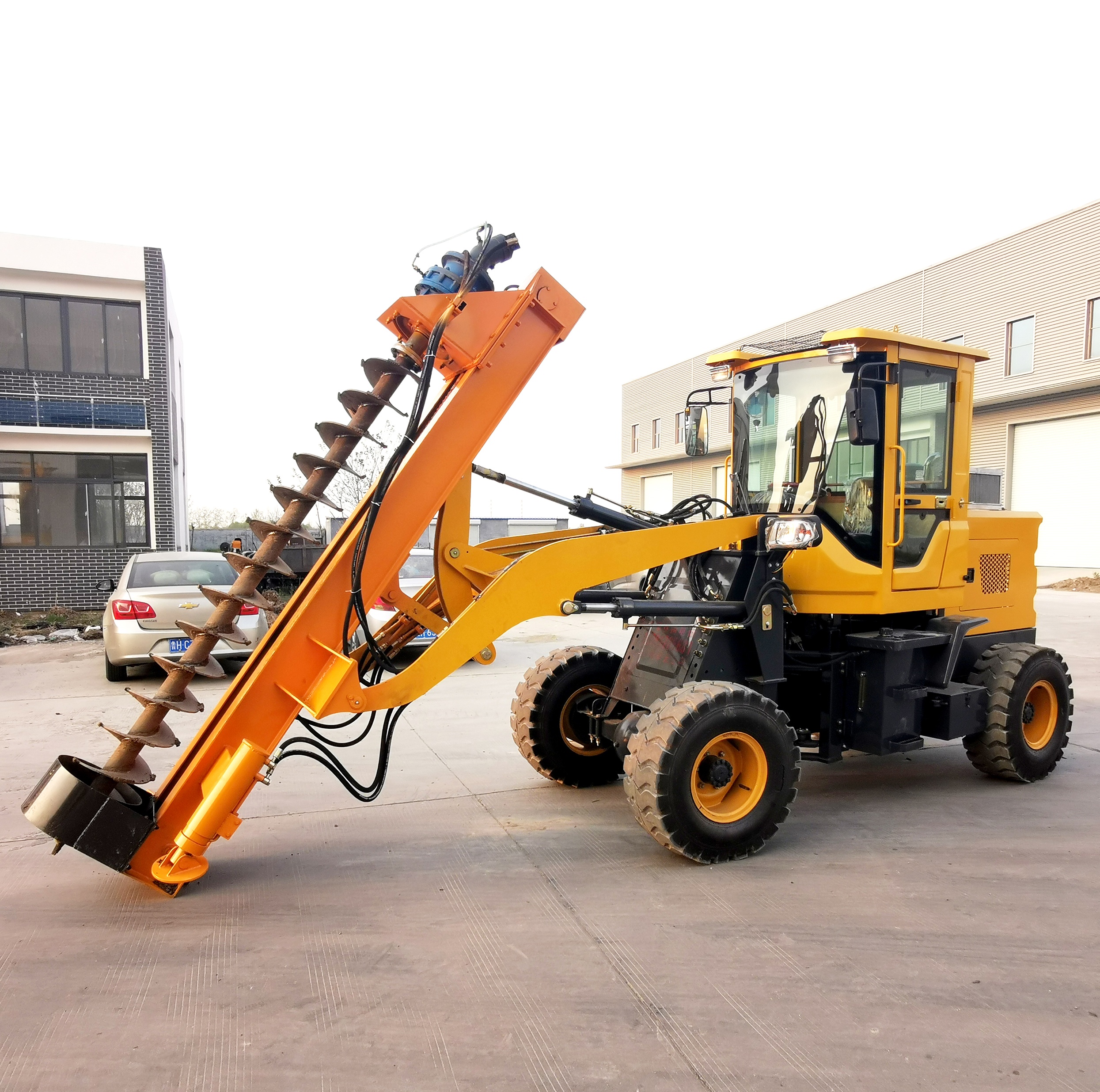

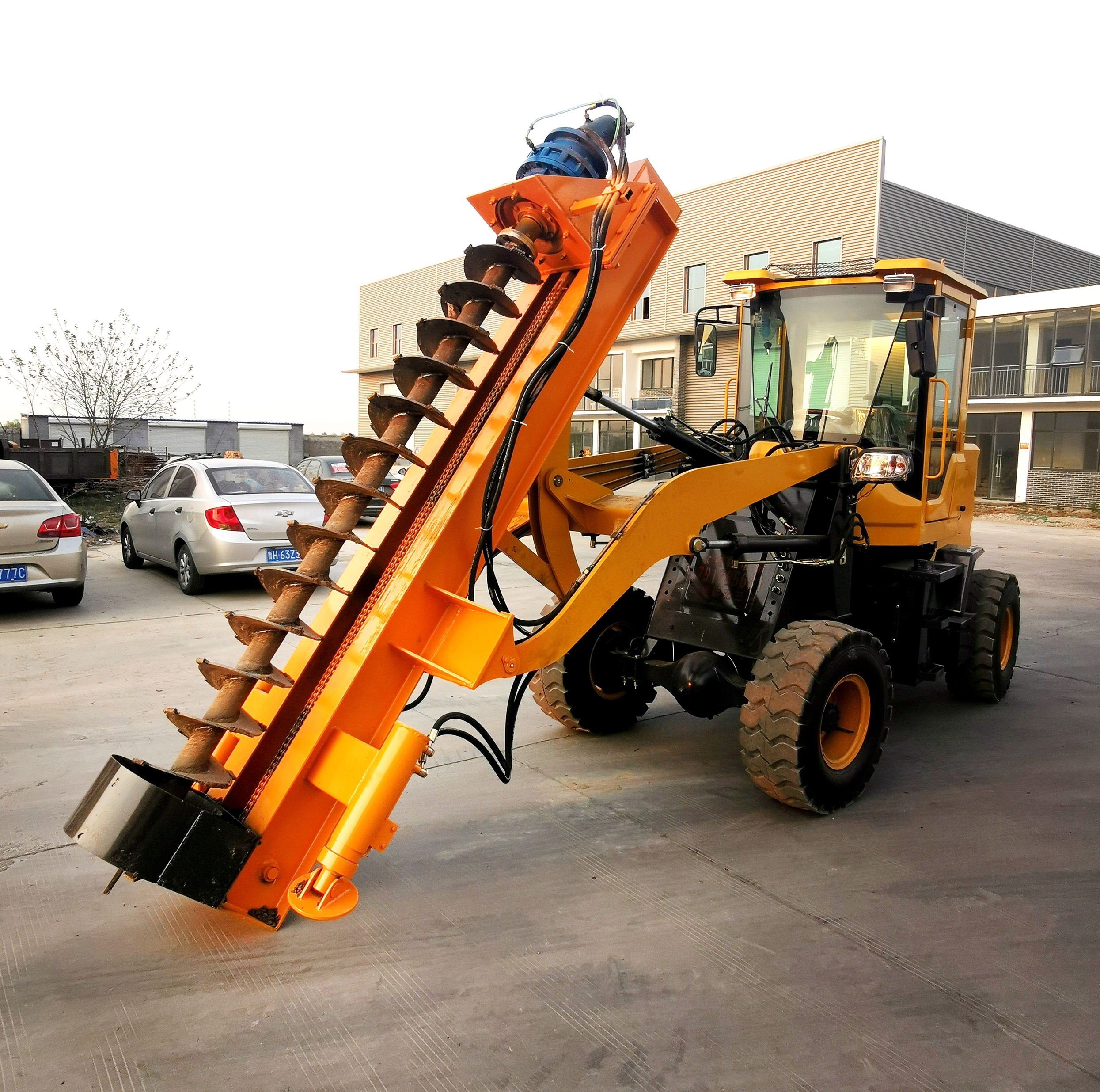

Cheap ZF40 Loader-Type Piling Machine Company, Product

The loader-type piling machine is modified from a loader chassis and is primarily used for small-diameter, shallow-depth foundation projects, especially suitable for drilling and installing utility poles, photovoltaic piles, etc.

Send Inquiry

Product Description

The drilling system can be equipped with adjustable outriggers at the front to adapt to various terrains. When fitted with an alloy drill bit, it can penetrate laterite (red soil), frozen soil, highly weathered rock, and other geological conditions.

Working Principle

1 Rotate the Hydraulic Rotary Head
- The operator pushes the hydraulic control lever (for rotation) in the cab, driving the rotary head to rotate (clockwise or counterclockwise).
2 Apply Feed Pressure
- While the rotary head rotates, the operator pushes the feed pressure control lever to advance the drill.
3 Control the Rotary Motor
- The feed pressure lever regulates the slewing motor at the top of the pile frame.
4 Raise/Lower the Rotary Head
- The motor rotation drives the ascending and descending motion of the rotary head.

Technical Specifications

Engine model	4102 diesel engine
Engine power	73kw
Fuel consumption	10-12L/h
Undercarriage	Four-Wheel Drive
Drilling speed	1200mm/min
Max. drilling diameter	800mm
Drilling depth	3000mm
Hydraulic system flow	52-63ml/r
Braking method	Air-Release Spring Brake
Rotary head torque	6800 N.M (Optional)
Tyre	20.5-16
Cabin	Single-person cockpit with air conditioning
Outrigger	2
Transportation dimensions	650019002500mm
Total Weight	5T

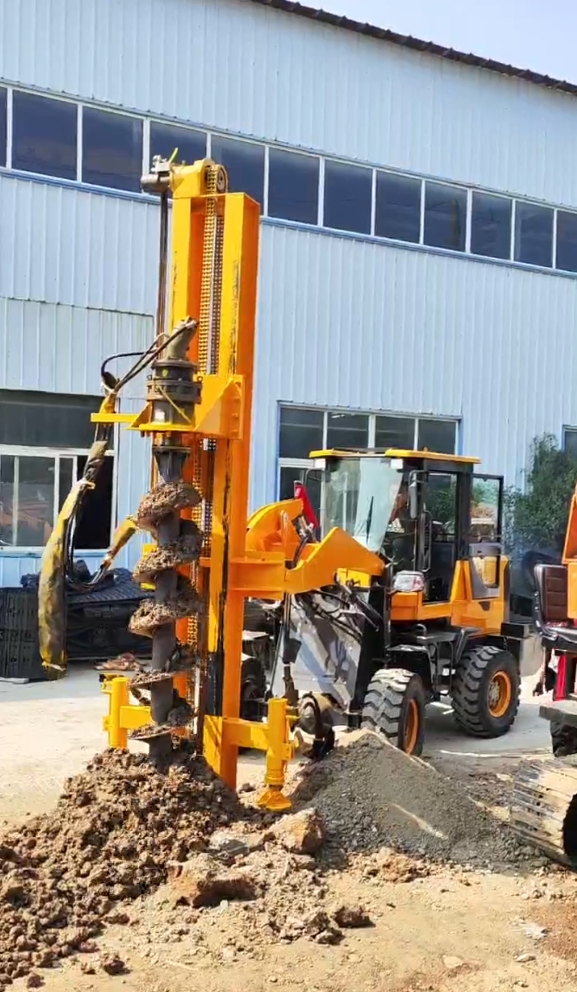

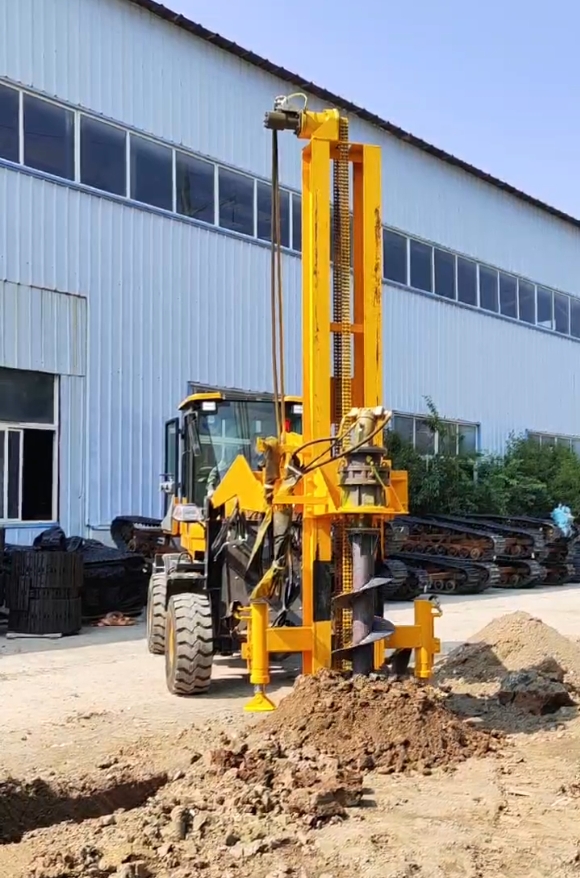

Equipment Gallery

Frequently Asked Questions

What kinds of geological conditions can this drilling system handle?

When fitted with an alloy drill bit, the system can penetrate laterite (red soil), frozen soil, highly weathered rock, and other challenging geological terrains.

What are the engine specifications and average fuel consumption?

The rig is powered by a 4102 diesel engine with a power output of 73kw, and it has an average fuel consumption of 10 to 12 liters per hour (L/h).

What is the maximum drilling capacity in terms of depth and diameter?

This drilling system can reach a maximum drilling depth of 3000mm and supports a maximum drilling diameter of up5 to 800mm.

How does the operator control the rotation of the hydraulic rotary head?

The operator controls the rotation (both clockwise and counterclockwise) by utilizing the hydraulic control lever located inside the single-person cockpit.

Does the drilling system feature any safety braking mechanism?

Yes, the system is designed with an Air-Release Spring Brake system to ensure operational safety and control during drilling procedures.

How does the system adapt to uneven terrains?

The system features 2 adjustable outriggers at the front, allowing it to stabilize and adapt effectively to various complex terrains.
