Famous XYT-280 Trailer type core drilling rig Exporter, Products

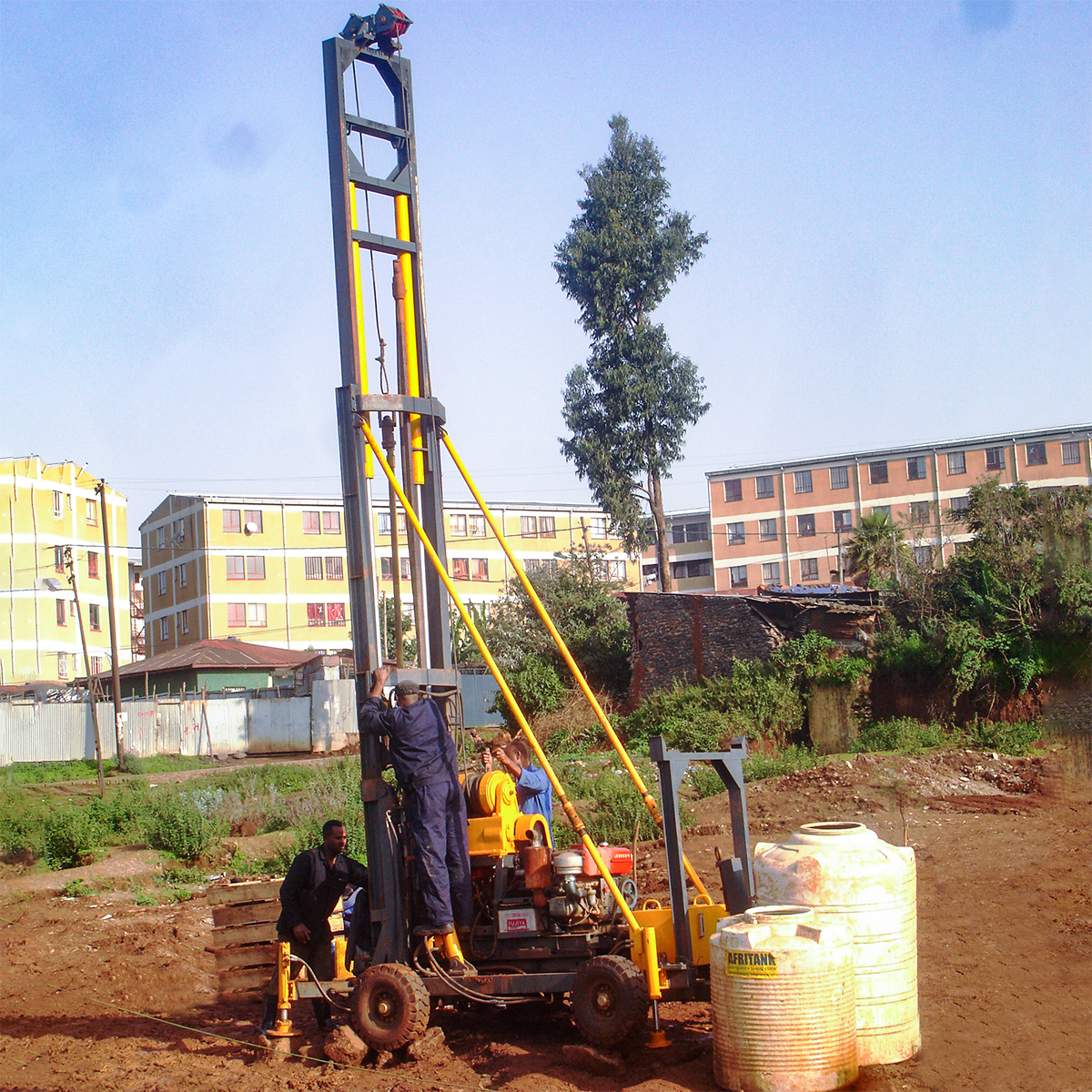

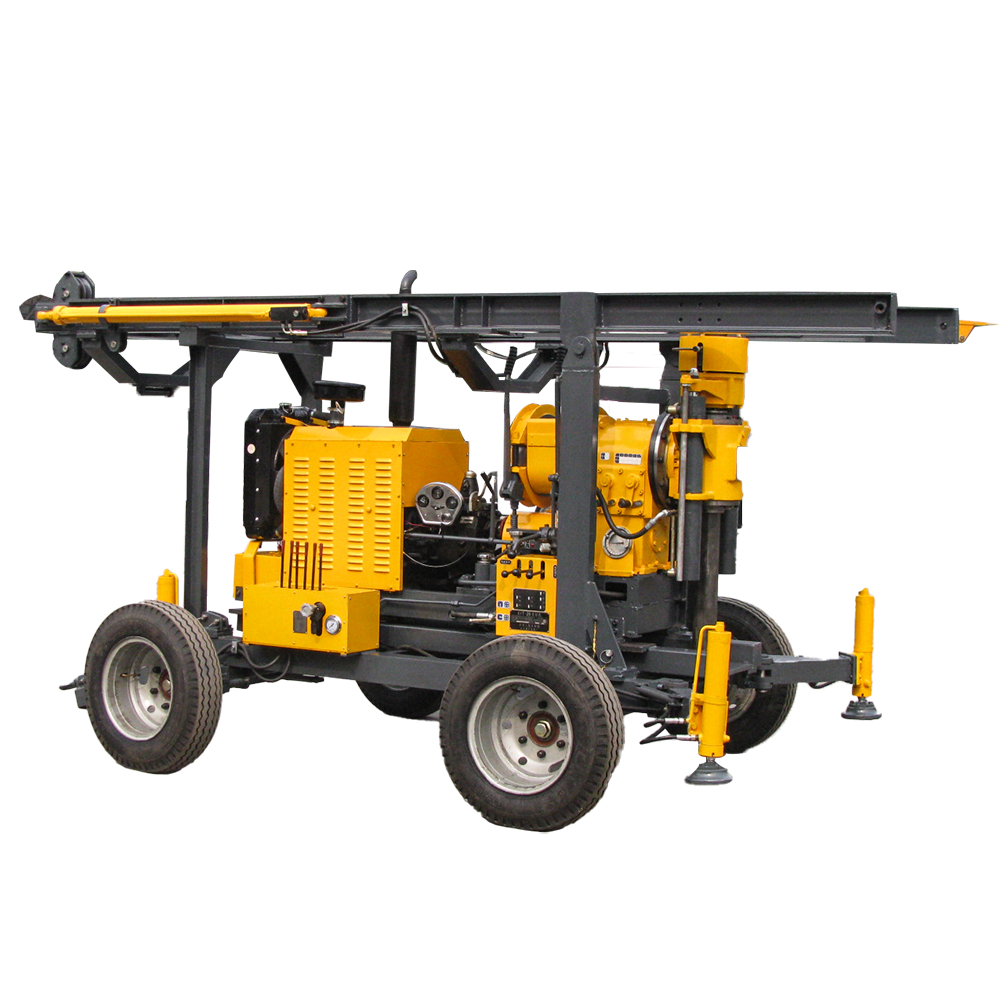

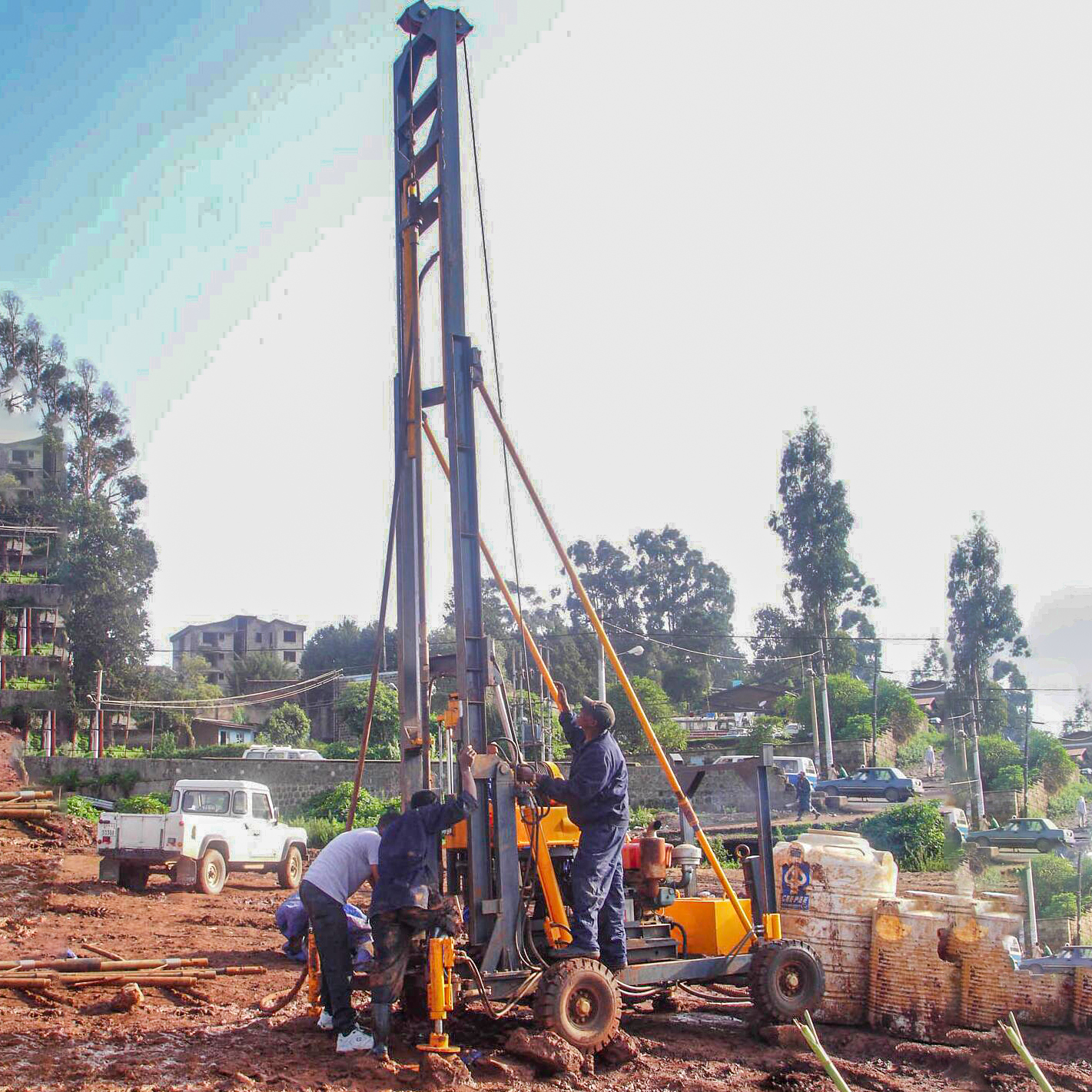

XYT-280 trailer type core drilling rig is mainly applicable to geological survey and exploration, foundation exploration of roads and high-rise buildings, inspection holes of various concrete structures, river dams, drilling and direct grouting of subgrade grouting holes, civil water wells and ground temperature central air conditioning, etc.

Send Inquiry

Product Description

The XYT-280 trailer type core drilling rig is mainly applicable to geological survey and exploration, foundation exploration of roads and high-rise buildings, inspection holes of various concrete structures, river dams, drilling and direct grouting of subgrade grouting holes, civil water wells, and ground temperature central air conditioning, etc.

Key Features & Advantages

Optimized Efficiency: Features an oil pressure feeding mechanism to significantly improve drilling efficiency.
Real-time Monitoring: Equipped with a hole bottom pressure gauge to indicate pressure, allowing operators to easily master the situation in the hole.
Convenient Mobility: Outfitted with a wheel traveling mechanism and hydraulic cylinder strut, which is highly convenient for the relocation of the whole machine and horizontal adjustment.
Safe Operation: Equipped with a ball clamping mechanism to replace the chuck, enabling rod reversal without stopping for a safer, reliable, and highly efficient workflow.
Hydraulic Control: The lifting and lowering towers are operated hydraulically, offering convenient and reliable operation.
Versatile Application: Offers a high optimal speed to meet various requirements, including small-diameter diamond drilling, large-diameter cemented carbide drilling, and engineering hole drilling.

Technical Specifications

Parameter	Unit	XYT-280 Specification
Drilling depth	m	280
Drilling diameter	mm	60-380
Rod diameter	mm	50
Drilling angle	°	70-90
Overall dimension	mm	5500x2200x2350
Rig weight	kg	3320
Skid	-	●
Rotation Unit
Co-rotation speed	r/min	93, 207, 306, 399, 680, 888
Reverse rotation speed	r/min	70, 155
Spindle stroke	mm	510
Spindle pulling force	KN	49
Spindle feeding force	KN	29
Maximum output torque	N.m	1600
Hoist
Lifting speed	m/s	0.34, 0.75, 1.10
Lifting capacity	KN	20
Cable diameter	mm	12
Drum diameter	mm	170
Brake diameter	mm	296
Brake band width	mm	60
Frame Moving Device
Frame moving stroke	mm	410
Distance away from hole	mm	250
Hydraulic Oil Pump
Type	-	YBC12-125 (left)
Rated flow	L/min	18
Rated pressure	Mpa	10
Rated rotation speed	r/min	2500
Power Unit (Diesel Engine)
Type	-	L28
Rated power	KW	20
Rated speed	r/min	2200

Frequently Asked Questions (FAQ)

What are the primary applications of the XYT-280 core drilling rig?

The XYT-280 trailer type core drilling rig is primarily designed for geological survey and exploration, civil water wells, foundation exploration for roads and high-rise buildings, concrete structure inspection, river dam drilling, and subgrade grouting work.

What is the drilling capacity and depth limit of this rig?

It features a maximum drilling depth of 280 meters, with a drilling diameter range spanning from 60mm to 380mm, and utilizes a rod diameter of 50mm.

How does the rig achieve high drilling efficiency?

Efficiency is enhanced by its oil pressure feeding mechanism and a specialized ball clamping mechanism that replaces the traditional chuck, allowing operator rod reversal without shutting down.

How is the XYT-280 drilling rig relocated and adjusted?

It is designed for mobility, incorporating a wheel traveling mechanism and a hydraulic cylinder strut, which makes relocation of the entire machine and horizontal leveling quick and simple.

What power source drives the XYT-280 core drilling rig?

The rig is powered by a reliable L28 model diesel engine, which delivers a rated power of 20 KW at a speed of 2200 r/min.
