Best SD100 Desander Exporter, Companies

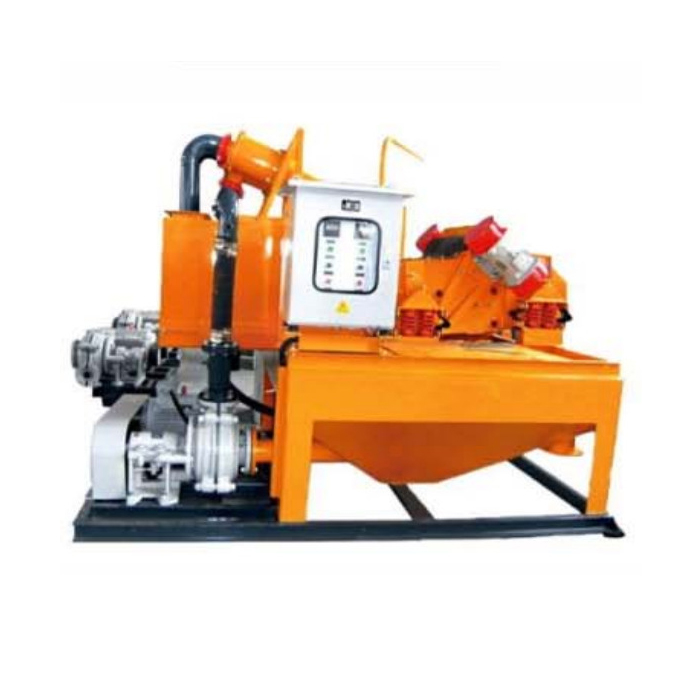

SD100 desander is a piece of drilling rig equipment designed to separate sand from the drilling fluid. Abrasive solids which can not be removed by shakers can be removed by it. The desander is installed before but after shakers and degasser. Increased separation capacity in the fine sand fraction bentonite supported grad work for pipes and diaphragm walls micro tunneling.
The oscillating screen has many advantages such as easy operation, low trouble rate, convenient installation and maintenance.
The high screening efficiency of the machine can excellently support drillers raise bore and advance in different strata.
Energy-saving efficiency is significant since the power consumption of the oscillating motor is low.
The thick, abrasion-resisting parts and specially designed brackets enable the pump to convey corrosive and abrasive slurry with high density.
The specially designed automatic liquid-level balancing device can not only keep the liquid-level of the slurry reservoir stable, but also realized the reprocessing of mud, so the purification quality can be further enhanced.
Technical Specifications
Type
Capacity (slurry)
Cut point
Separation capacity
Power
Dimension
Total weight
SD100
100m³/h
30u m
25-50t/h
24.2KW
2.9x1.9x2.25m
2700kg
Our Commitments
We can design and manufacture the sludge treatment system and send the technical personnel to guide the installation of equipment at customer's workplace according to the requirements of our customers.
If there is anything wrong with the products you can contact us in any time, we'll send the customer's feedback to technology department and return the results to customers as soon as possible.
Frequently Asked Questions
What are the main advantages of the oscillating screen?
The oscillating screen features easy operation, low trouble rates, and convenient installation and maintenance, ensuring smooth project operations.
How does this equipment assist drilling in various strata?
With high screening efficiency, the equipment excellently supports drillers in raise bore operations and advance in different strata.
Is the oscillating screen energy-efficient?
Yes. The power consumption of the oscillating motor is low, making its energy-saving efficiency highly significant.
Can the system handle high-density and corrosive slurry?
Yes. Designed with thick, abrasion-resisting parts and specialized brackets, the pump is fully capable of conveying high-density corrosive and abrasive slurry.
How does the automatic liquid-level balancing device function?
It keeps the liquid level of the slurry reservoir stable and enables the reprocessing of mud, which further enhances the overall purification quality.
Do you provide custom design and onsite installation services?
Yes, we can design and manufacture the sludge treatment system and dispatch technical personnel to guide equipment installation directly at the customer's workplace.
