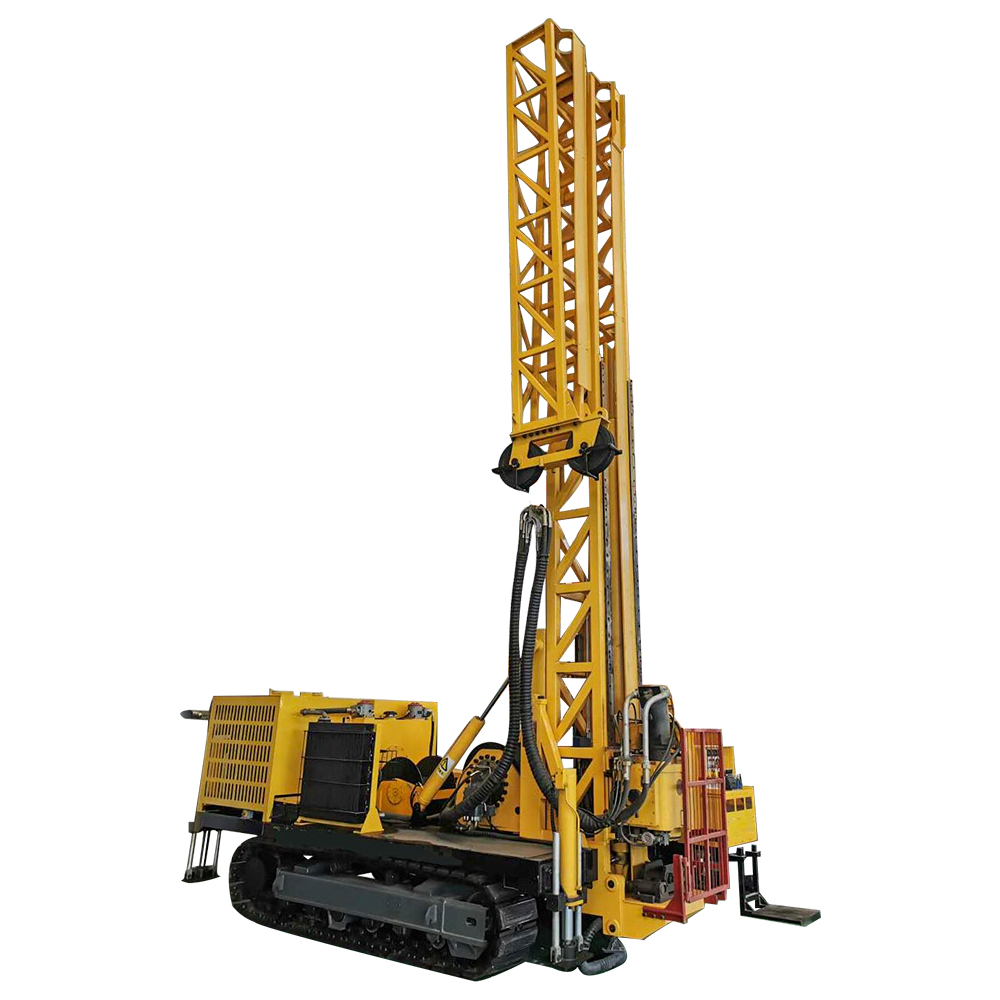

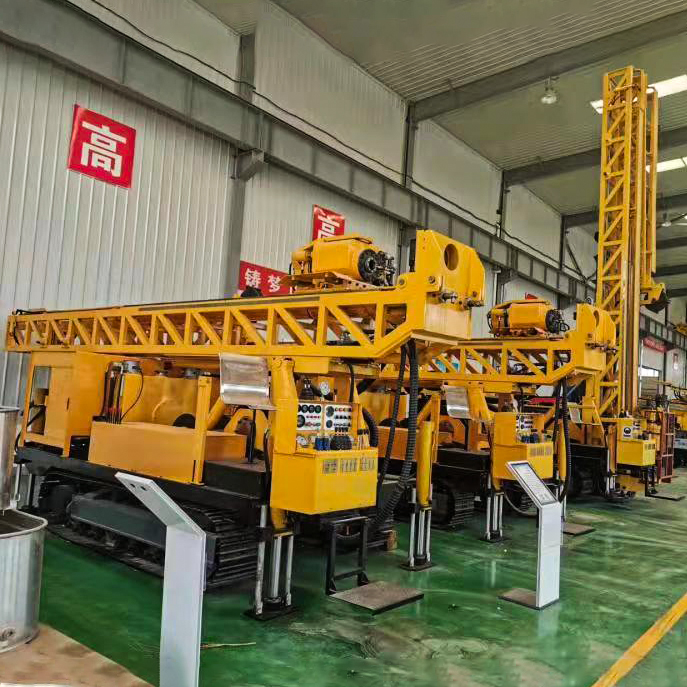

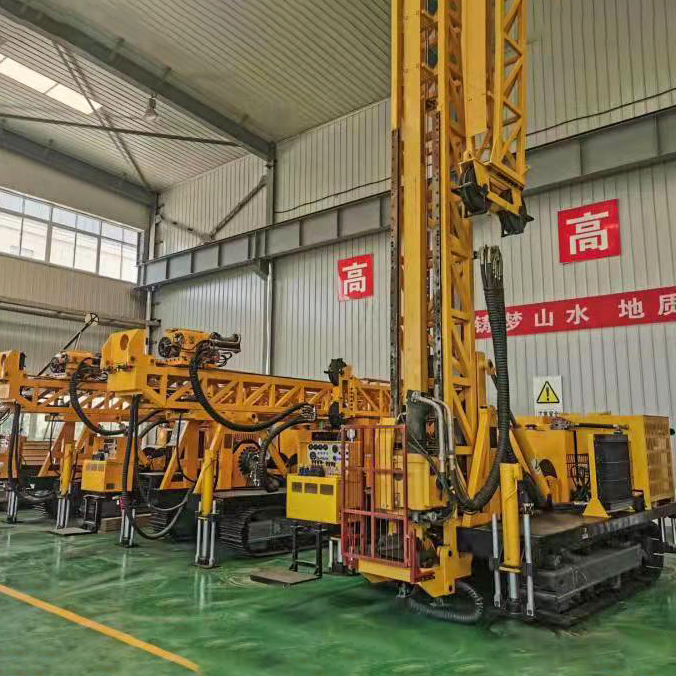

SHY- 5A is a hydraulic compact diamond core drilling rig that has been designed with modular sections. This allows for the rig to be disassembled into smaller parts, improving mobility.

Send Inquiry

Product Description

SHY-5A is a hydraulic compact diamond core drilling rig that has been designed with modular sections. This allows for the rig to be disassembled into smaller parts, improving mobility.

Model		SHY-5A
Diesel Engine	Power	145kw
Drilling Capacity	BQ	1500m
	NQ	1300m
	HQ	1000m
	PQ	680m
Rotator Capacity	RPM	0-1050rpm
	Max. Torque	4650Nm
	Max. Lifting Capacity	15000kg
	Max. Feeding Power	7500kg
Foot Clamp	Clamping Diameter	55.5-117.5mm
Main hoister lifting force (Single rope)		7700kg
Wire hoister lifting force		1200kg
Mast	Drilling Angle	45°-90°
	Feeding Stroke	3200mm
	Slippage Stroke	1100mm
Other	Weight	8500kg
Other	Transport Way	Crawler

Key Features

Adopt full hydraulic driving, moving with crawlers itself.

Drill head is driven by variable motor with function of two-speed mechanical gear shifts, stepless speed change with an advanced and simple structure.

Rotator is fed and driven with a system connecting the spindle and oil cylinder with chain.

Mast could be adjusted for its drilling hole with a low center of gravity and good stability.

Big torque, powerful driving force, rational and practical design, lower noisy advanced controlling mode, external appearance, a compacted structure, a reliable function, and a flexible operating system.

Diesel engine, hydraulic pump, main valves, motors, crawler reducers and key hydraulic spare parts are all adapted famous brands products which are easy to buy and maintenance.

Rig provides operator with a nice field of vision and wide and comfortable working condition.

Applications

Diamond core drilling

Directional drilling

Reverse circulation continuous coring

Percussion rotary

Geo-tech

Water bores

Anchorage

Frequently Asked Questions

What is the drilling capacity of the SHY-5A?

The SHY-5A drilling rig features different capacities based on the pipe size: BQ up to 1500m, NQ up to 1300m, HQ up to 1000m, and PQ up to 680m.

How is the SHY-5A drilling rig transported?

It is designed as a crawler-based unit, allowing it to move on its own. Additionally, its modular design allows it to be disassembled into smaller sections for easy transport and improved mobility.

What type of driving system does the SHY-5A use?

The rig uses a full hydraulic driving system. The drill head is driven by a variable motor that supports stepless speed changes and two-speed mechanical gear shifts.

What are the primary applications of this drilling rig?

The SHY-5A is highly versatile and used for diamond core drilling, directional drilling, reverse circulation continuous coring, percussion rotary drilling, geo-tech applications, water bores, and anchorage.
