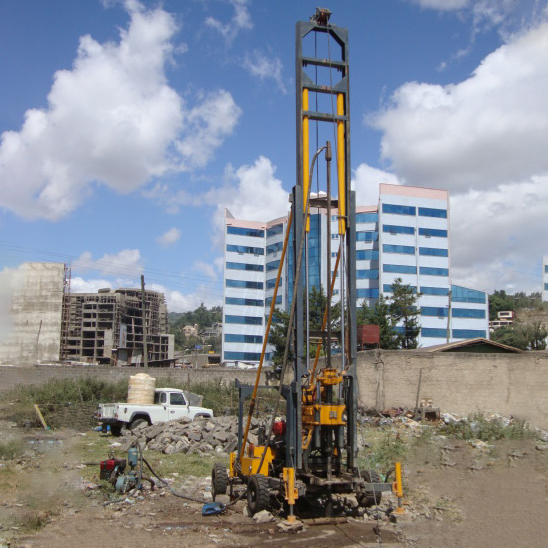

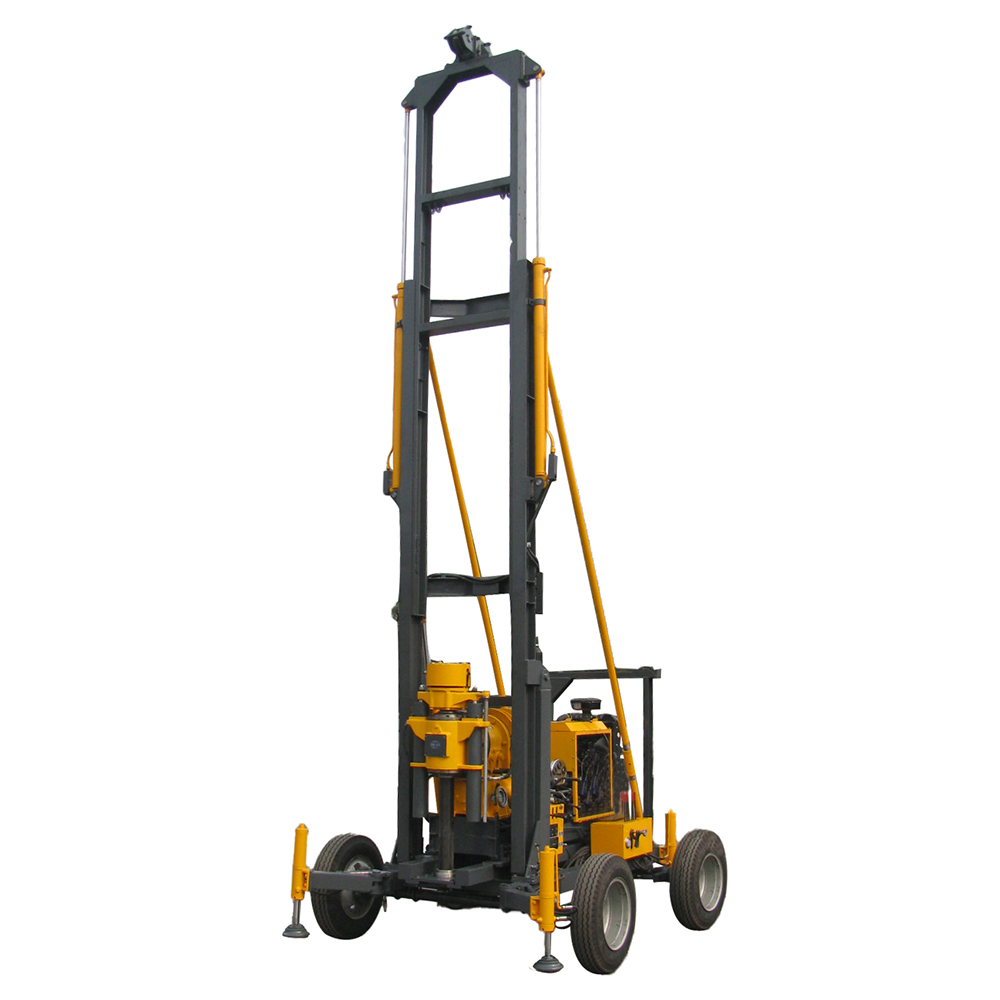

XYT-1A Trailer type core drilling rig adopts four hydraulic jacks and hydraulically controlled self-supporting tower. It is installed on the trailer for easy walking and operation.
XYT-1A Trailer type core drilling rig is mainly used for core drilling, soil investigation, small water wells and diamond bit drilling technology.
| Parameter | Unit | XYT-1A |
|---|---|---|
| Drilling depth | m | 100, 180 |
| Drilling diameter | mm | 150 |
| Rod diameter | mm | 42, 43 |
| Drilling angle | ° | 90-75 |
| Overall dimension | mm | 4500x2200x2200 |
| Rig weight | kg | 3500 |
| Skid | - | ● |
| Rotation unit | ||
| Spindle speed (Co-rotation) | r/min | / |
| Spindle speed (Reverse rotation) | r/min | / |
| Spindle stroke | mm | 450 |
| Spindle pulling force | KN | 25 |
| Spindle feeding force | KN | 15 |
| Maximum output torque | N.m | 500 |
| Hoist | ||
| Lifting speed | m/s | 0.31, 0.66, 1.05 |
| Lifting capacity | KN | 11 |
| Cable diameter | mm | 9.3 |
| Drum diameter | mm | 140 |
| Brake diameter | mm | 252 |
| Brake band width | mm | 50 |
| Frame moving device | ||
| Frame moving stroke | mm | 410 |
| Distance away from hole | mm | 250 |
| Hydraulic oil pump | ||
| Type | - | YBC-12/80 |
| Rated flow | L/min | 12 |
| Rated pressure | Mpa | 8 |
| Rated rotation speed | r/min | 1500 |
| Power unit (Diesel engine) | ||
| Type | - | S1100 |
| Rated power | KW | 12.1 |
| Rated speed | r/min | 2200 |
Compact structure, light weight, large main shaft diameter, long stroke and good rigidity. Hexagonal Kelly ensures torque transmission.

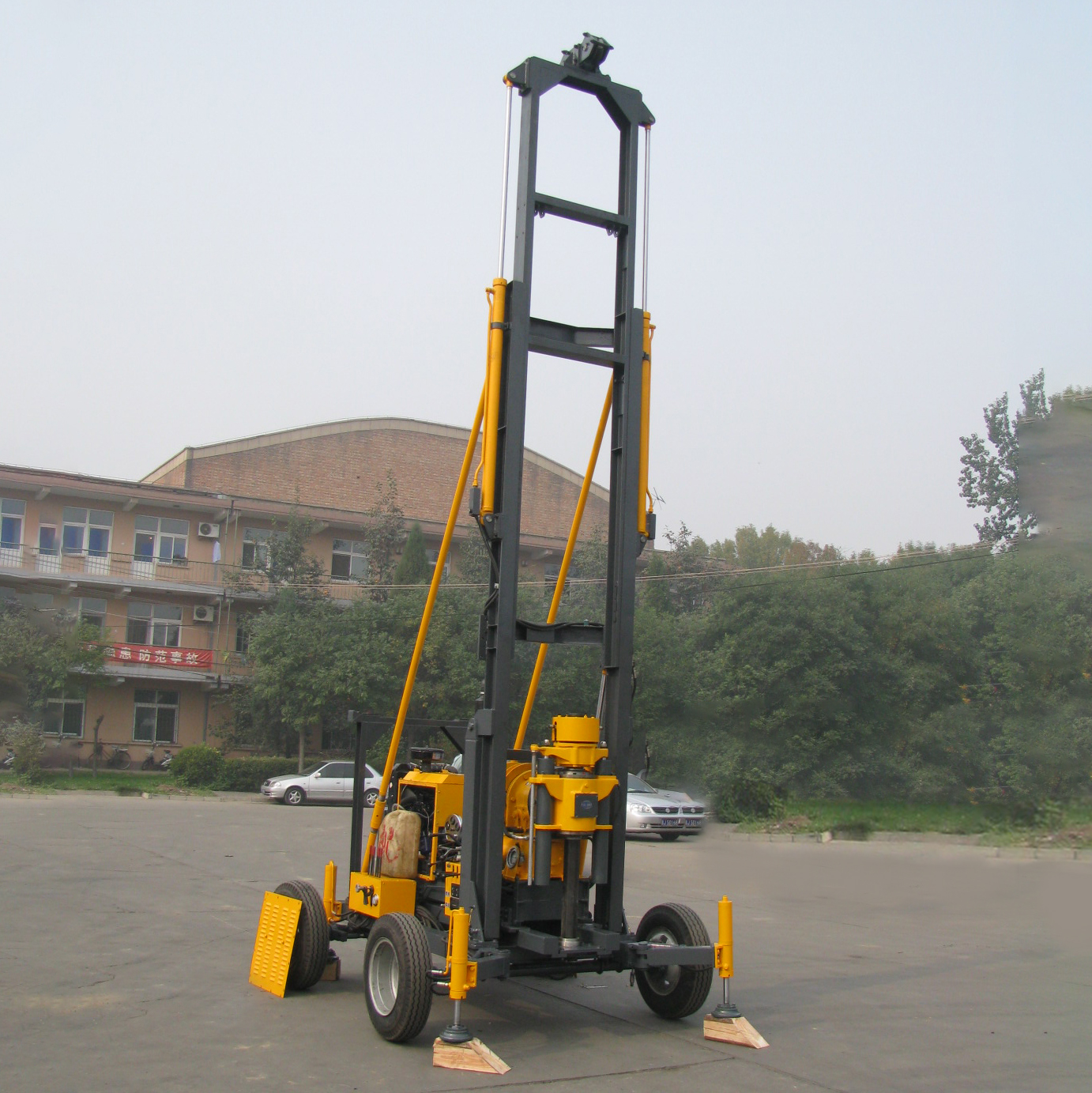

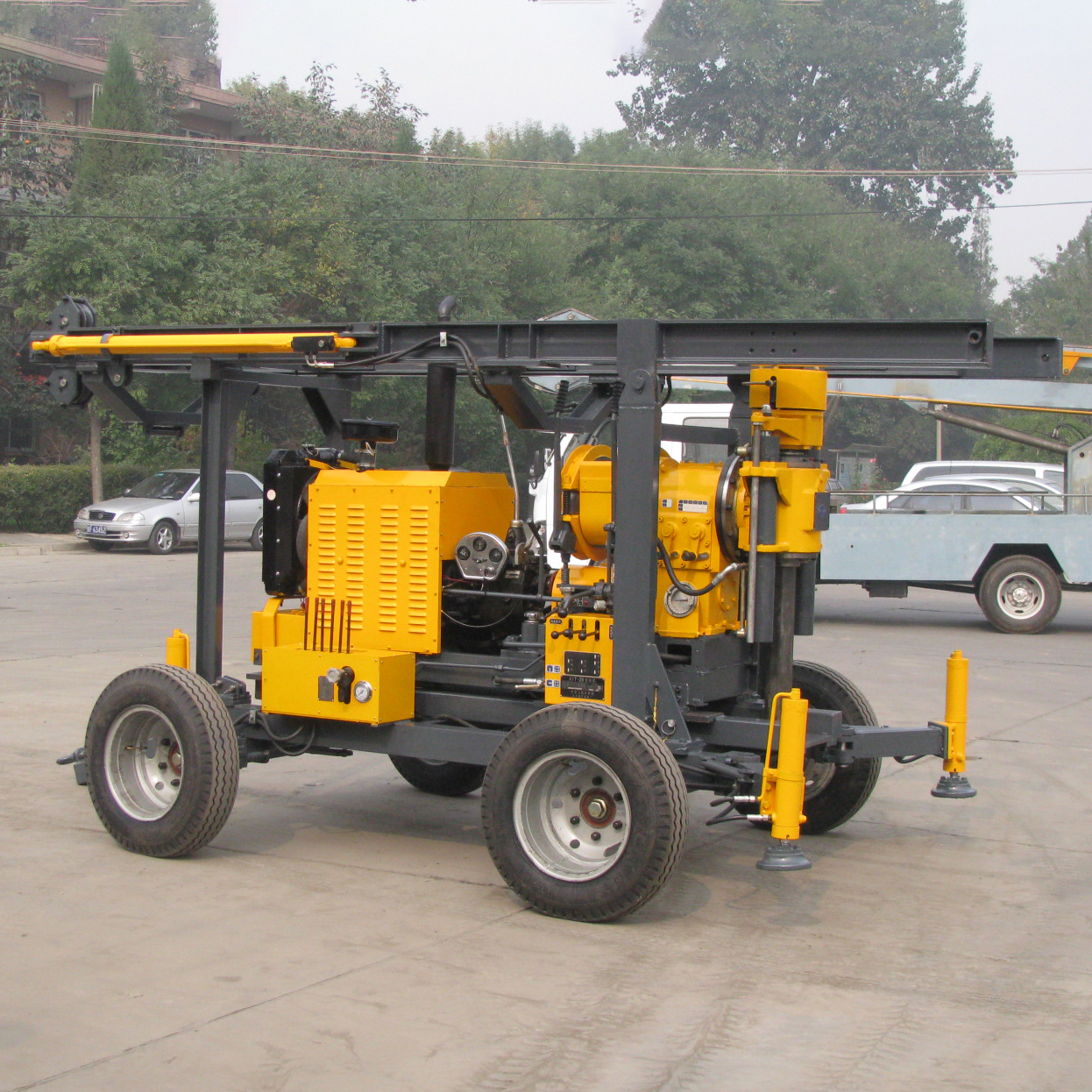

The drilling rig tower and main engine are installed on the wheel chassis with four hydraulic legs. The drilling tower has the functions of lifting, landing and folding, and the whole machine is easy to move.
The hydraulic mast is composed of the main mast and the mast extension, which greatly improves the work efficiency and is very convenient for transportation and operation.
Compared with the ordinary core drill, the trailer core drill reduces the heavy derrick and saves the cost.
The XYT-1A trailer type core drilling rig has high optimal speed and can meet various requirements for small-diameter diamond drilling, large-diameter cemented carbide drilling and various engineering holes drilling.
During feeding, the hydraulic system can adjust the feed speed and pressure to meet the drilling requirements of different formations.
Provide bottom hole pressure gauge to monitor drilling pressure.
XYT-1A Trailer type core drilling rig adopts automobile transmission and clutch, which is convenient for maintenance.
Centralized control panel, easy to operate.
The octagonal main shaft is more suitable for high torque transmission.
What are the primary applications of the XYT-1A drilling rig?
The XYT-1A Trailer type core drilling rig is primarily designed for core drilling, soil investigation, small water wells, and diamond bit drilling applications.
How is the portability and mobility of the XYT-1A?
The rig is mounted on a wheel chassis trailer and configured with four hydraulic legs. The integrated drilling tower can lift, land, and fold, making the entire machine very easy to move, transport, and set up.
What type of engine does the drilling rig use?
It is powered by an S1100 diesel engine model, providing a rated power of 12.1 KW at a rated speed of 2200 r/min.
What is the drilling capacity of this trailer core drill?
The XYT-1A can reach a drilling depth of 100 to 180 meters with a maximum drilling diameter of 150 mm, using 42 or 43 mm rod diameters.
How does the hydraulic system assist in the drilling process?
The hydraulic system allows operators to adjust both feed speed and pressure according to different soil or rock formations. A bottom hole pressure gauge is also provided to monitor the real-time drilling pressure.
What components make the transmission and maintenance easier?
The rig uses an automobile-style transmission and clutch system which simplifies maintenance, and features an octagonal main shaft optimized for high-torque transmission.
