XYT-1B trailer type core drilling rig is suitable for engineering geological survey of railway, hydropower, transportation, bridge, dam foundation and other buildings; Geological core drilling and physical survey; Drilling of small grouting holes; Mini well drilling.
Key Features & Advantages
- Full-Automatic Gantry Drill Tower: The XYT-1B trailer type core drilling rig adopts a full-automatic gantry drill tower, which saves time, labor, and ensures high reliability.
- Advanced Wheeled Chassis: The chassis adopts tires with light weight and low life cycle cost, which can reduce the noise of vehicle traveling mechanism, reduce vehicle body vibration, greatly reduce fuel consumption, and can walk on urban roads without damaging the road surface.
- Hydraulic Outriggers Support: The chassis is equipped with four hydraulic short legs, which can be installed and adjusted quickly and conveniently. It can be used for leveling the working plane and can be used as auxiliary support during work.
- Electric Start Diesel Engine: The diesel engine adopts electric start, which reduces the labor intensity of the operator.
- Bottom Hole Pressure Gauge: Equipped with bottom hole pressure gauge to monitor drilling pressure in real time.
Technical Specifications
| Parameter |
Unit |
XYT-1B Specification |
| Drilling depth |
m |
200 |
| Drilling diameter |
mm |
59-150 |
| Rod diameter |
mm |
42 |
| Drilling angle |
° |
90-75 |
| Overall dimension |
mm |
4500x2200x2200 |
| Rig weight |
kg |
3500 |
| Skid |
|
● |
| Spindle speed (Co-rotation) |
r/min |
/ |
| Spindle speed (Reverse rotation) |
r/min |
/ |
| Spindle stroke |
mm |
450 |
| Spindle pulling force |
KN |
25 |
| Spindle feeding force |
KN |
15 |
| Maximum output torque |
N.m |
1250 |
| Lifting speed |
m/s |
0.166, 0.331, 0.733, 1.465 |
| Lifting capacity |
KN |
15 |
| Cable diameter |
mm |
9.3 |
| Drum diameter |
mm |
140 |
| Brake diameter |
mm |
252 |
| Brake band width |
mm |
50 |
| Frame moving stroke |
mm |
410 |
| Distance away from hole |
mm |
250 |
| Type |
- |
YBC-12/80 |
| Rated flow |
L/min |
12 |
| Rated pressure |
Mpa |
8 |
| Rated rotation speed |
r/min |
1500 |
| Type |
- |
ZS1105 |
| Rated power |
KW |
12.1 |
| Rated speed |
r/min |
2200 |

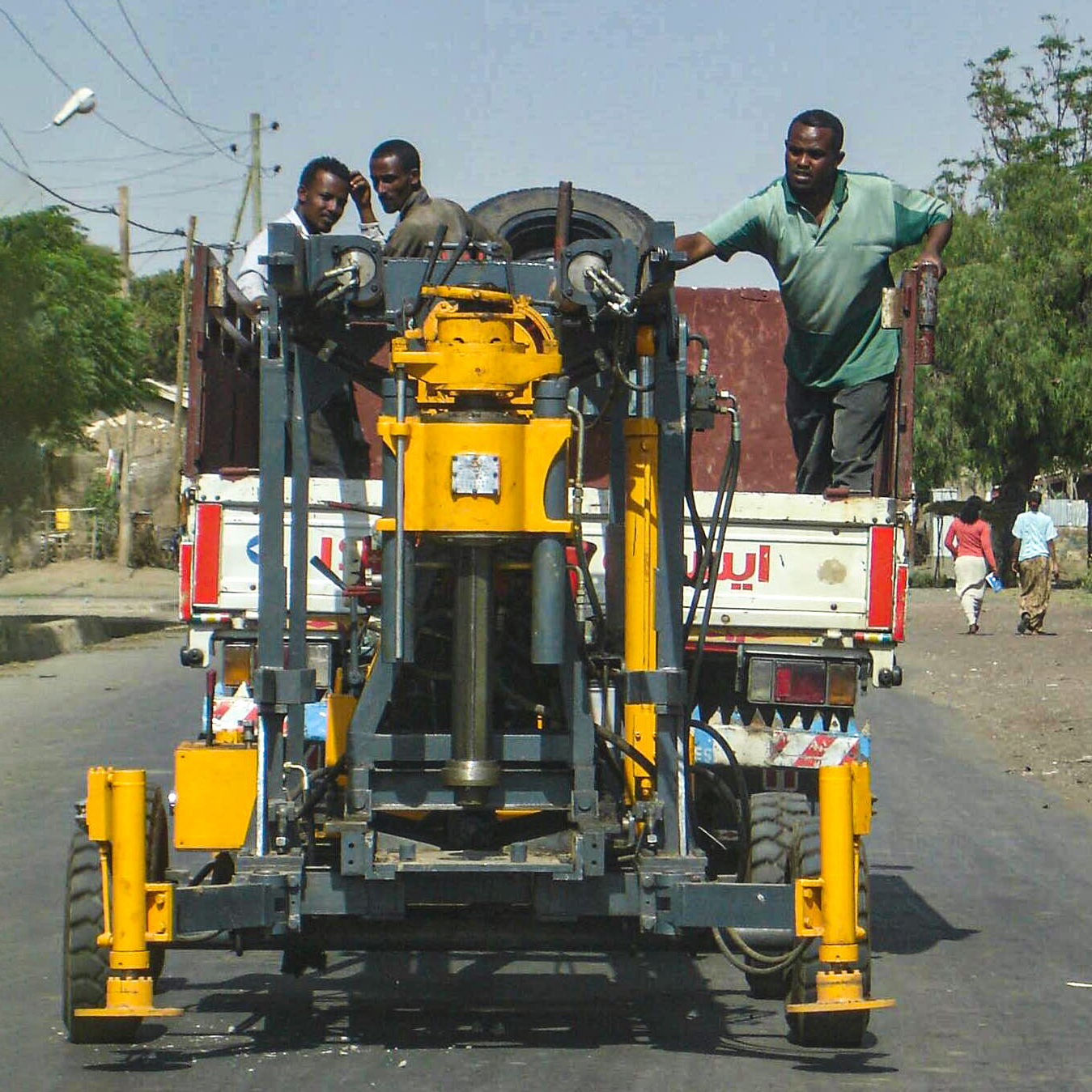

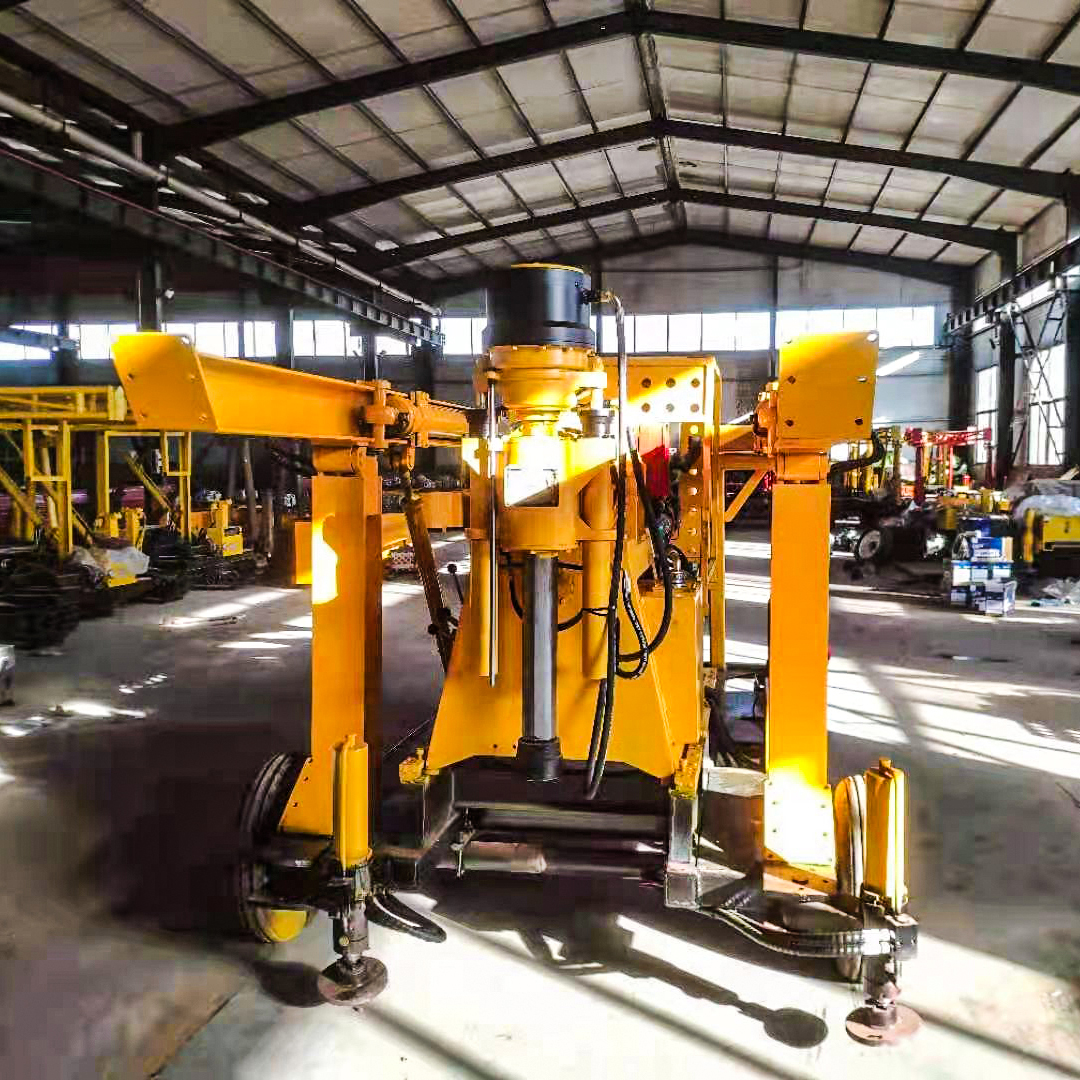

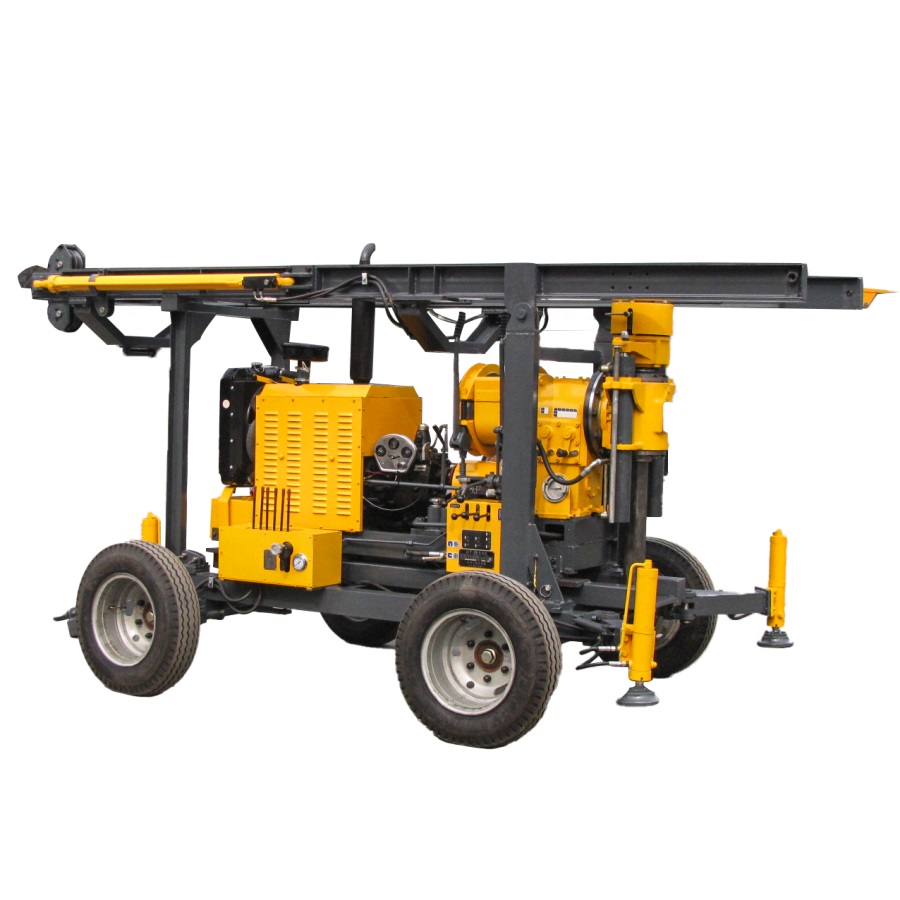

Equipment Showcase
Frequently Asked Questions
What is the maximum drilling depth of the XYT-1B drilling rig?
The XYT-1B trailer type core drilling rig supports a maximum drilling depth of 200 meters.
What types of projects is the XYT-1B suitable for?
It is highly suitable for engineering geological surveys of railways, bridges, highways, dam foundations, hydropower plants, geological core drilling, physical surveys, and mini water well drilling.
What are the benefits of the mobile trailer chassis?
The chassis is equipped with lightweight tires that reduce vehicle vibration and noise. This design significantly lowers fuel consumption and allows driving on urban paved roads without damaging the surface.
How does the rig ensure leveling and stability during drilling?
It features four hydraulic short outrigger legs, enabling quick and convenient leveling setup and providing auxiliary support during active drilling operations.
What engine power is configured with the XYT-1B?
The rig is powered by a ZS1105 diesel engine, which delivers a rated power of 12.1 KW at 2200 r/min. It is also configured with an electric start function to decrease manual labor.
