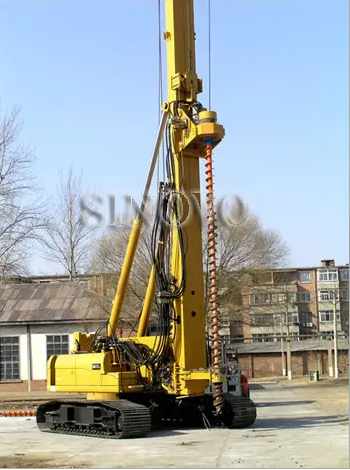

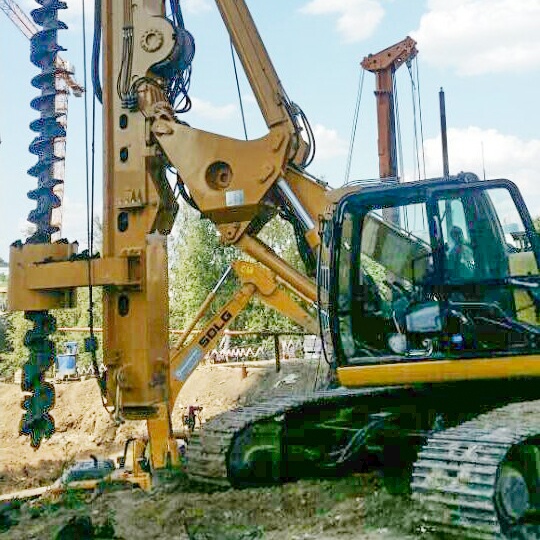

CFA drilling equipment is suitable for oil drilling equipment, well drilling equipment, rock drilling equipment, directional drilling equipment, and core drilling equipment. SINOVO CFA drilling equipment based on continuous flight auger drilling technique is mainly used in construction to create concrete piles. It can construct a continuous wall of reinforced concrete that protects workers during excavation.

Send Inquiry

Product Description

CFA drilling equipment is suitable for various specialized applications, including:

Oil drilling equipment

Well drilling equipment

Rock drilling equipment

Directional drilling equipment

Core drilling equipment

CFA drilling equipment based on continuous flight auger drilling technique is mainly used in construction to create concrete piles. It can construct a continuous wall of reinforced concrete that protects workers during excavation.

CFA piles continue the advantages of the driven piles and the bored piles, which are versatile and require no removal of soil. This drilling method enables the drilling equipment to excavate a wide variety of soils, dry or water-logged, loose or cohesive, and also to penetrate through low capacity, soft rock formation like tuff, loamy clays, limestone clays, limestone and sandstone etc.

Specification Parameter	Euro Standards	U.S. Standards
Max drilling depth	23.5m	77 ft
Max drilling diameter	1200mm	47in
Engine model	CAT C-9	CAT C-9
Rated power	261KW	350HP
Max torque for CFA	120kN.m	88476lb-ft
Rotating speed	6～27rpm	6～27rpm
Max crowd force of winch	280kN	62944lbf
Max extraction force of winch	280kN	62944lbf
Stroke	14500mm	571in
Max pulling force of main winch (the first layer)	240kN	53952lbf
Max pulling speed of main winch	63m/min	207ft/min
Wire line of main winch	Φ32mm	Φ1.3in
Undercarriage	CAT 330D	CAT 330D
Track shoe width	800mm	32in
width of crawler	3000-4300mm	118-170in
Whole machine weight	70T	70T

The maximum diameter of piling reaches 1.2m and max depth achieves 30m, helping overcome problems formerly connected to project and execution of pilings.

Frequently Asked Questions

What types of drilling applications is this equipment suitable for?

This equipment is highly versatile and suitable for oil drilling, well drilling, rock drilling, directional drilling, and core drilling.

What is the primary role of CFA drilling equipment in construction?

It is mainly used in construction projects to create concrete piles. It can also construct continuous walls of reinforced concrete to ensure worker safety during excavation operations.

What are the main advantages of CFA piles?

CFA piles combine the key advantages of both driven and bored piles. They are exceptionally versatile and do not require the removal of soil during the process.

What types of ground conditions can this drilling method handle?

This method is capable of excavating a wide range of soil conditions, whether dry, water-logged, loose, or cohesive. It can also penetrate through soft, low-capacity rock formations such as tuff, loamy clays, limestone clays, limestone, and sandstone.

What are the maximum diameter and depth capacities of this equipment?

The equipment can achieve a maximum piling diameter of 1.2 meters (1200mm) and a maximum depth of up to 30 meters, which helps resolve challenges commonly associated with project execution.
