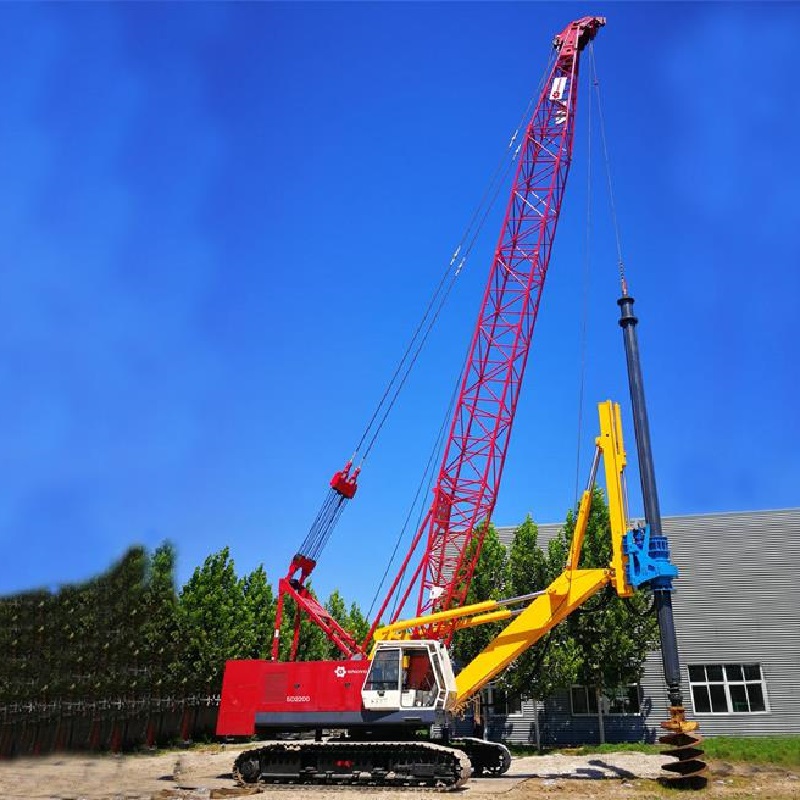

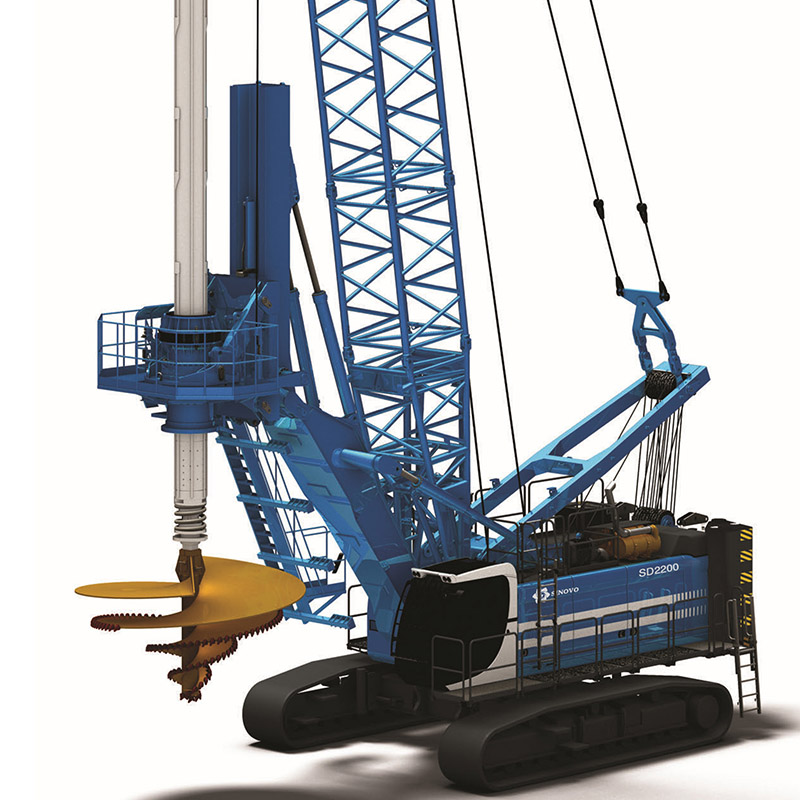

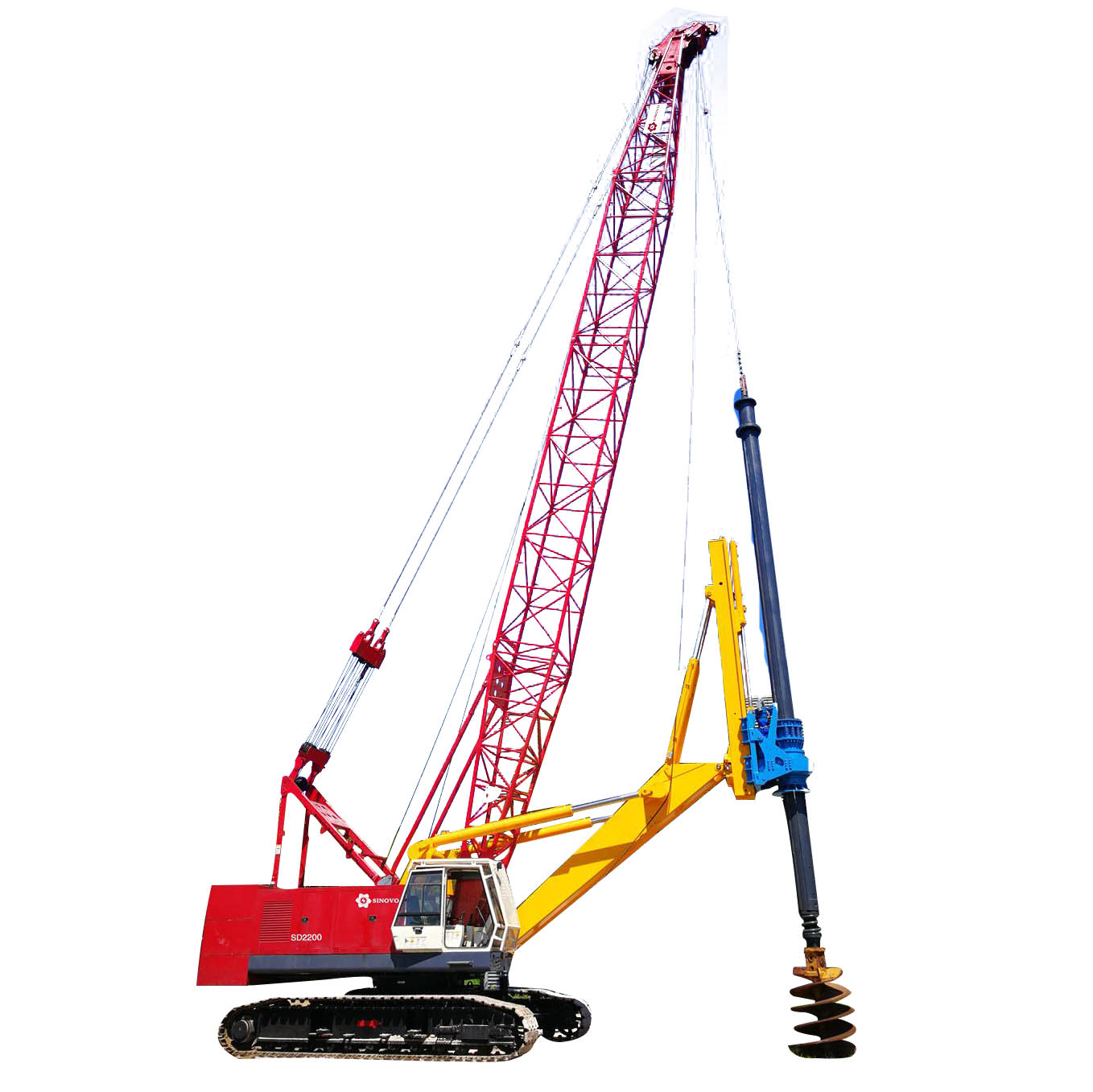

SD2200 is a multi-functional full-hydraulic pile machine with advanced international technology. It can not only drill bored piles, percussion drilling, dynamic compaction on soft foundation, but also has all the functions of rotary drilling rig and crawler crane. It also surpasses the traditional rotary drilling rig, such as ultra-deep hole drilling, perfect combination with full casing drilling rig to carry out complex work.
Drive casing, wall protection and casing drilling function
Caterpillar crane hoisting function
Reinforcing cage of pile driver and lifting function of drilling tool
This machine is multi-functional, can use all kinds of rotary drilling buckets and drilling tools for rotary drilling, function, at the same time, make use of their own advantages of variety of equipment in one, an engine to provide energy, energy saving, green economy.

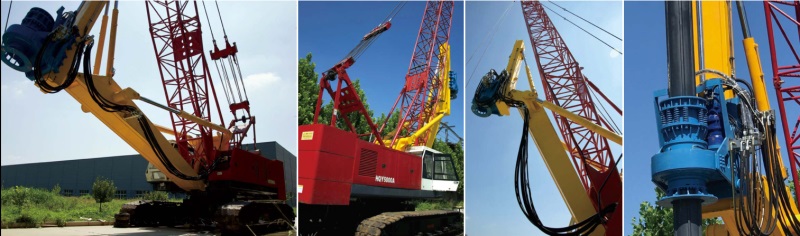

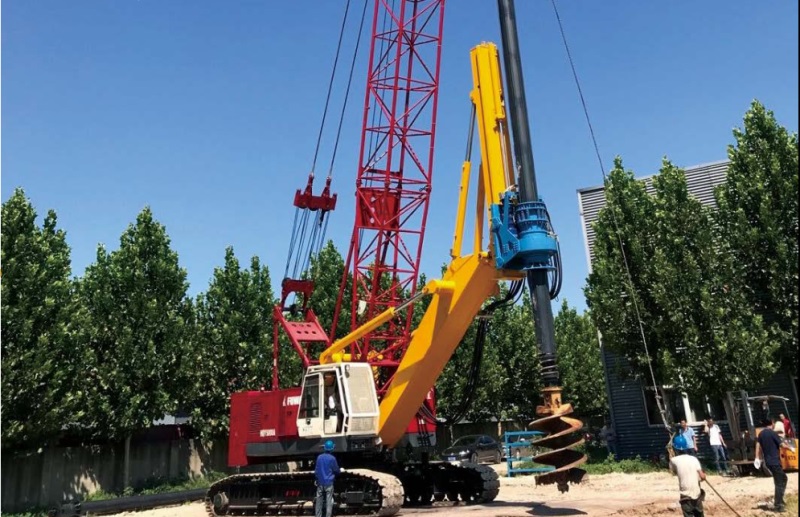

Full hydraulic multifunctional drilling rig SD2200
Specification Item
Technical Parameter
Model
SD2200
Undercarriage
HQY5000A
Engine power
199 kw
Rotating speed
1900 rpm
Main pump flow
2X266 L/min
Nominal torque
220 kN.m
Speed of rotation
6~27 rpm
Spin off speed
78 rpm
Max drilling depth
75 m
Max drilling diameter
2200 mm
Max crowd force
180 kN
Max pull force
180 kN
Crowd stroke
1800 mm
Rope diameter
26 mm
Line pull (force 1st layer) of main winch
200 kN
Lind speed max of main winch
95 m/min
Rope diameter of auxiliary winch
26 mm
Line pull (force 1st layer) of auxiliary winch
200 kN
Outer pipe diameter of kelly bar
Φ406
Kelly bar (Standard）
5X14m(Friction)
4X14m(Interlocking)
Kelly bar (Extension）
5X17m(Friction)
4X17m(Interlocking)
HQY5000A Crane technical data (Lifting capacity 70 ton)
Low fuel consumption and high construction efficiency, drill pipe can be quickly raised and lowered.
One machine can be used for rotary drilling. It can also be used as a crawler crane and a dynamic compaction machine.
Heavy crawler crane chassis with super stability, suitable for large torque drilling, as well as ultra-deep hole drilling.
Perfect combination of full casing drilling rig for large torque casing drive, the realization of multi-functional integration of drilling machinery, casing drive drilling, rotary excavation, heavy hammer impact hard rock, rock grab, break old piles.
The super drilling rig has the advantages of high integration, small construction area, suitable for high density urban municipal infrastructure projects, marine River platform foundation construction, greatly saving auxiliary construction costs.
The AI technology module can be loaded to realize the intellectualization of the equipment.
SD2200 is a multi-functional full-hydraulic pile machine with advanced international technology. It can not only drill bored piles, percussion drilling, dynamic compaction on soft foundation, but also has all the functions of rotary drilling rig and crawler crane. It also surpasses the traditional rotary drilling rig, such as ultra-deep hole drilling, perfect combination with full casing drilling rig to carry out complex work. It is especially suitable for the construction of occlusive pile, bridge pile, Sea and river Port foundation pile and high precision pile foundation of subway. The new super drilling rig has the advantages of high construction efficiency, low energy consumption and green advantages, and has the function of intellectualization and multi-purpose. The super drilling rig can be used in all kinds of complex terrain, such as Cobble and Boulder stratum, hard rock stratum, karst cave stratum and thick quicksand stratum, and can also be used to break old piles and waste piles.
Frequently Asked Questions
What functions can the SD2200 perform?
The SD2200 is a highly versatile machine. It supports rotary drilling, extruding and expanding of piles, impact hammer tasks, casing drive/drilling, crawler crane hoisting, and lifting functions for pile driver reinforcing cages and drilling tools.
What are the maximum drilling capabilities of the SD2200?
It has a maximum drilling depth of 75 meters and can achieve a maximum drilling diameter of 2200 mm, making it highly effective for deep foundation projects.
Can the machine operate as a crawler crane and a dynamic compaction tamper?
Yes, when configured as a crane (using the HQY5000A undercarriage), it has a maximum lifting capacity of 70 tons. When configured as a tamper, it provides a dynamic compaction grade of 5000 kN.m (up to 12000 kN.m maximum) with a 25-ton rated hammer weight.
What optional casing rotator parameters are available?
An optional casing rotator with a 1500 mm diameter is available. It supports drilling diameters from 800 to 1500 mm, with a maximum rotating torque of 1800 kN.m and a maximum pulling force of 2690 kN.
What kinds of geological conditions is the SD2200 suitable for?
It can operate in diverse and complex strata, including cobble and boulder stratum, hard rock, karst caves, and thick quicksand. It is also strong enough to break up old or waste piles.
What makes the SD2200 an eco-friendly and smart choice?
The rig uses a single engine to power its multiple functions, saving energy and lowering fuel consumption. Additionally, it supports an AI technology module that allows for full equipment intellectualization.
