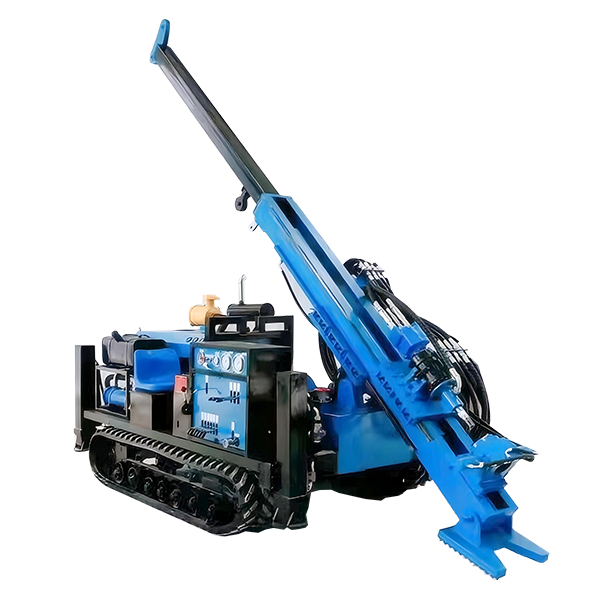

CE Certification SD-400 Core Drilling Rig - Hydraulic Powered Quotes, Exporter

Wireless remote control walking, automatic lifting of hydraulic mast, and automatic movement of rotary head to lift the drill are one of the major features of this drilling rig. The automatic lifting of mast and automatic movement of rotary head greatly alleviate the difficulty of on-site construction, effectively reduce the number of construction people, and save costs. The drilling rig adopted a 78KW engine with strong power and large torque, which is suitable for metal mining in various complex formations. This SD-400 Full Hydraulic Core Drilling Rig is a new type of track type multifunctional fully hydraulic drilling rig, which is connected with hydraulic oil pump by a diesel engine, providing power for the hydraulic impact rotary head and hydraulic rotating rotary head. Using the hydraulic impact rotary head inside the drilling rig, high-frequency impact is applied to the top of the core drilling tube, and the core drilling tube is drilled by impact, achieving fast drilling speed. Hydraulic impact can maintain the core as it is, meeting the requirements of environmentally friendly core extraction operations. The hydraulic rotary head inside the drilling rig can be used to meet the requirements of exploration, rotary coring and rotary drilling. Thus, the drilling rig can be used for three purposes, greatly reducing the purchasing cost for users while meeting their various operational needs.

Send Inquiry

Product Description

■ Product Features

✔

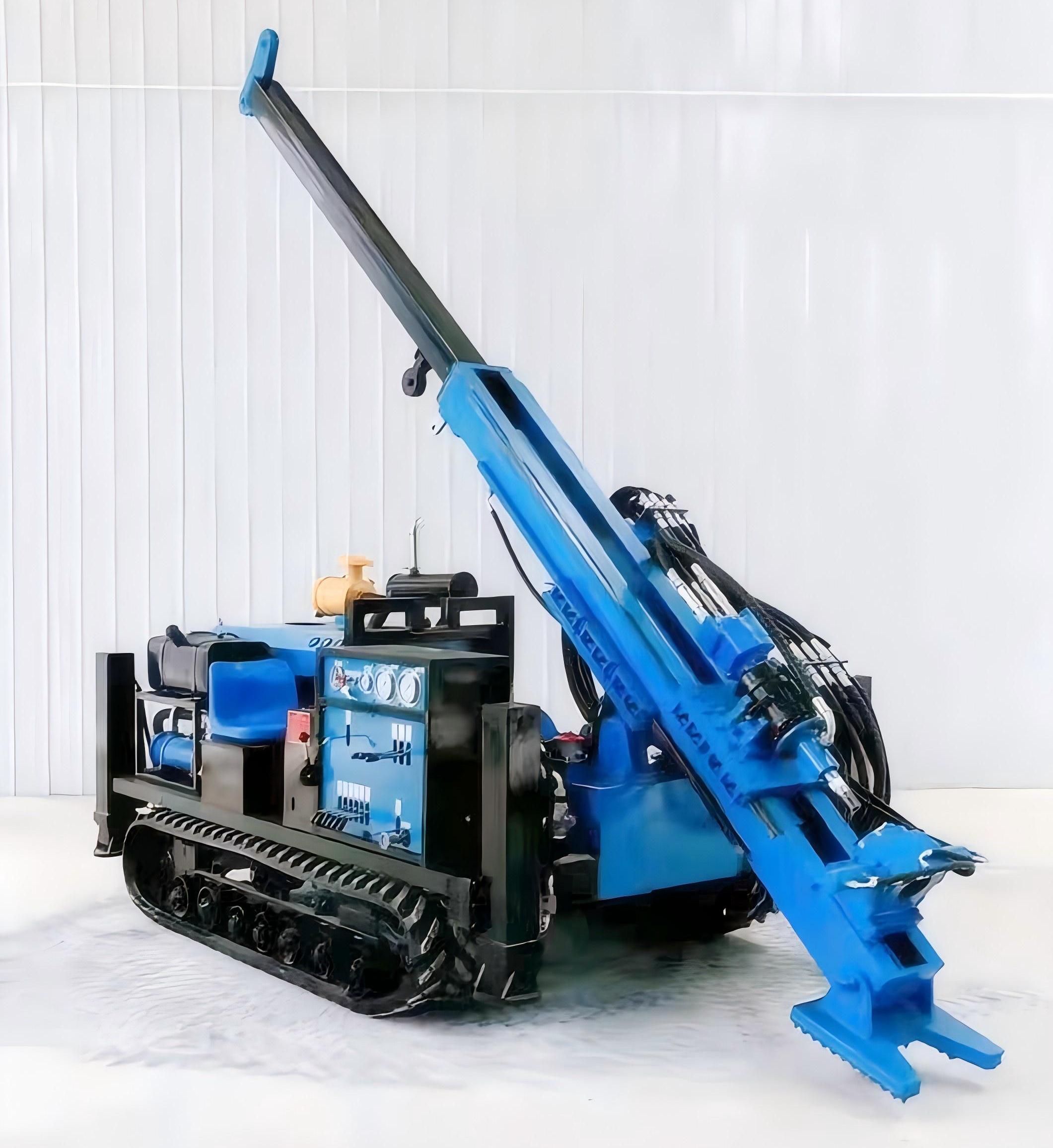

Efficient, lightweight, mast touching tracked fully hydraulic drilling rig.

✔

Can meet the drilling requirements of 45°-90° inclined holes.

✔

Ideal for geological drilling, rope core retrieval, exploration, and engineering survey.

✔

Utilizes thin-walled diamond rope core drilling technology with a thin-walled drill bit.

✔

Large core diameter with small torque resistance, achieving high core extraction efficiency.

■ Technical Specifications

Drilling Capacity
Caliber	HTW-NTW-BTW
Depth	200-400-500(M)
Hydraulic system
Rated pressure	20(MPA)
Rated flow rate	160(L/min)
Heat dissipation method	forced air cooling
Engine
Brand	Yuchai
Type	Turbo
Rated speed	2400(RPM)
Rated power	70(kw)
Drilling system
Torque	350-700(N.M)
Speed	1300(RPM)
Tower type	Integrated ground contact type
Go ahead with the process	1900(MM)
Drilling tower angle	45-90°
Boosting power	14(T)
Give in strength	7(T)
Transmission type	Direct connection box
Rope hoist
Boosting power	600(KG)
Speed	100-300(RPM)
Diameter of steel wire rope	6(MM)
Rope capacity	600(M)
Walking system
Operation type	Manual+Remote control
Walking speed	3.5(KM/H)
Climbing angle	40°
Mud pump
Model	BW-100
Flow	0-100(L/MIN)
Pressure	0-7(MPA)
Size and weight
Transport size	4200×2050×2300(MM)
Whole machine weight	4.3(T)

■ Frequently Asked Questions (FAQ)

What drilling capabilities does this tracked hydraulic drilling rig support?

This drilling rig is capable of drilling depths between 200 to 500 meters, supporting HTW, NTW, and BTW calibers.

Can this rig handle angle or inclined drilling?

Yes, the integrated ground contact type drilling tower can easily adjust to meet drilling requirements of inclined holes from 45° to 90°.

What type of engine and power system is configured?

The rig is powered by a Yuchai Turbo engine with a rated power of 70 kW and a rated speed of 2400 RPM.

How is the walking system operated and controlled?

The walking system supports dual operation modes: manual control and remote control. It has a climbing angle capabilities up to 40° and a travel speed of 3.5 KM/H.

What are the dimensions and weight for transportation?

The transport dimensions are 4200 × 2050 × 2300 mm, and the entire machine weight is 4.3 tons, making it efficient and easy to move.
