Overview:

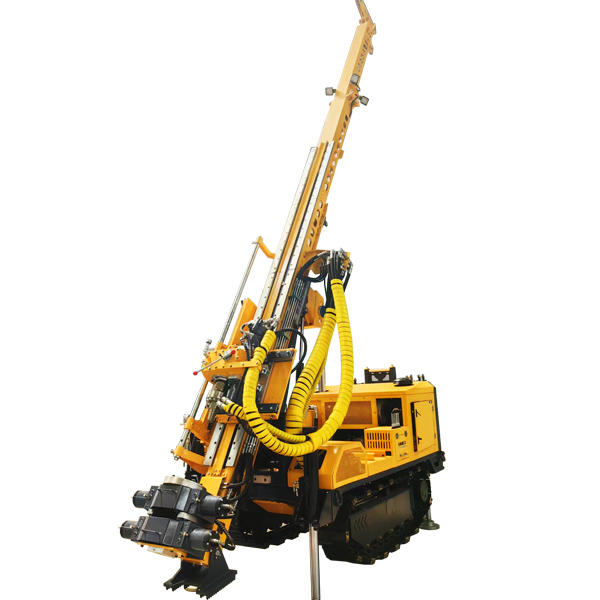

SM75 is a multi-purpose hydraulic-driven geotechnical drill rig. Built on a track chassis, it offers functions of Rotary and Percussion / RC drilling choices, suitable for ground engineering, geotechnical drilling, geothermal development, mineral exploration, etc.
The specially designed rotary drill mast is compact and foldable/ telescopic. The SPT percussion drill mast is mounted side-by-side and can be positioned sliding.
The high-performance heavy tracks are remote controlled for walk, as well as for lifting and lowering. The rig is easy for moving and positioning, highly maneuverable.
Equipped with hydraulic rotary top drive, it is capable for core drill or soil drill, single pipe drill or wireline drill as needed.
By up-to-date technology, the rig is capable for automated Standard Penetration Test (SPT), with a sampling depth of up to 50 meters and an SPT layer depth of more than 20 meters. The hammering frequency can reach 50 times/m, and the automatic counter makes instant test recording.
Telescopic mast system is capable for drill rods of 1.5-3 meters long.
The crawler chassis can be remotely controlled for walking, lifting and levelling, with high maneuverability. The rig can move freely by itself on the drill site with multiple tools loaded on it.
The soil sampling system can maintain the original state of the soil sample while performing SPT and gravity survey tests.
Options
Mud pump
Mud mixing system
Sampling device
Automatic hydraulic rod wrench
Automatic Standard Penetration Test Device (SPT)
Reverse Circulation Drilling System (RC)
Technical Data
Capacity (Core Drilling)
BQ
400m
NQ
300m
HQ
80m
The actual drilling depth is subject to the earth formation and drilling methods.
General Specifications
Weight
5580 KG
Dimension
2800x1600x1550mm
Pull up
130 KN
Drill rods
OD 54mm - 250mm
Speed of rotary head
0-1200 rpm
Maximum torque
4000 Nm
Power Unit
Engine power
75 KW
Type
Water-cool, turbo

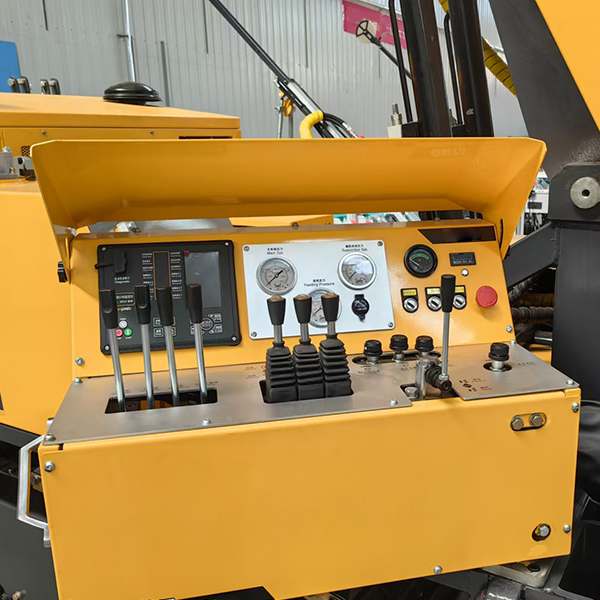

Control Unit
Main valve flow
100L/m
System pressure
21 Mpa
Fuel Tank Unit
Volume
100 L
Cooling method
Air / water
Hydraulic Winch
Wireline length
400m, max
Hydraulic motor
160cc
Clamps
Type
Hydraulic open/close
Clamping force
13,000 KG
Hydraulic wrench (opt.)
55 KN
Mud Pump Unit (Optional)
Drive
Hydraulic
Flow & pressure
100 Lpm, 80 bar
Weight
2x60 KG
Tracks (Optional)
Drive
Hydraulic
Max gradeability
30°
Control method
Wireless remote control
Dimension
1600x1200x400mm
Frequently Asked Questions
What is the maximum core drilling depth capability?
The drilling rig features a core drilling capacity of up to 400 meters for BQ size, 300 meters for NQ size, and 80 meters for HQ size. Please note that actual depth depends on earth formation and drilling methods.
What are the capabilities of the Standard Penetration Test (SPT) system?
Utilizing up-to-date technology, the rig supports automated SPT with a sampling depth up to 50 meters and an SPT layer depth exceeding 20 meters. It features a hammering frequency of up to 50 times per minute and an automatic counter for instant test data recording.
Can the crawler chassis be operated remotely?
Yes, the crawler chassis can be controlled via wireless remote control for walking, lifting, and levelling. This high maneuverability allows the rig to move independently on the drilling site even with multiple tools loaded.
What kind of engine powers the drilling rig?
The rig is powered by a water-cooled, turbo power unit with an engine power rating of 75 KW.
What optional systems can be integrated into this rig?
A variety of options are available, including a mud pump unit, mud mixing system, sampling device, automatic hydraulic rod wrench, automatic Standard Penetration Test (SPT) device, and a Reverse Circulation (RC) drilling system.
What are the physical dimensions and weight of the standard unit?
The standard unit has a weight of 5580 KG and overall dimensions of 2800 x 1600 x 1550 mm.
